NSN 6150-01-123-7278 C89628, C8962-8, 71773

Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY

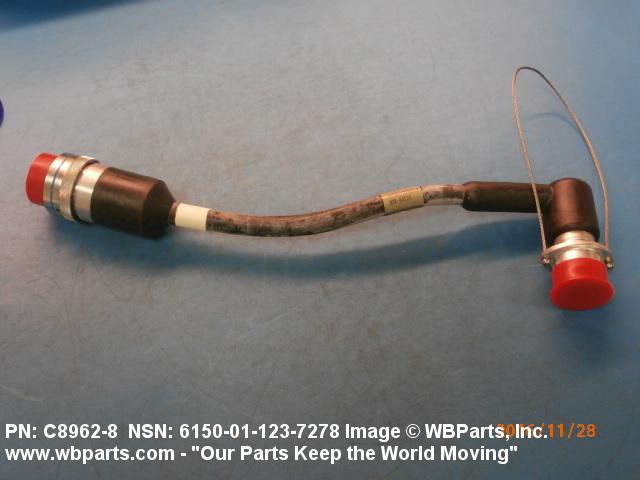

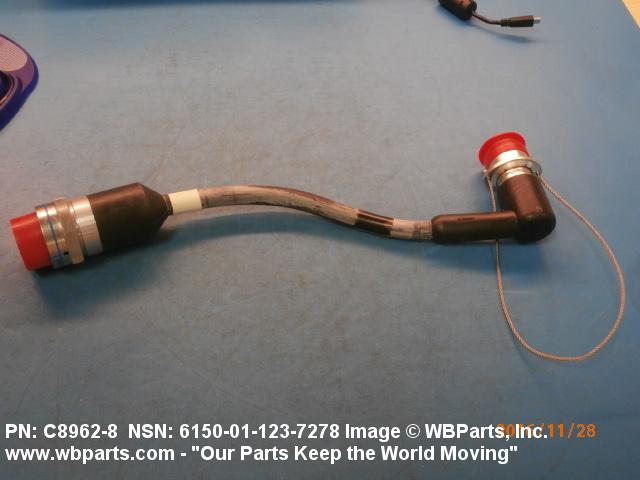

6150-01-123-7278 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment

Part Alternates: C89628, C8962-8, 71773, 7-1773, 78101081, 7810108-1, 9443100, 6150-01-123-7278, 01-123-7278, 6150011237278, 011237278

Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
61	16 DEC 1981	01-123-7278	00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL )

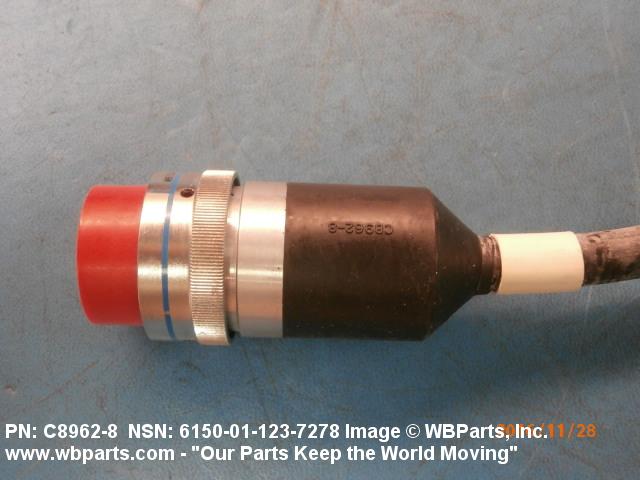

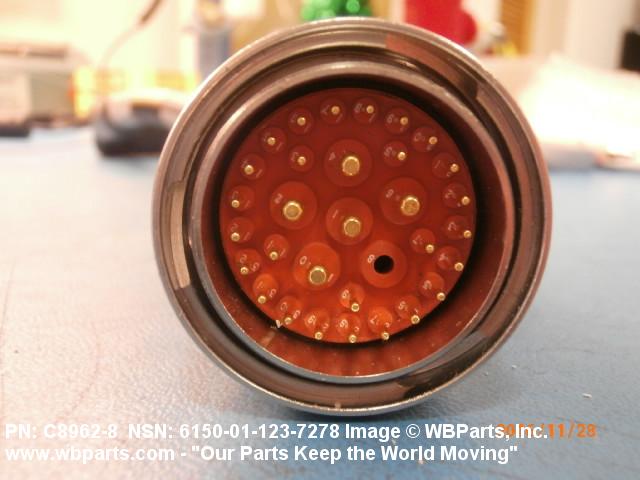

Drawings & Photos | NSN 6150-01-123-7278

Part Number	Request Date	QTY	Origin
6150-01-123-7278	2020-10-288	50	Singapore
6150-01-123-7278	2020-10-288	50	Singapore
6150-01-123-7278	2020-02-56	2	United States
6150-01-123-7278	2019-02-35	1	DIBBS-RFPs
6150-01-123-7278	2018-10-294	82	DIBBS
6150-01-123-7278	2017-06-157	76	DIBBS
6150-01-123-7278	2016-11-321	10	Indonesia
6150-01-123-7278	2014-02-43	1	DIBBS-RFPs
6150-01-123-7278	2014-01-01	76	DIBBS
6150-01-123-7278	2013-10-283	64	DIBBS
6150-01-123-7278	2013-10-275	64	DIBBS
6150-01-123-7278	2011-08-221	225	DIBBS
6150-01-123-7278	2011-07-196	225	DIBBS
6150-01-123-7278	2010-12-340	212	DIBBS
6150-01-123-7278	2009-06-177	138	DIBBS

Cross Reference | NSN 6150-01-123-7278

Part Number	Cage Code	Manufacturer
7-1773	16275	DUCOMMUN LABARGE TECHNOLOGIES, INC.
7810108-1	02304	UNIVOX-CALIFORNIA
9443100	00QR4	EDEL ENGINEERING DEVELOPMENT CO.

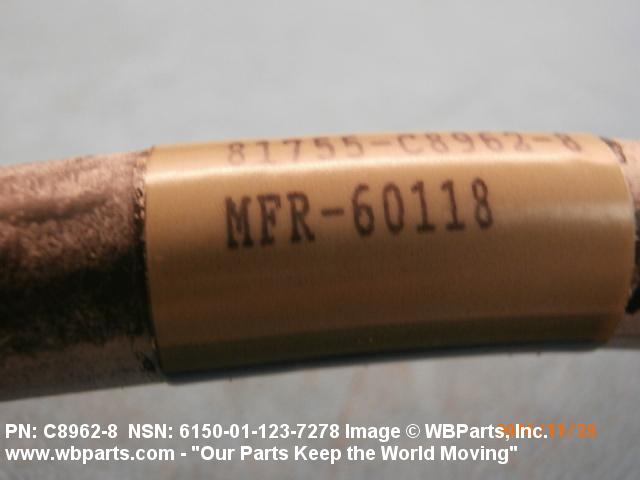

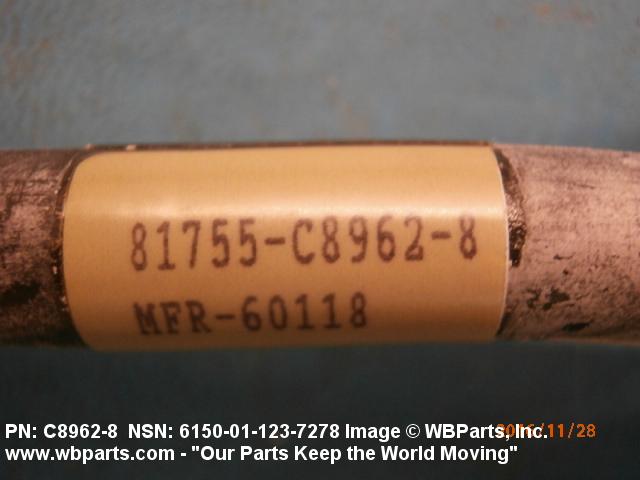

C8962-8	0EDZ9	WITTER MFG., INC.
C8962-8	16275	DUCOMMUN LABARGE TECHNOLOGIES, INC.
C8962-8	27899	WILLIAMSRDM, INC. DBA WILLIAMS-PYRO
C8962-8	60118	DCX-CHOL ENTERPRISES INC DBA DCX DIVISION
C8962-8	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6150-01-123-7278

Compare

Related Products | NSN 6150-01-123-7278

6150-01-123-7291, 6150-01-123-7424, 6150-01-123-7612, 6150-01-123-9145, 6150-01-124-0201

Technical Data | NSN 6150-01-123-7278

Characteristic	Specifications
CONDUCTOR QUANTITY	8
CONDUCTOR FORM	STRANDED ALL CONDUCTORS
MATERIAL	COPPER CORE CONDUCTOR ALL CONDUCTORS
ROUND CONDUCTOR SIZE	20 AWG ALL CONDUCTORS
CONDUCTOR ARRANGEMENT AND QUANTITY	8 SINGLES

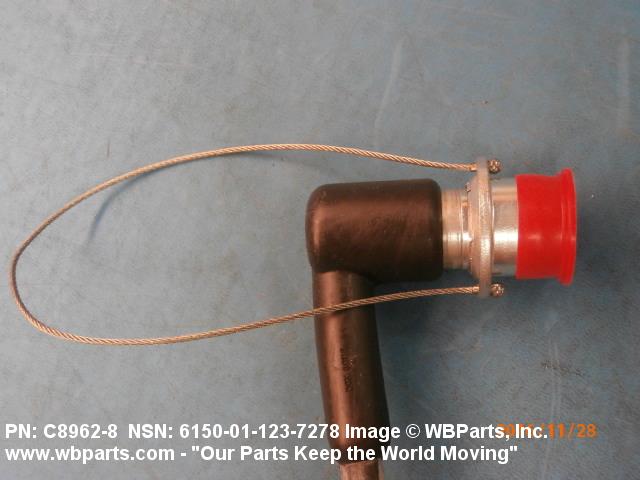

STYLE DESIGNATOR	35 INTERNAL STRAIGHT AND INTERNAL ANGLE CONNECTOR

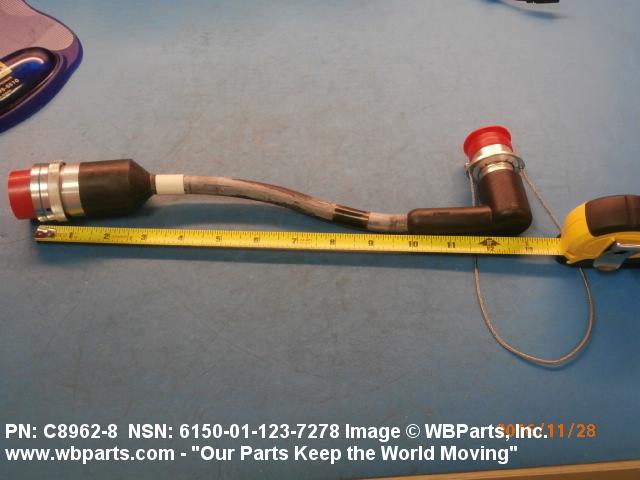

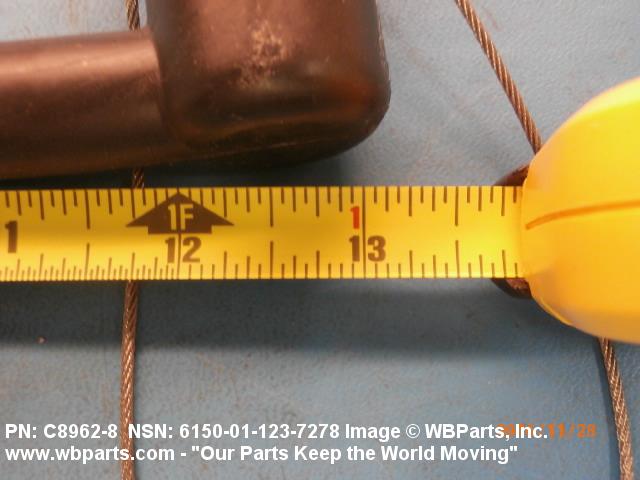

OVERALL LENGTH	13.000 INCHES
CROSS-SECTIONAL SHAPE STYLE	6 ROUND

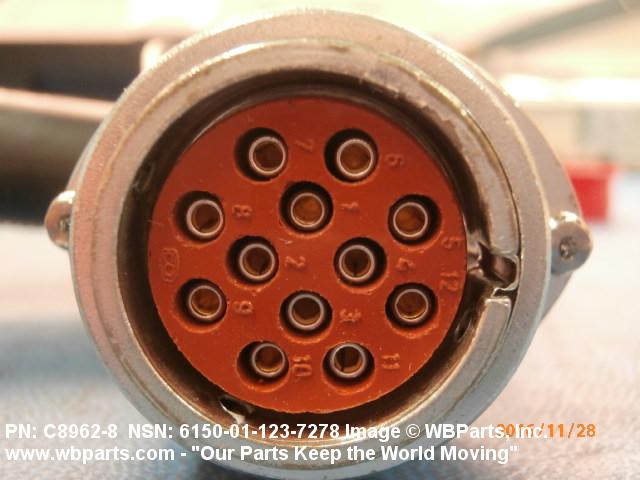

TERMINATION TYPE	CONNECTOR PLUG BOTH ENDS ALL CONDUCTORS
TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER	DM9601-1912P-1A 1ST END ALL CONDUCTORS M83723/78G22327 2ND END ALL CONDUCTORS
SPECIAL FEATURES	CABLE ASSY,UMBILICAL
CRITICALITY CODE JUSTIFICATION	AGAV
III USAGE DESIGN	POWER
III END ITEM IDENTIFICATION	F-16 AIRCRAFT

Restrictions/Controls & Freight Information | NSN 6150-01-123-7278

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	Y	The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061130	CABLE ASSEMBLY
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	743	unknown
Originating Activity Code	SU	Ogden Air Logistics Center Hill AFB, UT 84056-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6150-01-123-7278

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	WF	SU:F-16 AIR COMBAT FIGHTER
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	P	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
