NSN 6150-01-147-6107 MS250832BB4, MS25083-2BB4, MS250835BB4
Product Details | ELECTRICAL LEAD

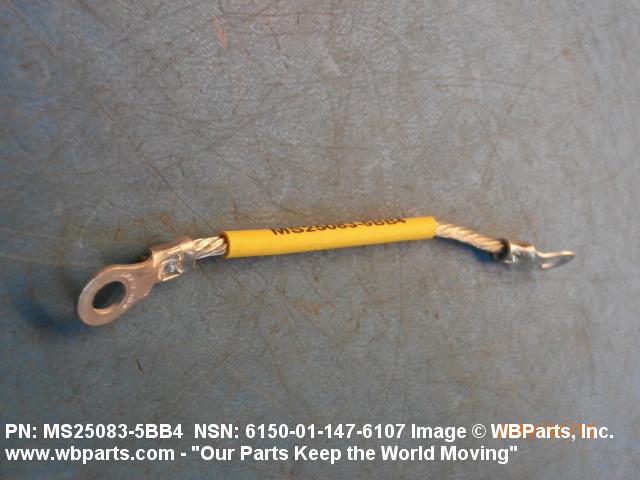

6150-01-147-6107 A definite length of one-conductor electrical wire, wire braid, or other conductive material, except cable or cord, one or both ends of which are processed or terminated. The lead may be of any size or shape, insulated or uninsulated. See also LEAD, TEST and BUS CONDUCTOR. Excludes LEAD, STORAGE BATTERY; LEAD, IGNITION, ENGINE, and items having attached switches, lampholders, suppressors, resistors, and the like.20511350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: MS250832BB4, MS25083-2BB4, MS250835BB4, MS25083-5BB4, M83413/8-A03BB, M83413/8-A04BB, M83413/8-G004BB, M834138A03BB, M834138A04BB, M834138G004BB, BACJ40D1016, BACJ40D-10-16, MIL-C-83413/8, MIL-C-83413/8A, MILC834138, MILC834138A, MIL-DTL-53413/8-G004, MILDTL534138G004, MIL-DTL-83413/8B, MIL-DTL-83413/8-G004BB, MILDTL834138B, MILDTL834138G004BB, MILDTL83413B, MIL-DTL-83413B, MILDTL83413C, MIL-DTL-83413C , 10173005 , 6150-01-147-6107, 01-147-6107, 6150011476107, 011476107
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 18 FEB 1983 | 01-147-6107 | 04581 ( LEAD, ELECTRICAL ) |

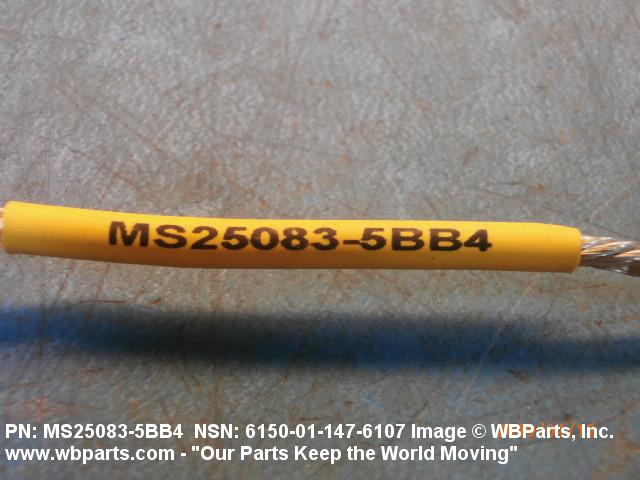

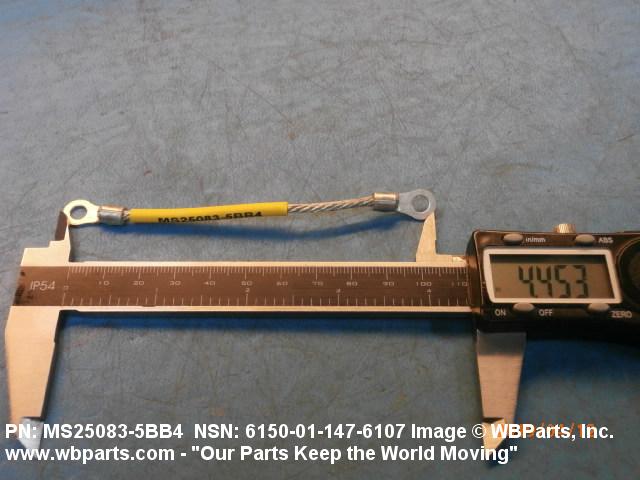

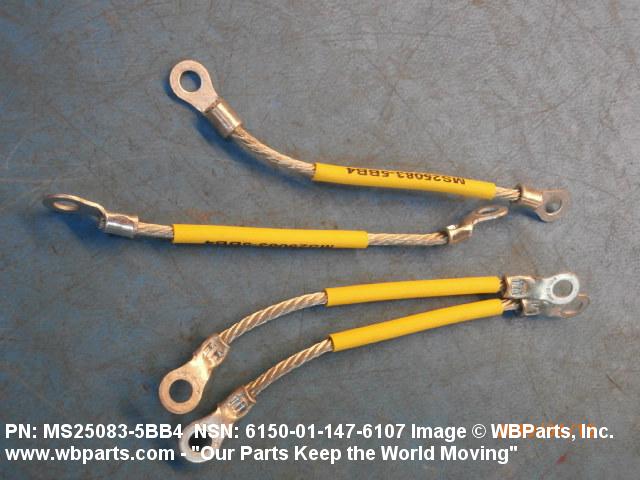

Drawings & Photos | NSN 6150-01-147-6107
Demand History | NSN 6150-01-147-6107
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS250835BB4 | 2025-01-21 | 1500 | us |
| M834138G004BB | 2025-01-08 | 1 | Malaysia |
| 6150-01-147-6107 | 2025-01-05 | 2000 | us |
| 6150-01-147-6107 | 2021-11-305 | 210 | Malaysia |
| M834138G004BB | 2021-05-145 | 27 | US |
| MS250832BB4 | 2021-04-102 | 10 | Malaysia |
| MS250832BB4 | 2021-02-54 | 42 | Malaysia |
| MS250832BB4 | 2021-02-53 | 42 | MY |
| MS250835BB4 | 2020-10-293 | 3 | US |
| MS25083-2BB4 | 2016-06-155 | 100 | |
| MS25083-2BB4 | 2016-02-60 | 100 | |
| MS250832BB4 | 2015-11-328 | 2 | US |
| 6150-01-147-6107 | 2015-05-132 | 1087 | DIBBS |
| 6150-01-147-6107 | 2015-03-89 | 1331 | DIBBS |
| 6150-01-147-6107 | 2014-11-320 | 727 | DIBBS |
| 6150-01-147-6107 | 2014-08-230 | 950 | DIBBS |
| 6150-01-147-6107 | 2014-07-210 | 1310 | DIBBS |
| 6150-01-147-6107 | 2012-06-166 | 2 | United States |
| MS250835BB4 | 2012-06-164 | 2 | United States |
| MS250832BB4 | 2011-06-171 | 10 | France |
| MS250832BB4 | 2010-11-333 | 25 | United States |
| M834138A03BB | 2010-09-272 | 2 | US |
| MS250832BB4 | 2010-03-69 | 25 | US |
| 6150-01-147-6107 | 2008-12-353 | 3672 | DIBBS |
| 6150-01-147-6107 | 2008-11-316 | 7698 | DIBBS |
| 6150-01-147-6107 | 2008-10-283 | 4347 | DIBBS |
| 6150-01-147-6107 | 2007-05-127 | 10 | Taiwan |
Cross Reference | NSN 6150-01-147-6107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACJ40D-10-16 | 81205 | THE BOEING COMPANY DBA BOEING |
| M83413/8-A03BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83413/8-A04BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M83413/8-G004BB | 0XPA4 | A F TECHNOLOGIES INC |
| M83413/8-G004BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-83413/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-83413/8A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-53413/8-G004 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-83413/8-G004BB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-83413/8B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-83413B | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-83413C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25083-2BB4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS25083-5BB4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-147-6107
Related Products | NSN 6150-01-147-6107
Technical Data | NSN 6150-01-147-6107
| Characteristic | Specifications |
|---|---|

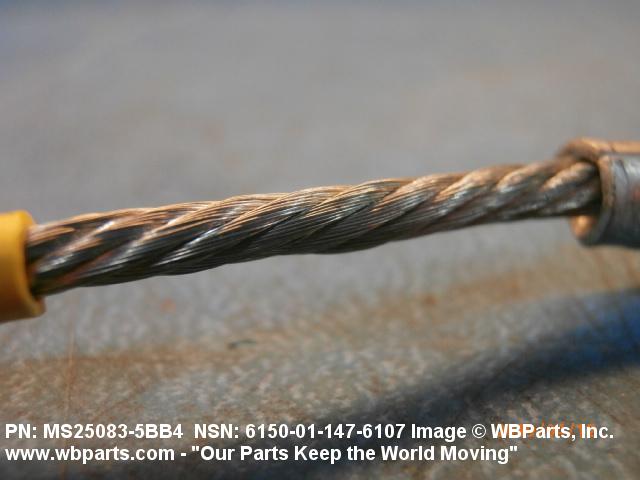

| CONDUCTOR FORM | STRANDED SINGLE CONDUCTOR |
| MATERIAL | COPPER CORE CONDUCTOR SINGLE CONDUCTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B172,SOFT ASSN STD ALL MATERIAL RESPONSES CORE CONDUCTOR SINGLE CONDUCTOR |
| SURFACE TREATMENT | TIN CORE CONDUCTOR SINGLE CONDUCTOR |
| ROUND CONDUCTOR SIZE | 12 AWG SINGLE CONDUCTOR |
| STRAND QUANTITY PER CONDUCTOR | 259 SINGLE CONDUCTOR |
| STRAND AWG SIZE PER CONDUCTOR | 36 SINGLE CONDUCTOR |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |

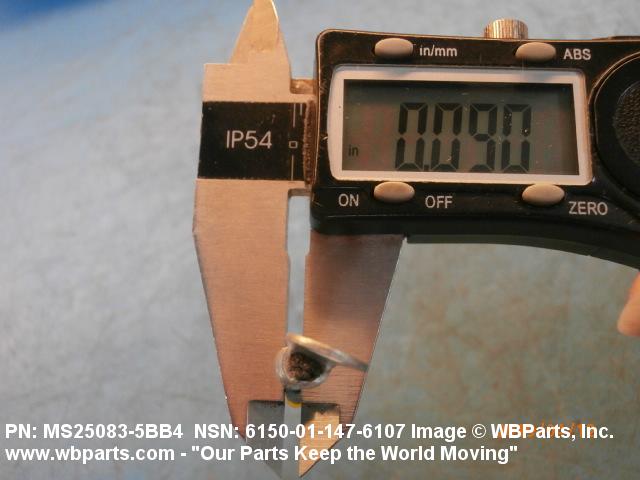

| CROSS SECTION OUTSIDE DIAMETER | 0.080 INCHES NOMINAL |

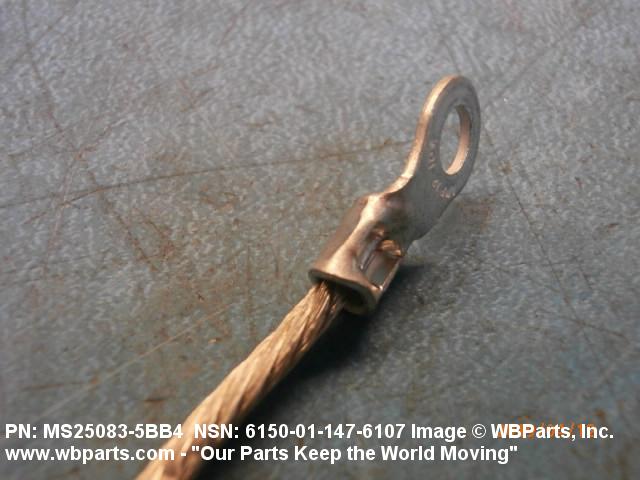

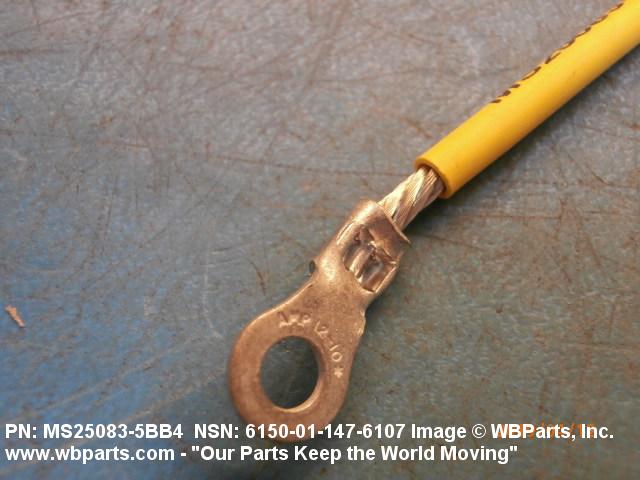

| TERMINATION TYPE | LUG TERMINAL W/MOUNTING HOLE BOTH ENDS SINGLE CONDUCTOR |

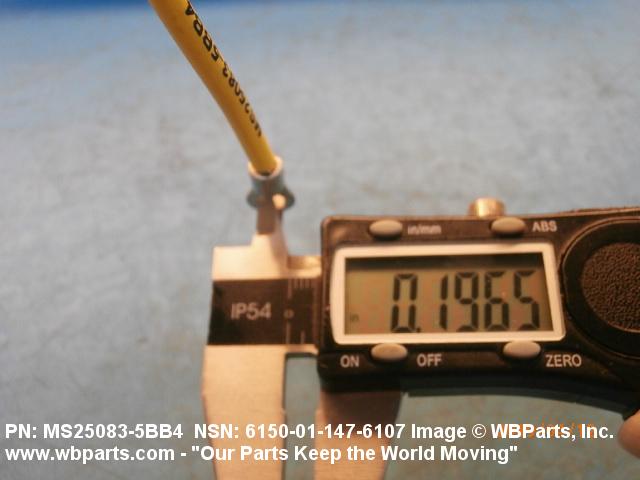

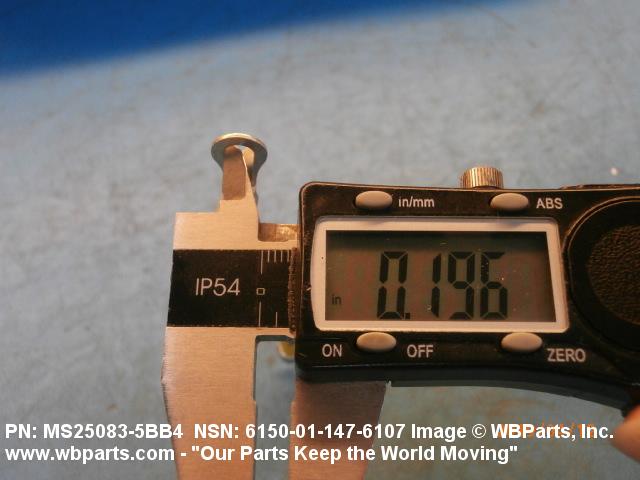

| TERMINAL LUG APERTURE SIZE | 0.196 INCHES 1ST END SINGLE CONDUCTOR 0.196 INCHES 2ND END SINGLE CONDUCTOR |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | MS25036-112 BOTH ENDS SINGLE CONDUCTOR |
| TERMINAL COMMERCIAL AND GOVERNMENT ENTITY CODE | 96906 BOTH ENDS SINGLE CONDUCTOR |
| LEAD OVERALL LENGTH | 4.372 INCHES NOMINAL |
| LEAD PULL STRENGTH | 110.0 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-83413/8 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83413/8-G004BB |
Restrictions/Controls & Freight Information | NSN 6150-01-147-6107
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062360 | LEADS/LEAD WIRES ELEC ARTICLE ETC |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | ZB | Belgium ZC ZD |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-147-6107
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | FX | TG:F-15 EAGLE |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | QE | FIGHTERAIRCRAFT-FIRST(F18 E/F) |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
