NSN 6150-01-169-1865 MS252268N3, MS25226-8N-3, 01-169-1865
Product Details | CONDUCTOR BUS
6150-01-169-1865 An item made of rigid or semirigid conductive material, usually employed in the distribution of heavy electrical current. It is cut to specific lengths and is shaped, drilled, tapped or otherwise terminated. It may be fabricated in any of various cross-sectional shapes and sizes and may include terminal lugs. It may be designed to connect two or more screw or stud terminations. Excludes TERMINAL STRIP, GROUNDING.
Part Alternates: MS252268N3, MS25226-8N-3, 6150-01-169-1865, 01-169-1865, 6150011691865, 011691865
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 04 JAN 1984 | 01-169-1865 | 32758 ( BUS, CONDUCTOR ) |

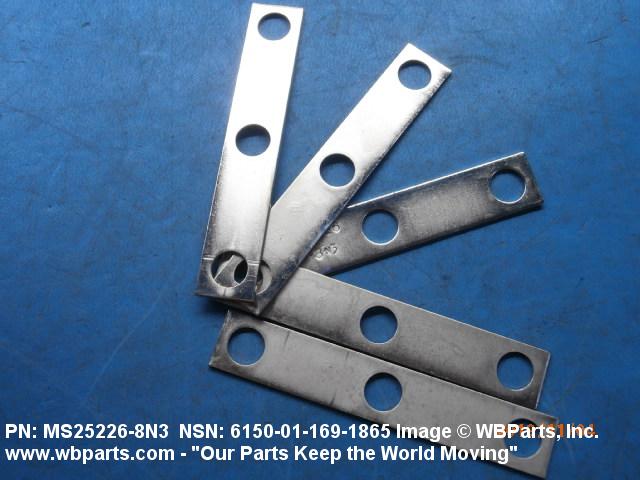

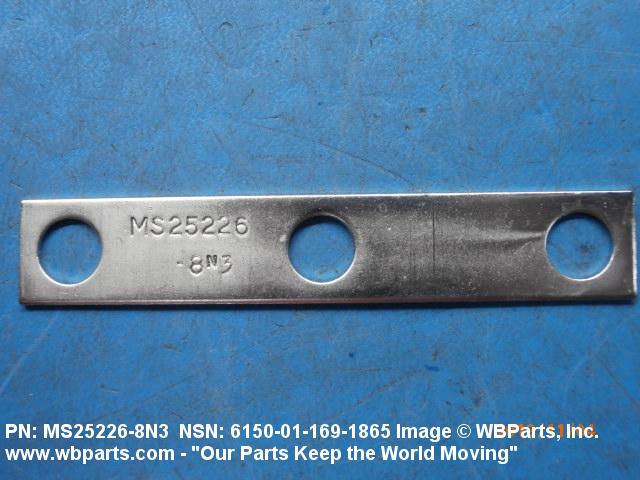

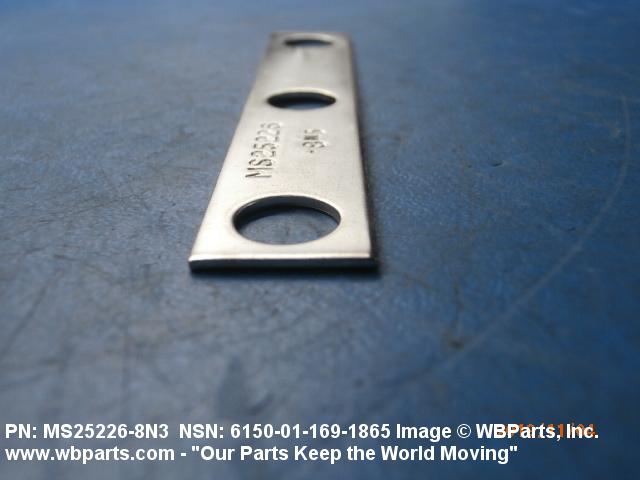

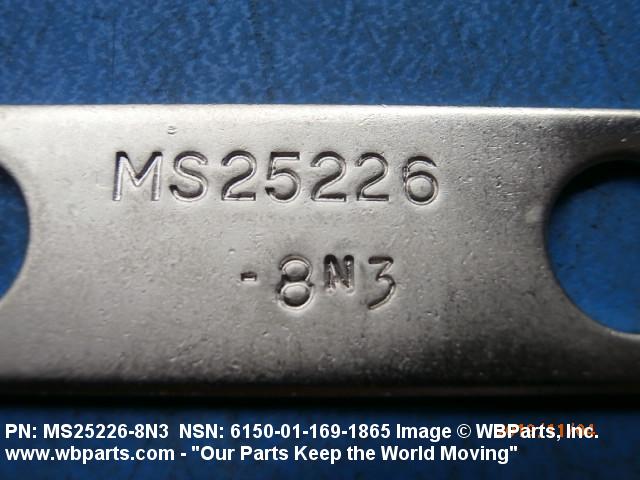

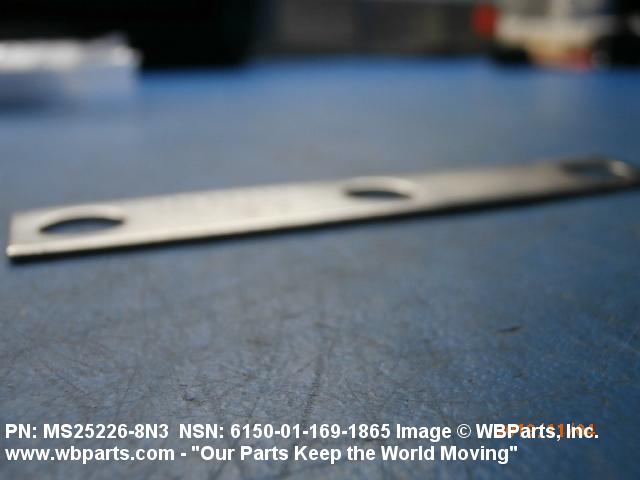

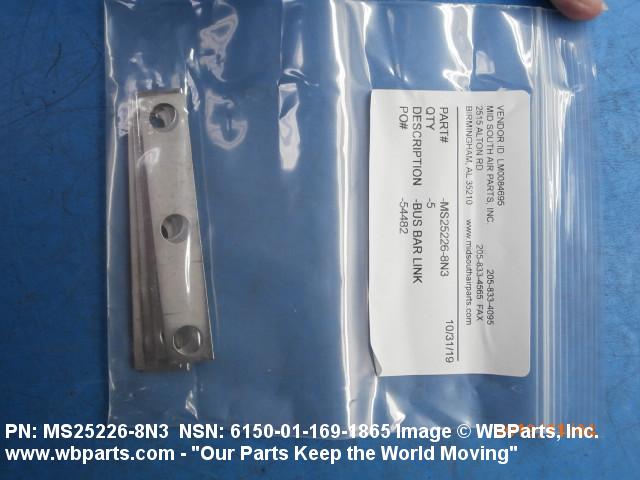

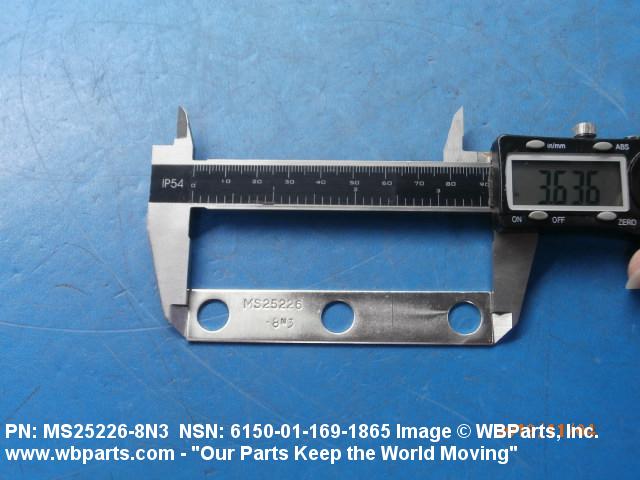

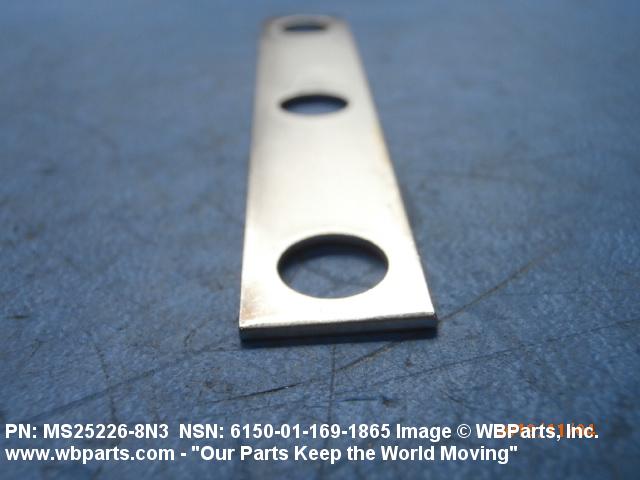

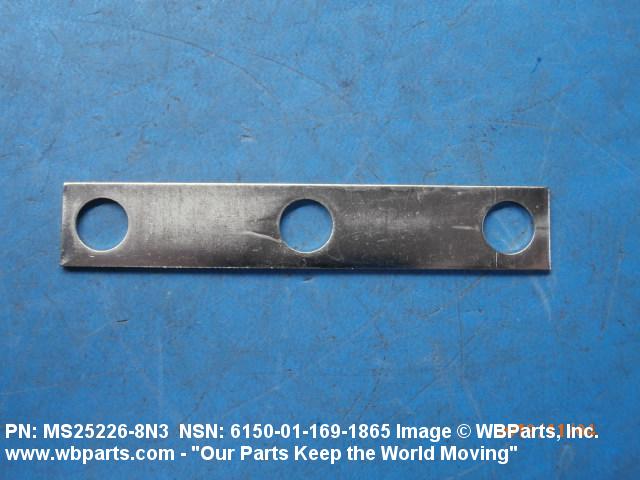

Drawings & Photos | NSN 6150-01-169-1865
Demand History | NSN 6150-01-169-1865
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS25226-8N-3 | 2025-05-140 | 13 | DIBBS |
| MS25226-8N-3 | 2025-04-107 | 1 | DIBBS |
| MS25226-8N-3 | 2025-03-86 | 1 | DIBBS |
| MS25226-8N-3 | 2024-07-192 | 1 | DIBBS |
| MS25226-8N-3 | 2024-06-158 | 1 | DIBBS |
| MS252268N3 | 2024-04-113 | 2 | United States |
| MS252268N3 | 2024-04-103 | 28 | United States |
| MS252268N3 | 2024-04-102 | 28 | United States |
| MS25226-8N-3 | 2024-02-32 | 1 | DIBBS |
| MS25226-8N-3 | 2023-12-361 | 1 | DIBBS |
| MS252268N3 | 2019-09-263 | 5 | United States |
Cross Reference | NSN 6150-01-169-1865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS25226-8N-3 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-01-169-1865
Technical Data | NSN 6150-01-169-1865
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-502 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-C-576 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | NICKEL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290, CLASS 1, TYPE 5 FED SPEC SINGLE TREATMENT RESPONSE |
| BODY CROSS-SECTIONAL SHAPE | RECTANGULAR W/EDGE RADIUS |
| CONSTRUCTION | SOLID |

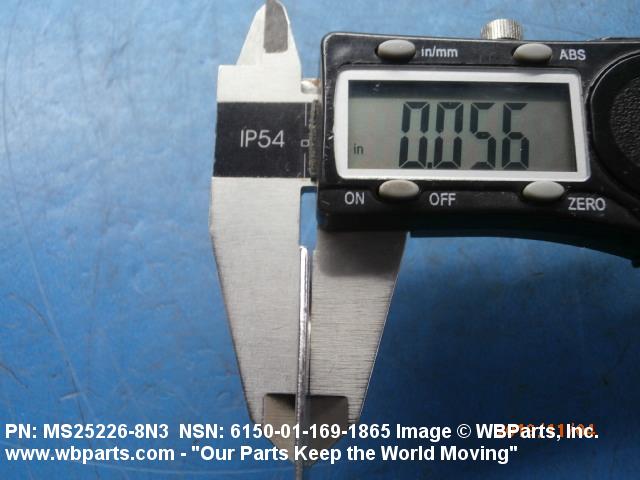

| CROSS-SECTIONAL HEIGHT | 0.051 INCHES NOMINAL |

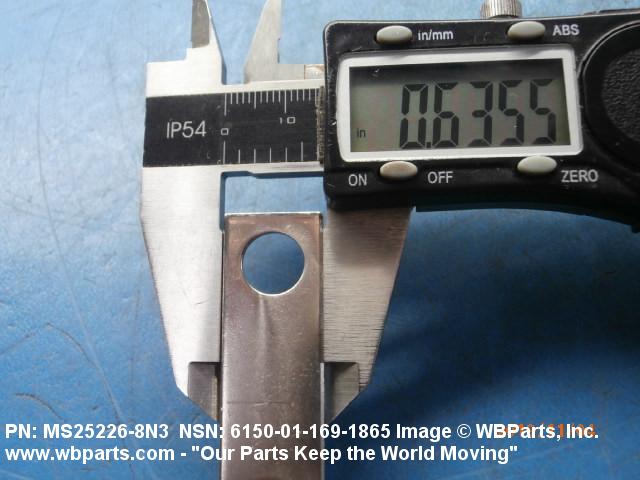

| CROSS-SECTIONAL WIDTH | 0.625 INCHES NOMINAL |
| OVERALL LENGTH | 3.625 INCHES NOMINAL |

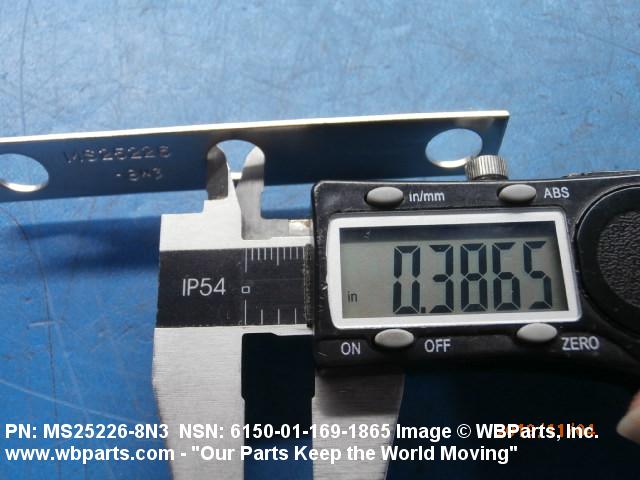

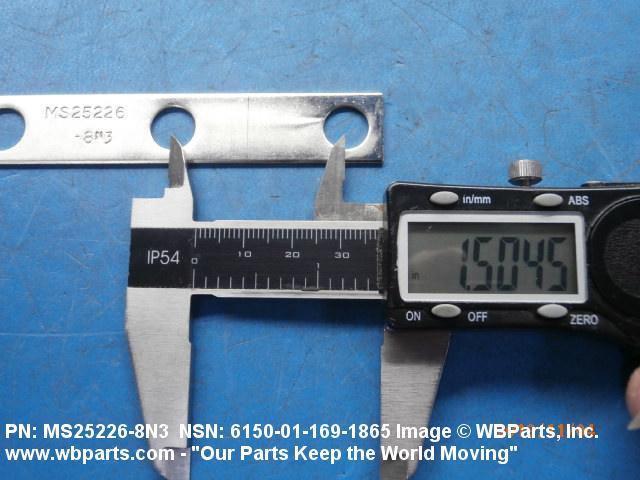

| MOUNTING CONFIGURATION | THREE 0.386 IN. DIA HOLES 1.500 IN. C TO C |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25226-8N-3 |
Restrictions/Controls & Freight Information | NSN 6150-01-169-1865
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
