NSN 6150-01-193-4958 11831134, 01-193-4958, 011934958

Product Details | BRANCHED ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY


6150-01-193-4958 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL with branches (forks), and having one or more ends processed and/or terminated in fittings to provide for connection to other items. Excludes LEAD, TEST. See also wiring harness.20611050013Nuclear Bombs11150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance59950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment

Part Alternates: 11831134, 6150-01-193-4958, 01-193-4958, 6150011934958, 011934958

Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment

Supply Group (FSG) NSN Assign. NIIN
61 04 NOV 1984 01-193-4958

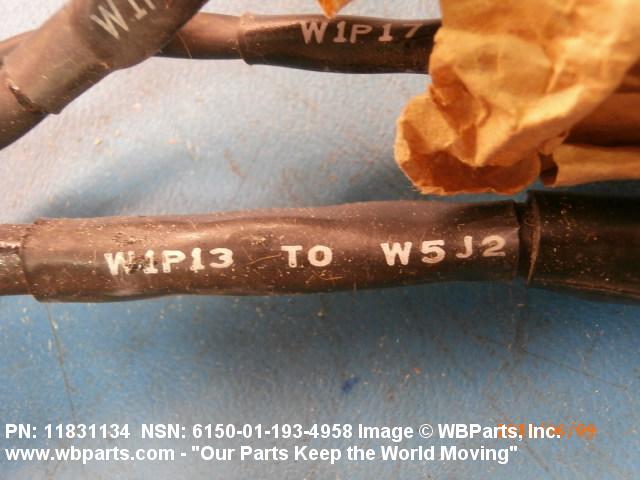

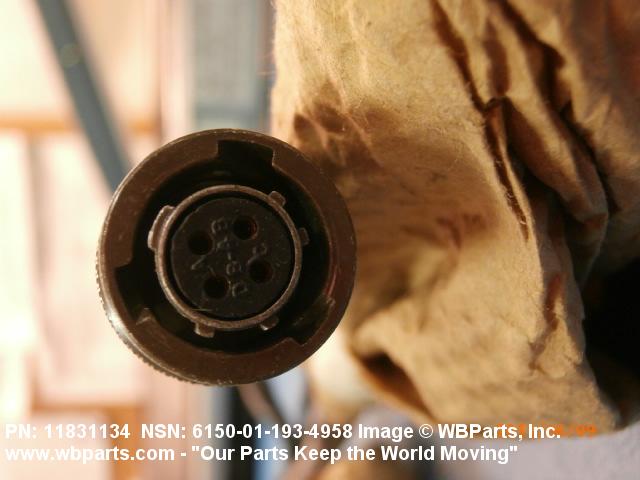

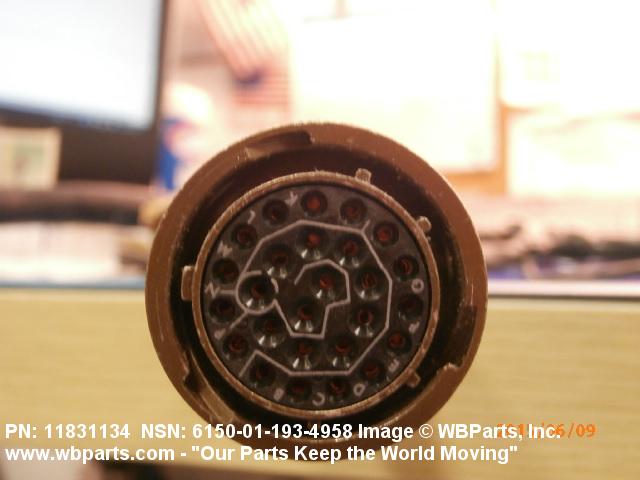

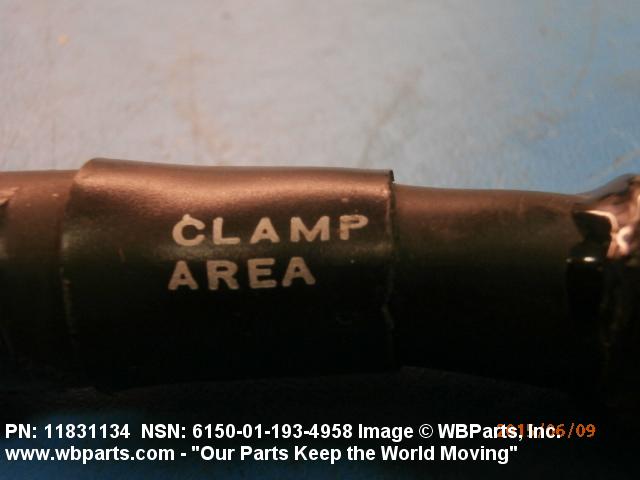

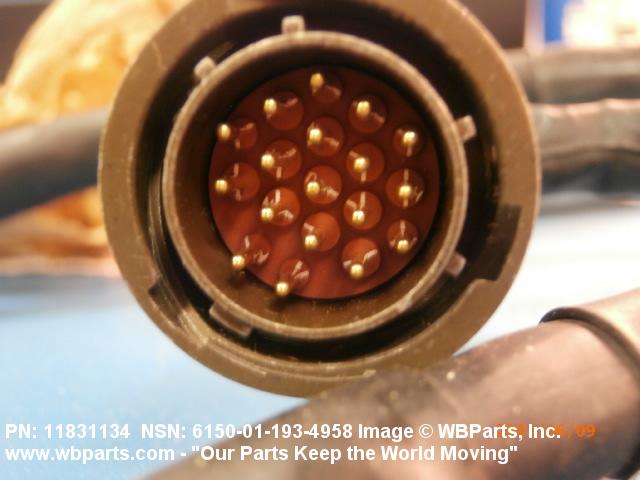

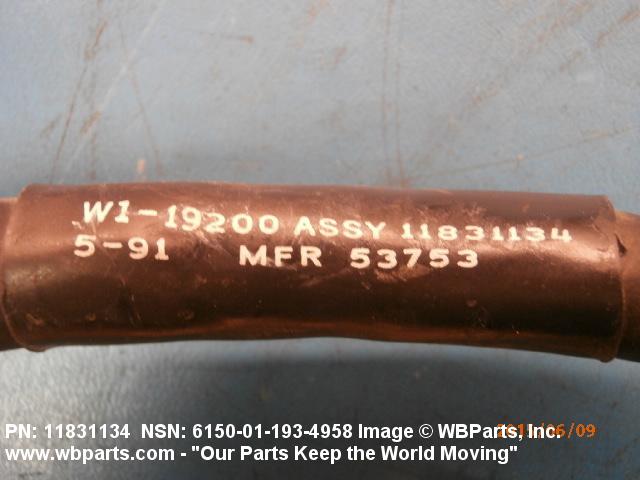

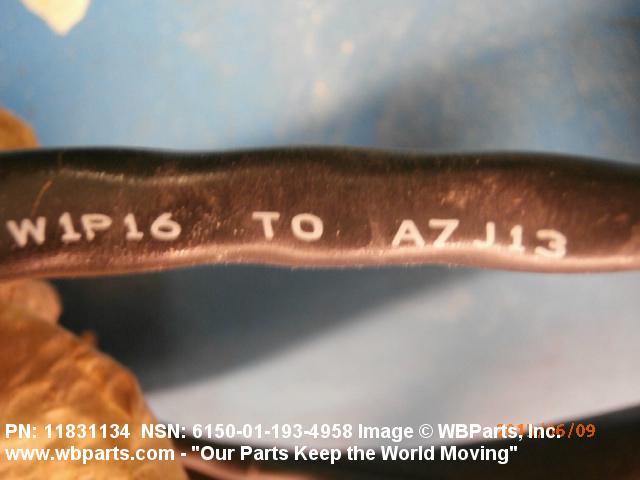

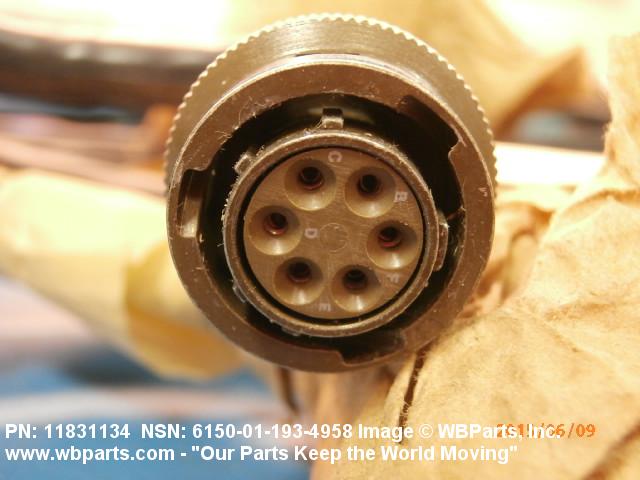

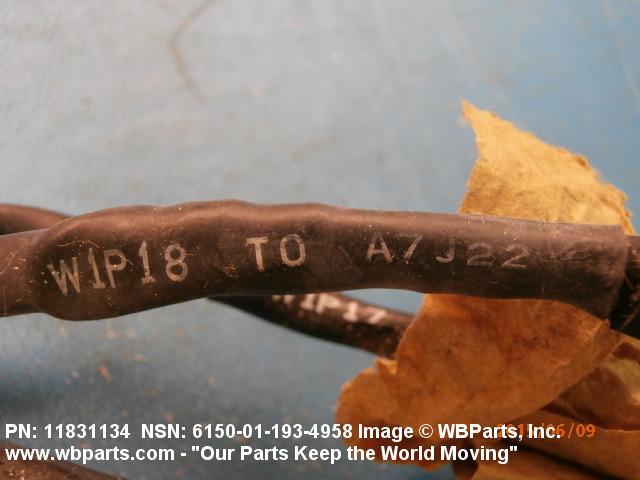

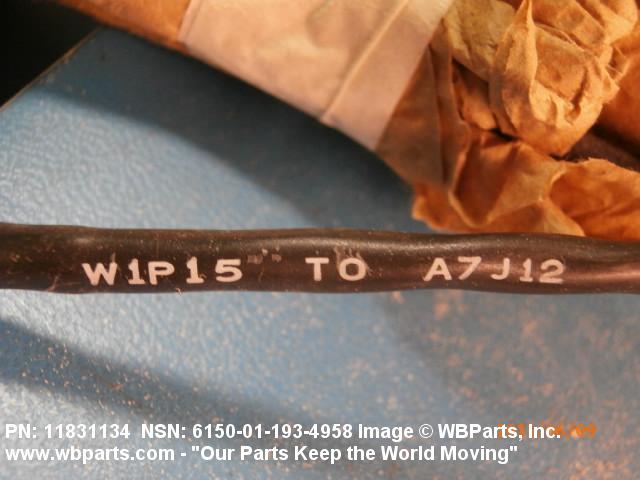

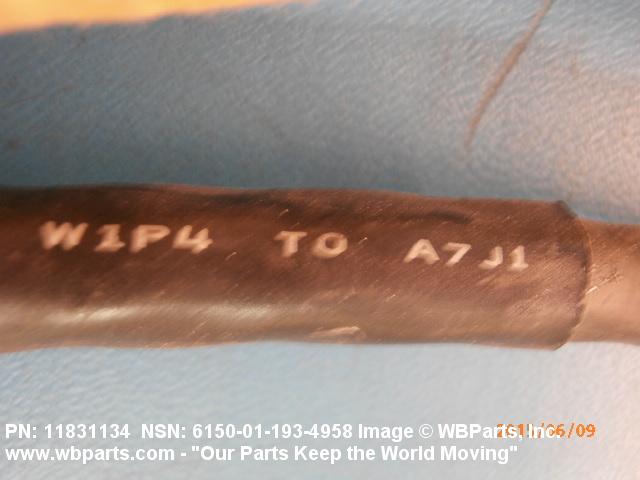

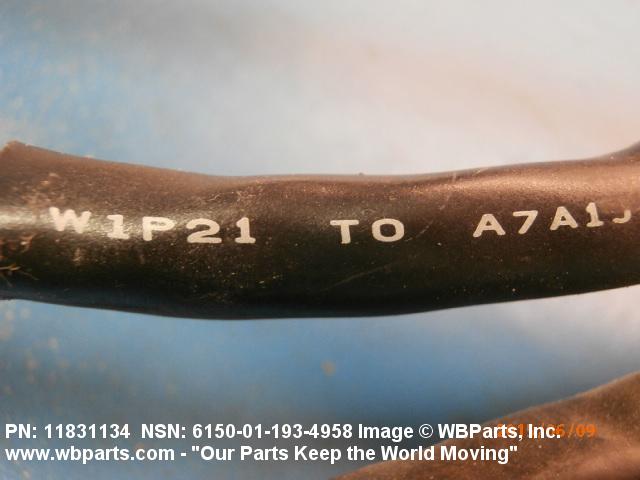

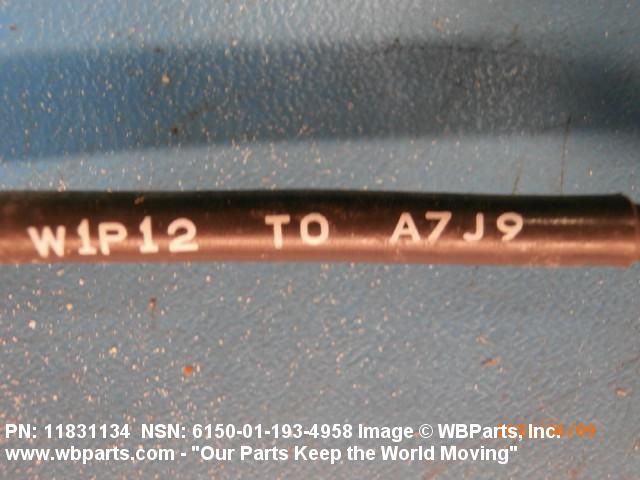

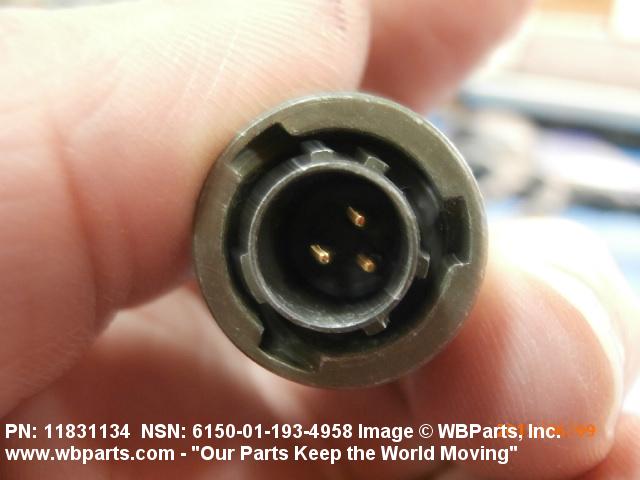

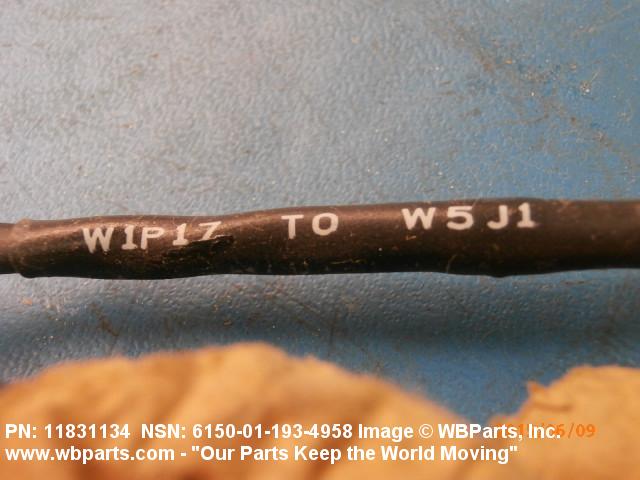

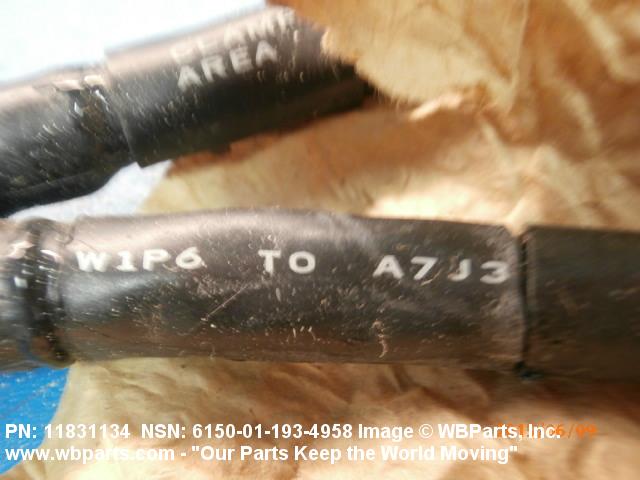

Drawings & Photos | NSN 6150-01-193-4958



Demand History | NSN 6150-01-193-4958


Part Number Request Date QTY Origin
6150-01-193-4958 2015-02-18 2 United States

Cross Reference | NSN 6150-01-193-4958


Part Number Cage Code Manufacturer
11831134 19200 US ARMY ARDEC RDECOM

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 6150-01-193-4958


Technical Data | NSN 6150-01-193-4958


Characteristic Specifications

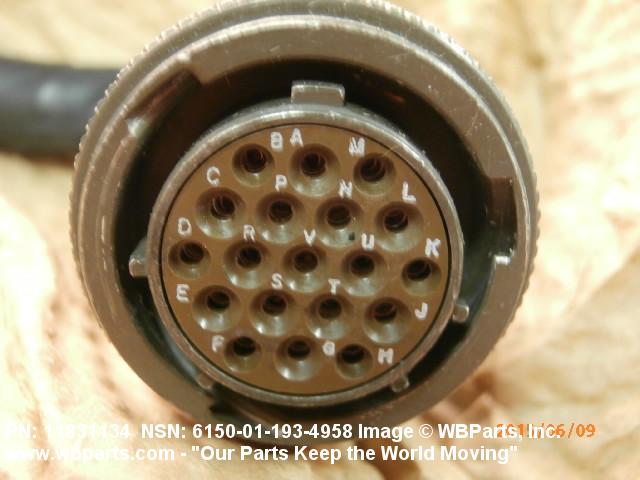

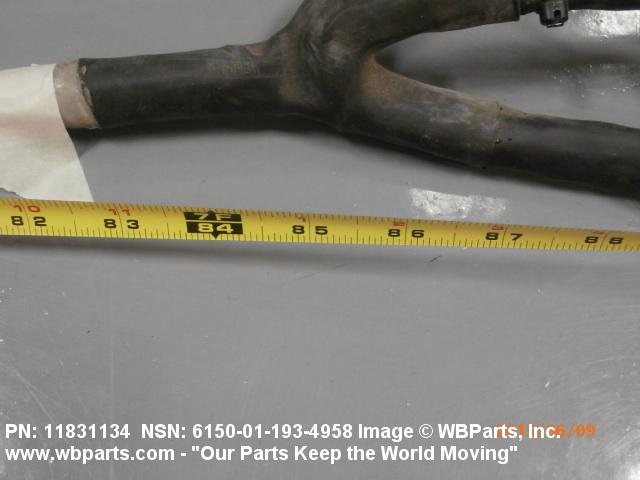

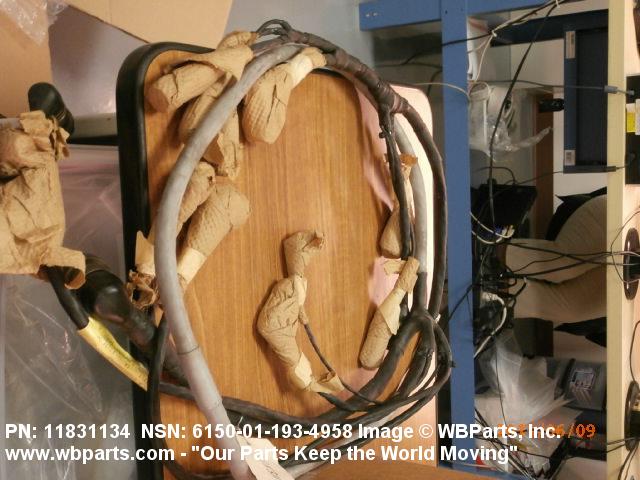

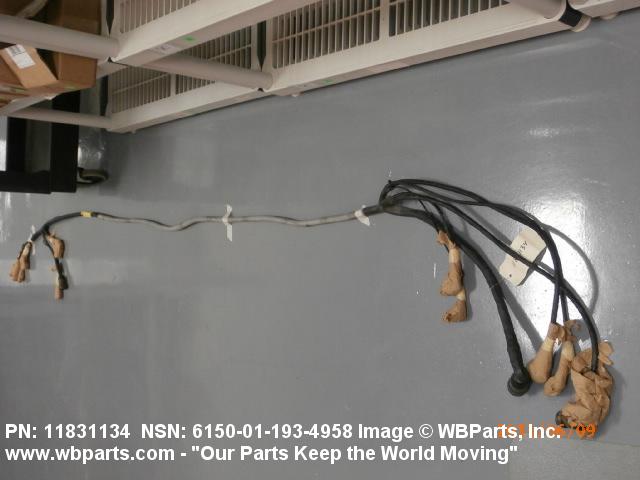

SPECIAL FEATURES C/O CONNECTORS,INSULATION SLEEVING,ADAPTERS,BOOTS;ONE END HAS 6 BRANCHES;OTHER END HAS 4 BRANCHES,OVERALL LENGTH NOT INCLUDING BRANCHES 86.00
III END ITEM IDENTIFICATION ARMAMENT SUBSYSTEM,XM97E1
MANUFACTURERS CODE 19200
DESIGN CONTROL REFERENCE 11831134

Restrictions/Controls & Freight Information | NSN 6150-01-193-4958


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:BMunitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating W Rating Variable
Less than truck load rating W Rating Variable
Water commodity Code 653 unknown
Originating Activity Code BF U.S. Army Armament and Chemical Acquisition and
Logistics Activity
Rock Island, IL 61299-6000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity V Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6150-01-193-4958


Category Code Description
Materiel Category and Inventory ManagerM Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment1 REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance.
Specific Group/Generic CodeH Individual and Crew-Served Weapons
Weapons Systems/End Item or Homogeneous GroupH6Armament Subsystem, 20mm and Enhanced Fire Control System, XM97E2
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplyB14US Army Armament and Chemical Acquisition and Logistics
Activity
ATTN: AMSTA-AC
Rock Island, IL 61299-6000
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityFIf condemned or uneconomically repairable, then dispose at Direct Support (DS) level.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
