NSN 6150-01-258-1244 MS252261012, MS25226-10-12, SAEAS25226
Product Details | CONDUCTOR BUS
6150-01-258-1244 An item made of rigid or semirigid conductive material, usually employed in the distribution of heavy electrical current. It is cut to specific lengths and is shaped, drilled, tapped or otherwise terminated. It may be fabricated in any of various cross-sectional shapes and sizes and may include terminal lugs. It may be designed to connect two or more screw or stud terminations. Excludes TERMINAL STRIP, GROUNDING.
Part Alternates: MS252261012, MS25226-10-12, SAEAS25226, SAE--AS25226 , 6150-01-258-1244, 01-258-1244, 6150012581244, 012581244
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 27 JUN 1987 | 01-258-1244 | 32758 ( BUS, CONDUCTOR ) |

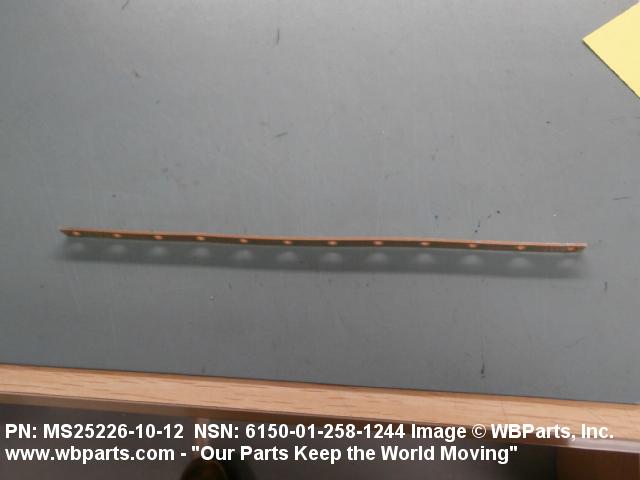

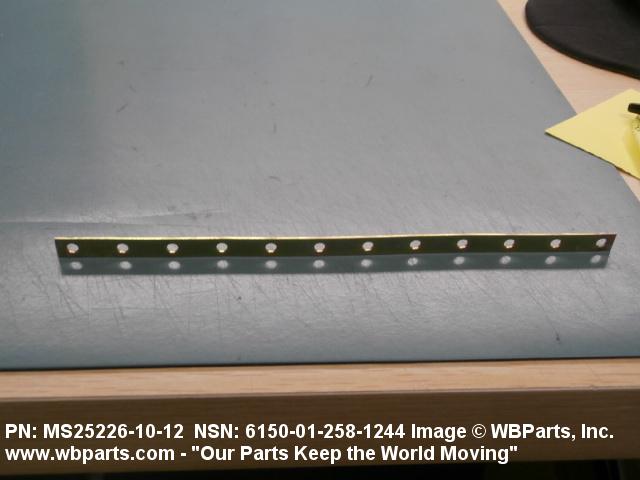

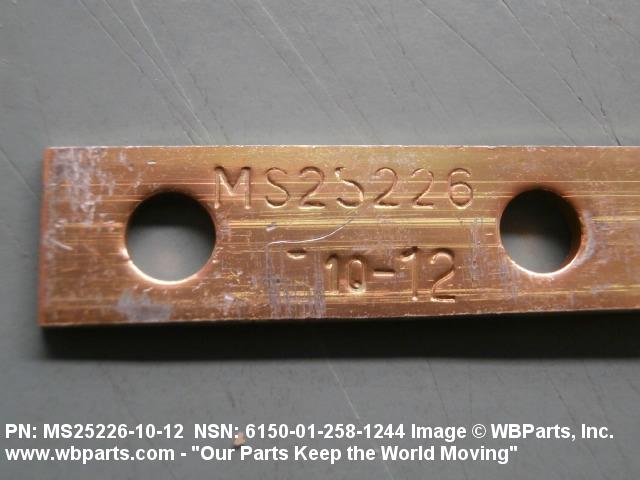

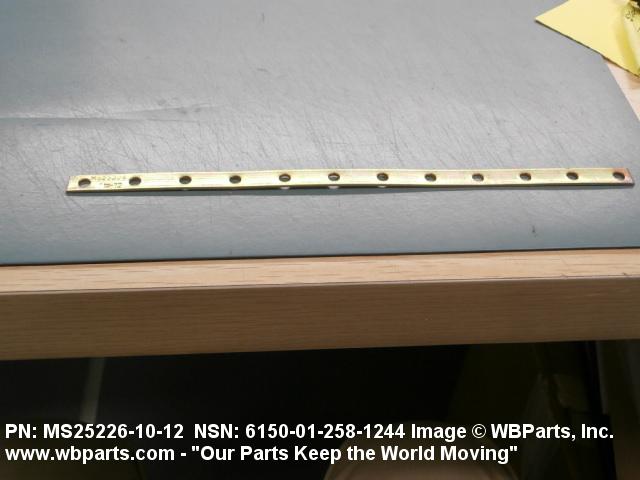

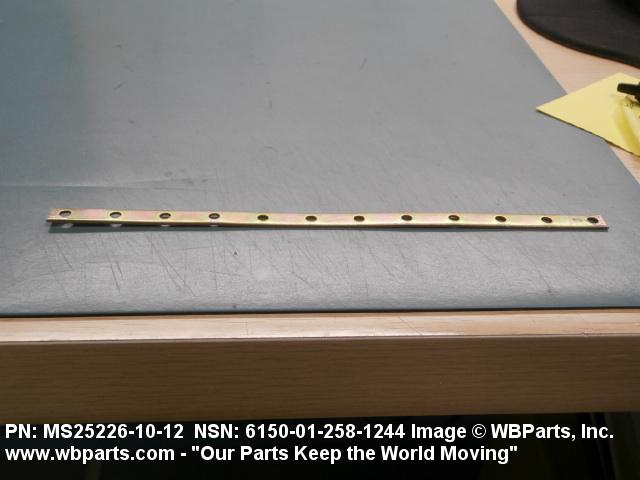

Drawings & Photos | NSN 6150-01-258-1244
Demand History | NSN 6150-01-258-1244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-01-258-1244 | 2019-05-143 | 250 | DIBBS |
| 6150-01-258-1244 | 2019-05-132 | 250 | DIBBS |
| 6150-01-258-1244 | 2018-04-94 | 248 | DIBBS |
| 6150-01-258-1244 | 2014-02-49 | 202 | DIBBS |
| MS252261012 | 2013-11-324 | 4 | United States |
| 6150-01-258-1244 | 2011-10-277 | 49 | DIBBS |
| 6150-01-258-1244 | 2011-04-105 | 144 | DIBBS |
| 6150-01-258-1244 | 2011-04-103 | 108 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-258-1244
Related Products | NSN 6150-01-258-1244
Technical Data | NSN 6150-01-258-1244
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER, QQ-C-502 OR COPPER, QQ-C-576 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| BODY CROSS-SECTIONAL SHAPE | RECTANGULAR W/EDGE RADIUS |
| CONSTRUCTION | SOLID |
| CROSS-SECTIONAL HEIGHT | 0.051 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.350 INCHES NOMINAL |
| OVERALL LENGTH | 8.688 INCHES NOMINAL |
| MOUNTING CONFIGURATION | TWELVE EA 0.174 IN. DIA HOLES 0.750 IN. LG C TO C |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25226-10-12 |
Restrictions/Controls & Freight Information | NSN 6150-01-258-1244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-258-1244
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
