NSN 6150-01-278-3244 M83513/03-B03C, M8351303B03C, MILC83513
Product Details | ELECTRICAL LEAD ASSEMBLY
6150-01-278-3244 Definite lengths of two or more electrical wires or similiar conductors (except cable or multiconductor cord) which are not jacketed, bound, or laced together, but which have at least one of their ends processed in a single common termination or fitting. For an item consisting of a CONNECTOR, RECEPTACLE, ELECTRICAL having termination wires of length four inches (101.6mm) or less, see CONNECTOR, RECEPTACLE, ELECTRICAL. See also CABLE ASSEMBLY (as modified); WIRING HARNESS; and LEAD, ELECTRICAL.20311350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: M83513/03-B03C, M8351303B03C, MILC83513, MIL-C-83513, MILDTL83513, MIL-DTL-83513, 6150-01-278-3244, 01-278-3244, 6150012783244, 012783244
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 04 MAY 1988 | 01-278-3244 | 10117 ( LEAD ASSEMBLY, ELECTRICAL ) |

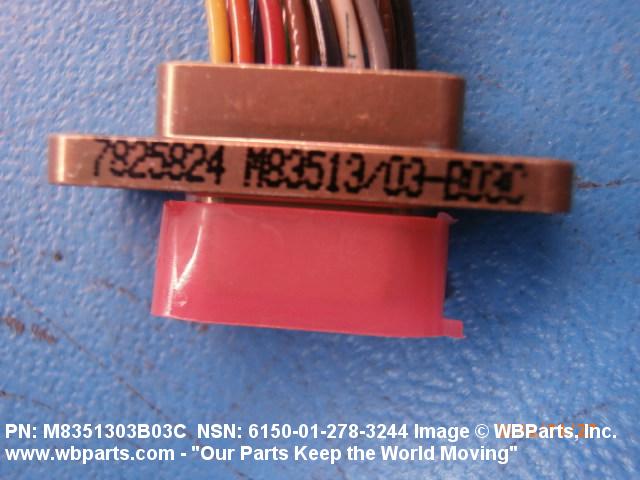

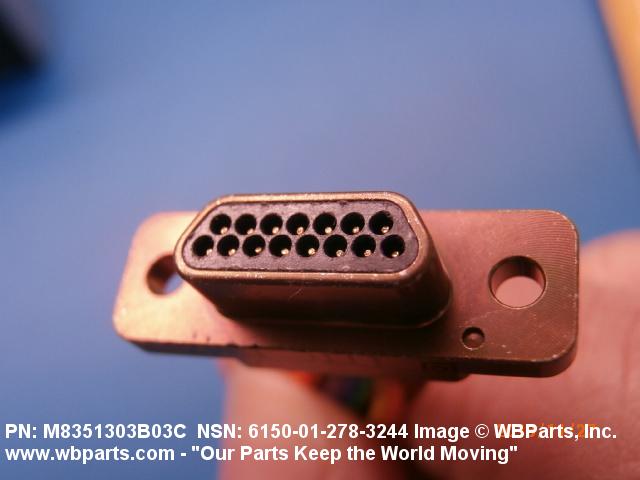

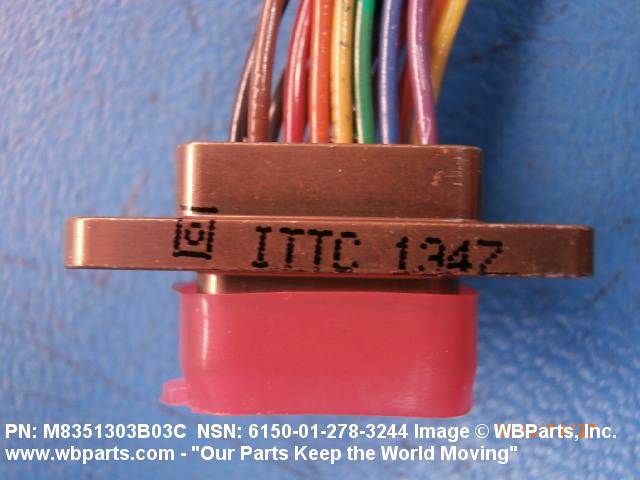

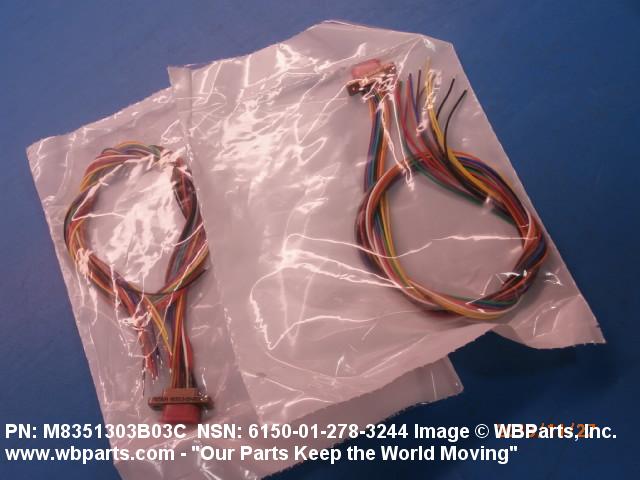

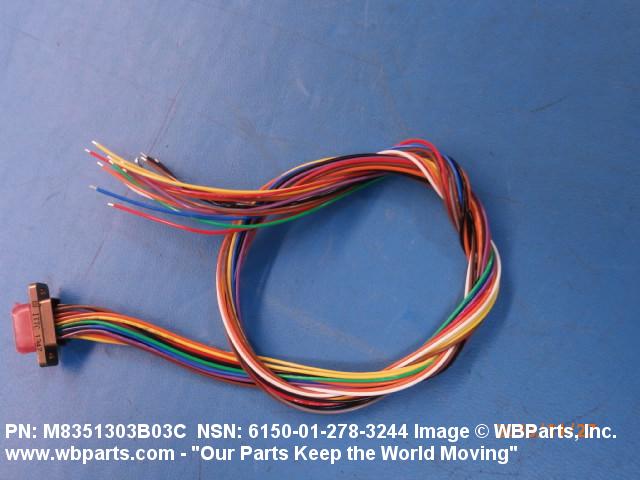

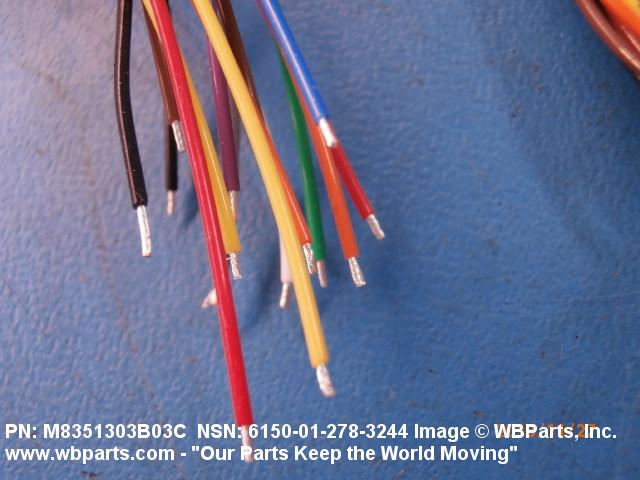

Drawings & Photos | NSN 6150-01-278-3244
Demand History | NSN 6150-01-278-3244
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-01-278-3244 | 2020-12-337 | 150 | DIBBS |
| 6150-01-278-3244 | 2018-12-346 | 112 | DIBBS |
| 6150-01-278-3244 | 2018-04-93 | 257 | DIBBS |
| 6150-01-278-3244 | 2015-08-216 | 61 | DIBBS |
| 6150-01-278-3244 | 2015-02-53 | 185 | DIBBS |
| 6150-01-278-3244 | 2014-11-330 | 142 | DIBBS |
| M8351303B03C | 2013-11-311 | 2 | United States |
| M8351303B03C | 2013-11-308 | 2 | United States |
| 6150-01-278-3244 | 2013-02-38 | 52 | DIBBS |
| 6150-01-278-3244 | 2013-01-29 | 25 | DIBBS |
| M8351303B03C | 2012-07-191 | 55 | IL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6150-01-278-3244
Technical Data | NSN 6150-01-278-3244
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 15 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 26 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 38 ALL CONDUCTORS |

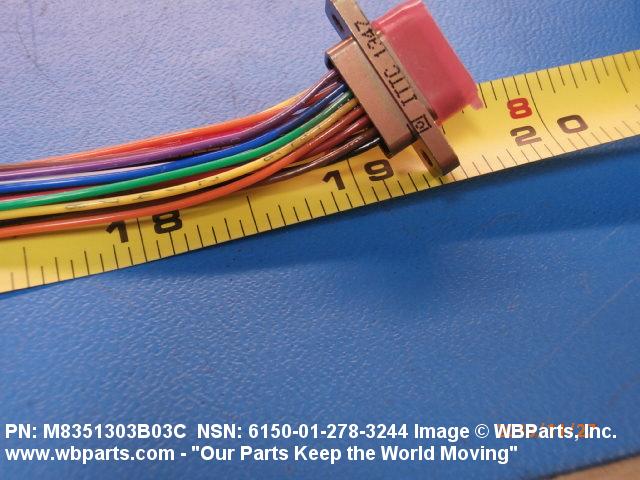

| CONDUCTOR LENGTH | 18.000 INCHES NOMINAL ALL CONDUCTORS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-DTL-83513 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M83513/03-B03C |
Restrictions/Controls & Freight Information | NSN 6150-01-278-3244
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062360 | LEADS/LEAD WIRES ELEC ARTICLE ETC |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CH | Defense Supply Center Richmond Richmond, VA 23297 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-278-3244
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
