NSN 6150-01-467-1170 L5448316011, L5448316-011, 01-467-1170
Product Details | ELECTRICAL SPECIAL PURPOSE CABLE ASSEMBLY
6150-01-467-1170 A definite continuous length of CABLE, SPECIAL PURPOSE, ELECTRICAL, having one or more ends processed or terminated in fittings which provide for connection to other items. Excludes items having branches or forks. Excludes LEAD, TEST and CABLE AND CONDUIT ASSEMBLY, ELECTRICAL.20611350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance132500004935000059950057Cable, Cord, and Wire Assemblies: Communication Equipment61500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: L5448316011, L5448316-011, 6150-01-467-1170, 01-467-1170, 6150014671170, 014671170
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 13 AUG 1999 | 01-467-1170 | 00782 ( CABLE ASSEMBLY, SPECIAL PURPOSE, ELECTRICAL ) |

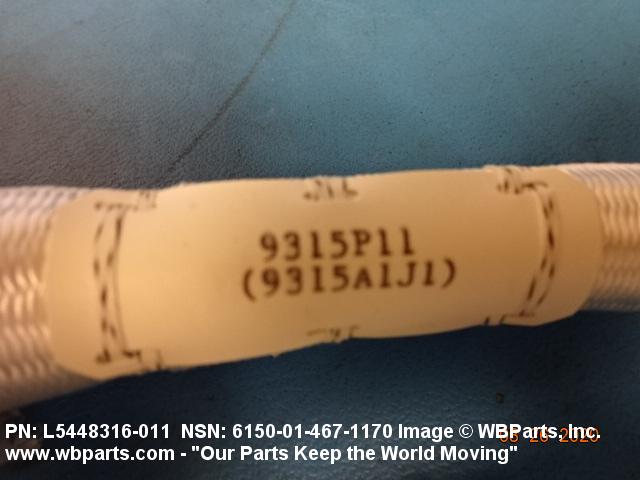

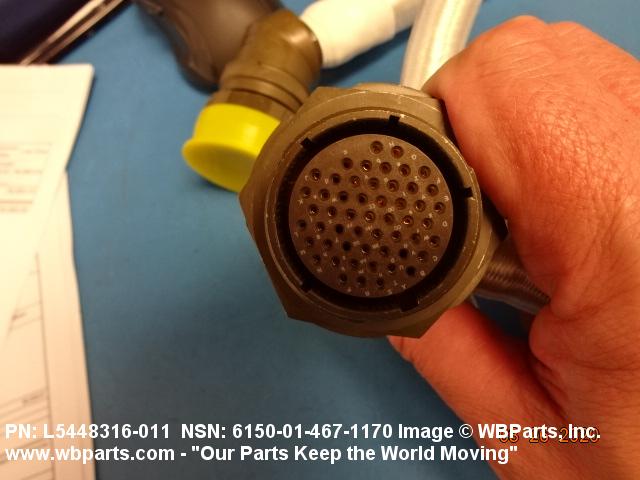

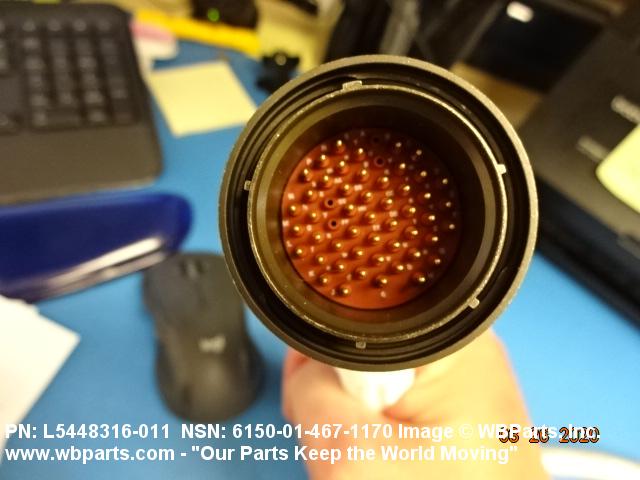

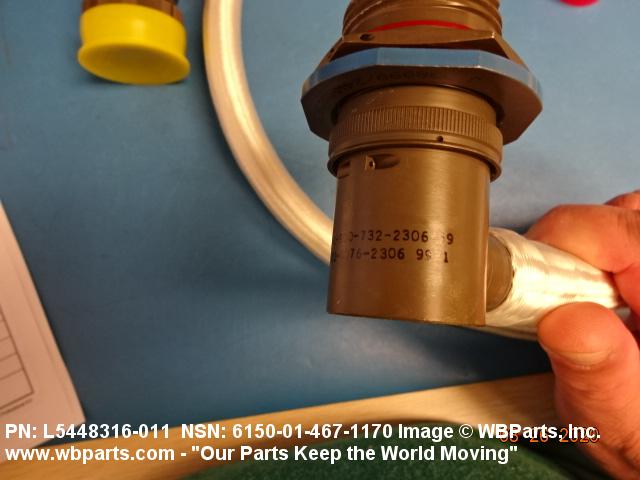

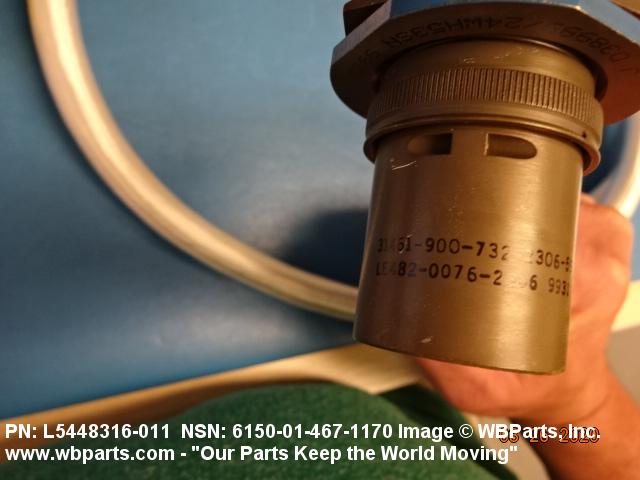

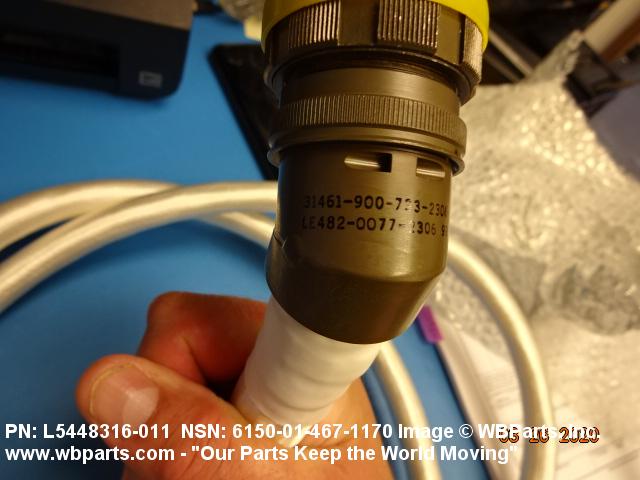

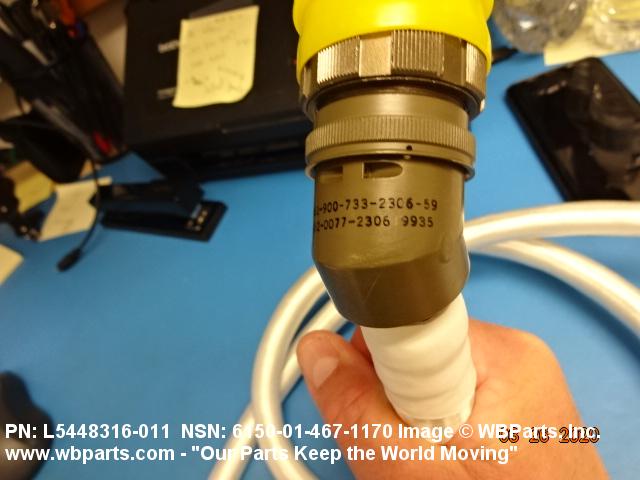

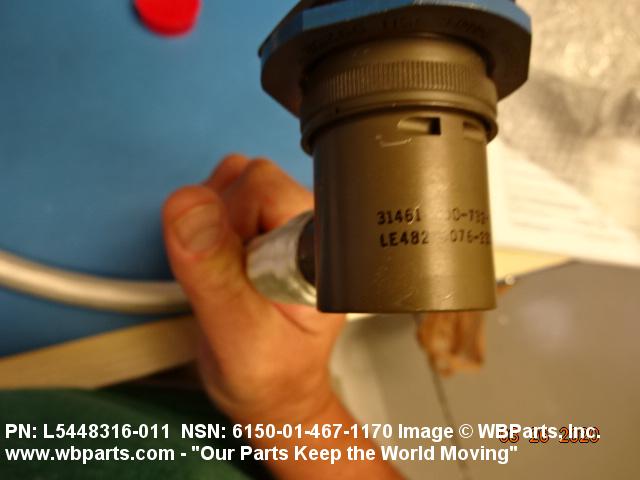

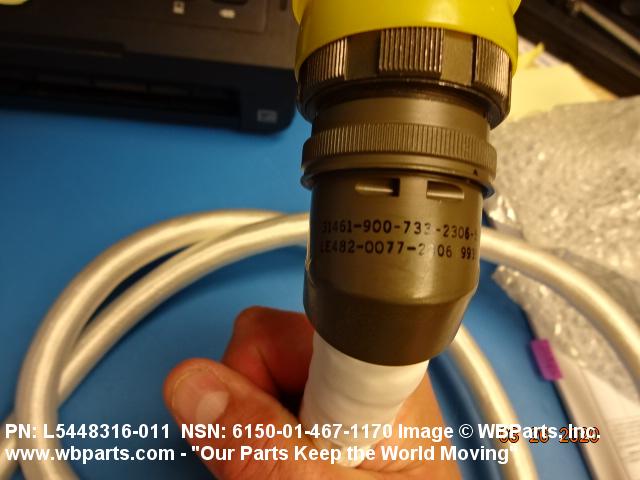

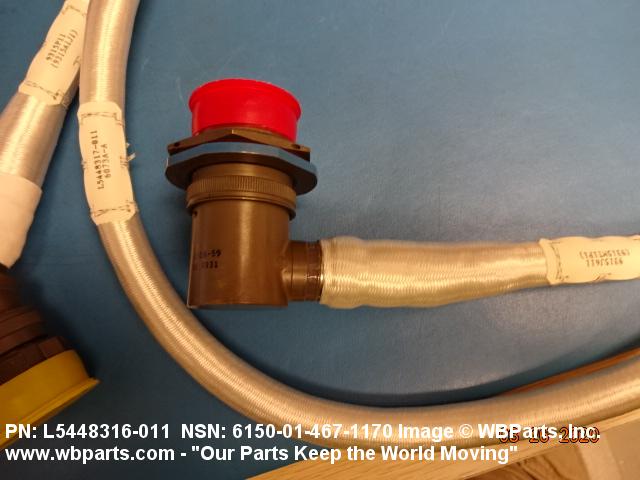

Drawings & Photos | NSN 6150-01-467-1170
Demand History | NSN 6150-01-467-1170
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6150-01-467-1170 | 2020-03-80 | 1 | United States |
| L5448316-011 | 2019-04-104 | 1 | DIBBS |
| L5448316-011 | 2019-03-84 | 1 | DIBBS |
| L5448316-011 | 2019-01-24 | 1 | DIBBS |
Cross Reference | NSN 6150-01-467-1170
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| L5448316-011 | 43999 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-467-1170
Related Products | NSN 6150-01-467-1170
Technical Data | NSN 6150-01-467-1170
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 49 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 1ST POSITION PRIMARY INSULATION ALL CONDUCTORS PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 2ND POSITION JACKET ALL CONDUCTORS COPPER 3RD POSITION SHIELD BRAID, METALLIC CABLE PLASTIC CROSS-LINKED MODIFIED ETHYLENE TETRAFLUOROETHYLENE 4TH POSITION JACKET CABLE |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B355 ASSN STD SINGLE MATERIAL RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| SURFACE TREATMENT | NICKEL CORE CONDUCTOR ALL CONDUCTORS NICKEL 3RD POSITION SHIELD BRAID, METALLIC CABLE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B355 ASSN STD SINGLE TREATMENT RESPONSE CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 20 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 32 ALL CONDUCTORS |
| STYLE DESIGNATOR | 59 INTERNAL CONNECTORS |
| OVERALL LENGTH | 93.000 INCHES |
| CROSS-SECTIONAL SHAPE STYLE | 6 ROUND |
| TERMINATION TYPE | CONNECTOR RECEPTACLE 1ST END ALL CONDUCTORS CONNECTOR PLUG 2ND END ALL CONDUCTORS |
| TERMINAL MANUFACTURER IDENTIFYING REFERENCE NUMBER | M39029/56-351 1ST END ALL CONDUCTORS M39029/58-363 2ND END ALL CONDUCTORS |
| SPECIAL FEATURES | WIRE SPECS M22759/41-20-9; M2750020SM2U00; M27500-20SM3N23; M27500-20SM4U00; 600V,200C; WIRE COLOR OR,GN,BN AND OR,BU,OR; SIMILAR TO P/N L5448316-001, NSN 6150014571759 EXCEPT FOR THE KEYING IN THE PLUGS AND RIGHT VS LEFT |
| NUCLEAR HARDNESS CRITICAL FEATURE | HARDENED |
| III END ITEM IDENTIFICATION | B-1B ACFT; NHA P/N L5501526, MODEL B-1R, HARNESS 6072A-A |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CABLE ASSY,LOW VOLTAGE RH,TDS |
Restrictions/Controls & Freight Information | NSN 6150-01-467-1170
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | H | The item is specifically designed to be or selected as being nuclear hard (i.e., it will continue to perform its designed function in an environment created by a nuclear explosion). The item does not have other critical features. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-467-1170
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RK | SX:AEROSPACE SUPPORT ACCESSORIES |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
