NSN 6150-01-529-7674 DCX-PE6/5P-50-560 , DCXPE65P50560, PE6/5P-50-560
Product Details | ELECTRICAL POWER CABLE ASSEMBLY
6150-01-529-7674 A definite continuous length of CABLE, POWER, ELECTRICAL having one or both ends processed and/or terminated in fittings which provide for connection to other items. Excludes CABLE AND CONDUIT ASSEMBLY, ELECTRICAL and items having branches or forks. See also WIRING HARNESS.20511150037Nuclear Warheads and Warhead Sections11350043Fuzing and Firing Devices, Nuclear Ordnance11900057Specialized Test and Handling Equipment, Nuclear Ordnance5995000061500055Miscellaneous Electric Power and Distribution Equipment
Part Alternates: DCX-PE6/5P-50-560 , DCXPE65P50560, PE6/5P-50-560, PE65P50560, UEC770605002, UEC77060-50-02 , 6150-01-529-7674, 01-529-7674, 6150015297674, 015297674
Electric Wire, and Power and Distribution Equipment | Miscellaneous Electric Power and Distribution Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 61 | 29 APR 2005 | 01-529-7674 | 00485 ( CABLE ASSEMBLY, POWER, ELECTRICAL ) |

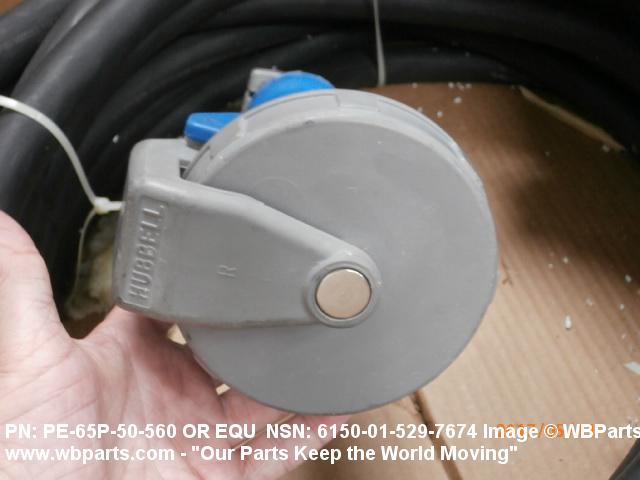

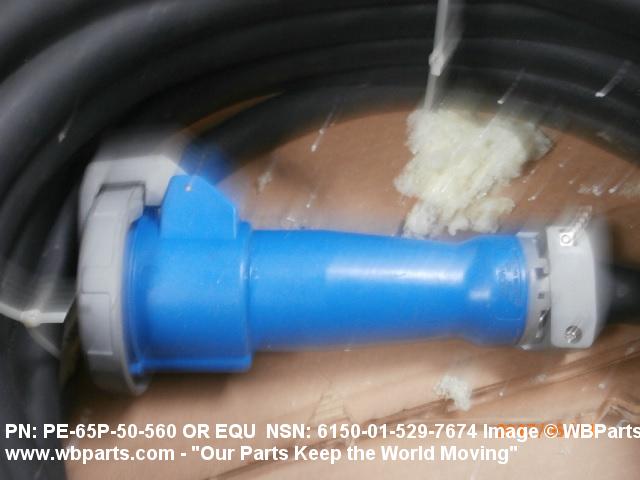

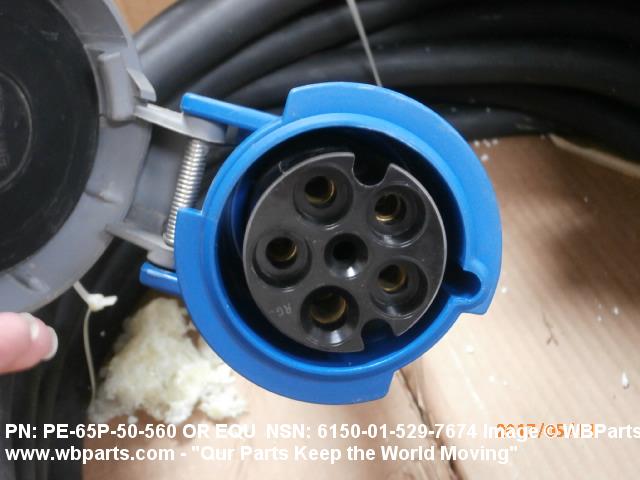

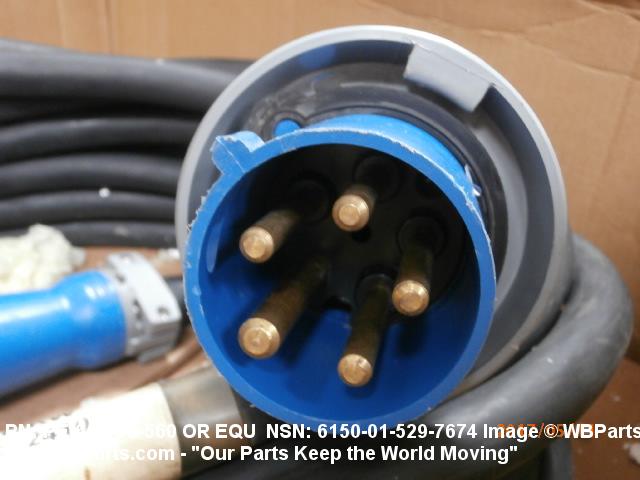

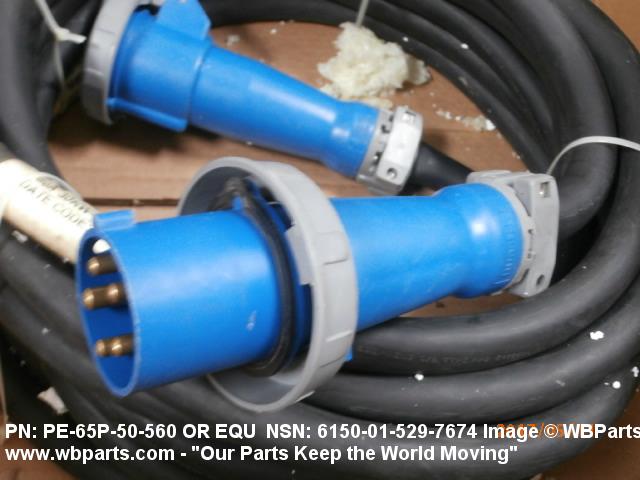

Drawings & Photos | NSN 6150-01-529-7674
Demand History | NSN 6150-01-529-7674
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DCX-PE6/5P-50-560 | 2024-04-100 | 118 | DIBBS |
| PE6/5P-50-560 | 2024-04-100 | 118 | DIBBS |
| UEC77060-50-02 | 2024-04-100 | 118 | DIBBS |
| 6150-01-529-7674 | 2024-03-80 | 85 | DIBBS |
| DCX-PE6/5P-50-560 | 2019-01-08 | 159 | DIBBS |
| PE6/5P-50-560 | 2019-01-08 | 159 | DIBBS |
| UEC77060-50-02 | 2019-01-08 | 159 | DIBBS |
| 6150-01-529-7674 | 2018-12-346 | 1 | us |
| 6150-01-529-7674 | 2018-04-96 | 554 | DIBBS |
| 6150-01-529-7674 | 2018-03-79 | 554 | US |
| 6150-01-529-7674 | 2017-10-276 | 338 | DIBBS |
| 6150-01-529-7674 | 2017-05-121 | 1 | United States |
| 6150-01-529-7674 | 2012-01-17 | 183 | DIBBS |
| 6150-01-529-7674 | 2011-12-343 | 10 | DIBBS |
| 6150-01-529-7674 | 2011-12-342 | 10 | DIBBS |
| 6150-01-529-7674 | 2011-11-312 | 176 | DIBBS |
| 6150-01-529-7674 | 2011-10-298 | 104 | DIBBS |
| 6150-01-529-7674 | 2011-09-244 | 170 | DIBBS |
| 6150-01-529-7674 | 2011-07-193 | 88 | DIBBS |
| 6150-01-529-7674 | 2011-06-155 | 51 | DIBBS |
| 6150-01-529-7674 | 2011-04-98 | 267 | DIBBS |
| 6150-01-529-7674 | 2011-03-84 | 297 | DIBBS |
| 6150-01-529-7674 | 2010-12-337 | 254 | DIBBS |
| 6150-01-529-7674 | 2010-10-302 | 152 | DIBBS |
| 6150-01-529-7674 | 2010-09-270 | 180 | DIBBS |
| 6150-01-529-7674 | 2009-09-252 | 191 | DIBBS |
| 6150-01-529-7674 | 2009-07-210 | 76 | DIBBS |
| 6150-01-529-7674 | 2009-05-151 | 55 | DIBBS |
| 6150-01-529-7674 | 2009-04-106 | 9 | DIBBS |
| 6150-01-529-7674 | 2009-01-30 | 48 | DIBBS |
| 6150-01-529-7674 | 2008-12-352 | 15 | DIBBS |
| 6150-01-529-7674 | 2008-09-266 | 11 | DIBBS |
| 6150-01-529-7674 | 2008-09-254 | 3 | DIBBS |
| 6150-01-529-7674 | 2008-09-248 | 12 | DIBBS |
| 6150-01-529-7674 | 2008-07-190 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6150-01-529-7674
Related Products | NSN 6150-01-529-7674
Technical Data | NSN 6150-01-529-7674
| Characteristic | Specifications |
|---|---|
| CONDUCTOR QUANTITY | 5 |
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| MATERIAL | COPPER CORE CONDUCTOR ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 6 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 7 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 37 ALL CONDUCTORS |
| VOLTAGE RATING | 600.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS |
| TEMP RATING | -50.0 DEG CELSIUS AND 90.0 DEG CELSIUS |
| SPECIAL FEATURES | ITEM CONSISTS OF 2 CONNECTORS, 1 MALE (P/N HBL560P9W), AND 1 FEMALE (P/N HBL560C9W) AND 3 FEET OF CABLE, (P/N 30281). TEMPERATURE RATING = -50 DEG C TO 90 DEG C DRY, 75 DEG C WET. |
| III END ITEM IDENTIFICATION | 6110-01-272-6953 |
Restrictions/Controls & Freight Information | NSN 6150-01-529-7674
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6150-01-529-7674
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Operational Test Code | 0 | Items of supply which when properly packaged and placed in storage, do not require the performance of special procedures while in storage, nor prior to issue, and for which it has been determined that existing Care in Stores quality control procedures are adequate. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
