NSN 6210-00-074-8784 63305B, 00-074-8784, 000748784
Product Details | ELECTRIC LIGHT CONTROL
6210-00-074-8784 An item specifically designed to remotely control the intensity and/or the on-off operation of a light or lights used for general illumination. May be manually operated and/or actuated by the degree of surrounding light intensity or sound vibration. Do not use for autotransformers, rheostats, or switches which are used without the addition of other parts to accomplish this function.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures62300045Electric Portable and Hand Lighting Equipment
Part Alternates: 63305B, 6210-00-074-8784, 00-074-8784, 6210000748784, 000748784
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-074-8784 | 01870 ( CONTROL, ELECTRIC LIGHT ) |
Drawings & Photos | NSN 6210-00-074-8784
Cross Reference | NSN 6210-00-074-8784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63305B | 72421 | SIGMA INSTRUMENTS INC FISHER-PIERCE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-074-8784
Technical Data | NSN 6210-00-074-8784
| Characteristic | Specifications |
|---|---|

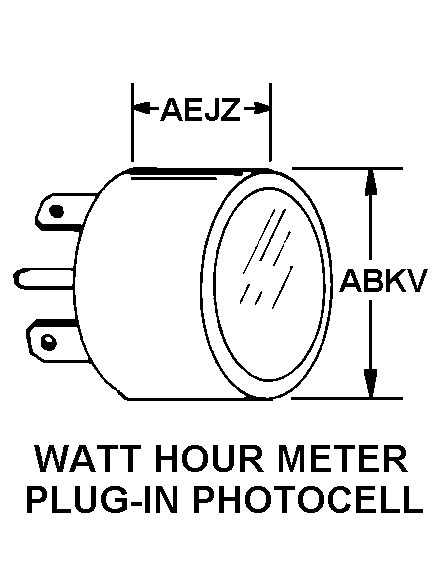

| STYLE DESIGNATOR | B5 WATT HOUR METER PLUG-IN PHOTOCELL |
| OUTSIDE DIAMETER | 8.250 INCHES NOMINAL |
| DEPTH | 6.250 INCHES NOMINAL |
| INCLOSURE MATERIAL | PLASTIC |
| OPERATING FUNCTION AND METHOD | ACTUATION LIGHT INTENSITY |
| USAGE DESIGN | OUTDOOR |
| CONTROL CONTACT ARRANGEMENT | SINGLE POLE SINGLE THROW |
| LIGHT INTENSITY SETTING AND FUNCTION | 30.0 ACTUATION FOOTCANDLE 40.0 DEACTUATION FOOTCANDLE |
| SPECIAL FEATURES | 105 TO 120 VOLTS,30 AMPS,55 TO 65 DEACTUATION SETTING,25 TO 45 ACTUATION RANGE,50 TO 70 DEACTUATION RANGE |
Restrictions/Controls & Freight Information | NSN 6210-00-074-8784
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
