NSN 6210-00-151-5246 LC36YD1, LC36YD2, MILL366136
Product Details | LIGHT LENS

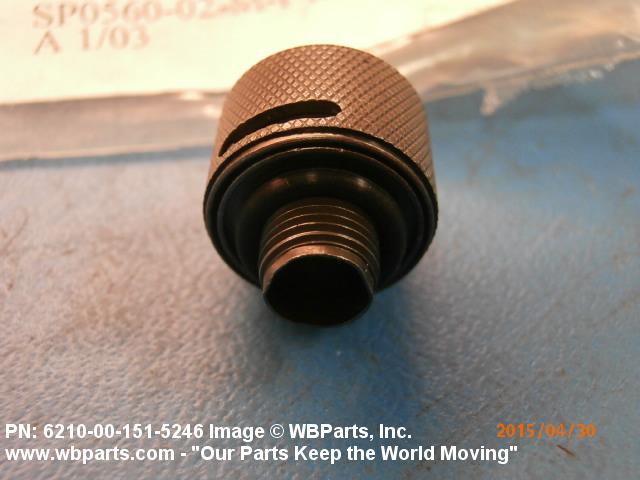

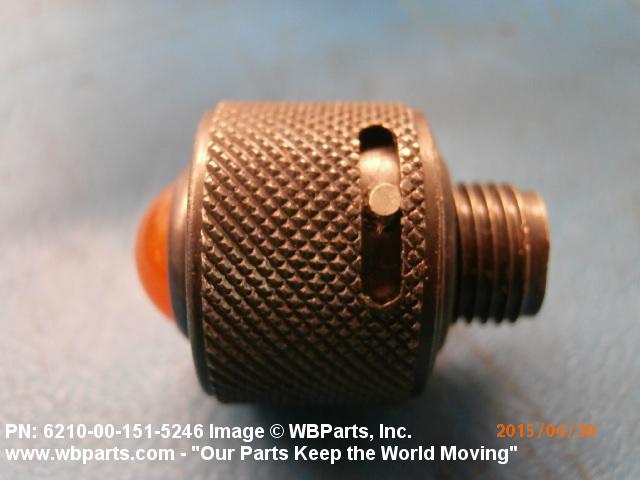

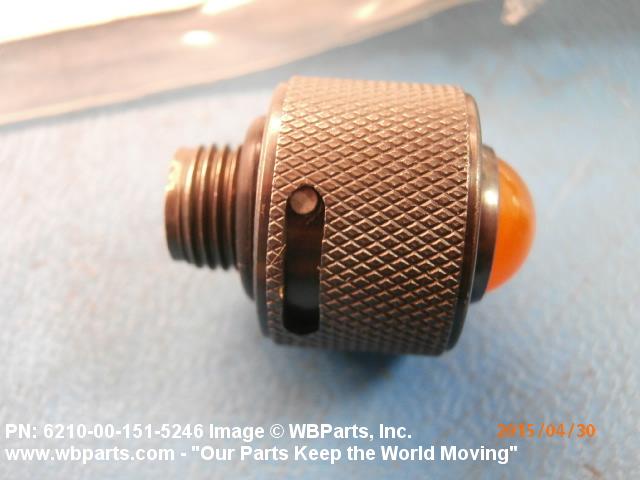

6210-00-151-5246 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies
Part Alternates: LC36YD1, LC36YD2, MILL366136, MIL-L-3661-36, V2759 , VUHGG2100, VUHGG2-100 , 13207E5582, 1600613203, 160-0613-203, 6210-00-151-5246, 00-151-5246, 6210001515246, 001515246
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 18 SEP 1970 | 00-151-5246 | 29939 ( LENS, LIGHT ) |

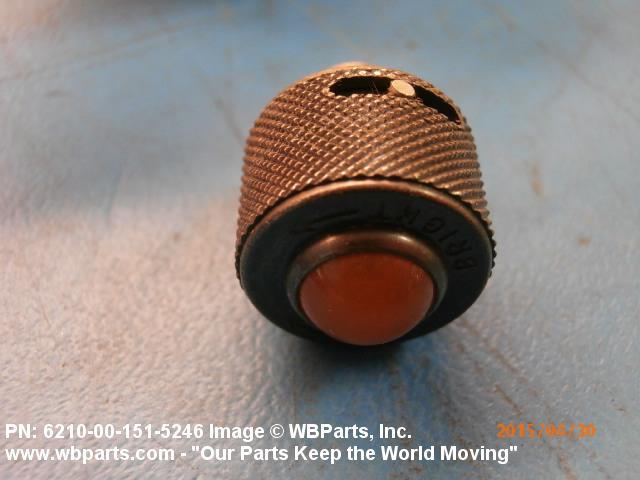

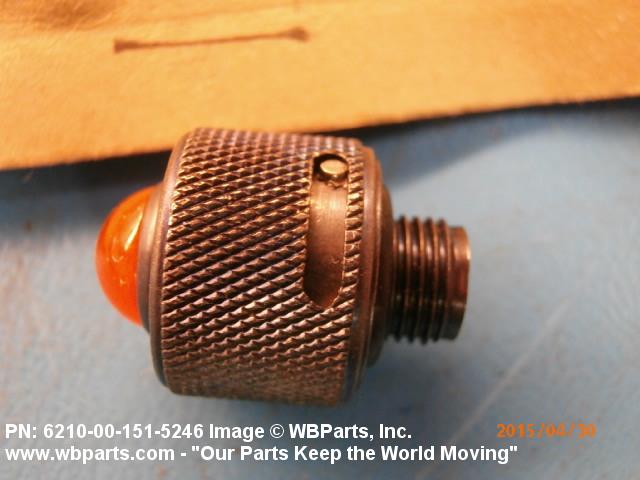

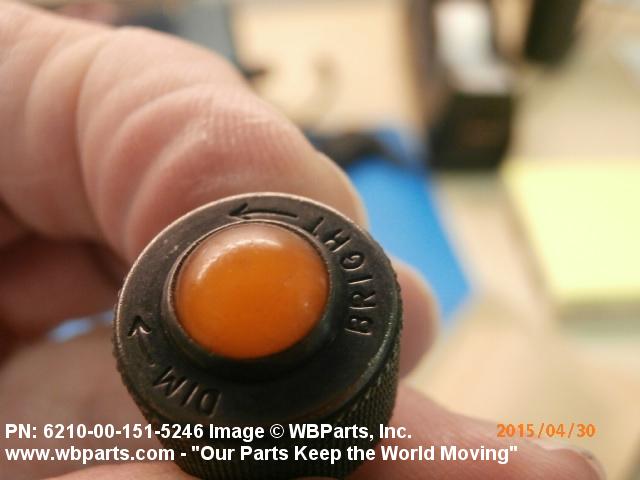

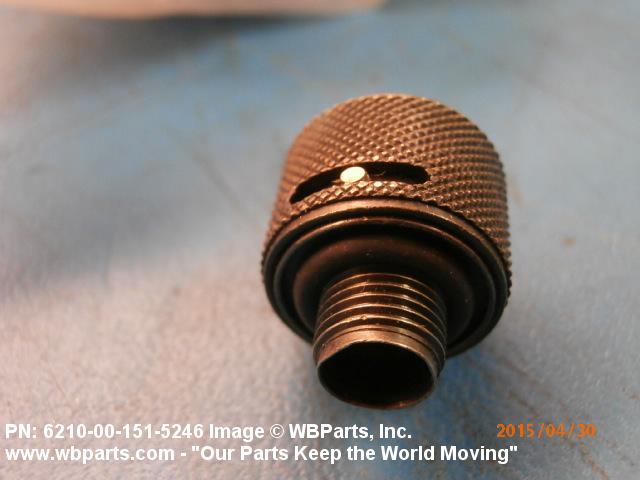

Drawings & Photos | NSN 6210-00-151-5246
Demand History | NSN 6210-00-151-5246
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-151-5246 | 2017-06-177 | 1777 | DIBBS |
| 6210-00-151-5246 | 2017-05-137 | 1747 | DIBBS |
| 6210-00-151-5246 | 2015-05-137 | 5298 | DIBBS |
| 6210-00-151-5246 | 2015-04-113 | 40 | United States |
| 6210-00-151-5246 | 2015-01-21 | 1783 | DIBBS |
| 6210-00-151-5246 | 2015-01-08 | 1783 | DIBBS |
| 6210-00-151-5246 | 2013-03-88 | 2573 | DIBBS |
| 6210-00-151-5246 | 2011-05-122 | 2932 | DIBBS |
| 6210-00-151-5246 | 2011-01-27 | 903 | DIBBS |
Cross Reference | NSN 6210-00-151-5246
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 160-0613-203 | 83330 | DIALIGHT CORPORATION |
| LC36YD1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| LC36YD2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| LC36YD2 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| MIL-L-3661-36 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-151-5246
Related Products | NSN 6210-00-151-5246
Technical Data | NSN 6210-00-151-5246
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 81 CONVEX |

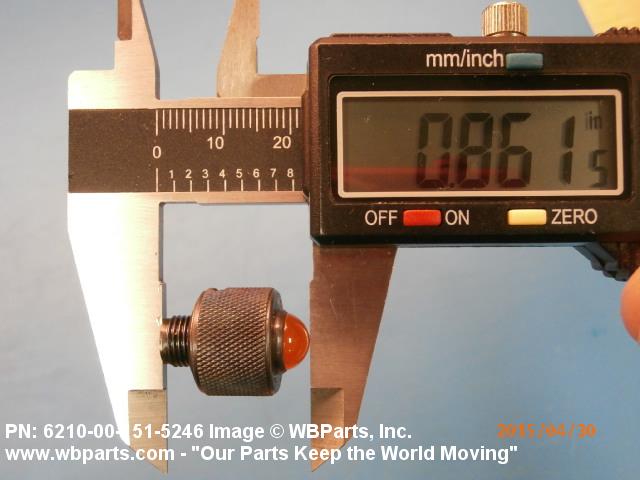

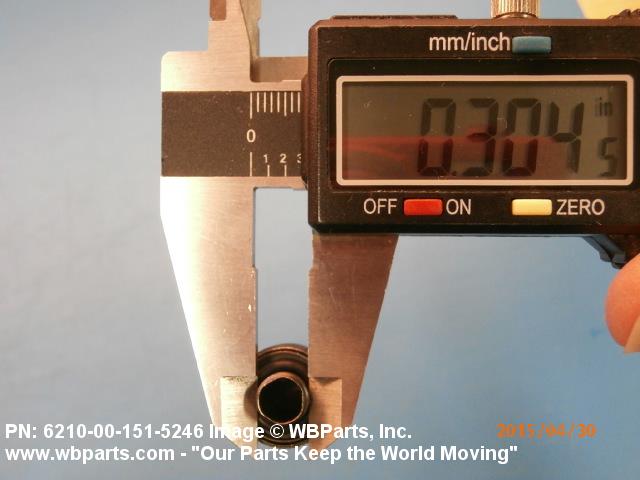

| OVERALL LENGTH | 0.818 INCHES MINIMUM AND 0.870 INCHES MAXIMUM |

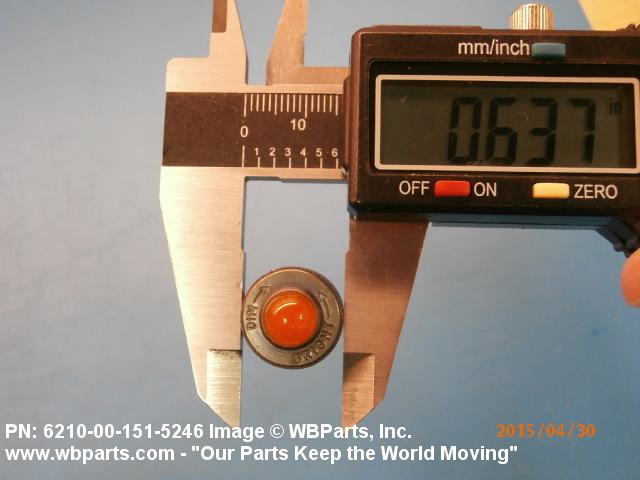

| OVERALL DIAMETER | 0.610 INCHES MINIMUM AND 0.670 INCHES MAXIMUM |
| EFFECTIVE DIAMETER | 0.300 INCHES MINIMUM AND 0.360 INCHES MAXIMUM |
| LIGHT TRANSMISSION DESIGN | TRANSLUCENT LENS |
| SURFACE CONDITION | FROSTED BACK SMOOTH FACE |
| MOUNTING METHOD | EXTERNAL THREAD |
| MOUNTING DEVICE QUANTITY | 1 |
| THREAD SERIES | UNEF |
| THREAD DIAMETER | 0.312 INCHES |

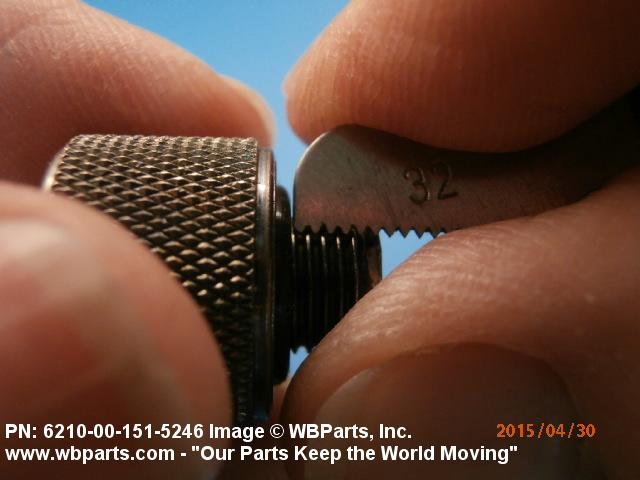

| THREAD QUANTITY | 32 PER INCH |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| DIMMING DEVICE TYPE | MECHANICAL SHUTTER |
| BLACKOUT DEGREE | COMPLETE |

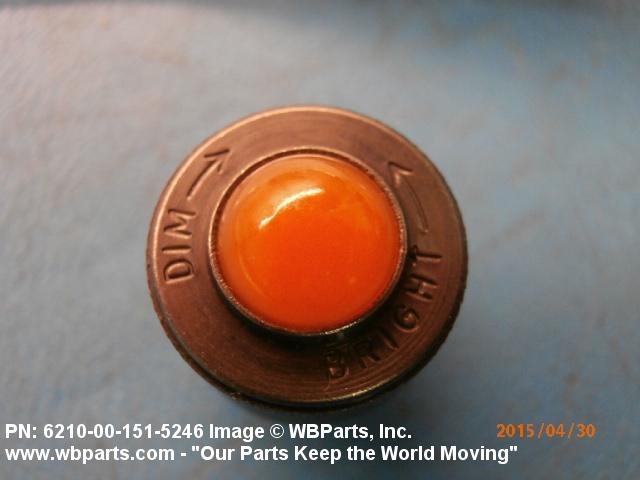

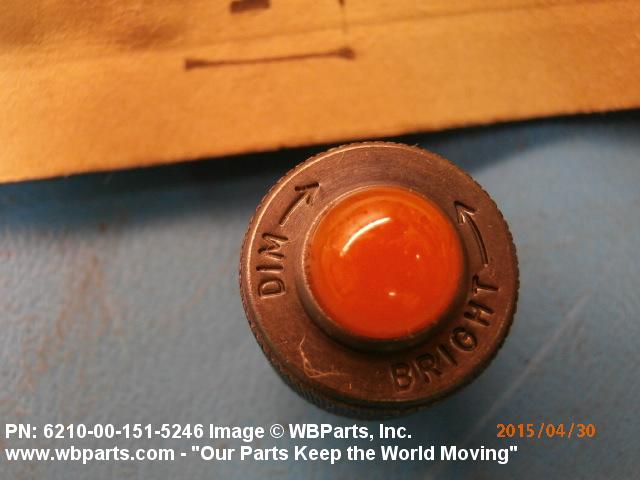

| INSCRIPTION | DIM ARROW SYMBOL CW AND BRIGHT ARROW SYMBOL CCW HOLDER |
| COLOR | BLACK HOLDER BLACK INSCRIPTION BLACK INSCRIPTION BACKGROUND YELLOW, AVIATION LENS |
| FURNISHED ITEMS | -O-RING |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | LC36YD2 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-L-3661-36 |
