NSN 6210-00-151-5306 12313081231443, 123-1308-1231-443, 00-151-5306
Product Details | INDICATOR LIGHT
6210-00-151-5306 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: 12313081231443, 123-1308-1231-443, 6210-00-151-5306, 00-151-5306, 6210001515306, 001515306
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 00-151-5306 | 00160 ( LIGHT, INDICATOR ) |

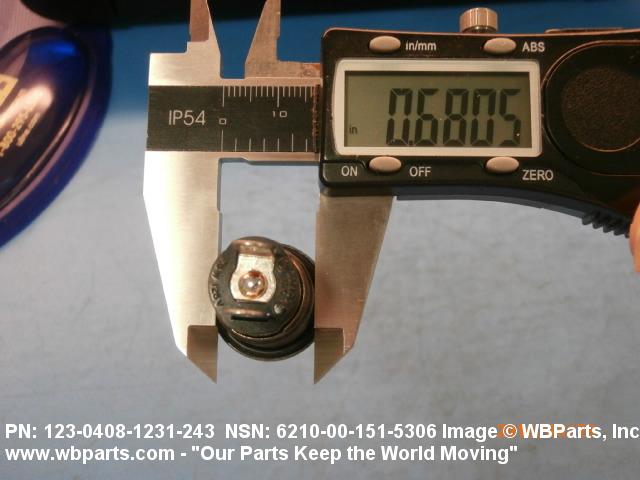

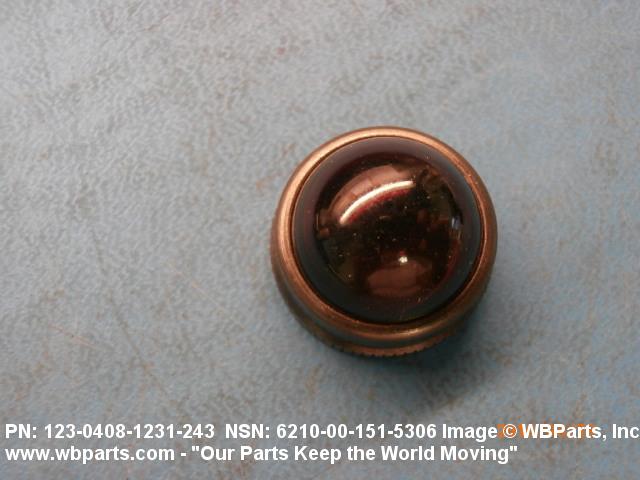

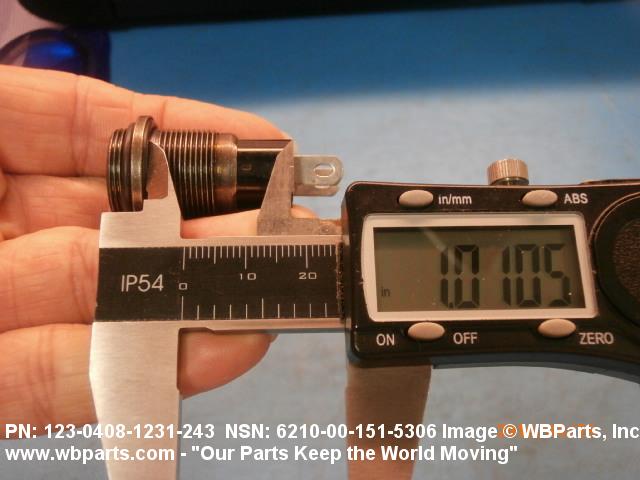

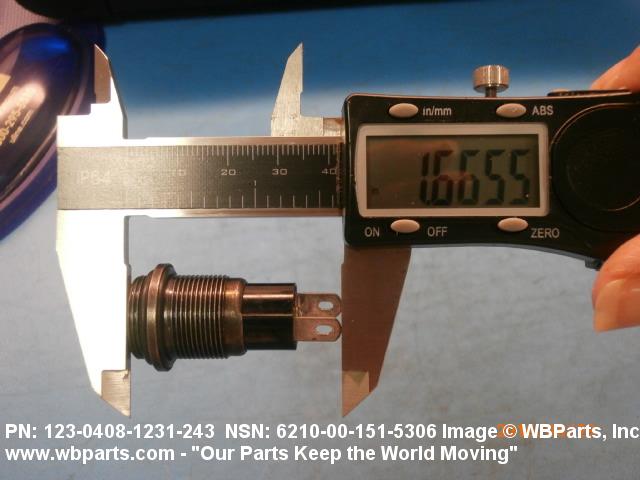

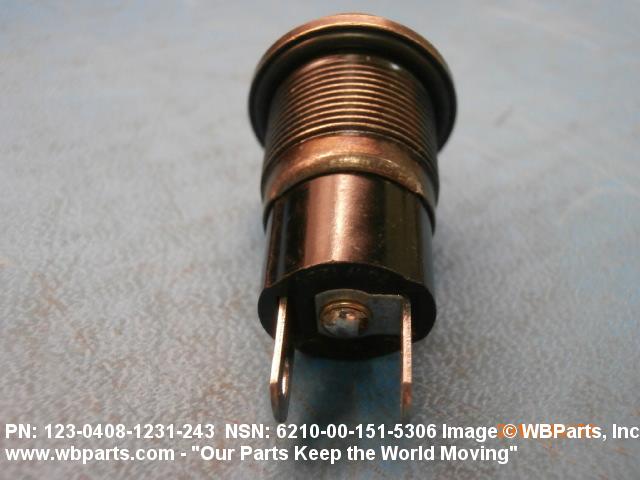

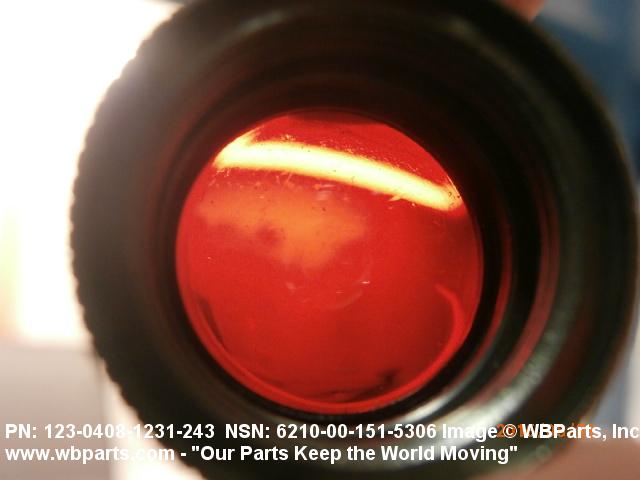

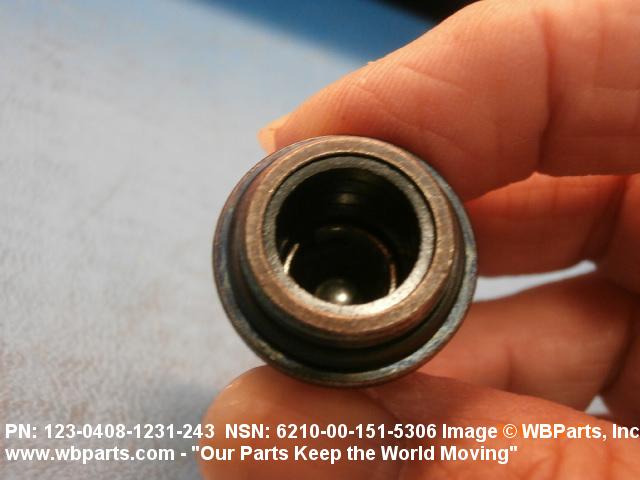

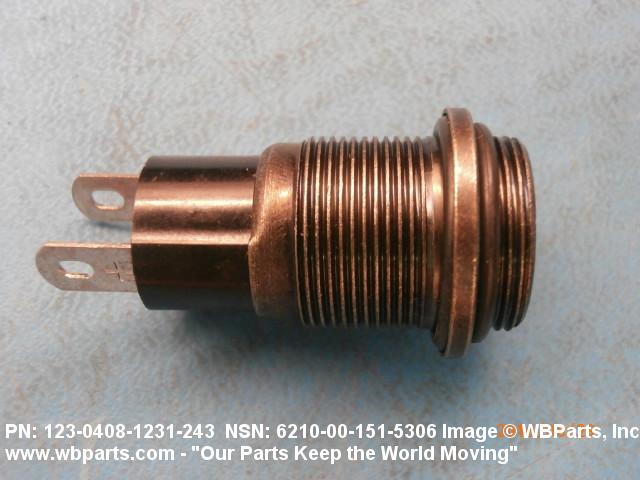

Drawings & Photos | NSN 6210-00-151-5306
Demand History | NSN 6210-00-151-5306
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12313081231443 | 2016-08-237 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-00-151-5306
Technical Data | NSN 6210-00-151-5306
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ROUND FRAME, ROUND LENS TYPE |
| OVERALL LENGTH | 2.109 INCHES MAXIMUM |
| OVERALL DIAMETER | 0.828 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY |
| SURFACE TREATMENT | NICKEL BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 NEON |
| LAMP INDUSTRY NUMBER | B1A |
| LAMP BULB SIZE DESIGNATOR | T-3 1/4 |
| LAMP BASE TYPE ACCOMMODATED | MINIATURE BAYONET |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | SCREW ON |
| LENS TYPE | DOME, KNURLED, INTERNAL THREAD SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.688 INCHES NOMINAL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.312 INCHES MAXIMUM |

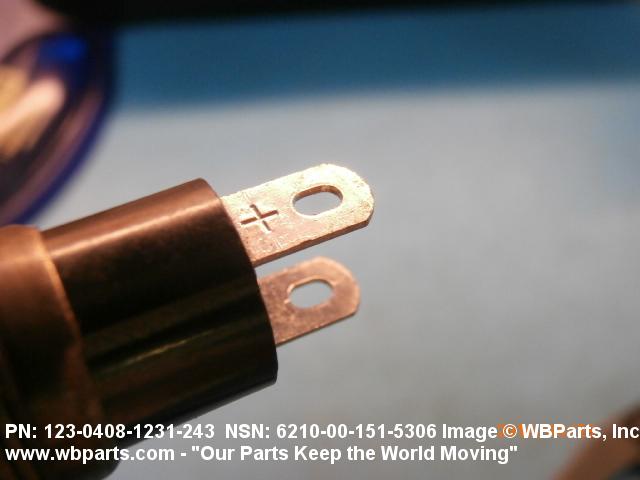

| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | OILTIGHT AND WATERTIGHT |

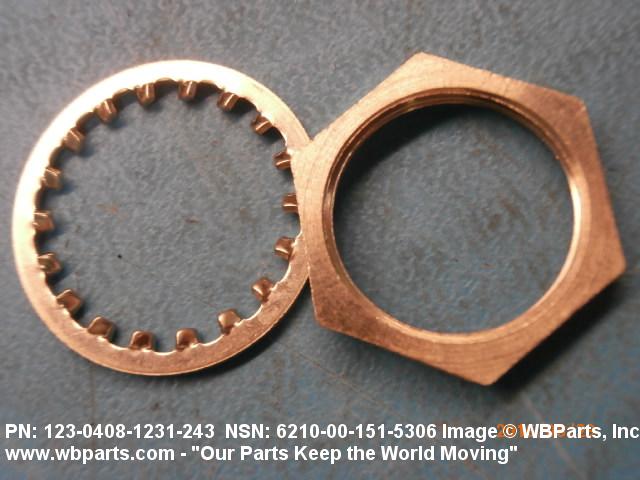

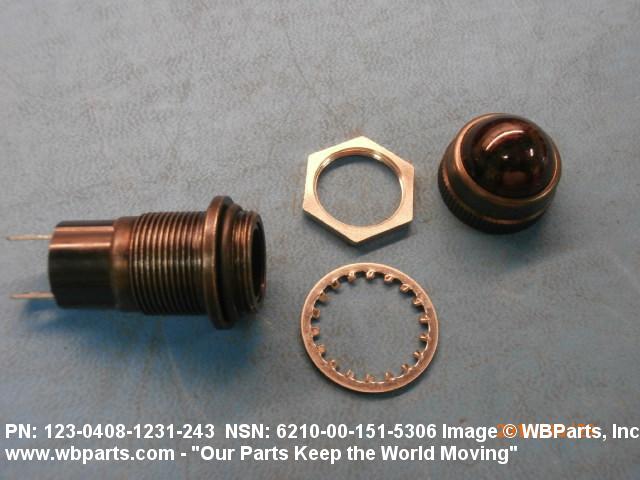

| FURNISHED ITEMS AND QUANTITY | 1 GASKET AND 1 HEXAGON NUT AND 1 LOCK WASHER AND 2 O-RING |
| SPECIAL FEATURES | SATIN CHROME LENS HOLDER |
| (NON-CORE DATA) RESISTOR LOCATION AND QUANTITY | 1 INTERNAL |
| (NON-CORE DATA) ELECTRICAL RESISTANCE | 56.0 KILOHMS |
Restrictions/Controls & Freight Information | NSN 6210-00-151-5306
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
