NSN 6210-00-161-8067 14799Z199A , 29074881, 2907488-1
Product Details | INDICATOR LIGHT
6210-00-161-8067 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: 14799Z199A , 29074881, 2907488-1, 8950L1417, 6210-00-161-8067, 00-161-8067, 6210001618067, 001618067
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 03 NOV 1971 | 00-161-8067 | 00160 ( LIGHT, INDICATOR ) |

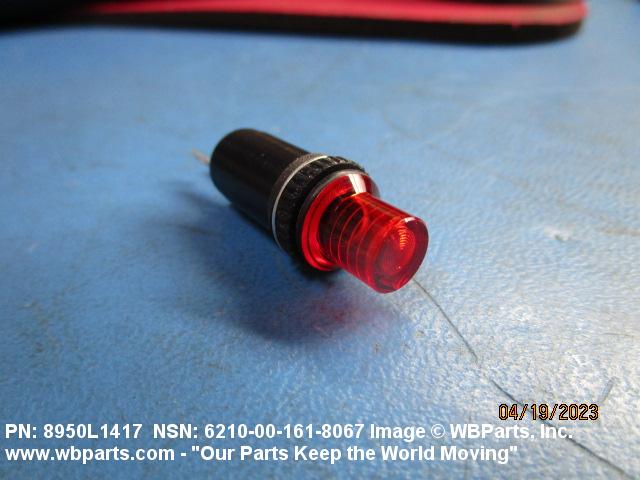

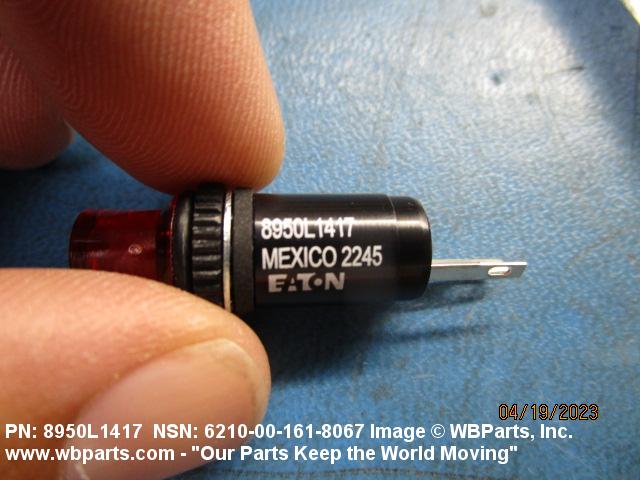

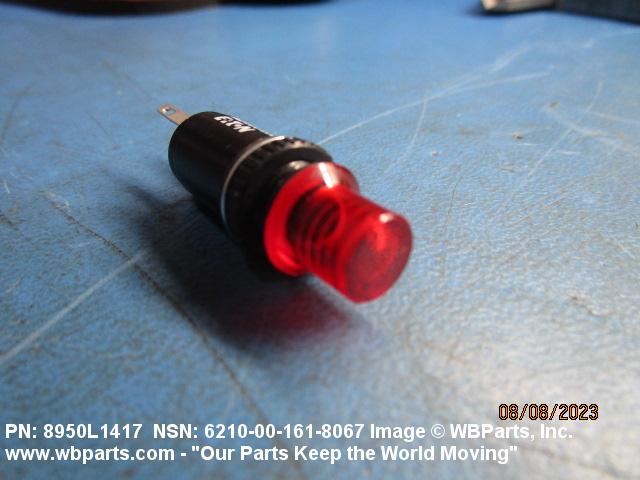

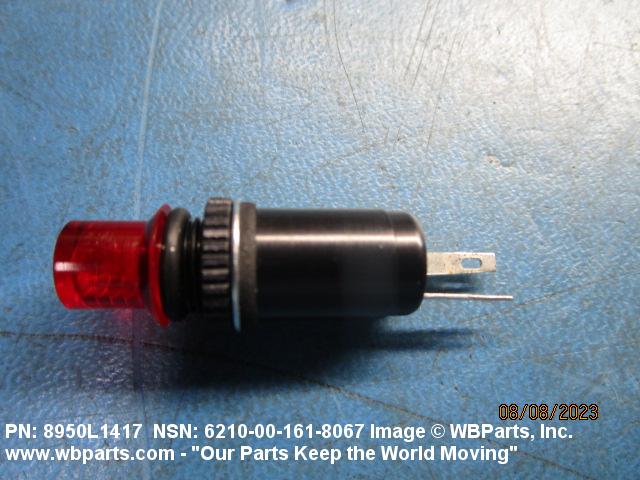

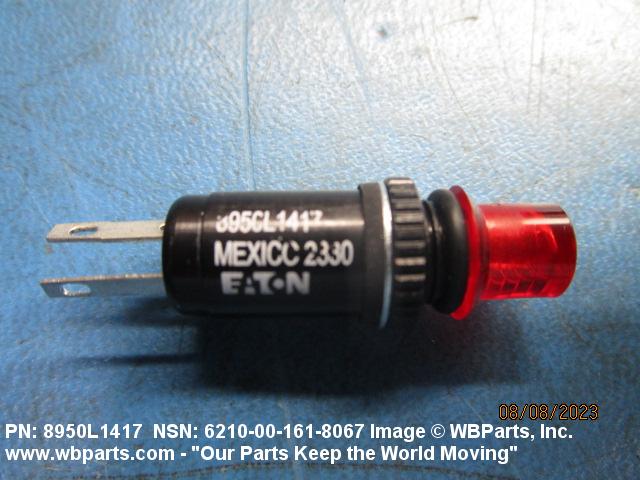

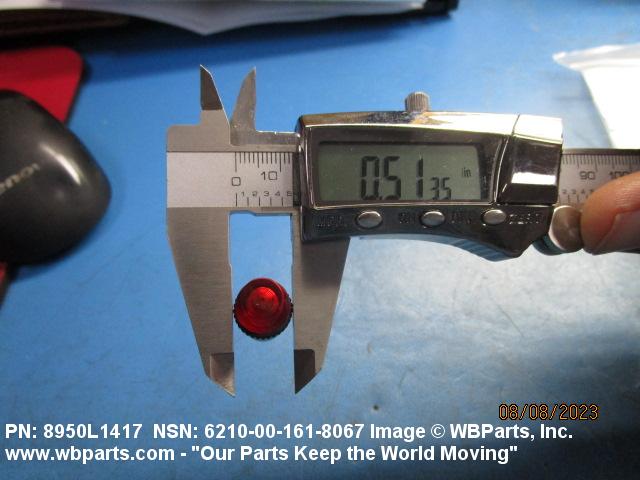

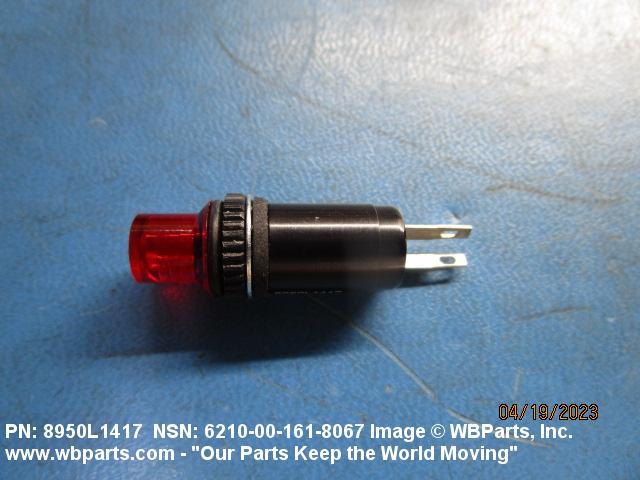

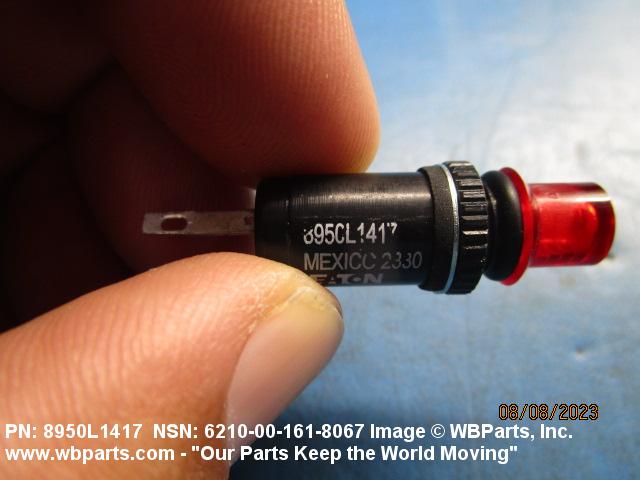

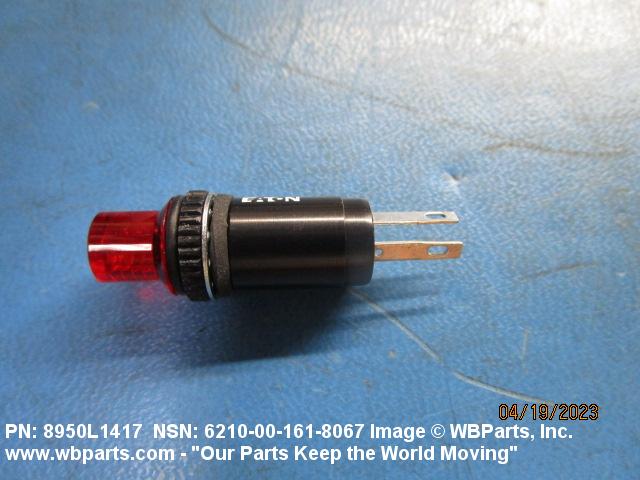

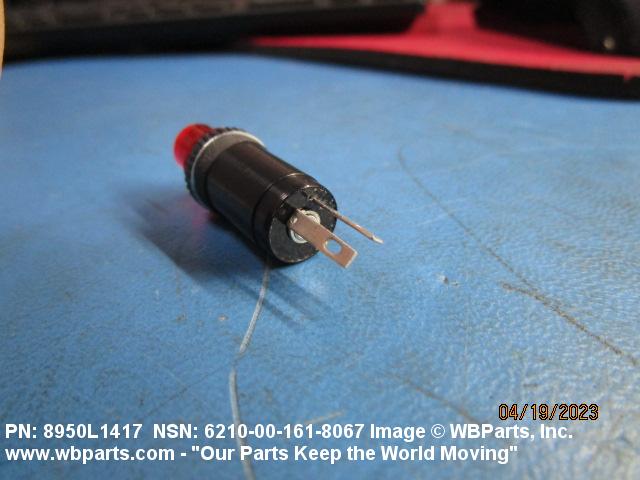

Drawings & Photos | NSN 6210-00-161-8067
Demand History | NSN 6210-00-161-8067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 8950L1417 | 2025-06-152 | 44 | DIBBS |
| 8950L1417 | 2025-05-135 | 44 | DIBBS |
| 8950L1417 | 2024-02-46 | 18 | DIBBS |
| 6210-00-161-8067 | 2024-02-44 | 90 | US |
| 8950L1417 | 2023-10-288 | 90 | DIBBS |
| 8950L1417 | 2023-06-170 | 33 | DIBBS |
| 8950L1417 | 2023-03-80 | 33 | DIBBS |
| 6210-00-161-8067 | 2023-02-48 | 94 | United States |
| 8950L1417 | 2022-07-198 | 60 | DIBBS |
| 8950L1417 | 2021-10-284 | 99 | DIBBS |
| 8950L1417 | 2021-09-269 | 86 | DIBBS |
| 6210-00-161-8067 | 2021-09-259 | 2 | United States |
| 8950L1417 | 2021-02-59 | 41 | DIBBS |
| 6210-00-161-8067 | 2017-06-169 | 243 | DIBBS |
| 6210-00-161-8067 | 2017-06-157 | 243 | DIBBS |
| 6210-00-161-8067 | 2014-08-232 | 156 | DIBBS |
| 6210-00-161-8067 | 2014-05-126 | 99 | DIBBS |
| 6210-00-161-8067 | 2013-05-128 | 122 | DIBBS |
| 6210-00-161-8067 | 2013-04-115 | 46 | DIBBS |
| 6210-00-161-8067 | 2012-08-232 | 236 | DIBBS |
| 6210-00-161-8067 | 2012-06-170 | 38 | DIBBS |
| 6210-00-161-8067 | 2011-07-193 | 91 | DIBBS |
| 6210-00-161-8067 | 2010-06-167 | 124 | DIBBS |
| 6210-00-161-8067 | 2009-10-293 | 124 | DIBBS |
Cross Reference | NSN 6210-00-161-8067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 14799Z199A | 55588 | EATON ELECTRICAL INC. DBA CUTTLER HMMER CMRCL CNTRLS DIV |
| 14799Z199A | SCT67 | EATON CONTROLS, S. DE R.L. DE C.V. DIV VEHICLE CONTROLS BUSINESS UNIT |
| 2907488-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 8950L1417 | 55588 | EATON ELECTRICAL INC. DBA CUTTLER HMMER CMRCL CNTRLS DIV |
| 8950L1417 | 81118 | EATON CORPORATION DBA FLUID POWER PLANT |
| 8950L1417 | SCT67 | EATON CONTROLS, S. DE R.L. DE C.V. DIV VEHICLE CONTROLS BUSINESS UNIT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-161-8067
Related Products | NSN 6210-00-161-8067
Technical Data | NSN 6210-00-161-8067
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ROUND FRAME, ROUND LENS TYPE |

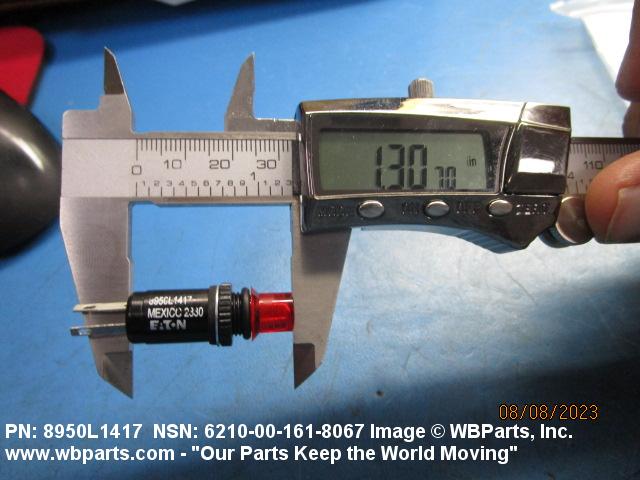

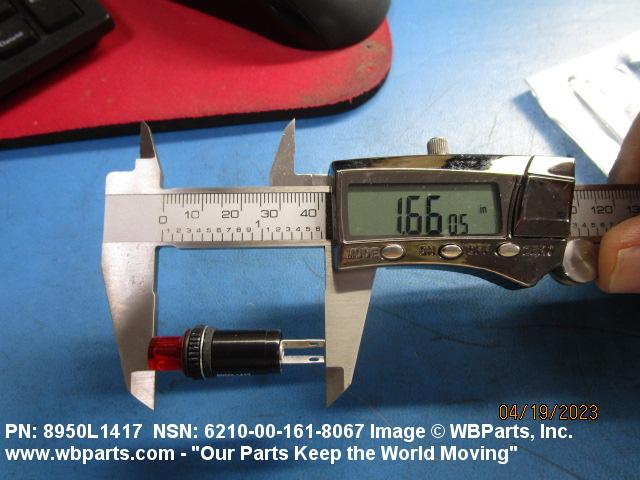

| OVERALL LENGTH | 1.344 INCHES NOMINAL |

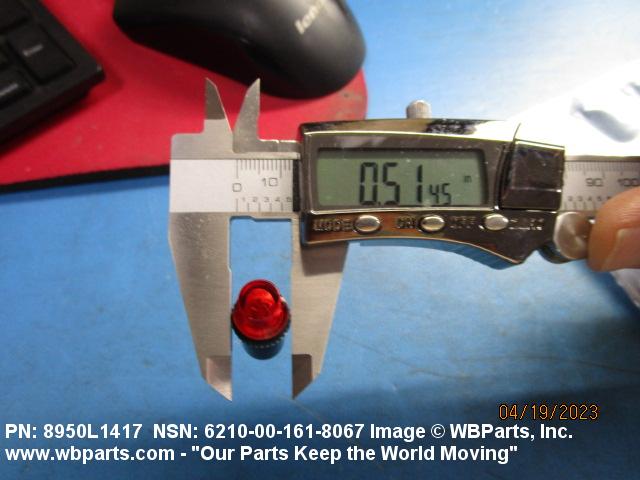

| OVERALL DIAMETER | 0.512 INCHES NOMINAL |
| MATERIAL | ALUMINUM BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | PUSH IN |
| LENS TYPE | CYLINDRICAL SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.375 INCHES NOMINAL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.125 INCHES MAXIMUM |

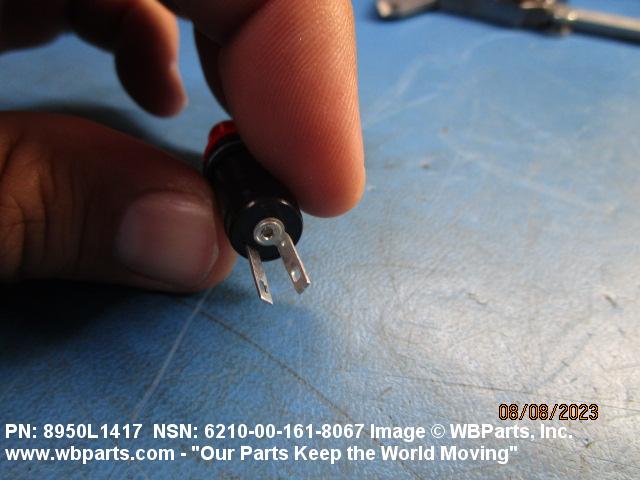

| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| FURNISHED ITEMS AND QUANTITY | 1 LOCK WASHER AND 1 KNURLED NUT |
Restrictions/Controls & Freight Information | NSN 6210-00-161-8067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-161-8067
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
