NSN 6210-00-284-0289 MS250414, MS25041-4, M547004
Product Details | INDICATOR LIGHT
6210-00-284-0289 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: MS250414, MS25041-4, M547004, M5470-04, MILDTL796, MIL-DTL-796, PL60048721, PL600487-21, VM911M4, VM911M4A, VM911XP254A, VM911XP25-4A, 019118010850M4, 01-91180-10850M-4, 01911804, 01-91180-4, 02911804, 02-91180-4, 10505903, 1851324, 185132-4, 19500, 25152174, 2515217-4, 6100534, 610053-4, 702725P3, 7027-25-P-3, 7959262001, 795-9262-001, 800023M4A, 800023-M4A, 80110300333504, 801-1030-0333-504, 80417100333925, 804-1710-0333-925, 8193156, 905.312, 905312, 972.81.13.016, 9728113016, 6210-00-284-0289, 00-284-0289, 6210002840289, 002840289
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-284-0289 | 00160 ( LIGHT, INDICATOR ) |

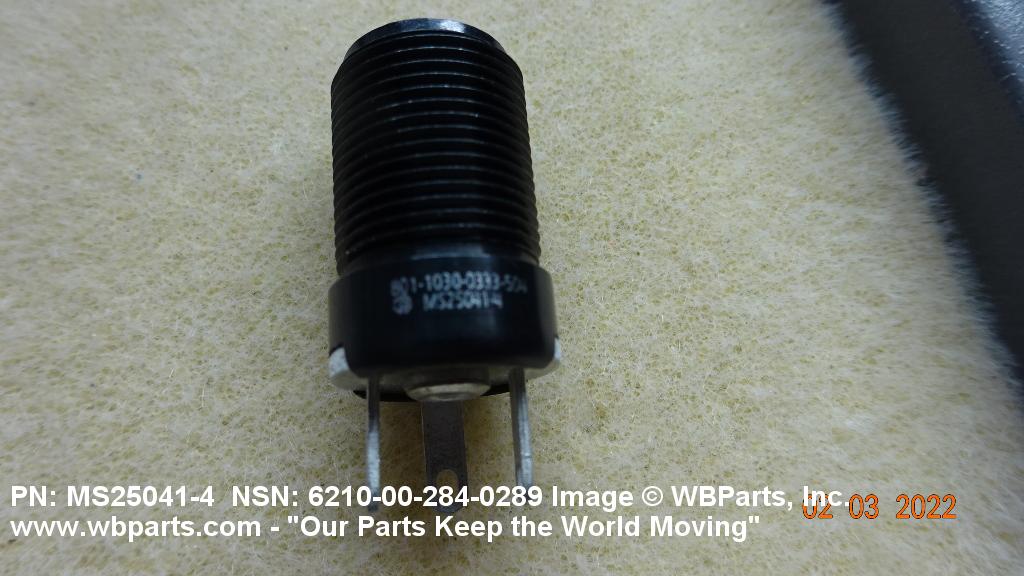

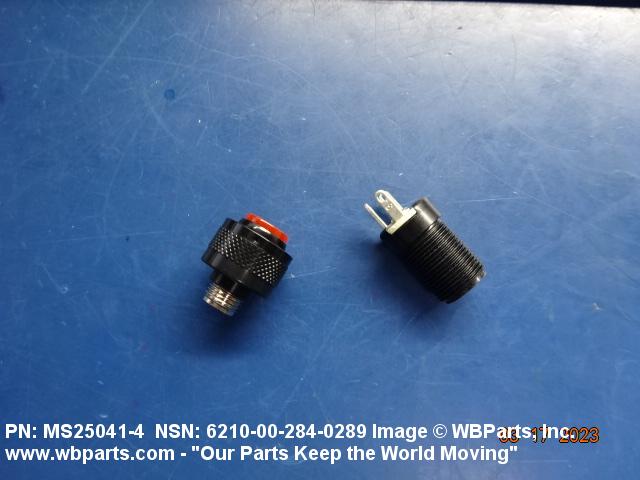

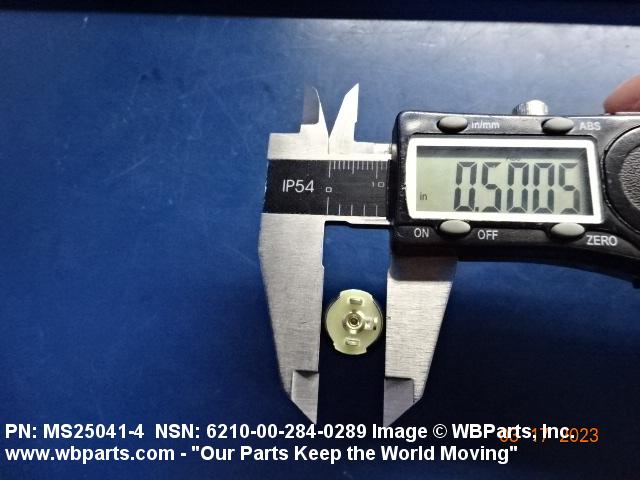

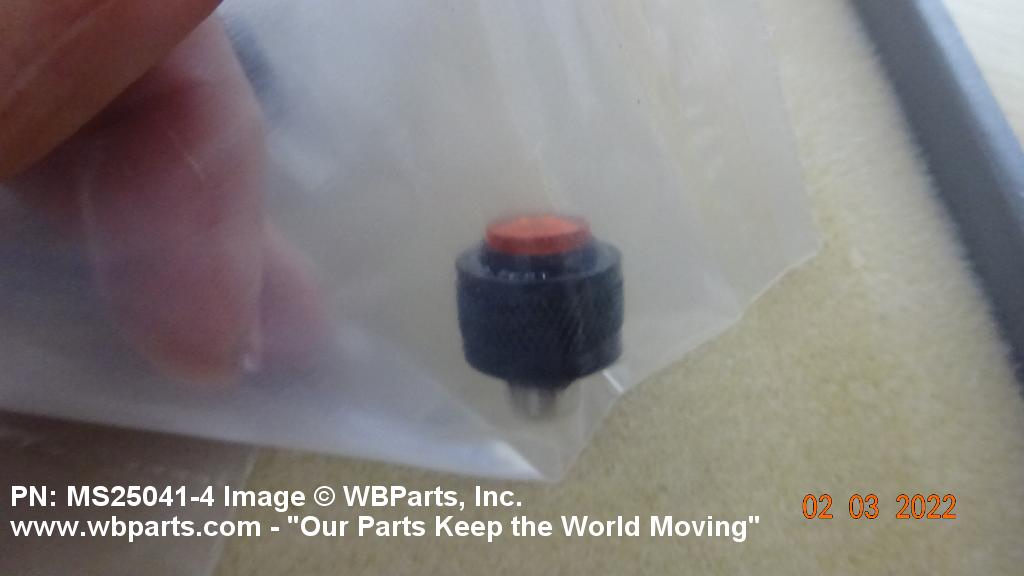

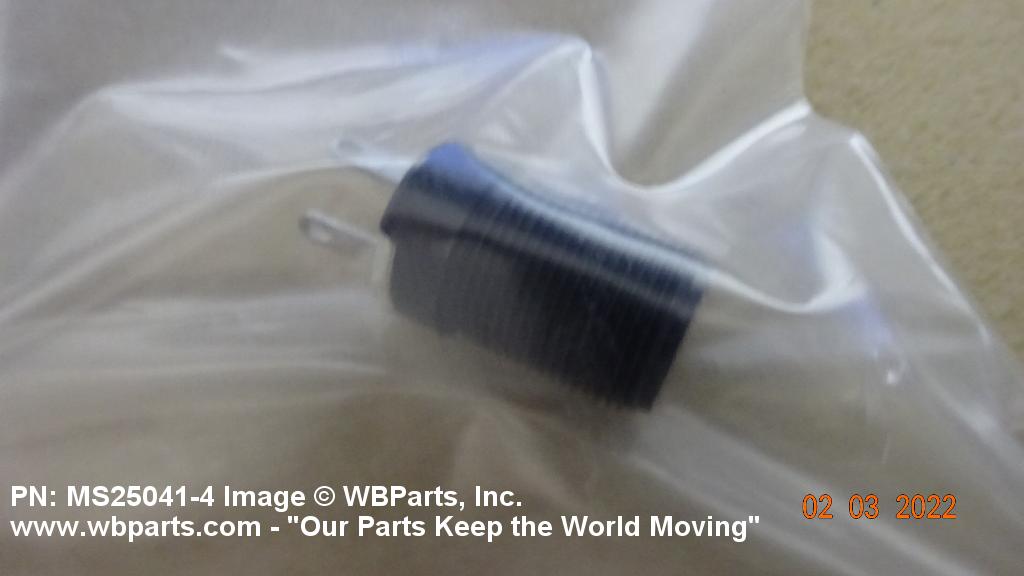

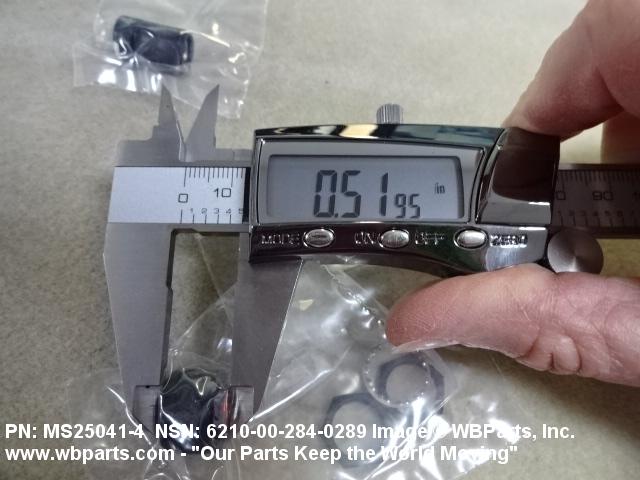

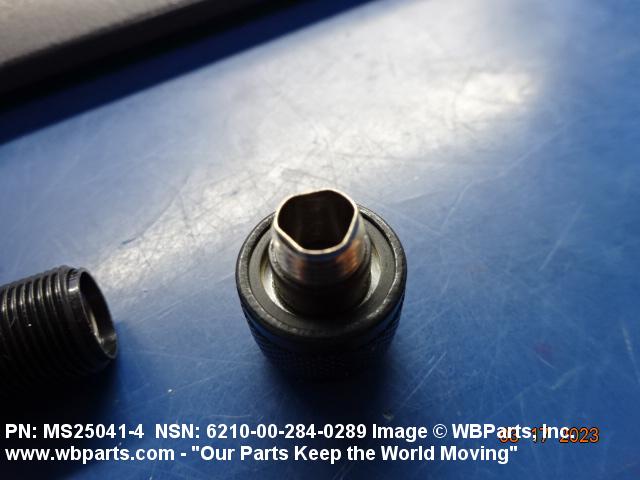

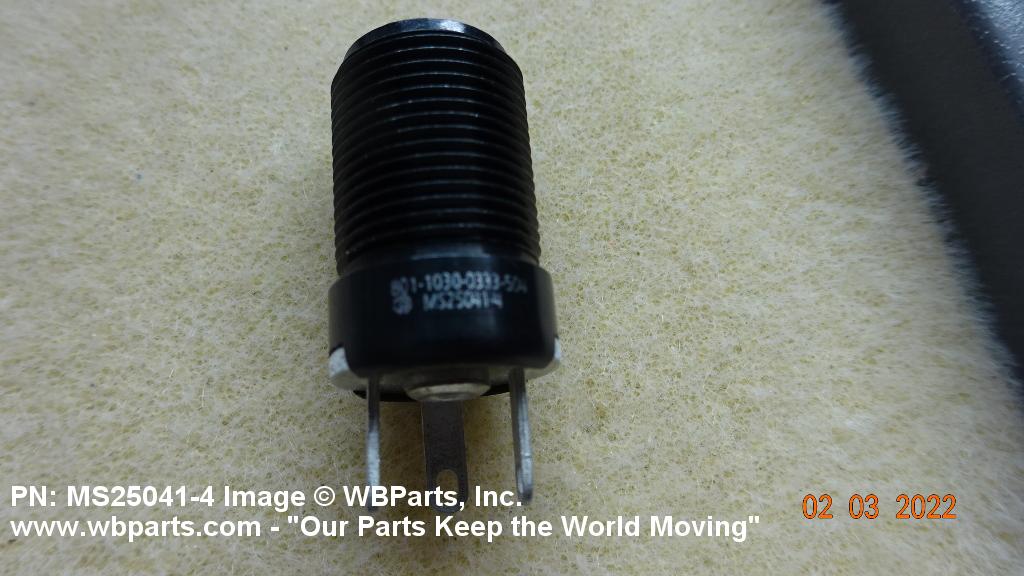

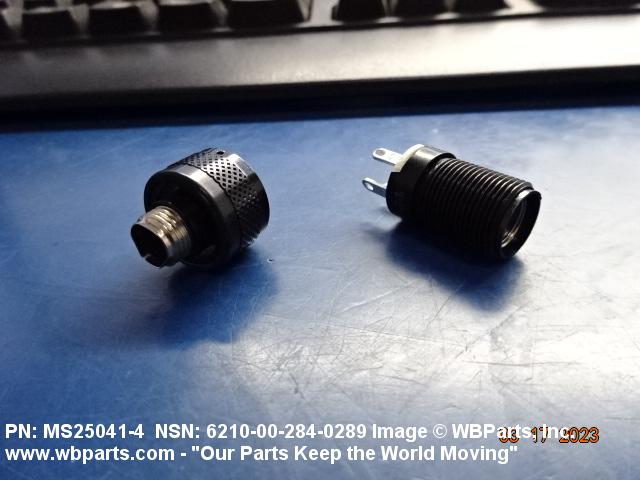

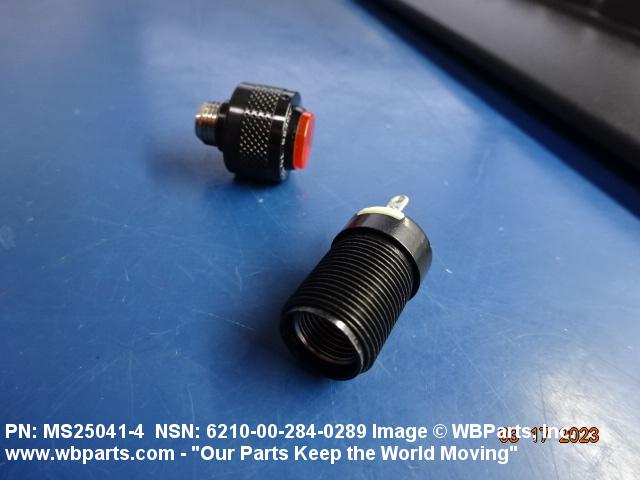

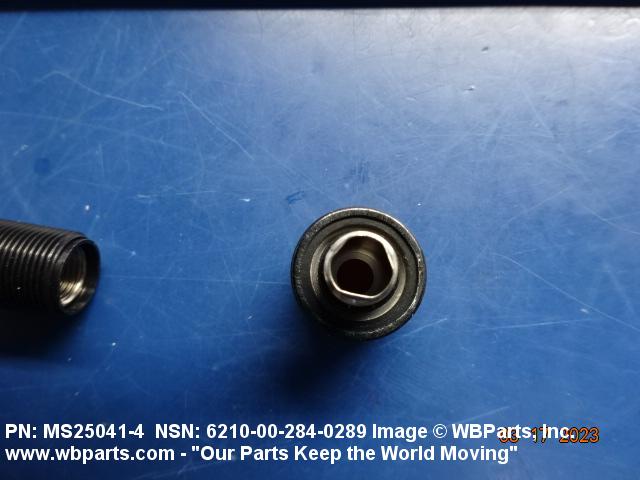

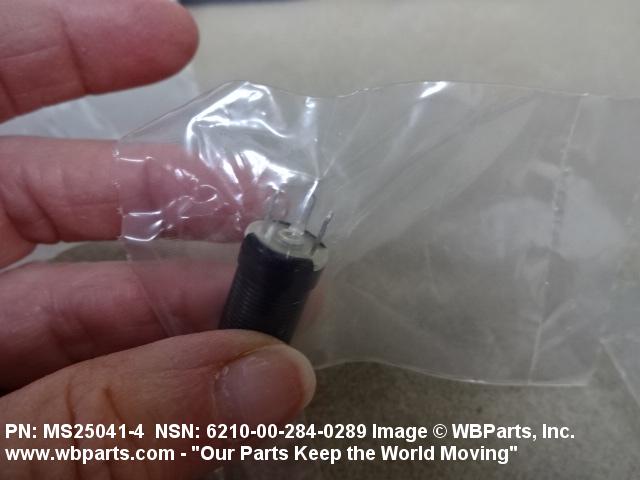

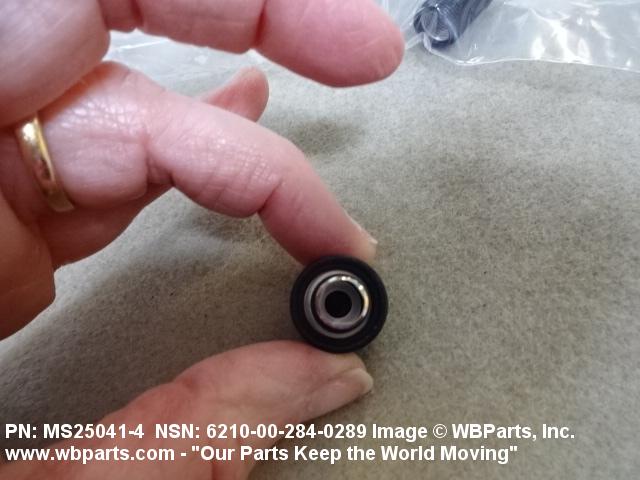

Drawings & Photos | NSN 6210-00-284-0289
Demand History | NSN 6210-00-284-0289
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-284-0289 | 2025-06-163 | 5 | AE |
| MS250414 | 2025-03-87 | 15 | China |
| 6210-00-284-0289 | 2024-05-125 | 8 | ID |
| 6210-00-284-0289 | 2023-08-224 | 40 | TR |
| 6210-00-284-0289 | 2021-01-18 | 90 | Singapore |
| MS250414 | 2019-06-170 | 15 | IN |
| 6210-00-284-0289 | 2019-03-67 | 1 | MANUAL |
| 6210-00-284-0289 | 2018-01-25 | 5 | TH |
| MS250414 | 2017-09-262 | 15 | US |
| MS250414 | 2017-07-212 | 3 | US |
| 6210-00-284-0289 | 2017-05-136 | 595 | DIBBS |
| 6210-00-284-0289 | 2017-03-78 | 1 | DIBBS-RFPs |
| 6210-00-284-0289 | 2015-11-306 | 80 | Malaysia |
| MS25041-4 | 2014-10-275 | 26 | US |
| 6210-00-284-0289 | 2012-04-99 | 232 | DIBBS |
| MS250414 | 2011-10-294 | 10 | United States |
| MS250414 | 2011-05-129 | 1 | US |
| 6210-00-284-0289 | 2010-11-320 | 5 | China |
| 6210-00-284-0289 | 2010-02-35 | 20 | South Korea |
| 6210-00-284-0289 | 2009-04-114 | 356 | DIBBS |
| 6210-00-284-0289 | 2009-01-19 | 10 | Indonesia |
| 6210-00-284-0289 | 2008-12-337 | 5833 | DIBBS |
| 6210-00-284-0289 | 2008-10-290 | 5833 | DIBBS |
| 6210-00-284-0289 | 2008-10-288 | 5833 | DIBBS |
| MS250414 | 2007-11-326 | 25 | United States |
| 1851324 | 2007-11-320 | 3 | us |
Cross Reference | NSN 6210-00-284-0289
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-91180-10850M-4 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| 01-91180-4 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| 02-91180-4 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| 10505903 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 185132-4 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 19500 | 00781 | CESSNA AIRCRAFT CO ARC AVIONICS DIV |
| 2515217-4 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 610053-4 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 7027-25-P-3 | 08730 | COOL OPTIONS INC DBA HANDLES UNLIMITED |
| 795-9262-001 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 800023-M4A | 1SG29 | PANELIGHT COMPONENTS GROUP, LLC |
| 800023-M4A | 57810 | PAN-A-LITE PRODUCTS INC |
| 801-1030-0333-504 | 83330 | DIALIGHT CORPORATION |
| 804-1710-0333-925 | 83330 | DIALIGHT CORPORATION |
| 8193156 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 905.312 | 62380 | WEBASTO THERMOSYSTEMS INC |
| 972.81.13.016 | S4080 | PILATUS AIRCRAFT LTD |
| M5470-04 | 09033 | UNISON INDUSTRIES INC SLICK PRODUCTS DIV |
| MIL-DTL-796 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS25041-4 | 1CW50 | HAMMOND ELECTRONICS, INC. DBA HAMMOND ASSEMBLY SOLUTION |
| MS25041-4 | 83803 | PEERLESS ELECTRONICS INC. |
| MS25041-4 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PL600487-21 | 083V0 | GLOBAL ASSOCIATES LTD SIGNAL PROCESSING SYSTEMS |
| PL600487-21 | 20227 | HENLEY MARINE, INC |
| VM911M4 | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| VM911M4A | 76854 | ELECTRO SWITCH CORP. DBA OAK GRISGSBY |
| VM911M4A | 83330 | DIALIGHT CORPORATION |
| VM911XP25-4A | 83330 | DIALIGHT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-284-0289
Related Products | NSN 6210-00-284-0289
Technical Data | NSN 6210-00-284-0289
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 ROUND FRAME, ROUND LENS TYPE |

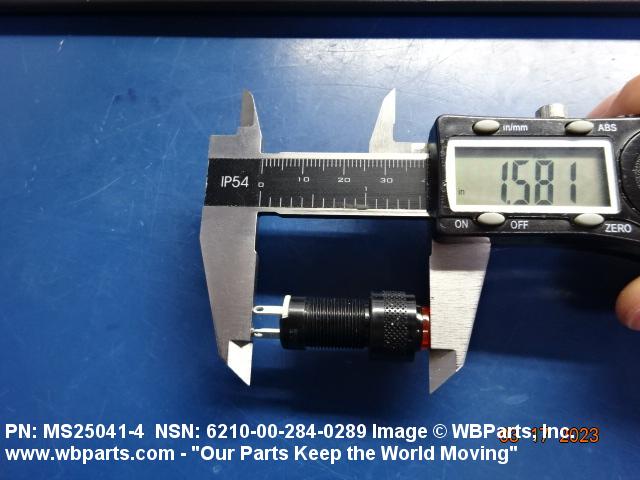

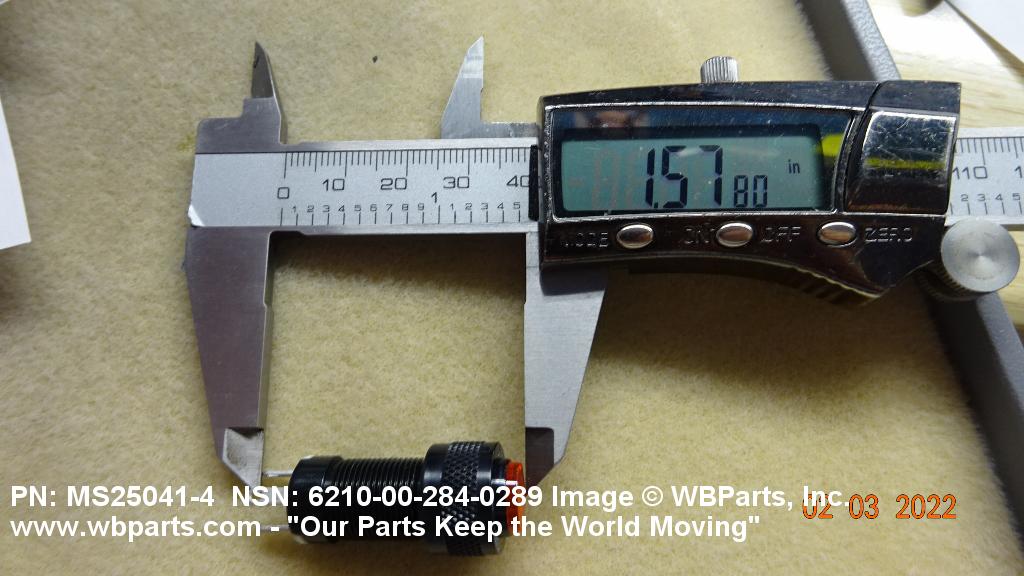

| OVERALL LENGTH | 1.750 INCHES MAXIMUM |

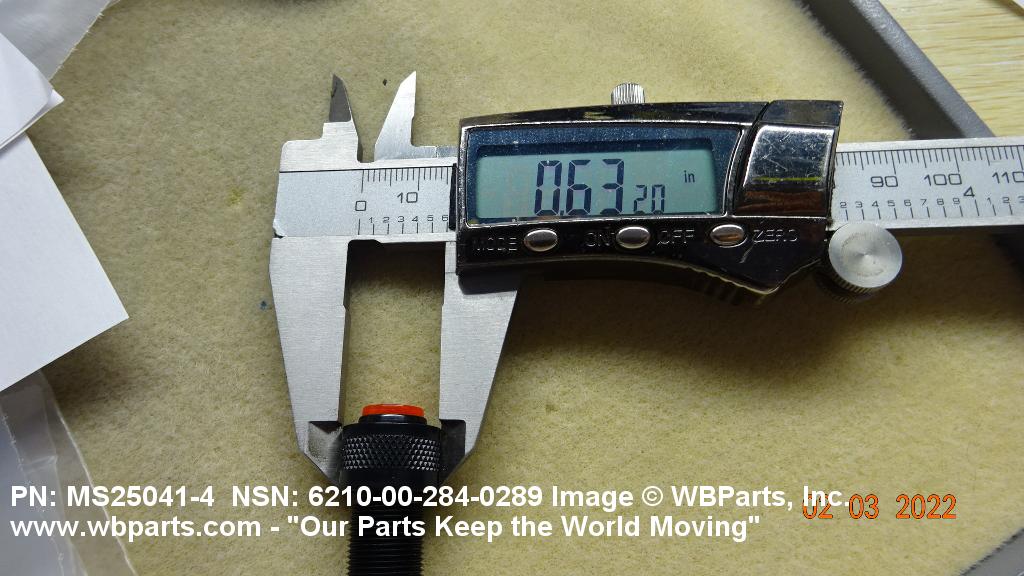

| OVERALL DIAMETER | 0.650 INCHES MAXIMUM |
| MATERIAL | ALUMINUM BODY |
| SURFACE TREATMENT | ANODIZE BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | SCREW ON |
| LENS TYPE | FLAT, KNURLED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | AMBER SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | AMBER SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.625 INCHES MINIMUM AND 0.655 INCHES MAXIMUM |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.375 INCHES MAXIMUM |

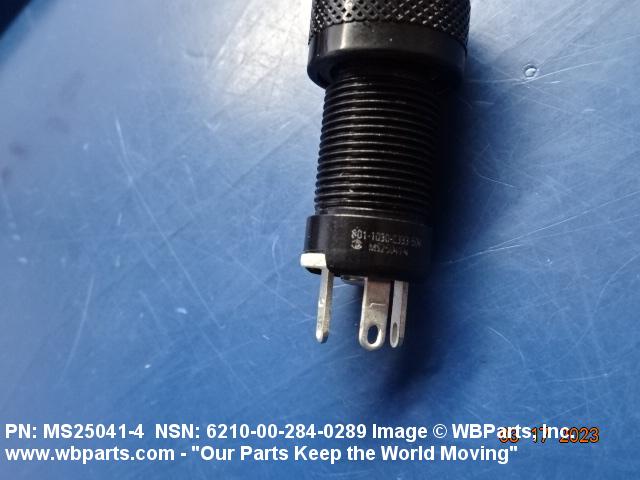

| TERMINAL TYPE AND QUANTITY | 3 SOLDER LUG |

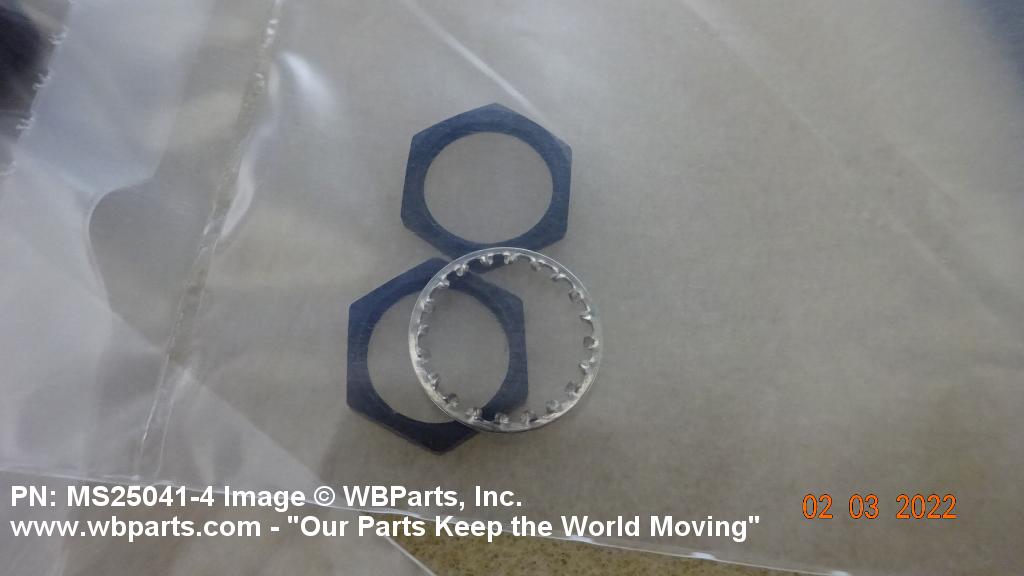

| FURNISHED ITEMS AND QUANTITY | 2 HEXAGON NUT AND 1 LOCK WASHER |
| FEATURES PROVIDED | BLACKOUT DEGREE, PARTIAL AND DIMMING DEVICE AND PRESS TO TEST |

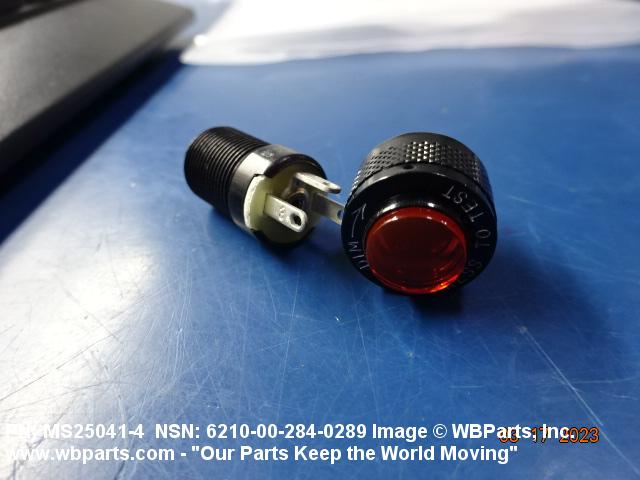

| SPECIAL FEATURES | DIM ARROW SYMBOL AND PRESS TO TEST ENGRAVED ON HOLDER |
| III END ITEM IDENTIFICATION | RADAR SET, AN/TPN-18; AIRCRAFT, C-2A (REPROCURED); MISSILE, TOMAHAWK; AN/SPN-35B; FIRE CONTROL SYSTEM, MK 92 (FCS); TEST SET, ARM-155/156; ARMORED SECURITY VEHICLE, MODEL XM1117; DEEP SUBMERGENCE SYSTEMS PROGRAMS (DSSP); FMS - AIRCRAFT, HORNET F/A-18; AIRCRAFT (AC-130H, MC-130H, EC-130E, HC-130); ADVANCED AIR TRAFFIC CONTR. & LAND. SYS (ATCALS) 404L |
| (NON-CORE DATA) SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25041-4 |
Restrictions/Controls & Freight Information | NSN 6210-00-284-0289
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-284-0289
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
