NSN 6210-00-578-6754 SDU4U, MILL25971, MIL-L-25971
Product Details | AIRCRAFT TRAFFIC LIGHT
6210-00-578-6754 A hand-held light specifically designed to project a beam of light, usually colored, for the prime purpose of regulating and directing airborne and ground aircraft traffic in and around an airport, ship and the like. It may be portable or permanently attached and may include a housing, mounting plate, spring, cable(s), battery(ies), colored filter(s), lens(es), or a means for flashing signals. The lamp housing may include a pistol grip, trigger switch, aiming device, lamp(s), and the like.20362100045Indoor and Outdoor Electric Lighting Fixtures6220000062300045Electric Portable and Hand Lighting Equipment
Part Alternates: SDU4U, MILL25971, MIL-L-25971, 975, 6210-00-578-6754, 00-578-6754, 6210005786754, 005786754
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-578-6754 | 13453 ( LIGHT, TRAFFIC, AIRCRAFT ) |

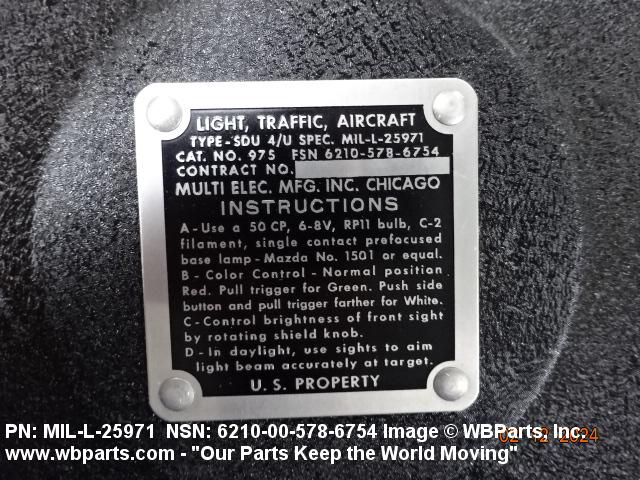

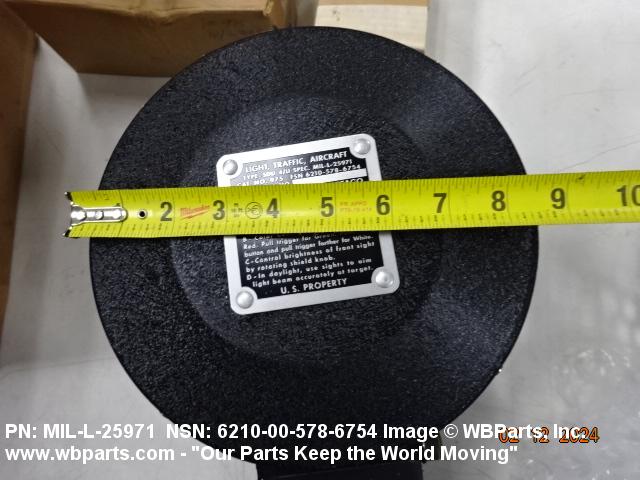

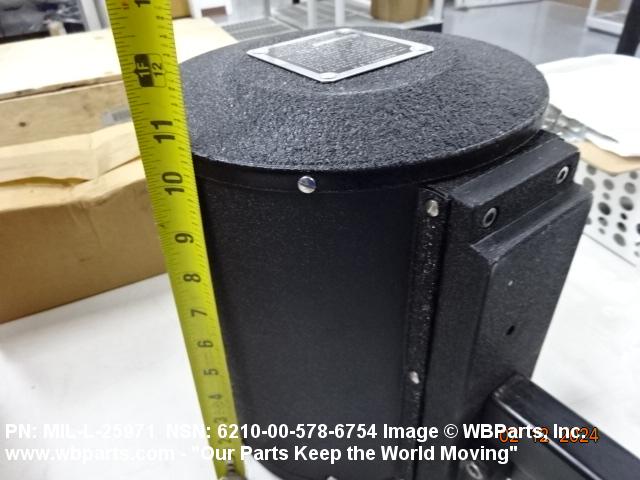

Drawings & Photos | NSN 6210-00-578-6754
Demand History | NSN 6210-00-578-6754
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-578-6754 | 2025-10-300 | 4 | US |
| 6210-00-578-6754 | 2025-07-198 | 1 | US |
| 6210-00-578-6754 | 2024-01-10 | 1 | United States |
| 6210-00-578-6754 | 2023-04-100 | 1 | United States |
| 6210-00-578-6754 | 2016-11-330 | 19 | DIBBS |
| 6210-00-578-6754 | 2016-10-298 | 19 | DIBBS |
| 6210-00-578-6754 | 2016-09-266 | 19 | DIBBS |
| 6210-00-578-6754 | 2012-03-75 | 26 | DIBBS |
| 6210-00-578-6754 | 2011-12-353 | 35 | DIBBS |
| 6210-00-578-6754 | 2011-09-250 | 9 | DIBBS |
| 6210-00-578-6754 | 2011-05-146 | 14 | DIBBS |
| 6210-00-578-6754 | 2010-12-337 | 19 | DIBBS |
| 6210-00-578-6754 | 2010-10-280 | 17 | DIBBS |
| 6210-00-578-6754 | 2010-08-224 | 20 | DIBBS |
| 6210-00-578-6754 | 2010-02-42 | 14 | DIBBS |
| 6210-00-578-6754 | 2009-11-307 | 18 | DIBBS |
| 6210-00-578-6754 | 2009-04-105 | 18 | DIBBS |
| 6210-00-578-6754 | 2009-02-51 | 23 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-578-6754
Related Products | NSN 6210-00-578-6754
Technical Data | NSN 6210-00-578-6754
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 8.500 INCHES NOMINAL |
| OVERALL LENGTH | 15.000 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 6.0 DC MINIMUM AND 8.0 DC MAXIMUM |
| MATERIAL | ALUMINUM BODY GLASS FILTER PLASTIC ILLUMINATION DIRECTING DEVICE GLASS REFLECTOR |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-7989,CLASS D MIL SPEC SINGLE MATERIAL RESPONSE ILLUMINATION DIRECTING DEVICE |
| SURFACE TREATMENT | ENAMEL BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | SINGLE CONTACT CANDELABRA PREFOCUS |
| MOUNTING METHOD | SCREW |
| TERMINAL TYPE AND QUANTITY | 3 WIRE LEAD |
| WIRING PROVISION METHOD | CABLE |
| WIRING PROVISION LENGTH | 36.0 INCHES NOMINAL FIRST PROVISION 144.0 INCHES NOMINAL SECOND PROVISION 120.0 INCHES NOMINAL THIRD PROVISION |
| ILLUMINATION DIRECTING DEVICE TYPE | COVER AND EXTERNAL REFLECTOR |
| LIGHT BEAM MOTION | FIXED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTTIGHT AND SANDTIGHT AND HUMIDITY RESISTANT |
| FURNISHED ITEMS AND QUANTITY | 1 FUSE AND 1 HANDLE AND 1 LAMP |
| FEATURES PROVIDED | REMOVABLE LIGHT FILTER AND TRANSFORMER |
| SPECIAL FEATURES | GREEN AND RED FILTERS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-L-25971 |
Restrictions/Controls & Freight Information | NSN 6210-00-578-6754
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109110 | FLASHLIGHTS/SEARCHLIGHTS ETC ELEC |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-578-6754
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | O | If condemned or economically unserviceable, dispose at organizational level. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
