NSN 6210-00-790-4846 MS172741SYM1361, MS17274-1SYM136-1, M16377/33-136.1
Product Details | LIGHTING FIXTURE
6210-00-790-4846 An item consisting of one or more lampholder(s) or other electrical connection, designed to provide general illumination. May include a shade, light window, switch and the like. Do not use if a more specific item name exists,such as LIGHT (as modified).
Part Alternates: MS172741SYM1361, MS17274-1SYM136-1, M16377/33-136.1, M16377/33A-136.1, M16377331361, M1637733A1361, MIL-F-16377/33, MIL-F-16377/33A, MILF1637733, MILF1637733A, 815F1197017REVCPC1X3T013, 303-4677840 ITEM 254, 3034677840ITEM254, 6210-00-790-4846, 00-790-4846, 6210007904846, 007904846
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-790-4846 | 00513 ( FIXTURE, LIGHTING ) |

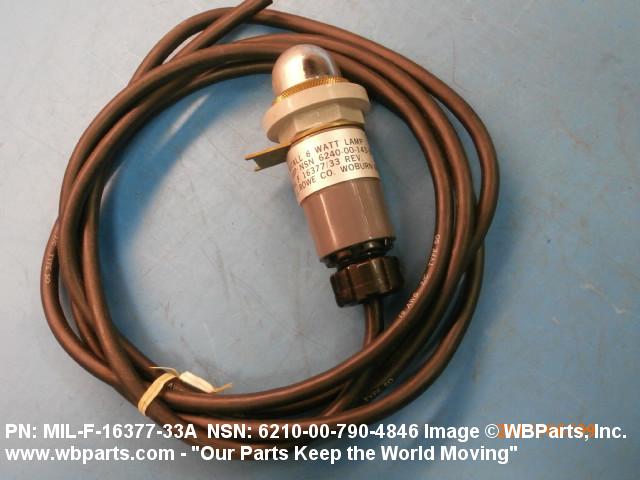

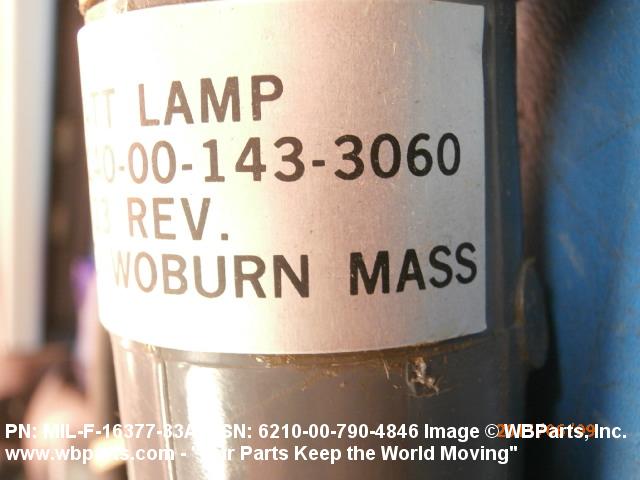

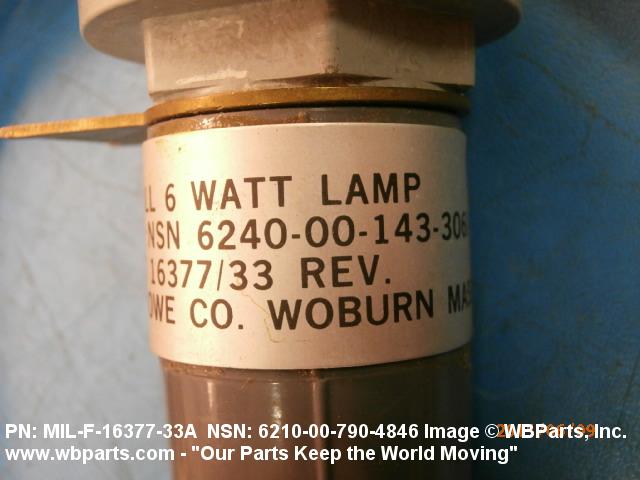

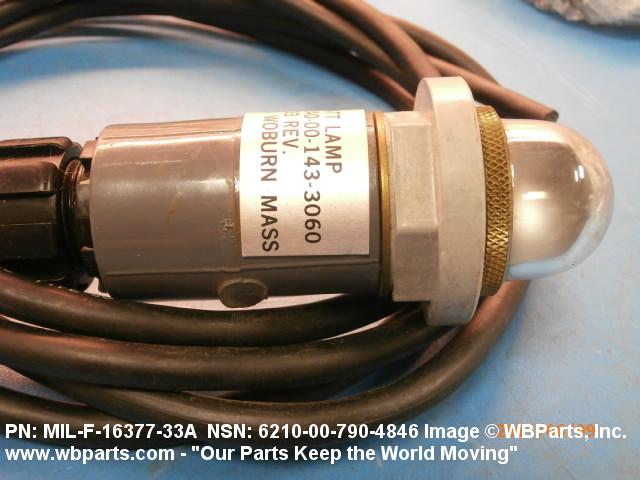

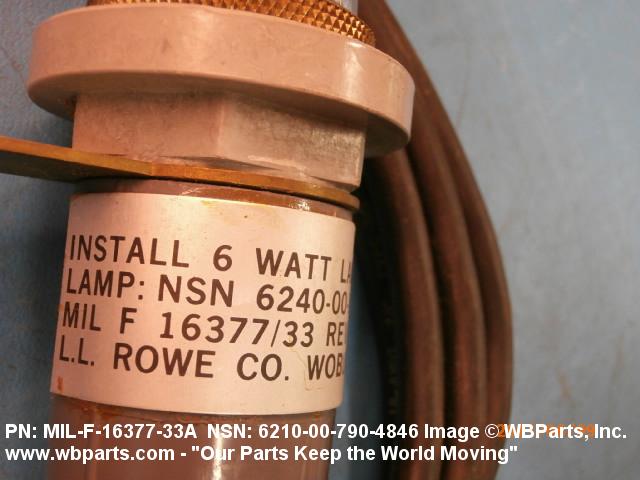

Drawings & Photos | NSN 6210-00-790-4846
Demand History | NSN 6210-00-790-4846
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-00-790-4846 | 2024-10-275 | 1 | US |
| 6210-00-790-4846 | 2024-04-109 | 75 | DIBBS |
| 6210-00-790-4846 | 2024-02-35 | 54 | DIBBS |
| 6210-00-790-4846 | 2024-01-18 | 1 | US |
| 6210-00-790-4846 | 2023-09-267 | 35 | DIBBS |
| 6210-00-790-4846 | 2022-11-317 | 58 | DIBBS |
| 6210-00-790-4846 | 2021-12-353 | 38 | DIBBS |
| 6210-00-790-4846 | 2020-02-48 | 2 | United States |
| MS172741SYM1361 | 2019-11-324 | 2 | United States |
| 6210-00-790-4846 | 2016-10-305 | 1 | United States |
| 6210-00-790-4846 | 2016-03-76 | 3 | United States |
| 6210-00-790-4846 | 2016-02-32 | 3 | US |
| 6210-00-790-4846 | 2015-06-153 | 3 | United States |
| 6210-00-790-4846 | 2013-11-317 | 1 | DIBBS-RFPs |
| 6210-00-790-4846 | 2013-08-213 | 179 | DIBBS |
| 6210-00-790-4846 | 2012-12-349 | 144 | DIBBS |
| 6210-00-790-4846 | 2012-02-58 | 75 | DIBBS |
| 6210-00-790-4846 | 2012-02-52 | 47 | DIBBS |
| 6210-00-790-4846 | 2010-06-153 | 203 | DIBBS |
Cross Reference | NSN 6210-00-790-4846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 303-4677840 ITEM 254 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 815F1197017REVCPC1X3T013 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| M16377/33-136.1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16377/33A-136.1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16377/33 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16377/33A | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17274-1SYM136-1 | 76714 | O-Z/GEDNEY CO NELSON FIRESTOP PRODUCTS DIV A UNIT OF GENERAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-00-790-4846
Related Products | NSN 6210-00-790-4846
Technical Data | NSN 6210-00-790-4846
| Characteristic | Specifications |
|---|---|
| SHAPE | STRAIGHT |

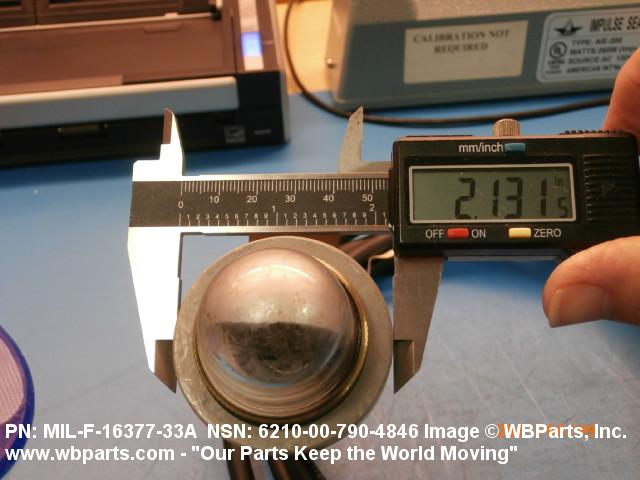

| OVERALL DIAMETER | 2.125 INCHES NOMINAL |
| OVERALL LENGTH | ANY ACCEPTABLE |
| VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| MATERIAL | PLASTIC ALKYD BODY GLASS ILLUMINATION DIRECTING DEVICE |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | DOUBLE CONTACT BAYONET CANDELABRA |
| MOUNTING METHOD | BRACKET |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |

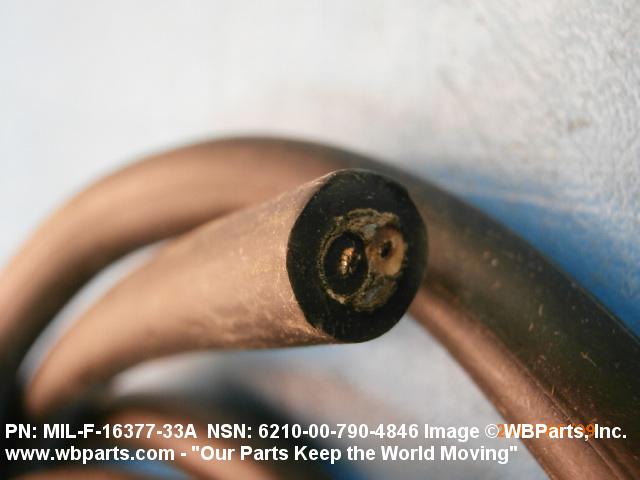

| WIRING PROVISION METHOD | CABLE |
| WIRING PROVISION LENGTH | 120.0 INCHES NOMINAL ALL PROVISIONS |
| ILLUMINATION DIRECTING DEVICE TYPE | GLOBE |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SHOCK AND VIBRATION RESISTANT |
| III UNPACKAGED UNIT WEIGHT | 1.250 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16377/33A |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16377/33A-136.1 |
Restrictions/Controls & Freight Information | NSN 6210-00-790-4846
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-00-790-4846
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
