Product Details | INDICATOR LIGHT ASSEMBLY
6210-01-027-3350 An item designed to convey information of a specific nature concerning the circuit in which inserted. Consists of two or more LIGHT, INDICATOR.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems

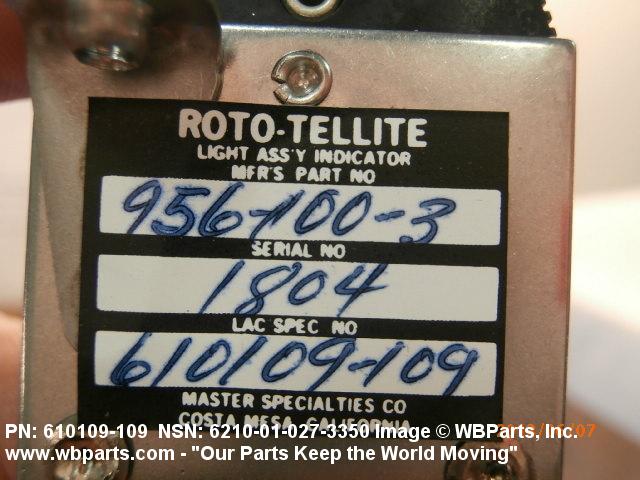

Part Alternates: 35110153003, 351-101-53-003, 610109-109, 9561003, 956-100-3, 6210-01-027-3350, 01-027-3350, 6210010273350, 010273350, 610109109
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 16 SEP 1976 | 01-027-3350 | 03430 ( LIGHT ASSEMBLY, INDICATOR ) |

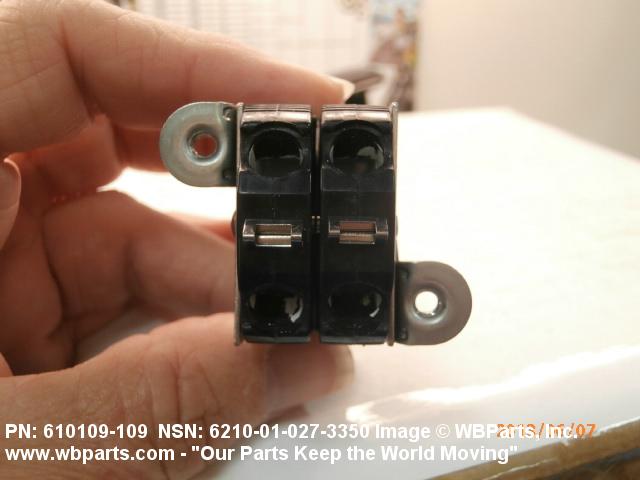

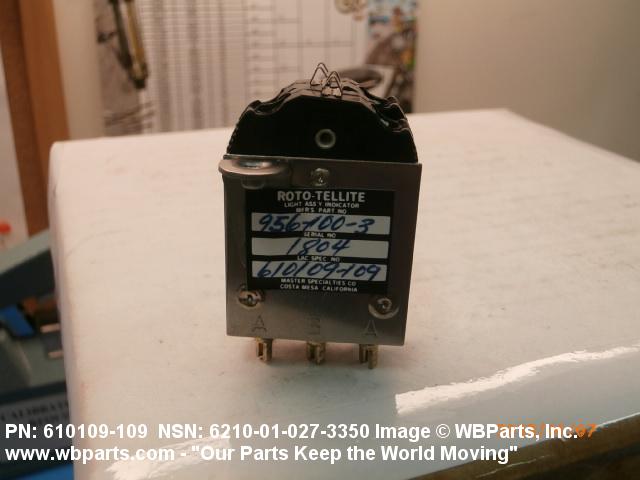

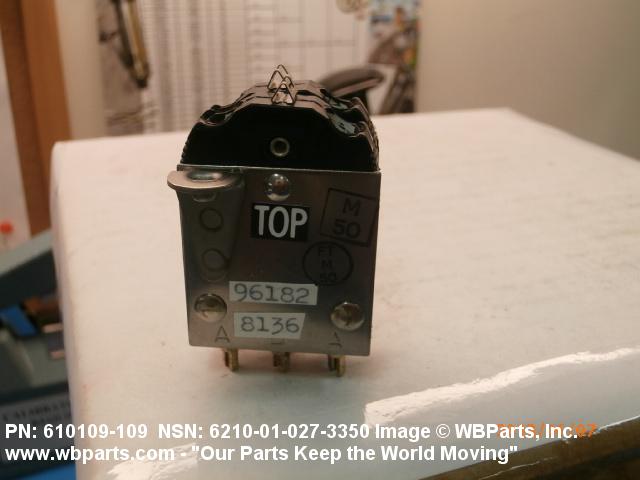

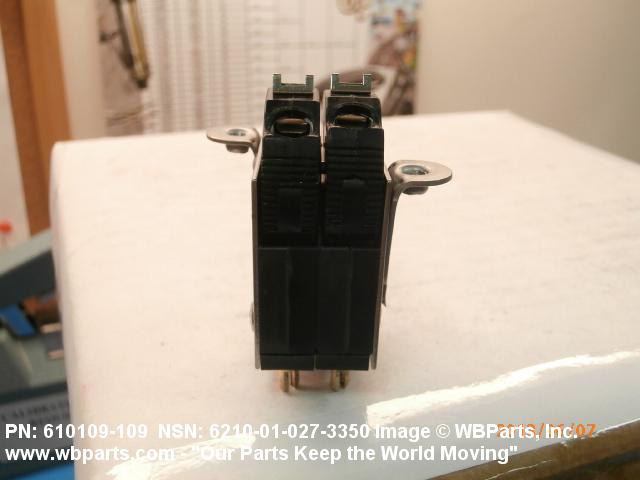

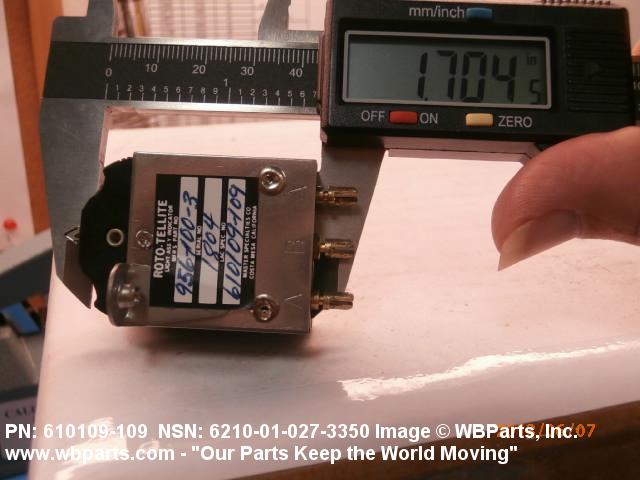

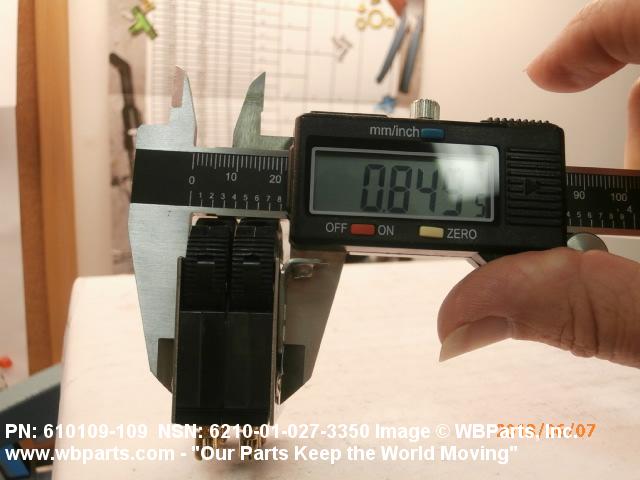

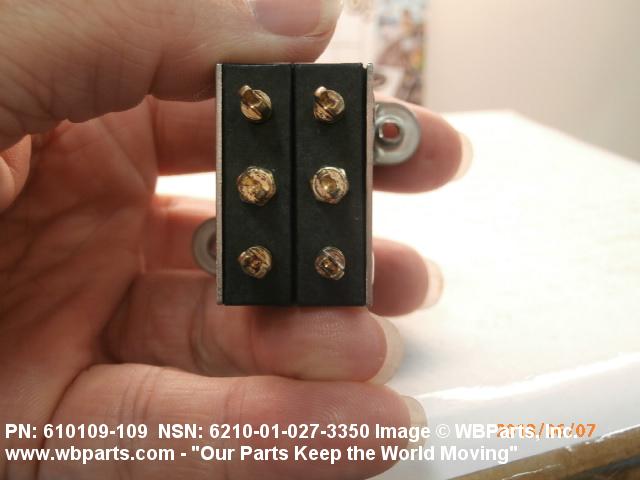

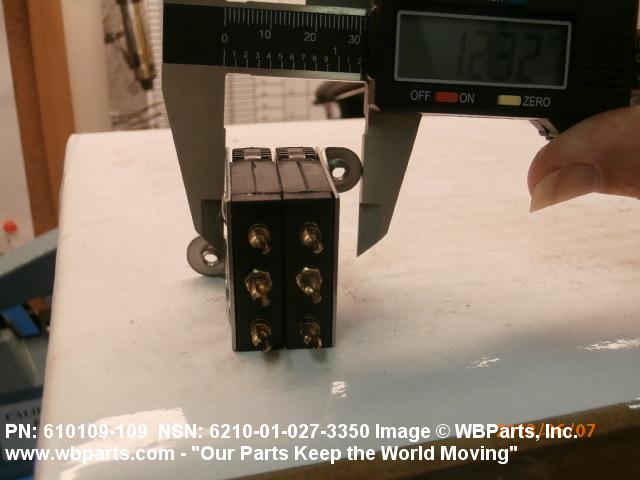

Drawings & Photos | NSN 6210-01-027-3350
Demand History | NSN 6210-01-027-3350
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 6210-01-027-3350
Related Products | NSN 6210-01-027-3350
6210-01-027-5492, 6210-01-027-5911, 6210-01-027-5956, 6210-01-027-5960, 6210-01-027-5962
Technical Data | NSN 6210-01-027-3350
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A13 SINGLE STRIP TYPE |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |

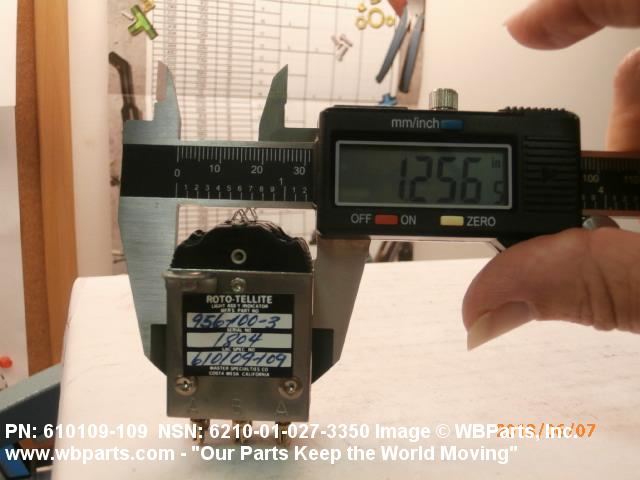

| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING BODY |
| LAMP INDUSTRY NUMBER | 327 |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 2 |
| LENS TYPE | FLAT, RECTANGULAR SINGLE ROW 1ST POSITION VERTICAL FLAT, RECTANGULAR SINGLE ROW 2ND POSITION VERTICAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE ROW 1ST POSITION VERTICAL TRANSLUCENT SINGLE ROW 2ND POSITION VERTICAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE ROW 1ST POSITION VERTICAL SMOOTH SINGLE ROW 2ND POSITION VERTICAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE ROW 1ST POSITION VERTICAL SMOOTH SINGLE ROW 2ND POSITION VERTICAL |
| LENS COLOR | WHITE SINGLE ROW 1ST POSITION VERTICAL WHITE SINGLE ROW 2ND POSITION VERTICAL |
| FILTER QUANTITY | 1 |
| FILTER COLOR | GREEN SINGLE ROW 1ST POSITION VERTICAL FULL DISPLAY DIVISION A GREEN SINGLE ROW 2ND POSITION VERTICAL FULL DISPLAY DIVISION A |
| TRANSMITTED LIGHT COLOR | WHITE SINGLE ROW 1ST POSITION VERTICAL FULL DISPLAY DIVISION A WHITE SINGLE ROW 2ND POSITION VERTICAL FULL DISPLAY DIVISION A |
| LENS LEGEND | L MSL RDY SINGLE ROW 1ST POSITION VERTICAL FULL DISPLAY DIVISION A R MSL RDY SINGLE ROW 2ND POSITION VERTICAL FULL DISPLAY DIVISION A |
| TRANSMITTED LEGEND COLOR | GREEN SINGLE ROW 1ST POSITION VERTICAL FULL DISPLAY DIVISION A GREEN SINGLE ROW 2ND POSITION VERTICAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |

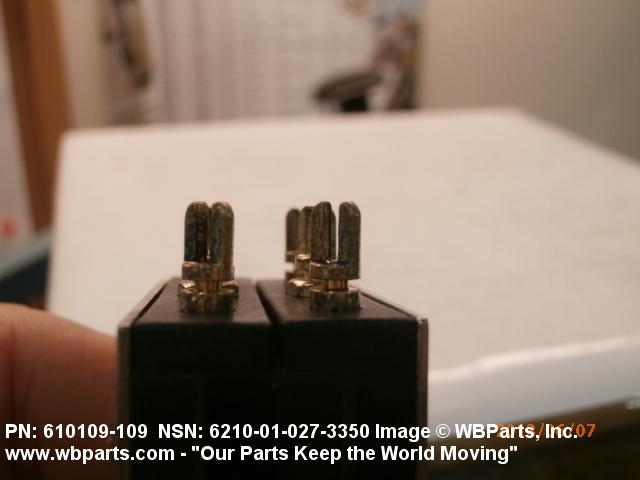

| TERMINAL TYPE AND QUANTITY | 6 SOLDER STUD |
| FEATURES PROVIDED | REMOVABLE LIGHT FILTER |
Restrictions/Controls & Freight Information | NSN 6210-01-027-3350
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-027-3350
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
