NSN 6210-01-151-7038 PL13501205 ITEM 24, PL13501205ITEM24, 11 908 319
Product Details | INDICATOR LIGHT
6210-01-151-7038 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: PL13501205 ITEM 24, PL13501205ITEM24, 11 908 319, 11908319, 31140010, 6981ED1661207, 6981ED166-1207, 6981ED16652, 6981ED166-52, 6981ED166741, 6981ED166-741, 6981ED166742, 6981ED166-742, 6981ED166743, 6981ED166-743, 6981ED166744, 6981ED166-744, 6981ED166745, 6981ED166-745, 6981ED166746, 6981ED166-746, 6981ED166749, 6981ED166-749, 6981ED166750, 6981ED166-750, 6981ED166C1, 6981ED166-C1, 6210-01-151-7038, 01-151-7038, 6210011517038, 011517038
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 21 APR 1983 | 01-151-7038 | 00160 ( LIGHT, INDICATOR ) |

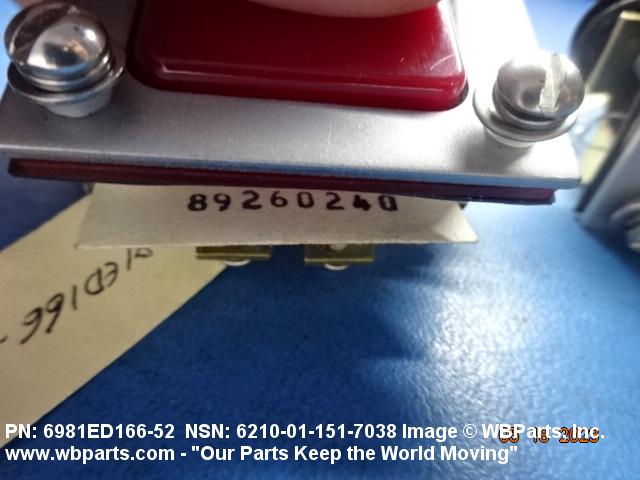

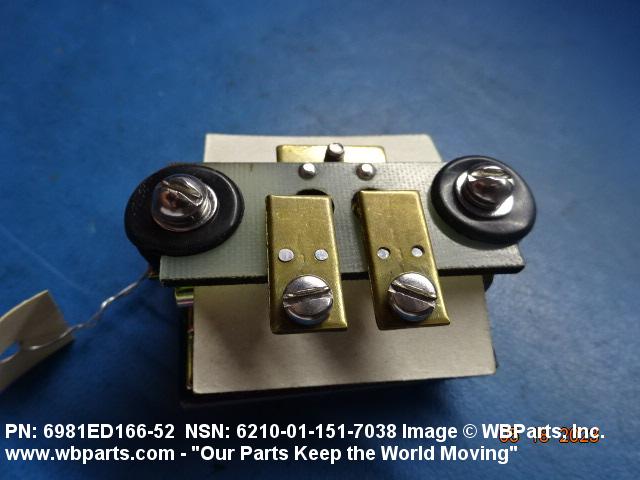

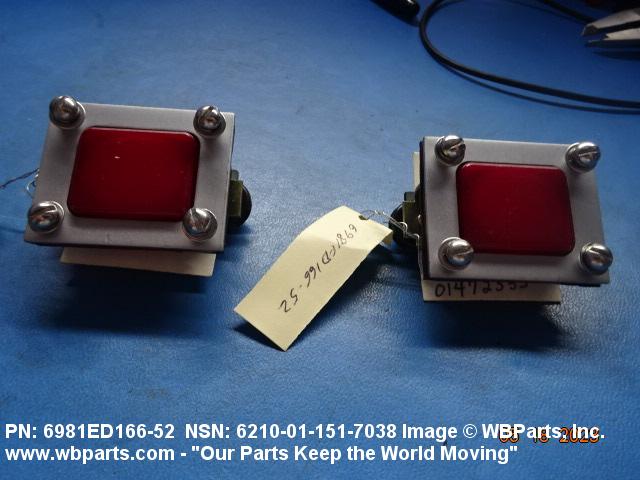

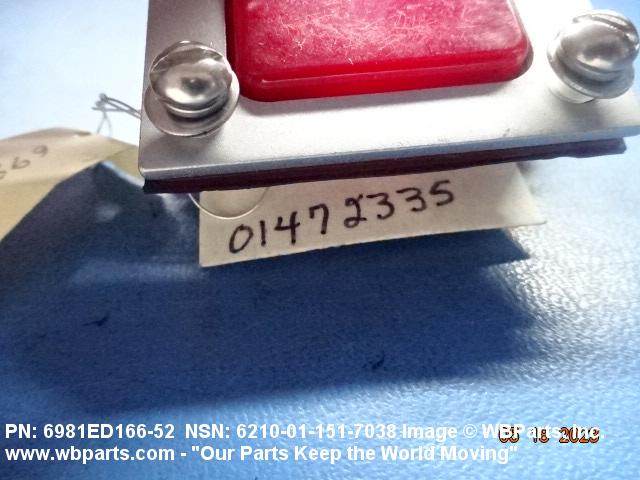

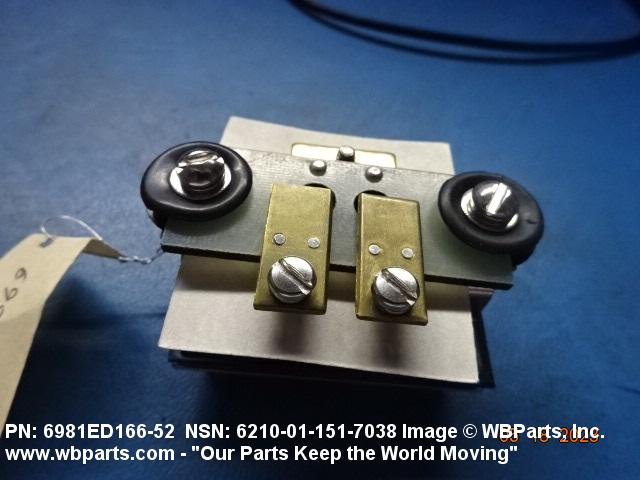

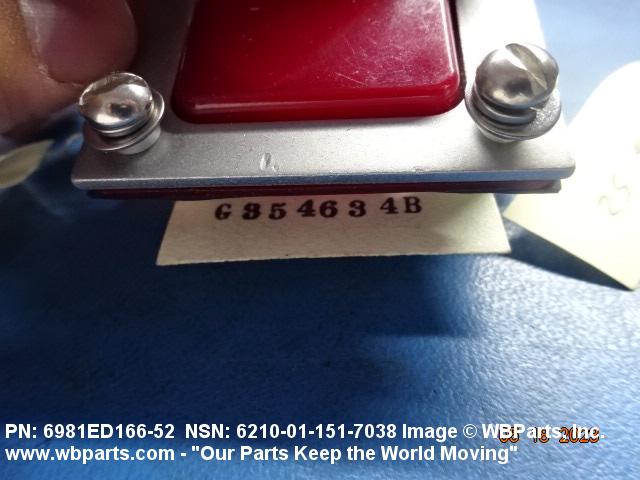

Drawings & Photos | NSN 6210-01-151-7038
Demand History | NSN 6210-01-151-7038
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-01-151-7038 | 2023-05-129 | 2 | United States |
| 6981ED166-52 | 2023-03-61 | 36 | DIBBS |
| 6981ED166-52 | 2021-12-342 | 5 | DIBBS |
| 6981ED166-52 | 2021-12-335 | 7 | DIBBS |
| 6981ED166-52 | 2021-10-274 | 3 | DIBBS |
| 6981ED166-52 | 2021-09-245 | 3 | DIBBS |
| 6981ED166-52 | 2021-07-206 | 16 | DIBBS |
| 6981ED166-52 | 2021-03-84 | 2 | DIBBS |
| 6981ED166-52 | 2021-03-70 | 2 | DIBBS |
| 6981ED166-52 | 2020-10-303 | 18 | DIBBS |
| 6981ED166-52 | 2020-10-282 | 2 | DIBBS |
| 6981ED166-52 | 2020-09-271 | 2 | DIBBS |
| 6981ED166-52 | 2020-09-247 | 6 | DIBBS |
| 6210-01-151-7038 | 2016-08-215 | 20 | DIBBS |
| 6210-01-151-7038 | 2014-12-341 | 23 | DIBBS |
| 6210-01-151-7038 | 2013-01-30 | 17 | DIBBS |
| 6210-01-151-7038 | 2012-06-177 | 3 | DIBBS |
Cross Reference | NSN 6210-01-151-7038
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11 908 319 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 31140010 | 07618 | DUCOMMUN LABARGE TECHNOLOGIES, INC. DBA LABARGE INC ELECTRONICS DIV |
| 6981ED166-1207 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-52 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-741 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-742 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-743 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-744 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-745 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-746 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-749 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-750 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| 6981ED166-C1 | 27192 | DRS POWER & CONTROL TECHNOLOGIES, INC. |
| PL13501205 ITEM 24 | 0DHG4 | GULF COAST HOLDINGS INC DBA UNIDYNAMICS |
| PL13501205 ITEM 24 | 95310 | UNIDYNAMICS/SAINT LOUIS INC CONROE OPNS |
| PL13501205 ITEM 24 | 98523 | JERED LLC DBA PAR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-01-151-7038
Technical Data | NSN 6210-01-151-7038
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A9 RECTANGULAR FRAME TYPE |
| OVERALL LENGTH | 1.698 INCHES NOMINAL |
| OVERALL HEIGHT | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 2.125 INCHES NOMINAL |
| MATERIAL | COPPER ALLOY BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 2 INCANDESCENT |
| LAMP INDUSTRY NUMBER | 1769 |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET SCREW |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | PUSH IN |
| LENS TYPE | FLAT, RECTANGULAR SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| TRANSMITTED LIGHT COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| MULTILAMP CIRCUIT TYPE | TWO LAMP COMMON |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT AND SHOCK PROOF |
| FURNISHED ITEMS AND QUANTITY | 8 FLAT WASHER AND 1 GASKET AND 10 SCREW |
| SPECIAL FEATURES | 24VDC |
| III END ITEM IDENTIFICATION | ARLEIGH BURKE CLASS DDG |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 0.438 POUNDS |
Restrictions/Controls & Freight Information | NSN 6210-01-151-7038
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-151-7038
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
