NSN 6210-01-217-0878 M22885/10-07WWW W, M22885/87-CA, M22885/87CAWWWW
Product Details | INDICATOR LIGHT
6210-01-217-0878 A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see LAMPHOLDER, and also see LIGHT (1), PANEL.20362100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures63400033Aircraft Alarm and Signal Systems
Part Alternates: M22885/10-07WWW W, M22885/87-CA, M22885/87CAWWWW, M22885/87-CAWWWW, M228851007WWWW, M2288587CA, M2288587CAWWWW, MIL-S-22885/87, MILS2288587, 10HA2C3LWN1R1, 10HA31C3LWWWWN300R7, 6210-01-217-0878, 01-217-0878, 6210012170878, 012170878
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 21 SEP 1985 | 01-217-0878 | 00160 ( LIGHT, INDICATOR ) |

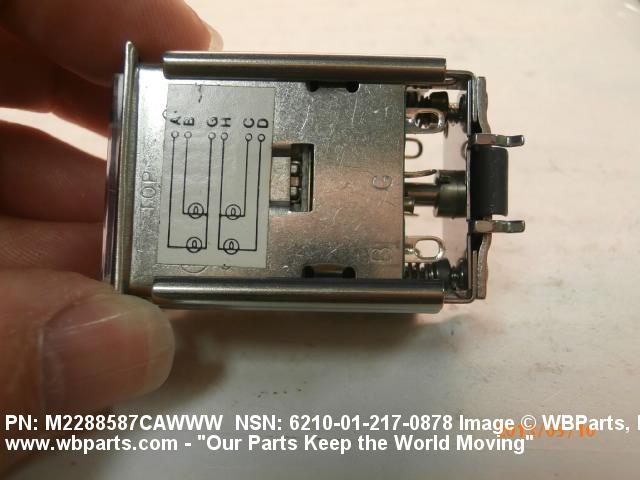

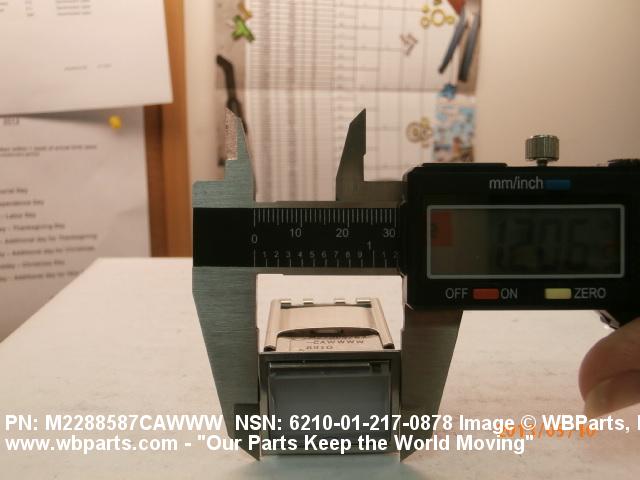

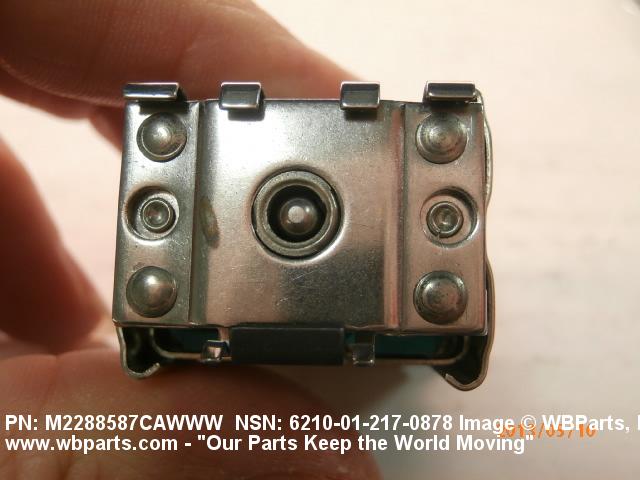

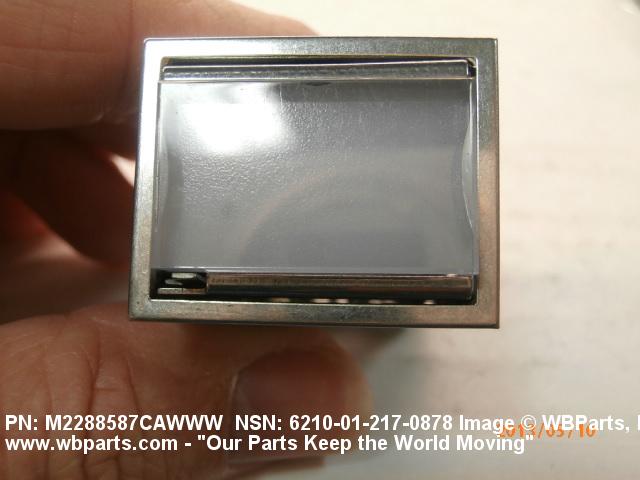

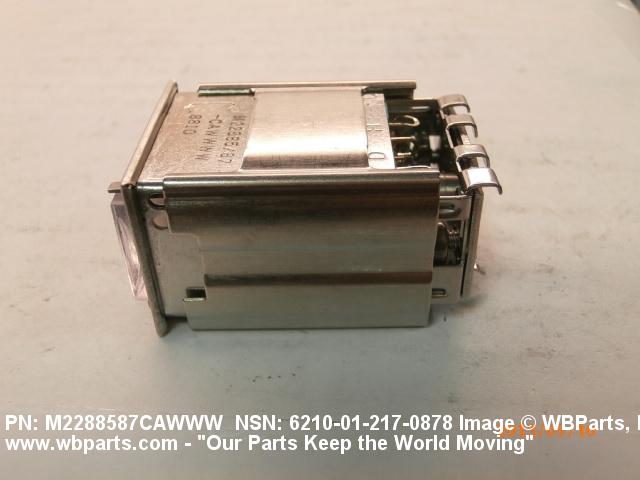

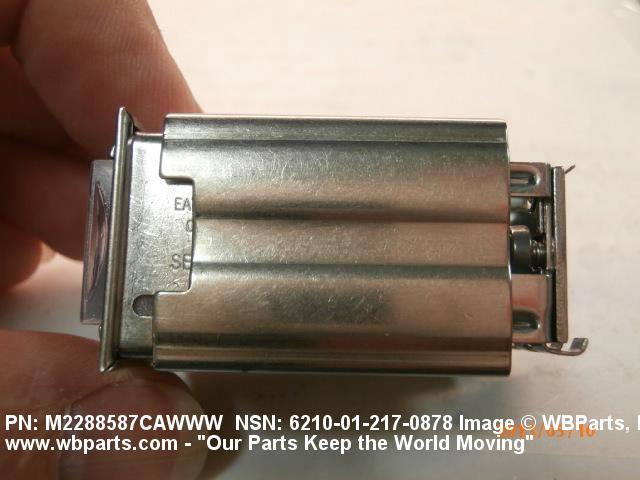

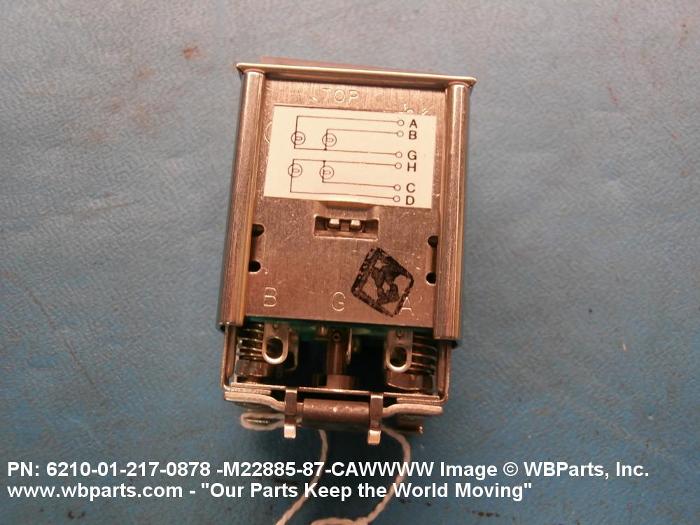

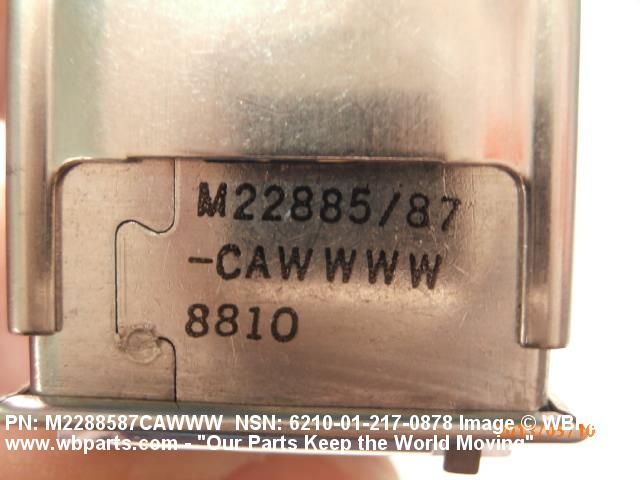

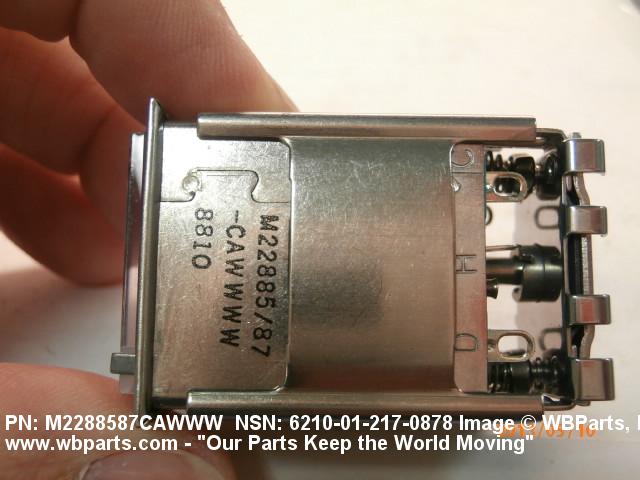

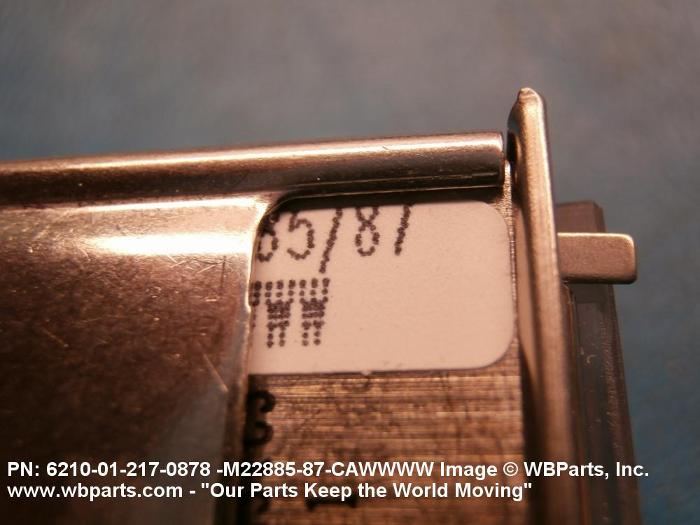

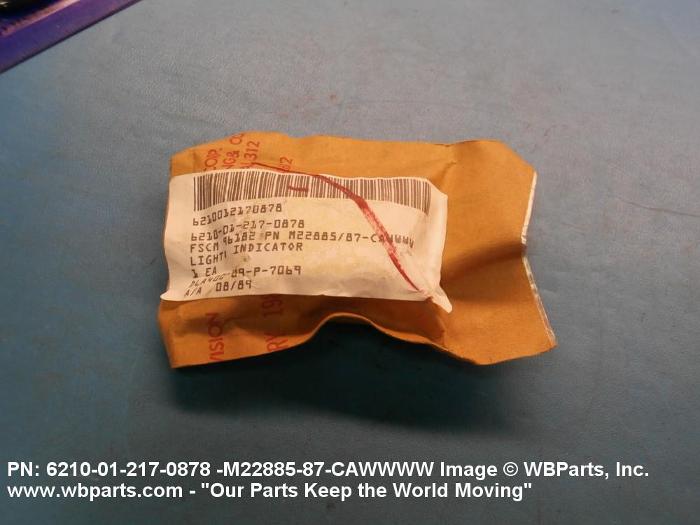

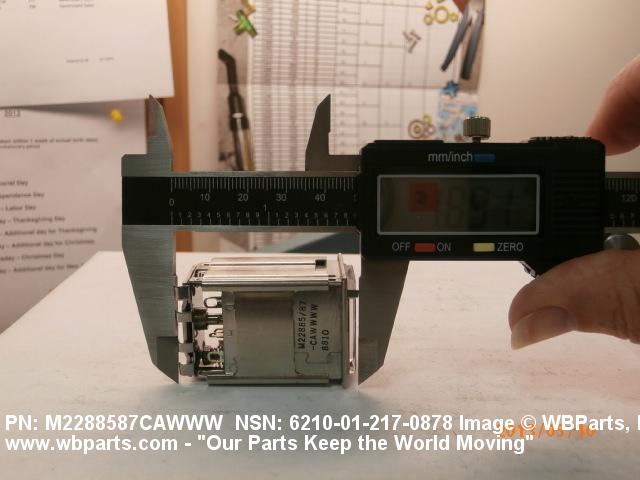

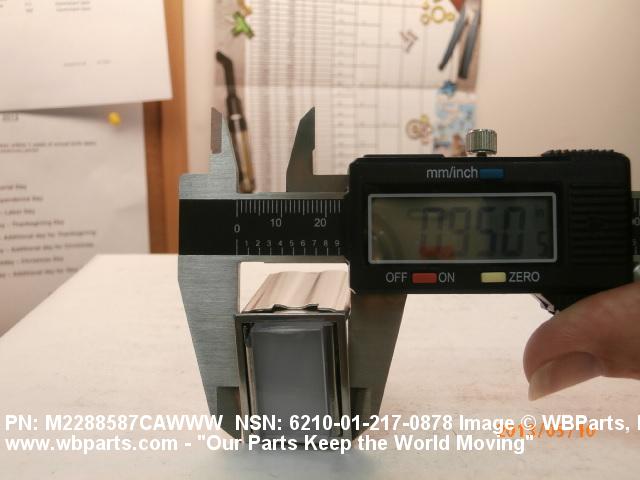

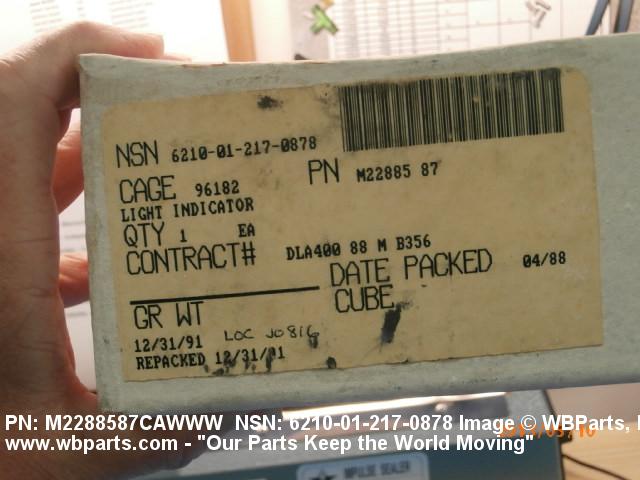

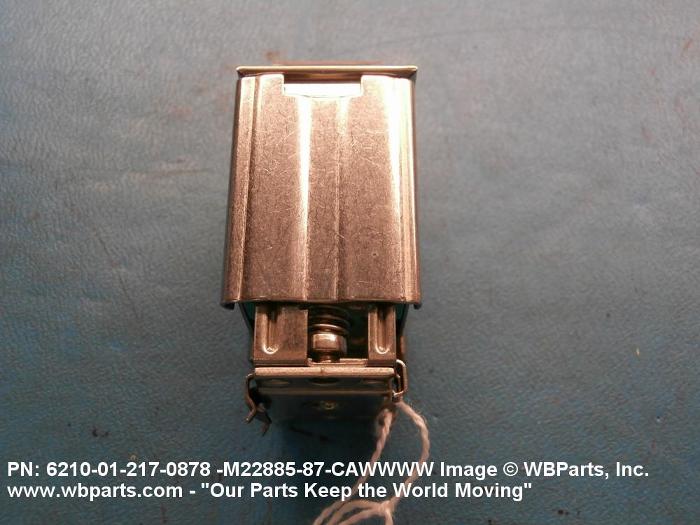

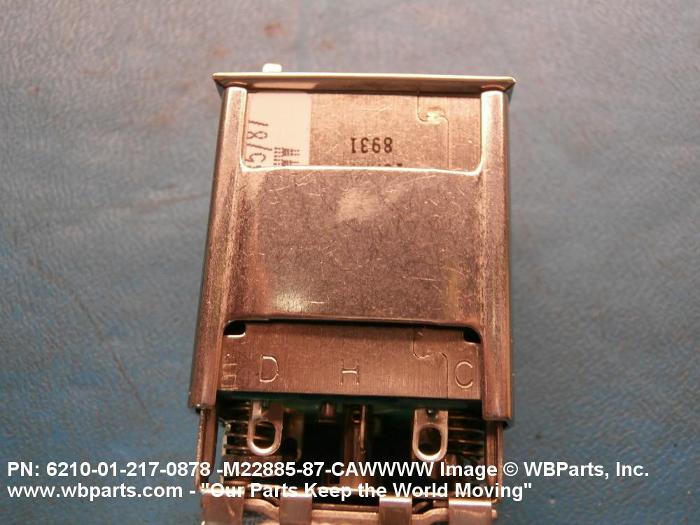

Drawings & Photos | NSN 6210-01-217-0878
Demand History | NSN 6210-01-217-0878
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6210-01-217-0878 | 2025-06-167 | 21 | DIBBS |
| 6210-01-217-0878 | 2025-02-42 | 21 | DIBBS |
| 6210-01-217-0878 | 2024-01-30 | 34 | DIBBS |
| 6210-01-217-0878 | 2024-01-09 | 34 | DIBBS |
| 6210-01-217-0878 | 2023-08-218 | 4 | DIBBS |
| 6210-01-217-0878 | 2023-02-45 | 30 | DIBBS |
| 6210-01-217-0878 | 2021-03-81 | 41 | DIBBS |
| 6210-01-217-0878 | 2021-03-73 | 41 | DIBBS |
| 6210-01-217-0878 | 2017-11-311 | 57 | DIBBS |
| 6210-01-217-0878 | 2014-11-330 | 70 | DIBBS |
| 6210-01-217-0878 | 2013-05-133 | 41 | DIBBS |
| 6210-01-217-0878 | 2013-05-125 | 41 | DIBBS |
| 6210-01-217-0878 | 2013-04-120 | 1 | United States |
| 6210-01-217-0878 | 2013-03-60 | 2 | United States |
| 6210-01-217-0878 | 2013-02-39 | 24 | DIBBS |
| 6210-01-217-0878 | 2013-01-03 | 47 | DIBBS |
| 6210-01-217-0878 | 2012-11-331 | 27 | DIBBS |
| 6210-01-217-0878 | 2012-11-320 | 18 | DIBBS |
| 6210-01-217-0878 | 2012-10-285 | 32 | DIBBS |
| 6210-01-217-0878 | 2012-09-262 | 26 | DIBBS |
| 6210-01-217-0878 | 2012-09-258 | 40 | DIBBS |
| 6210-01-217-0878 | 2012-08-240 | 40 | DIBBS |
Cross Reference | NSN 6210-01-217-0878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10HA2C3LWN1R1 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| 10HA2C3LWN1R1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 10HA31C3L(WWWW)N300R7 | 96182 | EATON CORPORATION DBA AEROSPACE & COMMERCIAL DIVISION |
| M22885/10-07WWW W | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M22885/87-CA | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M22885/87-CAWWWW | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M22885/87CAWWWW | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-S-22885/87 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6210-01-217-0878
Related Products | NSN 6210-01-217-0878
Technical Data | NSN 6210-01-217-0878
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A9 RECTANGULAR FRAME TYPE |
| OVERALL LENGTH | 2.040 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.960 INCHES NOMINAL |
| OVERALL WIDTH | 1.200 INCHES NOMINAL |
| MATERIAL | PLASTIC BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 4 INCANDESCENT |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LENS QUANTITY | 1 |
| LENS MOUNTING METHOD | FLANGE |
| LENS TYPE | FLAT, RECTANGULAR SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | COLORLESS SINGLE LIGHT 1ST POSITION HORIZONTAL |
| FILTER QUANTITY | 4 |
| FILTER COLOR | WHITE SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| TRANSMITTED LIGHT COLOR | WHITE SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
| MOUNTING METHOD | PANEL |
| PANEL ACCOMMODATION HOLE WIDTH | 1.115 INCHES NOMINAL |
| PANEL ACCOMMODATION HOLE HEIGHT | 0.875 INCHES NOMINAL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.050 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 5 SOLDER LUG |
| MULTILAMP CIRCUIT TYPE | HORIZONTAL SPLIT |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-22885/87 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22885/87-CAWWWW |
Restrictions/Controls & Freight Information | NSN 6210-01-217-0878
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-217-0878
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
