NSN 6210-01-505-6416 PL3189-1 PC 19, PL31891PC19, 3189-1 PC 19
Product Details | LAMP RETAINER
6210-01-505-6416 An item primarily designed to position and/or restrain the movement of a lamp in a normal operating position. May include weather proofing and related hardware.20262100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures
Part Alternates: PL3189-1 PC 19, PL31891PC19, 3189-1 PC 19, 31891PC19, 3916A, 6210-01-505-6416, 01-505-6416, 6210015056416, 015056416
Lighting Fixtures and Lamps | Indoor and Outdoor Electric Lighting Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 11 MAR 2003 | 01-505-6416 | 39899 ( RETAINER, LAMP ) |
Drawings & Photos | NSN 6210-01-505-6416
Demand History | NSN 6210-01-505-6416
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3189-1 PC 19 | 2025-07-197 | 83 | DIBBS |
| 3916A | 2025-07-197 | 83 | DIBBS |
| PL3189-1 PC 19 | 2025-07-197 | 83 | DIBBS |
| 6210-01-505-6416 | 2014-10-281 | 233 | DIBBS |
| 6210-01-505-6416 | 2014-02-58 | 4 | DIBBS |
| 6210-01-505-6416 | 2012-08-214 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6210-01-505-6416
Technical Data | NSN 6210-01-505-6416
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM |

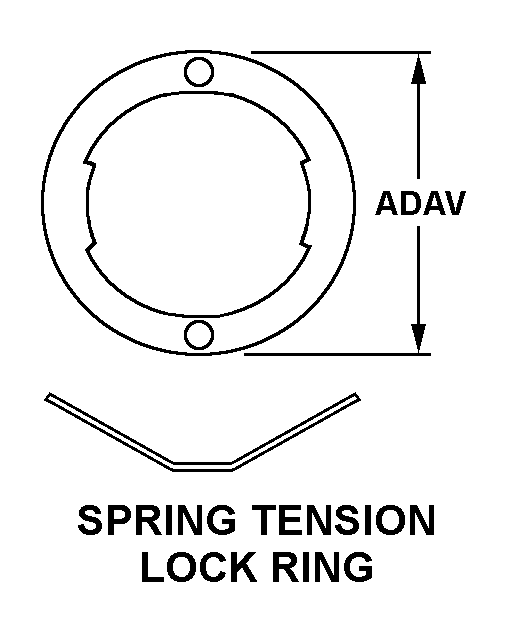

| STYLE DESIGNATOR | 36B SPRING TENSION LOCK RING |
| OVERALL DIAMETER | 5.750 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 UNTHREADED HOLE SINGLE MOUNTING FACILITY |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.218 INCHES NOMINAL SINGLE MOUNTING FACILITY |
| BOLT CIRCLE DIAMETER | 5.375 INCHES NOMINAL SINGLE MOUNTING FACILITY ALL CENTER GROUPINGS |
| III END ITEM IDENTIFICATION | ROTARY BEACON |
Restrictions/Controls & Freight Information | NSN 6210-01-505-6416
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 017870 | AUTO ASSEMBLIES/DEVICE LIGHT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 585 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6210-01-505-6416
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
