NSN 6220-00-578-6043 AN30377B, AN3037-7B, B6050307
Product Details | DOME LIGHT
6220-00-578-6043 A light specifically designed to be mounted on the interior overhead area of a ground or air vehicle or a marine craft to provide general illumination of the interior. See also FIXTURE, LIGHTING.
Part Alternates: AN30377B, AN3037-7B, B6050307, B-6050-307, 5961932, 5-96193-2, 6050307, 6050-307, 6220-00-578-6043, 00-578-6043, 6220005786043, 005786043
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-578-6043 | 04451 ( LIGHT, DOME ) |

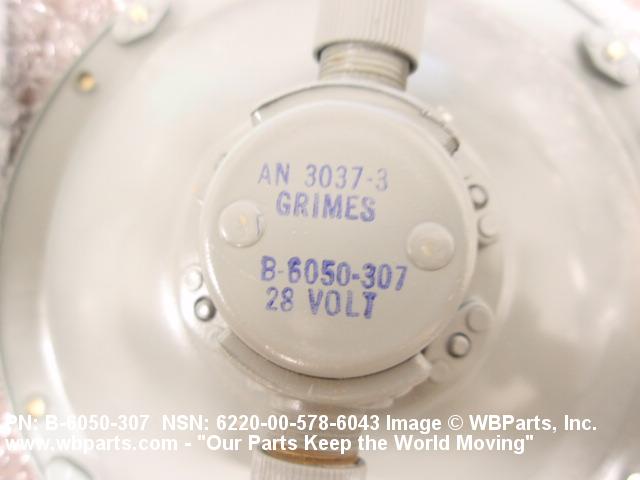

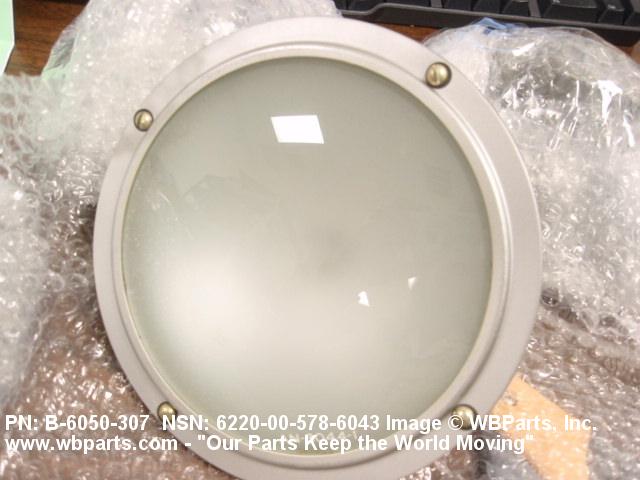

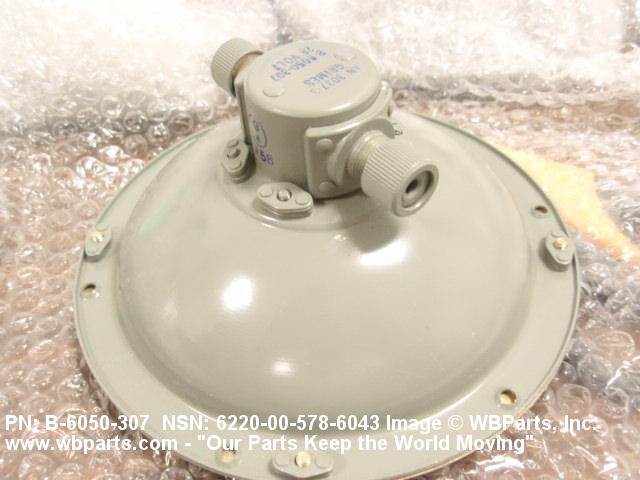

Drawings & Photos | NSN 6220-00-578-6043
Demand History | NSN 6220-00-578-6043
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-00-578-6043 | 2010-08-216 | 4 | United States |
Cross Reference | NSN 6220-00-578-6043
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6220-00-578-6043
Technical Data | NSN 6220-00-578-6043
| Characteristic | Specifications |
|---|---|
| SHAPE | TAPERED |
| OVERALL DIAMETER | 6.125 INCHES NOMINAL |
| OVERALL LENGTH | 3.188 INCHES NOMINAL |
| VOLTAGE RATING IN VOLTS | 28.0 DC NOMINAL |
| MATERIAL | ALUMINUM BODY GLASS LENS |
| SURFACE TREATMENT | PRIMER BODY |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | SINGLE CONTACT BAYONET CANDELABRA |
| LENS TYPE AND QUANTITY | 1 PLANO CONVEX |
| LENS SURFACE CONDITION | SMOOTH BACK SMOOTH FACE |
| LENS COLOR | WHITE |
| LENS TRANSPARENCY | TRANSLUCENT |
| MOUNTING METHOD | UNTHREADED HOLE |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER LUG |
| ILLUMINATION DIRECTING DEVICE TYPE | INTERNAL REFLECTOR |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| FURNISHED ITEMS AND QUANTITY | 1 LAMP |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN3037-7B |
Restrictions/Controls & Freight Information | NSN 6220-00-578-6043
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-00-578-6043
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
