NSN 6220-00-861-3224 1009429002, 1009429-002, 3007341
Product Details | AIRCRAFT NAVIGATIONAL LIGHT

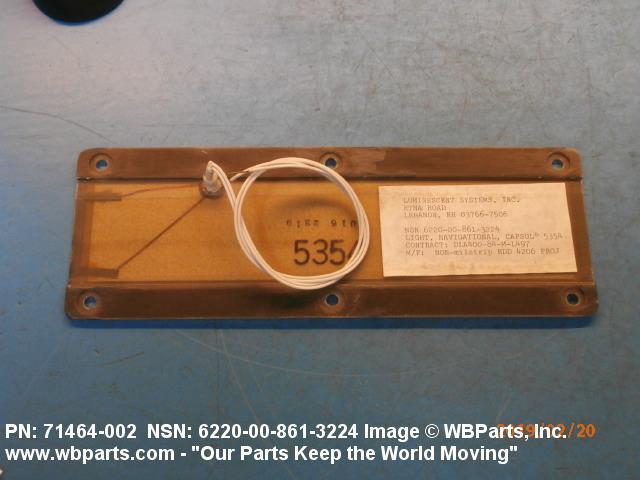

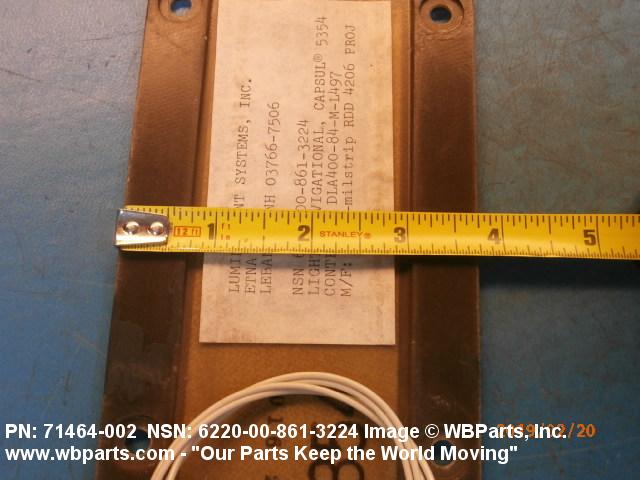

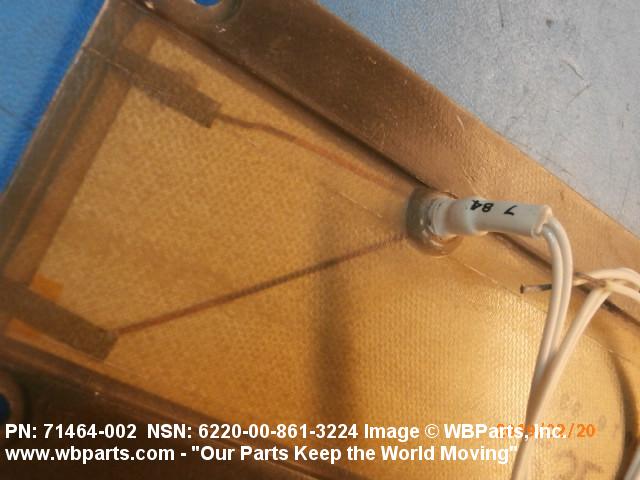

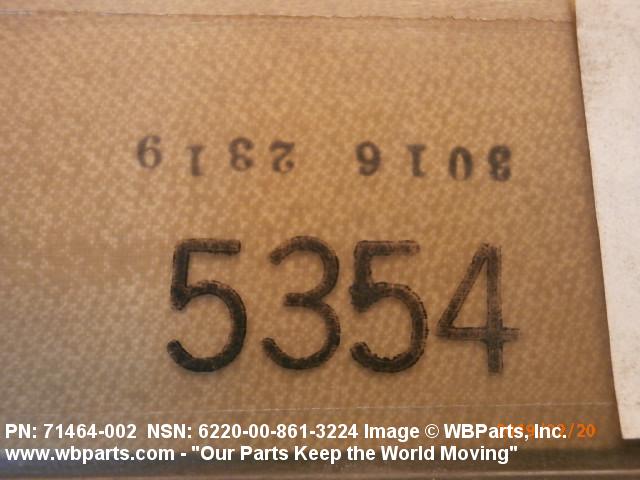

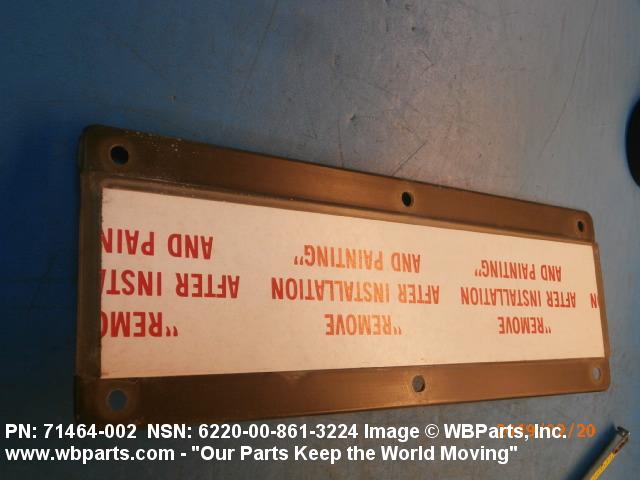

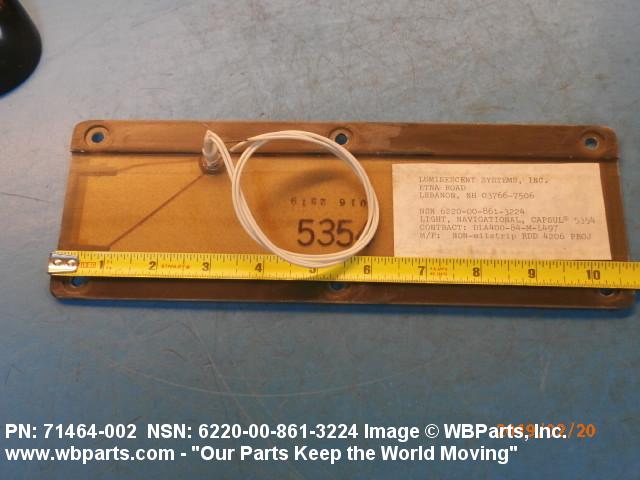

6220-00-861-3224 A light specifically designed to be mounted on an aircraft to indicate its position in motion or at rest and/or its direction of travel.
Part Alternates: 1009429002, 1009429-002, 3007341, 30-0734-1, 5354, 65550-01073-102, 71464002, 71464-002, 6220-00-861-3224, 00-861-3224, 6555001073102, 6220008613224, 008613224
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 09 OCT 1967 | 00-861-3224 | 11500 ( LIGHT, NAVIGATIONAL, AIRCRAFT ) |
Drawings & Photos | NSN 6220-00-861-3224
Demand History | NSN 6220-00-861-3224
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30-0734-1 | 2025-09-259 | 19 | DIBBS |
