NSN 6220-01-067-0631 M24560/15-003, M2456015003, MG25664185

Product Details | LIGHT LENS

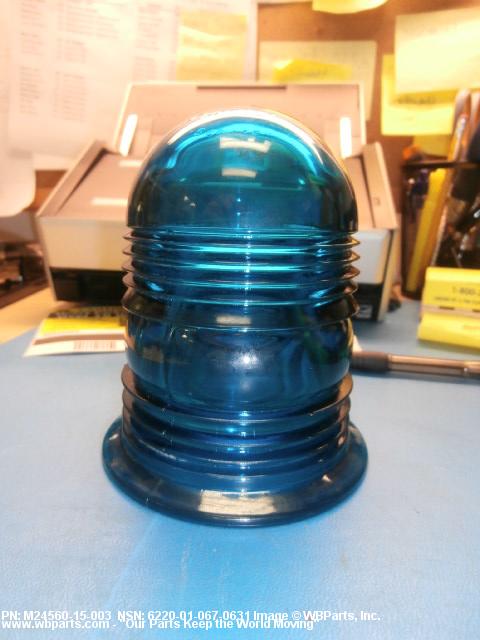

6220-01-067-0631 A transparent or translucent item designed to enclose or be placed in front of a light source. Sections of the lens may be opaque. It may or may not include a holder. It is designed to be either a replacement unit for a specific type of light, such as LIGHT, INDICATOR; LIGHT, NAVIGATIONAL, MARINE; STOP LIGHT, VEHICULAR; and LANTERN, ELECTRIC or that portion of a SWITCH, (as modified) used as an actuator and having provisions for illumination. See also, WINDOW, LIGHTING FIXTURE; GLOBE; ELECTRIC LIGHT; and FILTER (2), (as modified).20658500051Visible and Invisible Light Communication Equipment62100045Indoor and Outdoor Electric Lighting Fixtures62200038Electric Vehicular Lights and Fixtures65150057Medical and Surgical Instruments, Equipment, and Supplies65200043Dental Instruments, Equipment, and Supplies65300053Hospital Furniture, Equipment, Utensils, and Supplies

Part Alternates: M24560/15-003, M2456015003, MG25664185, MG2566-4185, MIL-L-24560/15, MILL2456015, 6220-01-067-0631, 01-067-0631, 6220010670631, 010670631

Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	17 APR 1981	01-067-0631	29939 ( LENS, LIGHT )

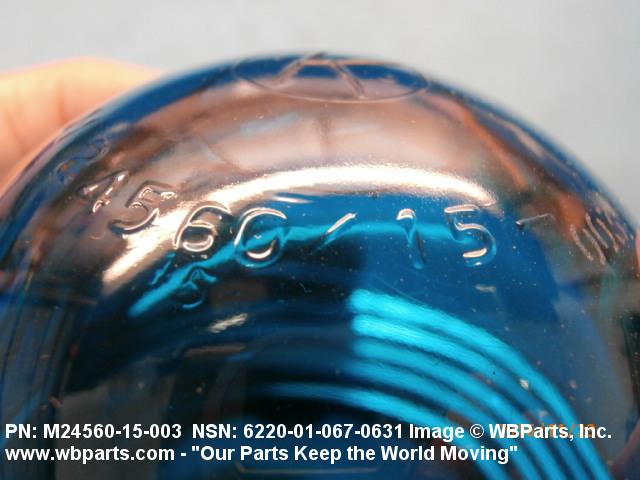

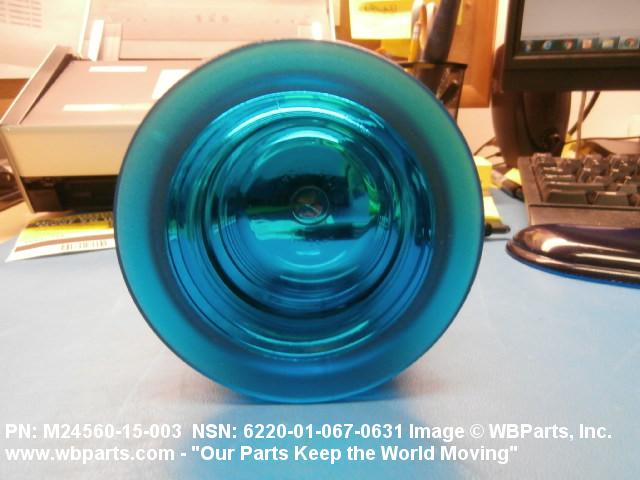

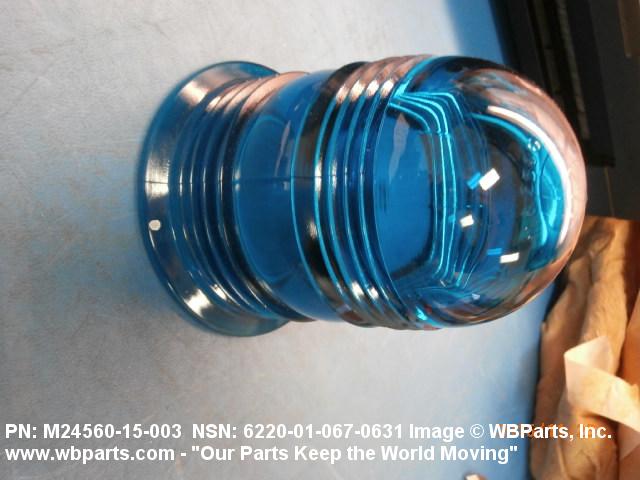

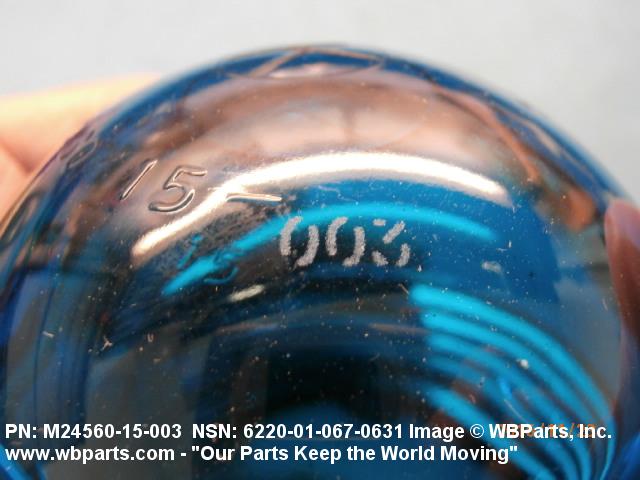

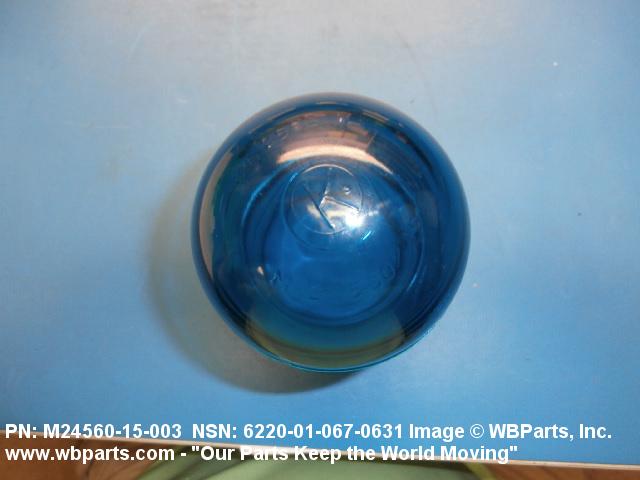

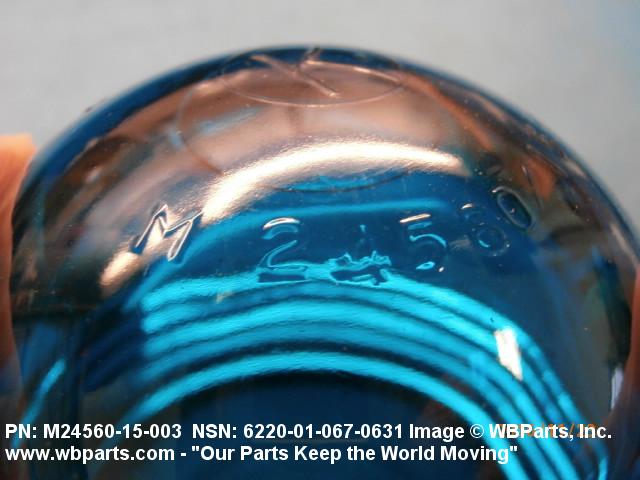

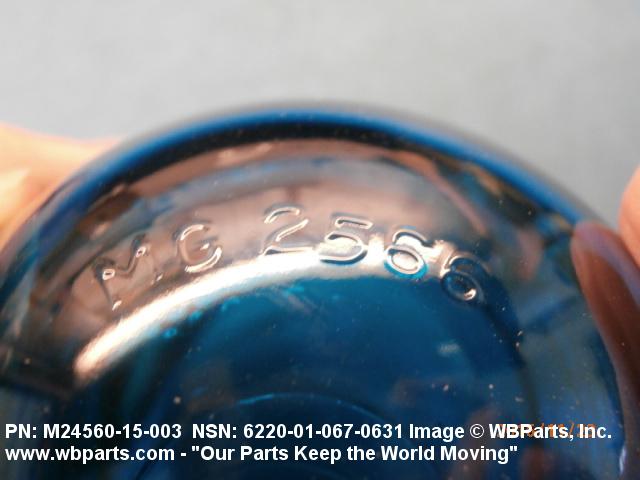

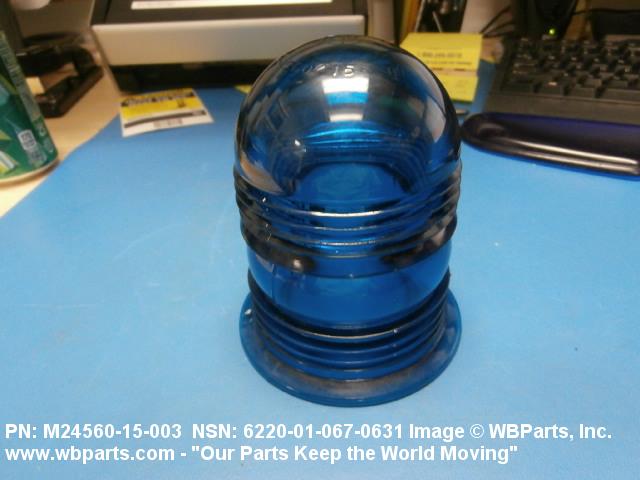

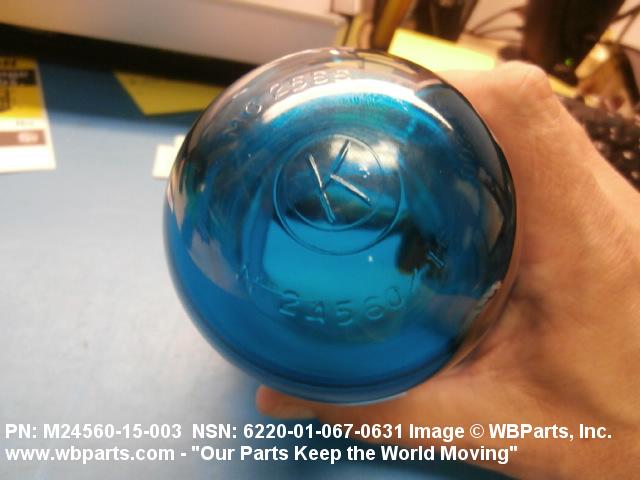

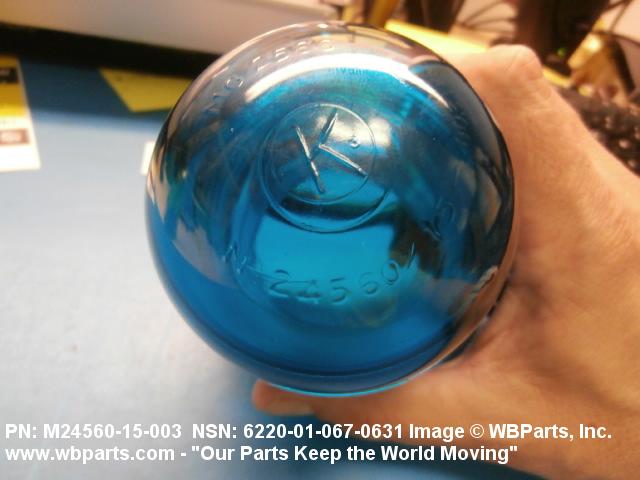

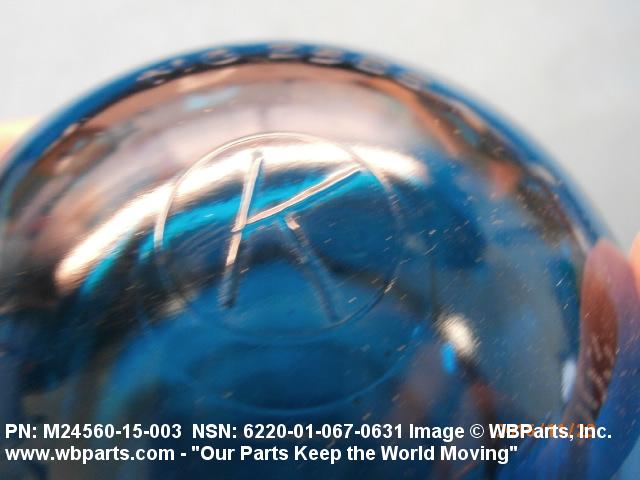

Drawings & Photos | NSN 6220-01-067-0631

Part Number	Request Date	QTY	Origin
6220-01-067-0631	2024-07-203	6	DIBBS
6220-01-067-0631	2024-03-81	2	US
6220-01-067-0631	2024-01-29	100	UM
6220-01-067-0631	2017-09-249	11	DIBBS
6220-01-067-0631	2017-08-235	1	DIBBS-RFPs
6220-01-067-0631	2017-06-178	1	United States
6220-01-067-0631	2017-04-100	33	DIBBS
6220-01-067-0631	2016-10-305	2	France
6220-01-067-0631	2016-05-134	2	France
6220-01-067-0631	2015-10-295	54	United States
6220-01-067-0631	2015-05-138	54	DIBBS
6220-01-067-0631	2015-03-81	34	DIBBS
6220-01-067-0631	2014-10-293	36	DIBBS
6220-01-067-0631	2013-12-359	70	DIBBS
6220-01-067-0631	2013-12-350	7	US
6220-01-067-0631	2010-01-07	110	DIBBS
6220-01-067-0631	2009-10-289	53	DIBBS
6220-01-067-0631	2009-04-105	4	DIBBS
6220-01-067-0631	2007-05-149	16	DIBBS
6220-01-067-0631	2007-05-149	22	DIBBS
6220-01-067-0631	2007-05-149	32	DIBBS
6220-01-067-0631	2007-04-92	32	DIBBS
6220-01-067-0631	2006-06-170	4	DIBBS
6220-01-067-0631	2006-06-157	18	DIBBS

Cross Reference | NSN 6220-01-067-0631

Part Number	Cage Code	Manufacturer
M24560/15-003	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MG2566-4185	75393	KOPP GLASS, INC.
MIL-L-24560/15	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6220-01-067-0631

Compare

Related Products | NSN 6220-01-067-0631

6220-01-067-1428, 6220-01-067-1436, 6220-01-067-1442, 6220-01-067-4717, 6220-01-067-4718

Technical Data | NSN 6220-01-067-0631

Characteristic	Specifications

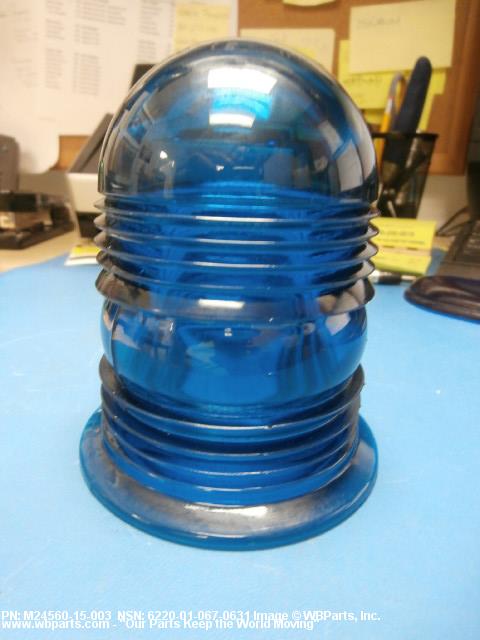

STYLE DESIGNATOR	33 CYLINDRICAL

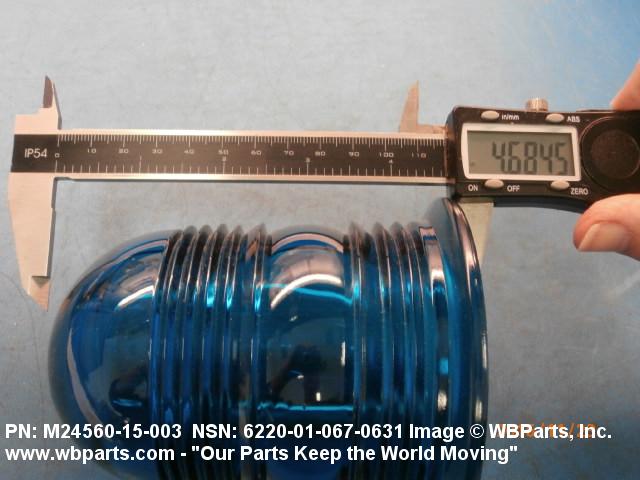

OVERALL LENGTH	4.562 INCHES MINIMUM AND 4.687 INCHES MAXIMUM

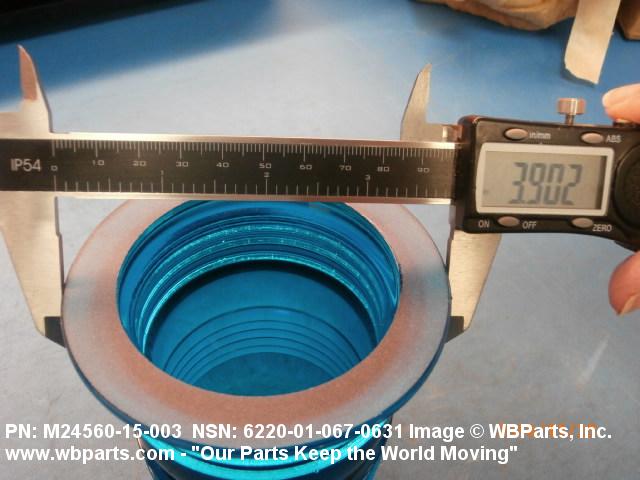

OVERALL DIAMETER	3.875 INCHES MINIMUM AND 3.937 INCHES MAXIMUM
MATERIAL	GLASS LENS
LIGHT TRANSMISSION DESIGN	TRANSPARENT LENS

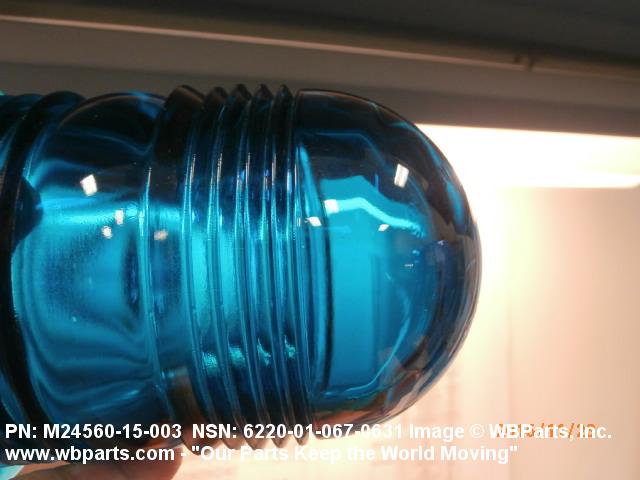

SURFACE CONDITION	SMOOTH BACK FRESNEL FACE
MOUNTING DEVICE QUANTITY	1
COLOR	GREEN LENS
DEPARTURE FROM CITED DOCUMENT	AS MODIFIED BY COLOR
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-L-24560/15
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24560/15-003

Restrictions/Controls & Freight Information | NSN 6220-01-067-0631

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	109700	LAMP OR LIGHTING FIXTURES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	98	DLIS-LFF Battle Creek, MI 49037-3084
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable
