NSN 6220-01-171-8383 13084918, 2041010, 01-171-8383
Product Details | LENS RETAINER
6220-01-171-8383 An item designed to align and/or restrain the movement of one or more lens by use of a fastening device. May include screw threads, screws, clips, or other fastening devices.
Part Alternates: 13084918, 2041010, 6220-01-171-8383, 01-171-8383, 6220011718383, 011718383
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 15 FEB 1984 | 01-171-8383 | 36560 ( RETAINER, LENS ) |
Drawings & Photos | NSN 6220-01-171-8383
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-01-171-8383
Related Products | NSN 6220-01-171-8383
Technical Data | NSN 6220-01-171-8383
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 356.0 |

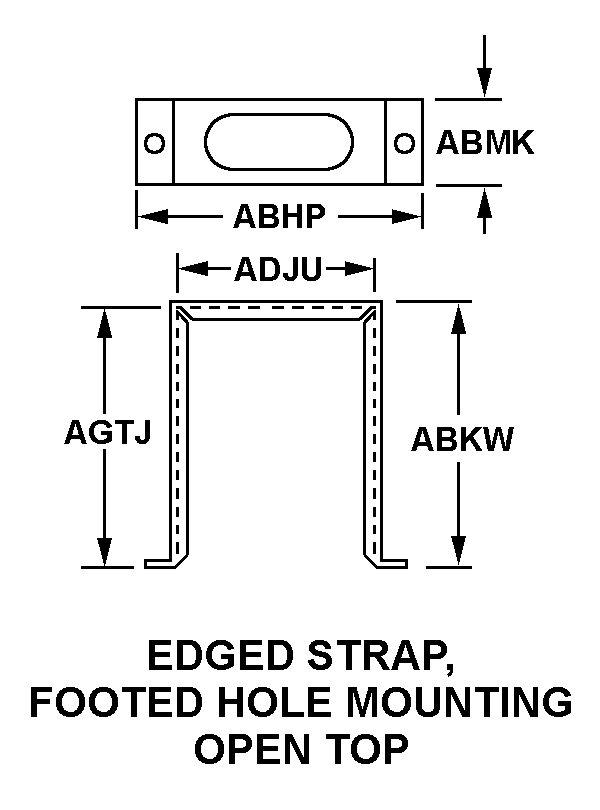

| STYLE DESIGNATOR | 8B EDGED STRAP, FOOTED HOLE MOUNTING OPEN TOP |
| OVERALL LENGTH | 1.800 INCHES NOMINAL |
| OVERALL HEIGHT | 1.405 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| INSIDE LENGTH | 1.420 INCHES NOMINAL |
| DISTANCE FROM MOUNTING SURFACE TO RETAINING SURFACE | 0.620 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE ALL MOUNTING FACILITIES |
| UNTHREADED MOUNTING HOLE DIAMETER | 0.120 INCHES NOMINAL ALL MOUNTING FACILITIES |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.600 INCHES NOMINAL ALL MOUNTING FACILITIES SINGLE CENTER GROUP |
Restrictions/Controls & Freight Information | NSN 6220-01-171-8383
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 011790 | AIRCRAFT PARTS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 671 | unknown |
| Originating Activity Code | BD | U.S. Army Aviation and Missile Command Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-171-8383
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | H | Aircraft, Air Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | C | Other Aircraft Categories |
| Weapons Systems/End Item or Homogeneous Group | CD | Target Acquisition Designation Sight (TADS) and Pilot Night Vision Sensor |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | B17 | US Army Aviation and Missile Command (Air) ATTN: AMSMI-LC-MM-C Redstone Arsenal, AL 35898-5230 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
