NSN 6220-01-225-6073 M24560/2-011, M245602011, NL289924560/2A
Product Details | LENS RETAINER
6220-01-225-6073 An item designed to align and/or restrain the movement of one or more lens by use of a fastening device. May include screw threads, screws, clips, or other fastening devices.
Part Alternates: M24560/2-011, M245602011, NL289924560/2A, NL2899245602A, 6220-01-225-6073, 01-225-6073, 6220012256073, 012256073
Lighting Fixtures and Lamps | Electric Vehicular Lights and Fixtures
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 05 FEB 1986 | 01-225-6073 | 36560 ( RETAINER, LENS ) |
Drawings & Photos | NSN 6220-01-225-6073
Demand History | NSN 6220-01-225-6073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6220-01-225-6073 | 2025-11-320 | 43 | DIBBS |
| 6220-01-225-6073 | 2025-11-307 | 43 | DIBBS |
| 6220-01-225-6073 | 2025-05-125 | 37 | DIBBS |
| 6220-01-225-6073 | 2025-04-104 | 37 | DIBBS |
| 6220-01-225-6073 | 2025-04-92 | 37 | DIBBS |
| 6220-01-225-6073 | 2024-06-169 | 48 | DIBBS |
| 6220-01-225-6073 | 2024-06-156 | 48 | DIBBS |
| 6220-01-225-6073 | 2023-08-221 | 24 | DIBBS |
| 6220-01-225-6073 | 2023-05-123 | 22 | DIBBS |
| 6220-01-225-6073 | 2020-08-233 | 13 | DIBBS |
| 6220-01-225-6073 | 2020-07-203 | 11 | DIBBS |
| 6220-01-225-6073 | 2020-07-190 | 13 | DIBBS |
| 6220-01-225-6073 | 2020-06-169 | 4 | DIBBS |
| 6220-01-225-6073 | 2017-10-284 | 25 | NECO |
| 6220-01-225-6073 | 2016-02-43 | 30 | United States |
| M245602011 | 2009-03-76 | 1 | US |
Cross Reference | NSN 6220-01-225-6073
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M24560/2-011 | 1A737 | ADIRONDACK ELECTRONICS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6220-01-225-6073
Related Products | NSN 6220-01-225-6073
Technical Data | NSN 6220-01-225-6073
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| MATERIAL DOCUMENT AND CLASSIFICATION | -MIL-M-14 MIL SPEC ALL MATERIAL RESPONSES |

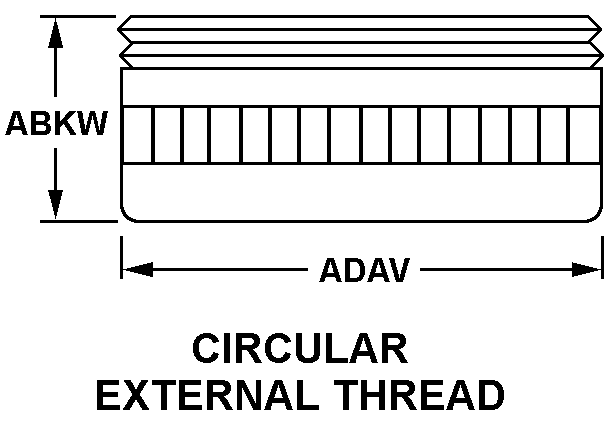

| STYLE DESIGNATOR | 95B CIRCULAR EXTERNAL THREAD |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| OVERALL DIAMETER | 4.750 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED BASE SINGLE MOUNTING FACILITY |
| THREAD SERIES DESIGNATOR | UN SINGLE MOUNTING FACILITY |
| NOMINAL THREAD SIZE | 4.125 INCHES SINGLE MOUNTING FACILITY |
| THREAD CLASS | 2B SINGLE MOUNTING FACILITY |
| THREAD QUANTITY PER INCH | 8 SINGLE MOUNTING FACILITY |
| SPECIAL FEATURES | MOLDED PLASTIC GDI-30 OR GPI-100 (BLACK); SECURING RING PART FOR NAVIGATION LIGHT ASSEMBLY |
| SPECIFICATION/STANDARD DATA | 81348-MIL-L-24560/2B/CANCELLED GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24560/2-011 |
Restrictions/Controls & Freight Information | NSN 6220-01-225-6073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136500 | METAL NOI/METAL ALLOYS NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | 2 | Arms/Weapons (all types including Inert Component Parts). When a 2 is indicated in the first position, then the special handling code must be determined from table 85 , part 1. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6220-01-225-6073
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | SP | Navy Stock Account item which is unique to SSPO controlled fleet ballistic missile weapon system program. SMIC SP establishes a weapons system relationship. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
