NSN 6230-00-883-6209 MS17268, MS17268SYM2662, MS17268SYM266-2
Product Details | POWER TOOL LIGHT
6230-00-883-6209 A light specifically designed to be mounted on power-operated metalworking and/or woodworking tools. See also LIGHT, DESK.
Part Alternates: MS17268, MS17268SYM2662, MS17268SYM266-2, M16377/56-206.2, M16377/56-266.2, M16377562062, M16377562662, MIL-F-16377/56, MILF1637756, 6230-00-883-6209, 00-883-6209, 6230008836209, 008836209
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1962 | 00-883-6209 | 00517 ( LIGHT, POWER TOOL ) |

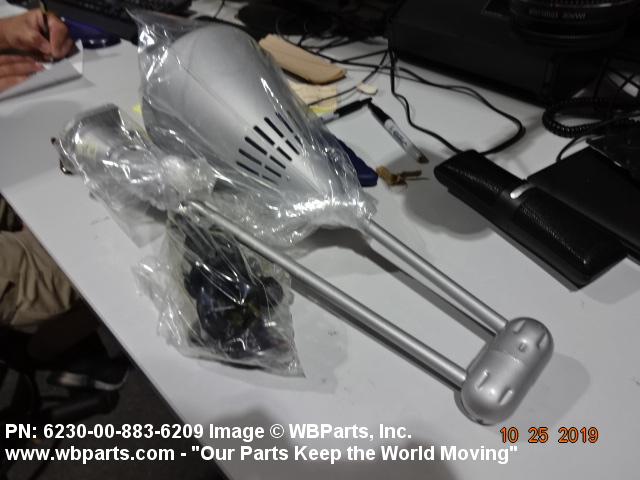

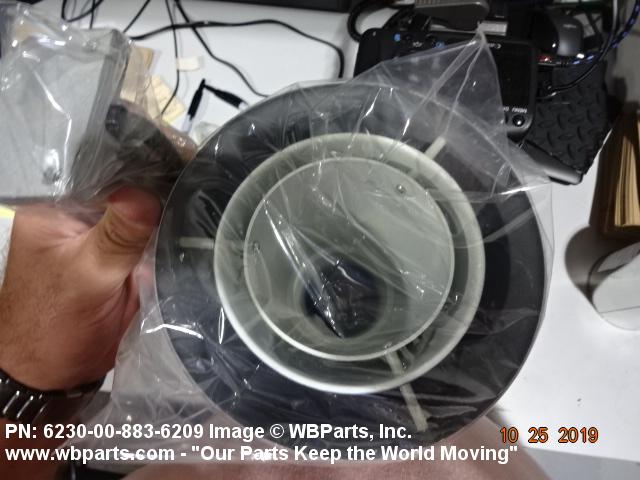

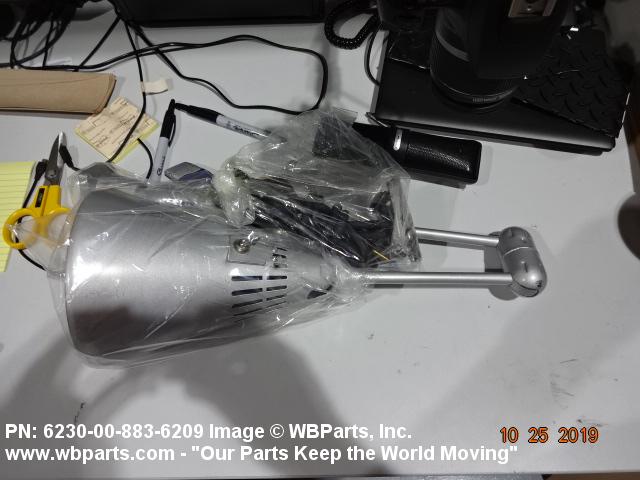

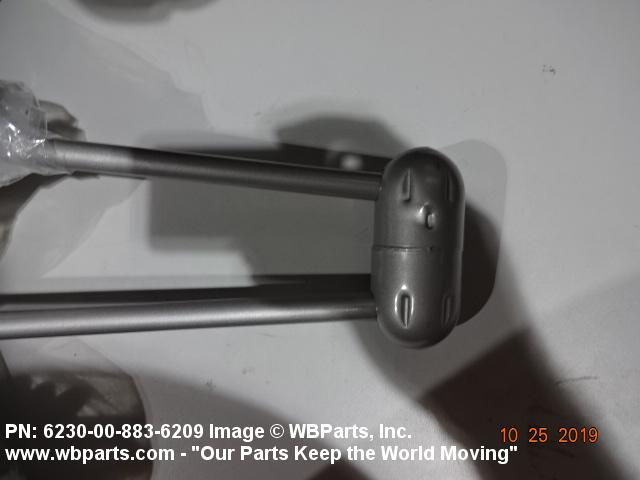

Drawings & Photos | NSN 6230-00-883-6209
Demand History | NSN 6230-00-883-6209
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6230-00-883-6209 | 2025-12-349 | 15 | US |
| 6230-00-883-6209 | 2025-11-315 | 8 | DIBBS |
| 6230-00-883-6209 | 2022-03-82 | 14 | DIBBS |
| 6230-00-883-6209 | 2021-06-178 | 19 | DIBBS |
| 6230-00-883-6209 | 2020-04-100 | 40 | us |
| 6230-00-883-6209 | 2020-02-35 | 28 | DIBBS |
| 6230-00-883-6209 | 2019-12-343 | 15 | US |
| 6230-00-883-6209 | 2019-10-290 | 22 | DIBBS |
| 6230-00-883-6209 | 2019-10-274 | 7 | United States |
| 6230-00-883-6209 | 2019-10-274 | 20 | United States |
| 6230-00-883-6209 | 2019-10-274 | 30 | United States |
| 6230-00-883-6209 | 2017-12-339 | 16 | DIBBS |
| 6230-00-883-6209 | 2017-09-249 | 8 | DIBBS |
| 6230-00-883-6209 | 2017-03-66 | 6 | DIBBS |
| 6230-00-883-6209 | 2016-02-56 | 8 | DIBBS |
| 6230-00-883-6209 | 2014-03-75 | 9 | DIBBS |
| 6230-00-883-6209 | 2011-11-318 | 29 | United States |
| 6230-00-883-6209 | 2011-11-308 | 29 | DIBBS |
| 6230-00-883-6209 | 2006-06-157 | 6 | DIBBS |
Cross Reference | NSN 6230-00-883-6209
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M16377/56-206.2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16377/56-266.2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-F-16377/56 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17268 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS17268SYM266-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6230-00-883-6209
Related Products | NSN 6230-00-883-6209
Technical Data | NSN 6230-00-883-6209
| Characteristic | Specifications |
|---|---|
| OVERALL DIAMETER | 6.375 INCHES NOMINAL |
| OVERALL LENGTH | ANY ACCEPTABLE |
| VOLTAGE RATING IN VOLTS | 120.0 AC NOMINAL |
| MATERIAL | ALUMINUM OR ZINC BASE STEEL BODY ALUMINUM REFLECTOR |
| SURFACE TREATMENT | ENAMEL BAKED REFLECTOR |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LAMP BASE TYPE ACCOMMODATED | MEDIUM SCREW |
| MOUNTING METHOD | BASE |
| MOUNTING BASE LENGTH | 2.875 INCHES NOMINAL |
| MOUNTING BASE WIDTH | 3.000 INCHES NOMINAL |
| MOUNTING BASE HEIGHT | 0.500 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, PLUG, EXTERNAL, 3 CONTACTS, 1 CONTACT U-SHAPED FOR GROUND |
| WIRING PROVISION METHOD | CABLE ASSEMBLY |
| WIRING PROVISION LENGTH | 106.0 INCHES MINIMUM AND 110.0 INCHES MAXIMUM SINGLE PROVISION |
| ILLUMINATION DIRECTING DEVICE TYPE | INTERNAL REFLECTOR |
| LAMP PROTECTION DEVICE | OPEN END GUARD |
| FEATURES PROVIDED | SWITCH |
| SPECIAL FEATURES | TOTALLY ENCLOSED; OUTER REFLECTOR W/AIR VENTING SLOTS |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND 266.2 SYMBOL AND 2 TYPE |
| III UNPACKAGED UNIT WEIGHT | 5.000 POUNDS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16377/56 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M16377/56-266.2 |
Restrictions/Controls & Freight Information | NSN 6230-00-883-6209
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6230-00-883-6209
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
