NSN 6230-01-572-6216 06314024, 063-14024 , 14024
Product Details | FLASHLIGHT
6230-01-572-6216 An item which conforms to Light (1), with integral battery container or integral source of power, designed to be normally held in the hand or attached to a weapon to project a beam of light. Does not include an integral handle, but may include a means of carrying such as a clip, ring, or strap. The lens and/or reflecting surface may be part of the lamp. For items designed to be attached to a person in distress, see LIGHT, MARKER, DISTRESS.
Part Alternates: 06314024, 063-14024 , 14024, 6230-01-572-6216, 01-572-6216, 6230015726216, 015726216
Lighting Fixtures and Lamps | Electric Portable and Hand Lighting Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 18 MAR 2009 | 01-572-6216 | 00729 ( FLASHLIGHT ) |

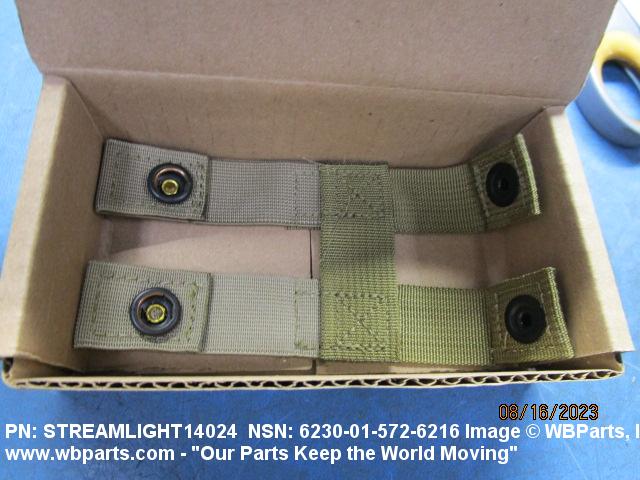

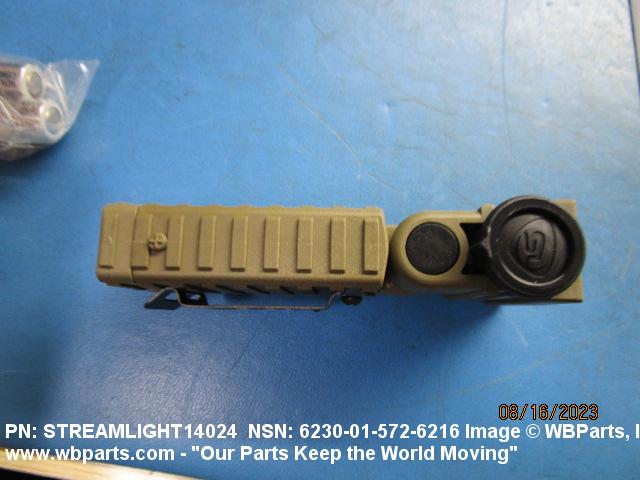

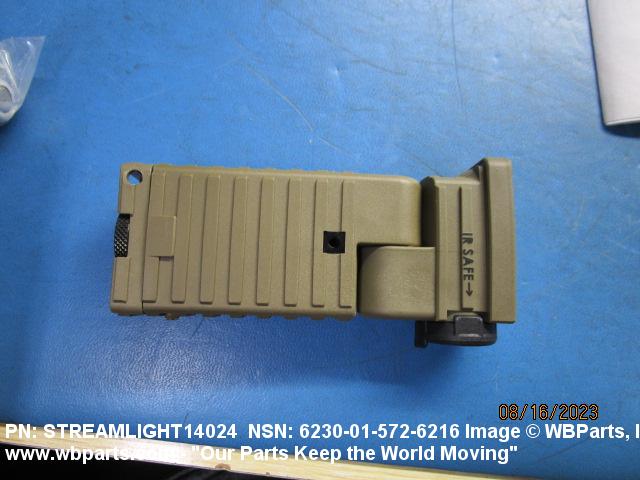

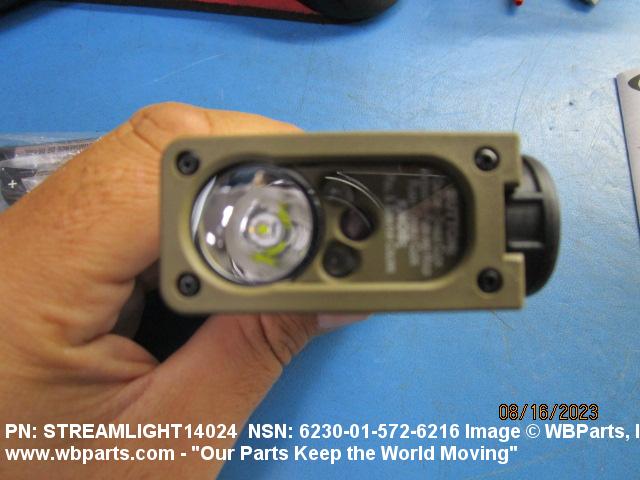

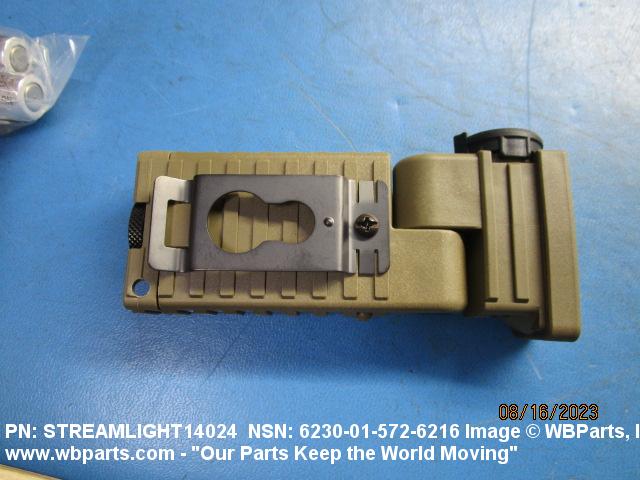

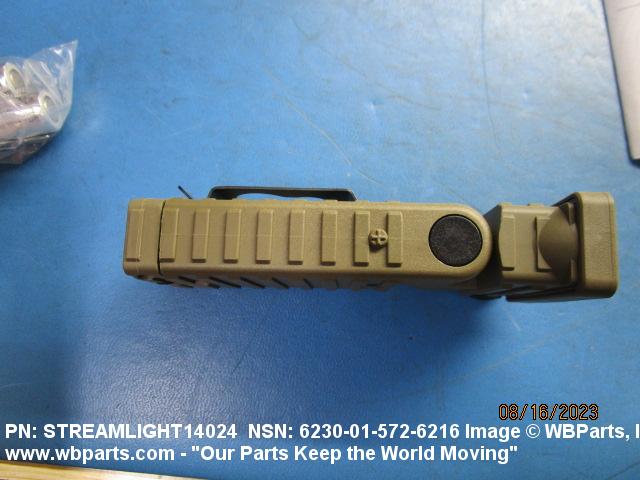

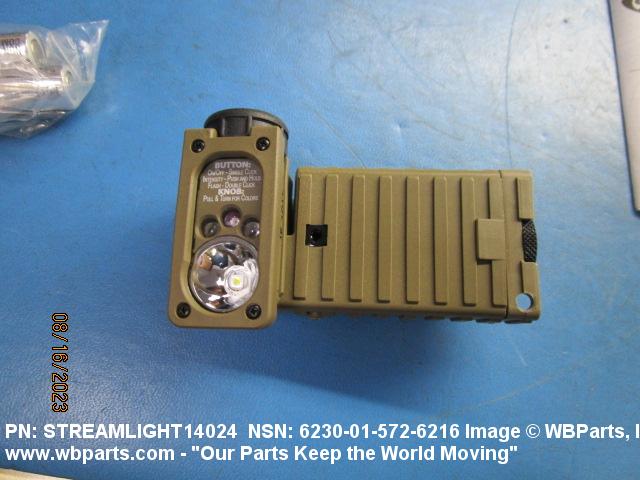

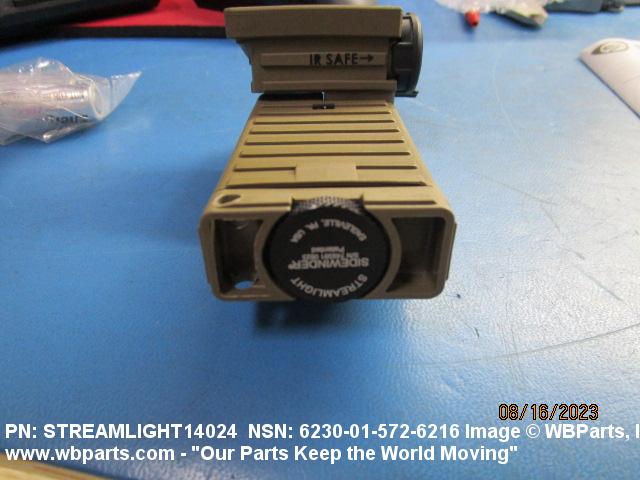

Drawings & Photos | NSN 6230-01-572-6216
Demand History | NSN 6230-01-572-6216
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 063-14024 | 2025-04-107 | 1477 | DIBBS |
| 14024 | 2025-04-107 | 1477 | DIBBS |
| 063-14024 | 2024-08-241 | 1200 | DIBBS |
| 14024 | 2024-08-241 | 1200 | DIBBS |
| 14024 | 2023-07-184 | 5 | us |
| 6230-01-572-6216 | 2023-07-184 | 10 | us |
| 063-14024 | 2023-06-172 | 209 | DIBBS |
| 14024 | 2023-06-172 | 209 | DIBBS |
| 063-14024 | 2023-04-93 | 3530 | DIBBS |
| 14024 | 2023-04-93 | 3530 | DIBBS |
| 063-14024 | 2023-03-73 | 1 | DIBBS |
| 063-14024 | 2023-03-73 | 15 | DIBBS |
| 14024 | 2023-03-73 | 1 | DIBBS |
| 14024 | 2023-03-73 | 15 | DIBBS |
| 063-14024 | 2023-03-68 | 2 | DIBBS |
| 14024 | 2023-03-68 | 2 | DIBBS |
| 063-14024 | 2023-03-67 | 1 | DIBBS |
| 063-14024 | 2023-03-67 | 20 | DIBBS |
| 14024 | 2023-03-67 | 1 | DIBBS |
| 14024 | 2023-03-67 | 20 | DIBBS |
| 063-14024 | 2023-03-61 | 15 | DIBBS |
| 14024 | 2023-03-61 | 15 | DIBBS |
| 063-14024 | 2022-12-342 | 185 | DIBBS |
| 14024 | 2022-12-342 | 185 | DIBBS |
| 063-14024 | 2022-01-13 | 79 | DIBBS |
| 14024 | 2022-01-13 | 79 | DIBBS |
| 063-14024 | 2021-11-326 | 9 | DIBBS |
| 14024 | 2021-11-326 | 9 | DIBBS |
| 063-14024 | 2021-06-165 | 10 | DIBBS |
| 14024 | 2021-06-165 | 10 | DIBBS |
| 063-14024 | 2021-05-138 | 1 | DIBBS |
| 14024 | 2021-05-138 | 1 | DIBBS |
| 063-14024 | 2021-04-118 | 2630 | DIBBS |
| 063-14024 | 2021-04-118 | 2 | DIBBS |
| 14024 | 2021-04-118 | 2630 | DIBBS |
| 14024 | 2021-04-118 | 2 | DIBBS |
| 063-14024 | 2020-06-161 | 2000 | DIBBS |
| 14024 | 2020-06-161 | 2000 | DIBBS |
| 6230-01-572-6216 | 2018-11-333 | 100 | US |
| 6230-01-572-6216 | 2018-09-261 | 856 | DIBBS |
| 6230-01-572-6216 | 2018-07-197 | 600 | DIBBS |
| 6230-01-572-6216 | 2017-12-339 | 22 | DIBBS |
| 6230-01-572-6216 | 2017-09-269 | 1 | DIBBS |
| 6230-01-572-6216 | 2017-09-269 | 1 | DIBBS |
| 6230-01-572-6216 | 2017-09-255 | 1 | DIBBS |
| 6230-01-572-6216 | 2017-09-254 | 1 | DIBBS |
| 6230-01-572-6216 | 2017-09-250 | 30 | DIBBS |
| 6230-01-572-6216 | 2016-11-307 | 6 | United States |
| 6230-01-572-6216 | 2013-01-10 | 1200 | DIBBS |
| 6230-01-572-6216 | 2012-02-53 | 1500 | DIBBS |
| 6230-01-572-6216 | 2011-10-300 | 1900 | DIBBS |
| 6230-01-572-6216 | 2011-01-13 | 700 | DIBBS |
| 6230-01-572-6216 | 2010-11-313 | 1400 | DIBBS |
| 6230-01-572-6216 | 2010-05-132 | 500 | DIBBS |
| 6230-01-572-6216 | 2010-04-112 | 500 | DIBBS |
| 6230-01-572-6216 | 2010-03-67 | 1300 | DIBBS |
| 6230-01-572-6216 | 2009-10-302 | 2146 | DIBBS |
| 6230-01-572-6216 | 2009-09-267 | 1100 | DIBBS |
| 6230-01-572-6216 | 2009-09-265 | 250 | DIBBS |
| 6230-01-572-6216 | 2009-09-265 | 350 | DIBBS |
| 6230-01-572-6216 | 2009-09-244 | 622 | DIBBS |
| 6230-01-572-6216 | 2009-06-159 | 320 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6230-01-572-6216
Related Products | NSN 6230-01-572-6216
Technical Data | NSN 6230-01-572-6216
| Characteristic | Specifications |
|---|---|
| SHAPE | IRREGULAR |
| END ITEM IDENTIFICATION | AVIATORS LIFE SUPPORT SYSTEM SE |
| OVERALL LENGTH | 2.310 NOMINAL INCHES |
| VOLTAGE RATING IN VOLTS | 3.0 DC NOMINAL |
| LENS SURFACE CONDITION | SMOOTH BACK |
| LENS COLOR | COLORLESS |
| LAMP BASE TYPE ACCOMMODATED | PERMANENTLY MOUNTED LIGHT EMITTING DIODES |
| OVERALL WIDTH | 1.050 INCHES NOMINAL |
| MATERIAL | NYLON BODY |
| SPECIAL FEATURES | 1/2 WATT WHITE HIGH FLUX LED; 5MM IR LED; 5MM GREEN LED:5MM BLUE LED:USES SIZE AA ALKALINE OR LITHIUM CELLS; BELT/CLOTHING CLIP WITH INTEGRAL HELMET MOUNT; ATACHMENT SCREW WITHSTANDS 20 INCH POUNDS OF TORQUE; UNIT WEIGHS 4.960 OUNCES WITH BATTERIES INSTALLED |
| LIGHT BEAM MOTION | FIXED |
| LENS SURFACE CONDITION | SMOOTH FACE |
| OVERALL DEPTH | 4.630 NOMINAL INCHES |
| BATTERY TYPE AND QUANTITY REQUIRED | 2 DRY |
| LENS TYPE AND QUANTITY | 1 FLAT, RECTANGULAR |
| LAMP TYPE ACCOMMODATED AND QUANTITY | FOUR LIGHT EMITTING DIODES |
Restrictions/Controls & Freight Information | NSN 6230-01-572-6216
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | Y | Information is in the Hazardous Materials Information System (HMIS) |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Hazardous Control Code: | Z7 | Article, Battery, Dry Cell BATTERY, DRY CELL |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109800 | LANTERNS/FLASHLIGHTS ELEC HAND |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6230-01-572-6216
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
