NSN 6240-00-156-1592 B7696663, B769666-3, BU10152
Product Details | INCANDESCENT LAMP
6240-00-156-1592 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: B7696663, B769666-3, BU10152, BU1015-2, WL111, W-L-111, 635045, 15704, 2771028P1, 277-1028P1, 3011041, 301104-1, 320R, 6181413, 618141-3, 6240-00-156-1592, 00-156-1592, 6240001561592, 001561592
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-156-1592 | 00727 ( LAMP, INCANDESCENT ) |
Drawings & Photos | NSN 6240-00-156-1592
Cross Reference | NSN 6240-00-156-1592
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15704 | 04296 | DIGITAC |
| 277-1028P1 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 301104-1 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 320R | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 320R | 24455 | GENERAL ELECTRIC CO LAMP DIVISION OF CONSUMER |
| 618141-3 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| 635045 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| B769666-3 | 55972 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| BU1015-2 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| W-L-111 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-00-156-1592
Technical Data | NSN 6240-00-156-1592
| Characteristic | Specifications |
|---|---|

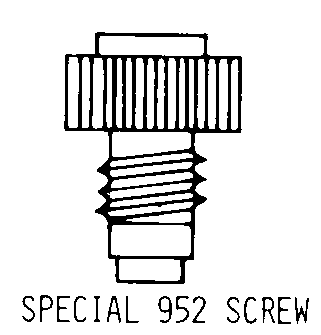

| BASE STYLE | A9A SPECIAL 952 SCREW |
| BULB STYLE | B25 T |
| BULB DESIGNATOR | T-1-3/4 |
| OVERALL LENGTH | 0.750 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | RED |
| FILAMENT DESIGNATION | C-2F |
| WATTAGE RATING | NOT RATED |
| VOLTAGE RATING | 24.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.035 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | NOT RATED SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 1000.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| III UNPACKAGED UNIT WEIGHT | 0.006 POUNDS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | W-L-111 |
Restrictions/Controls & Freight Information | NSN 6240-00-156-1592
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | G | 125 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-156-1592
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
