NSN 6240-00-223-9098 J9A, NE56, 00-223-9098
Product Details | GLOW LAMP
6240-00-223-9098 An item in which a gas is ionized to produce light energy of low persistence. It may include internal current limiting resistor.
Part Alternates: J9A, NE56, 6240-00-223-9098, 00-223-9098, 6240002239098, 002239098
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-223-9098 | 05758 ( LAMP, GLOW ) |

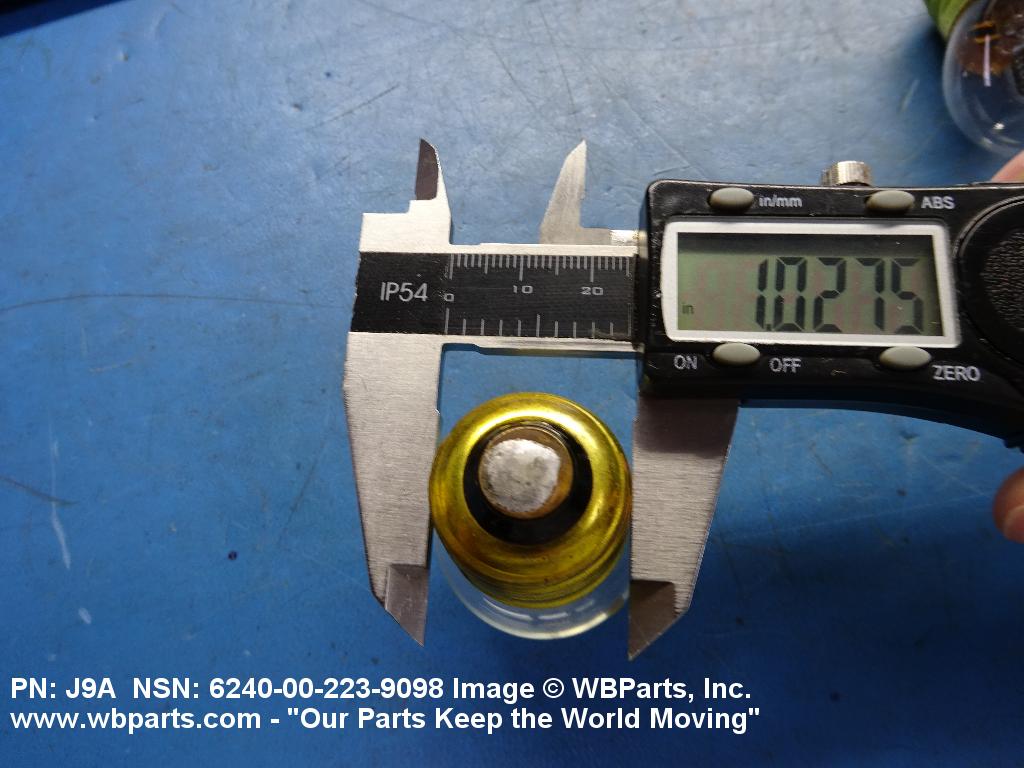

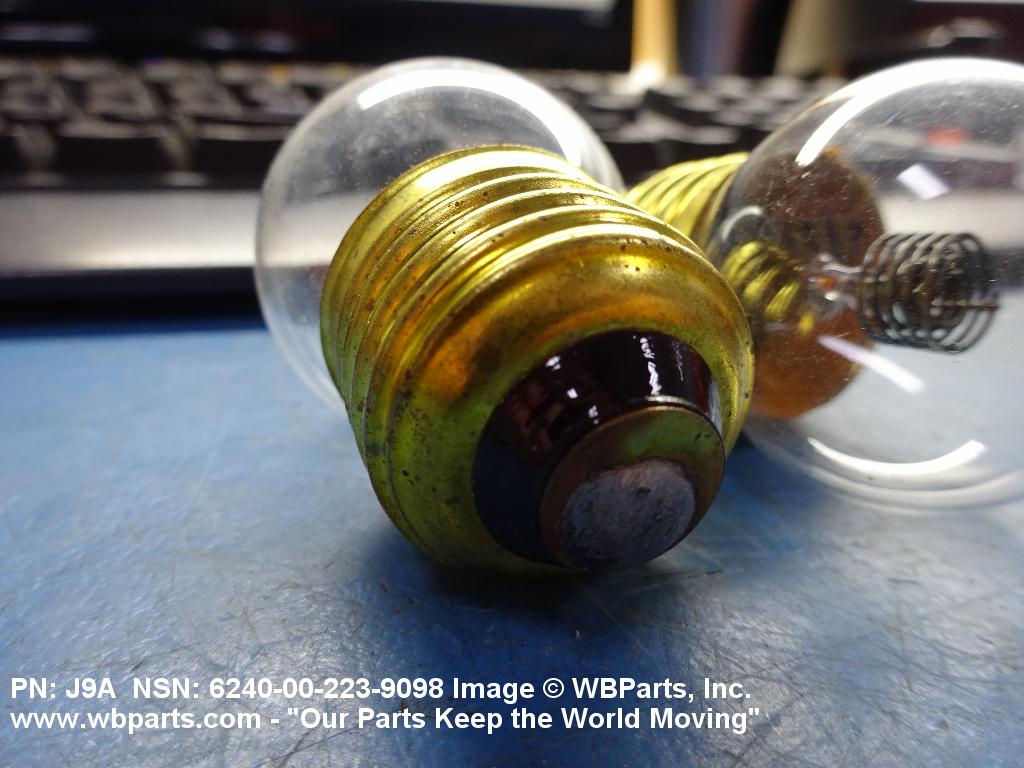

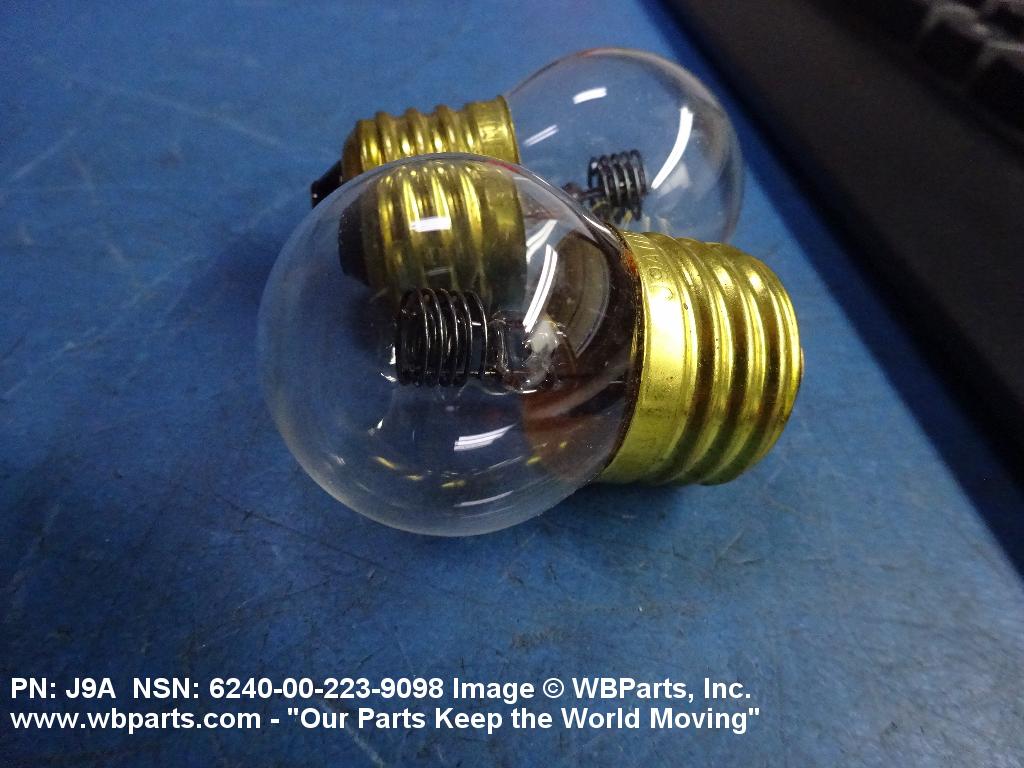

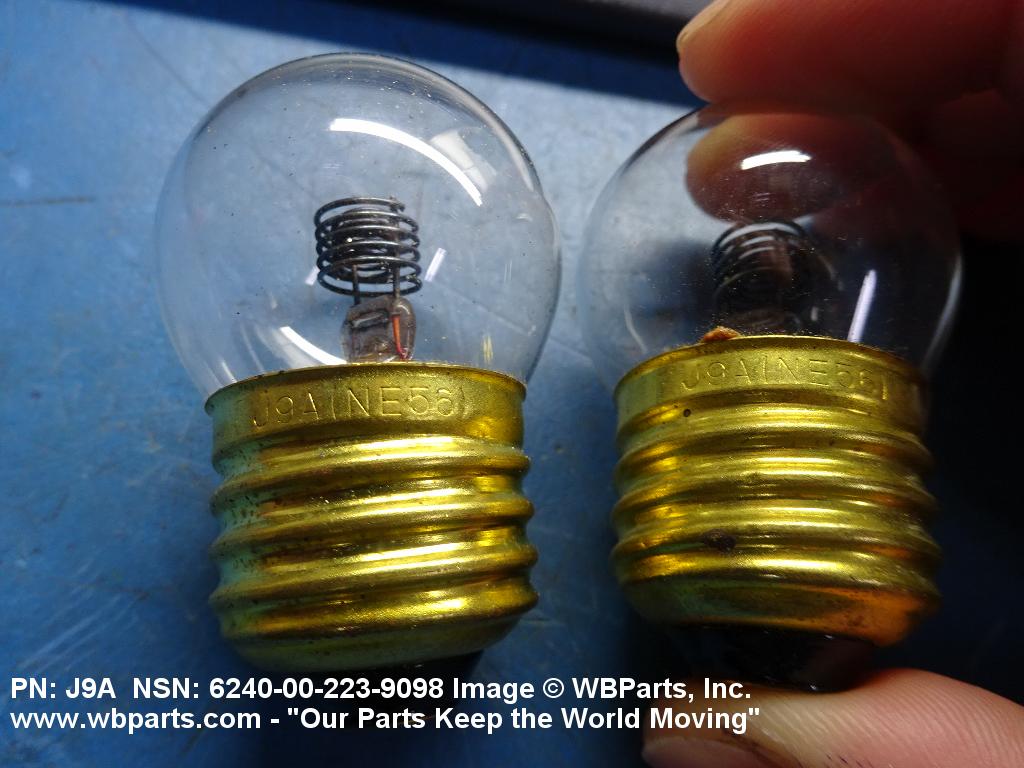

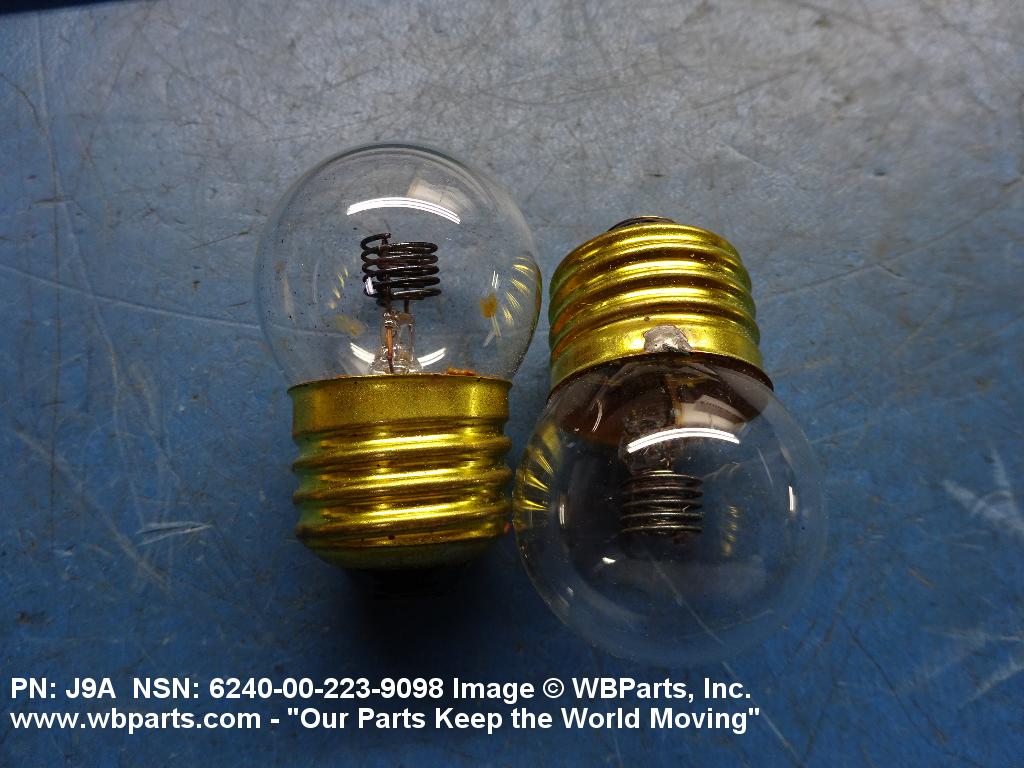

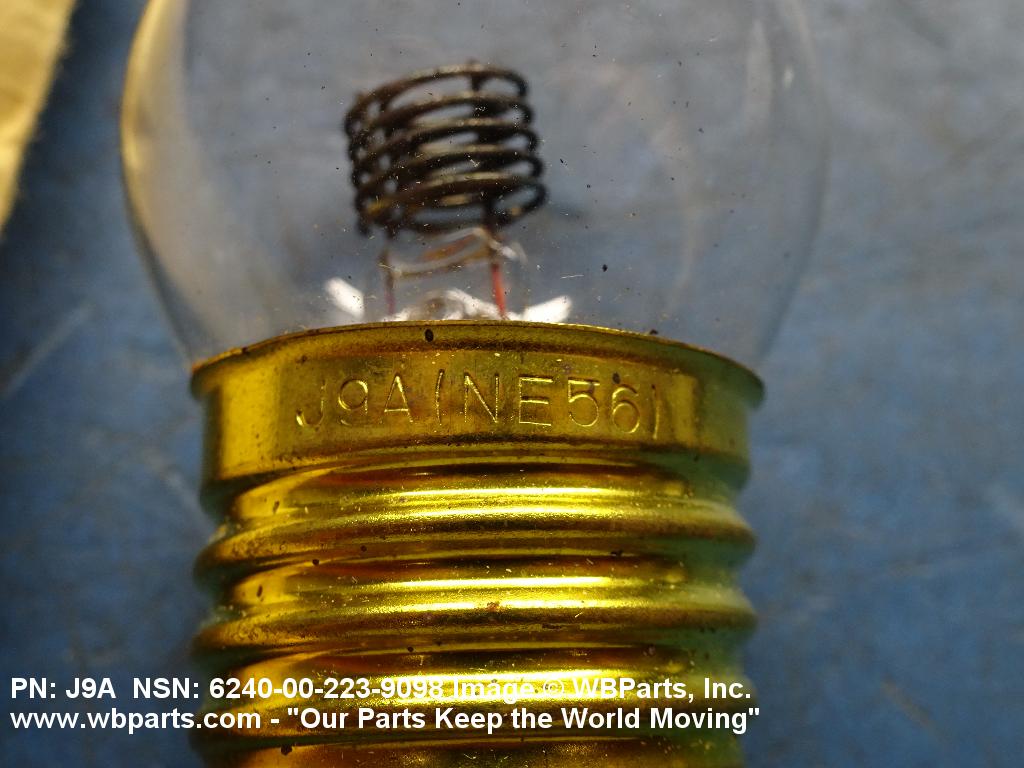

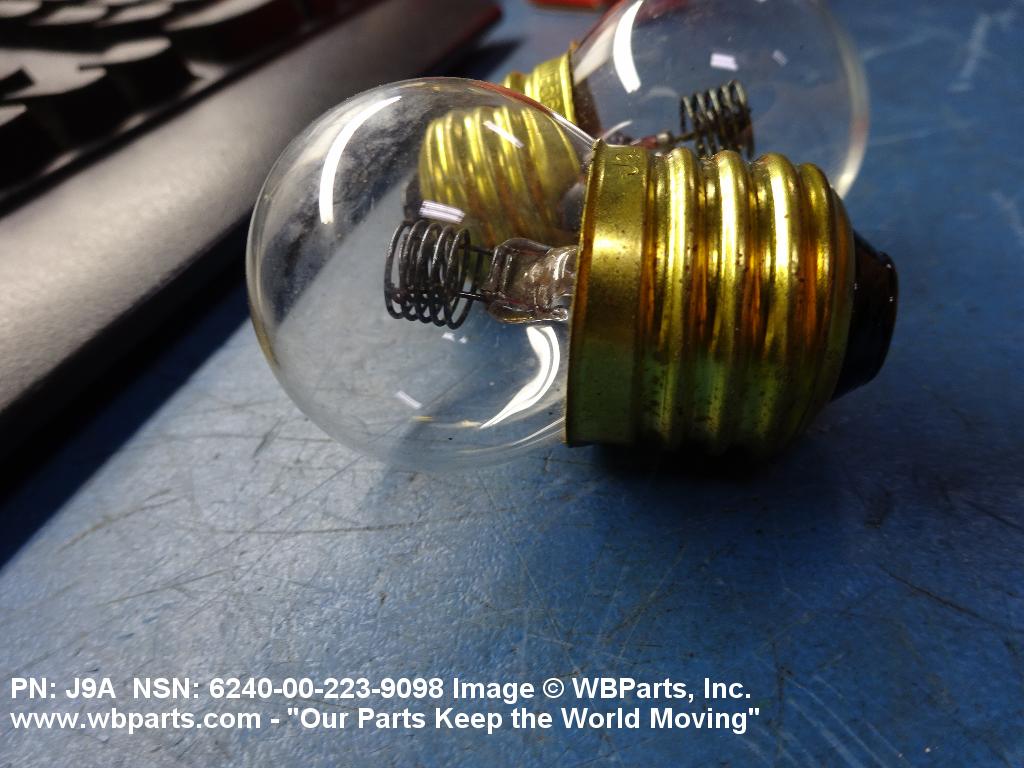

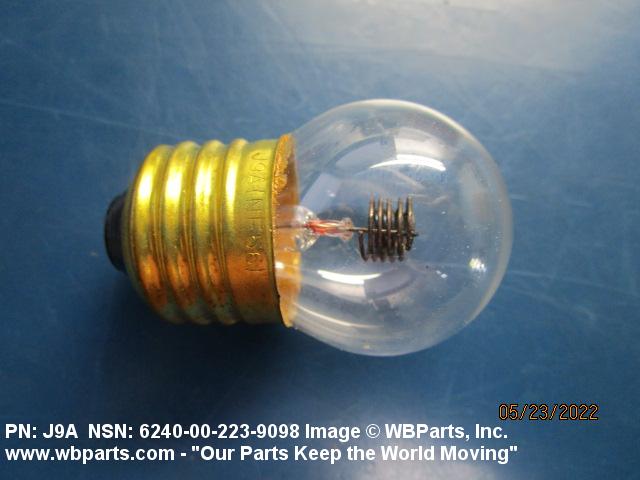

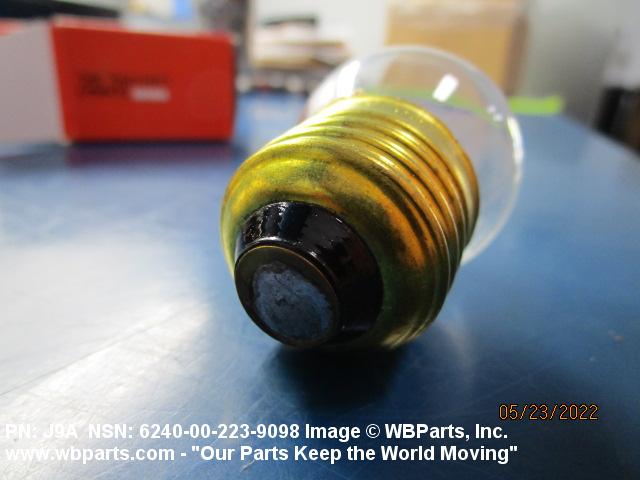

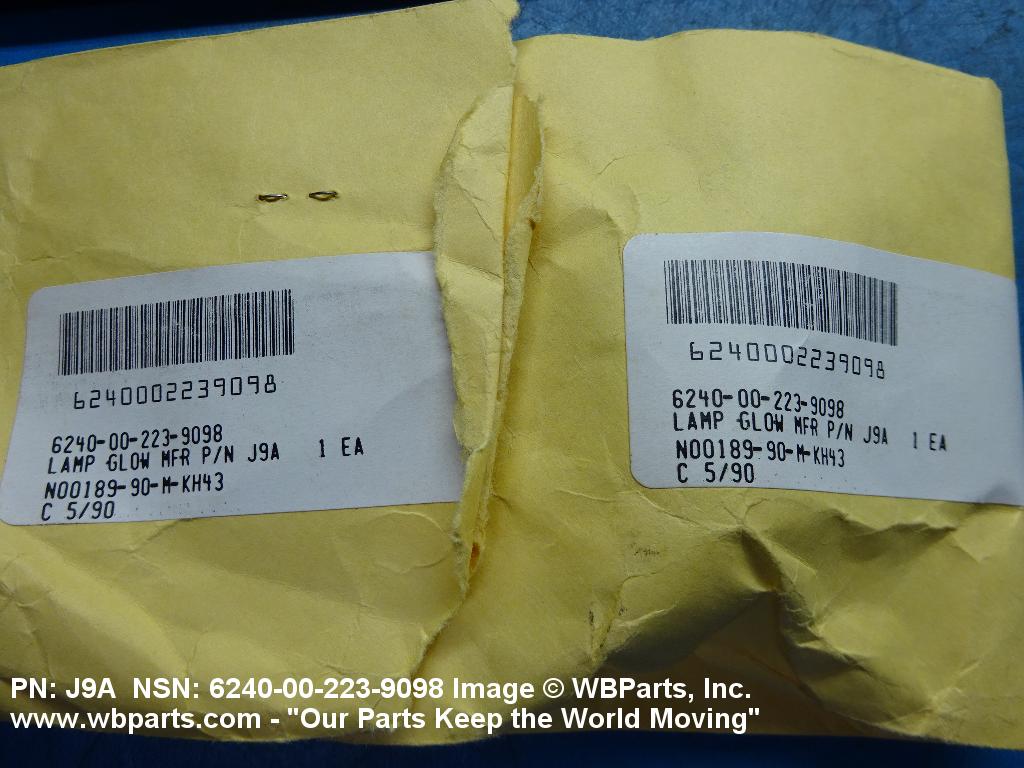

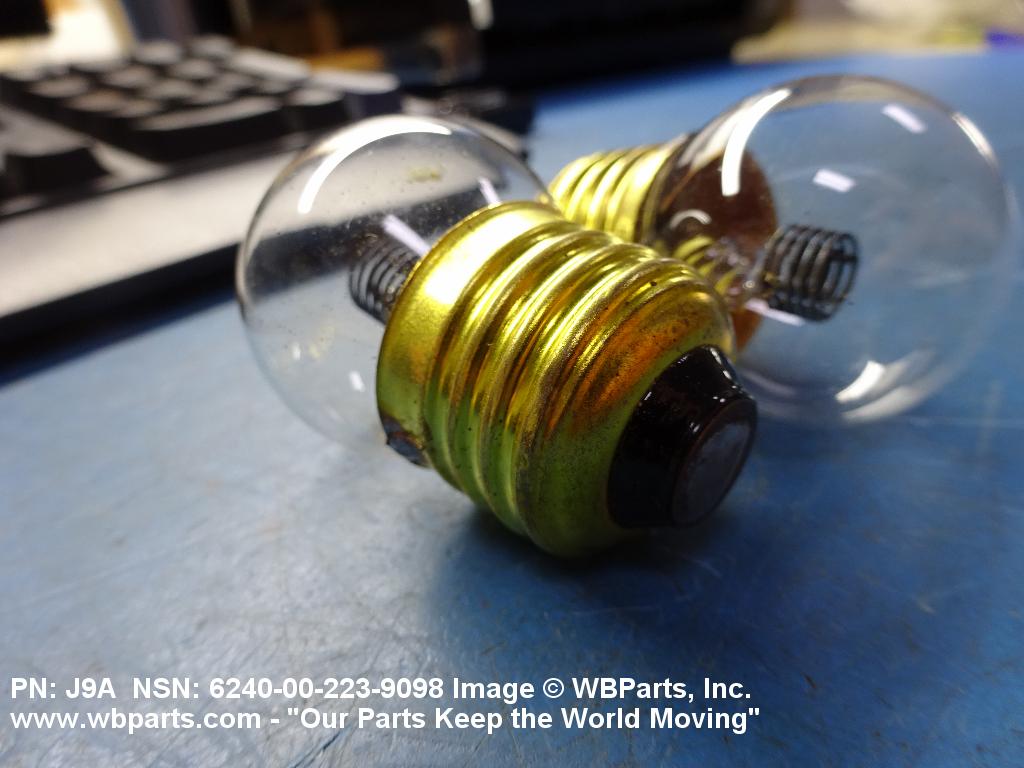

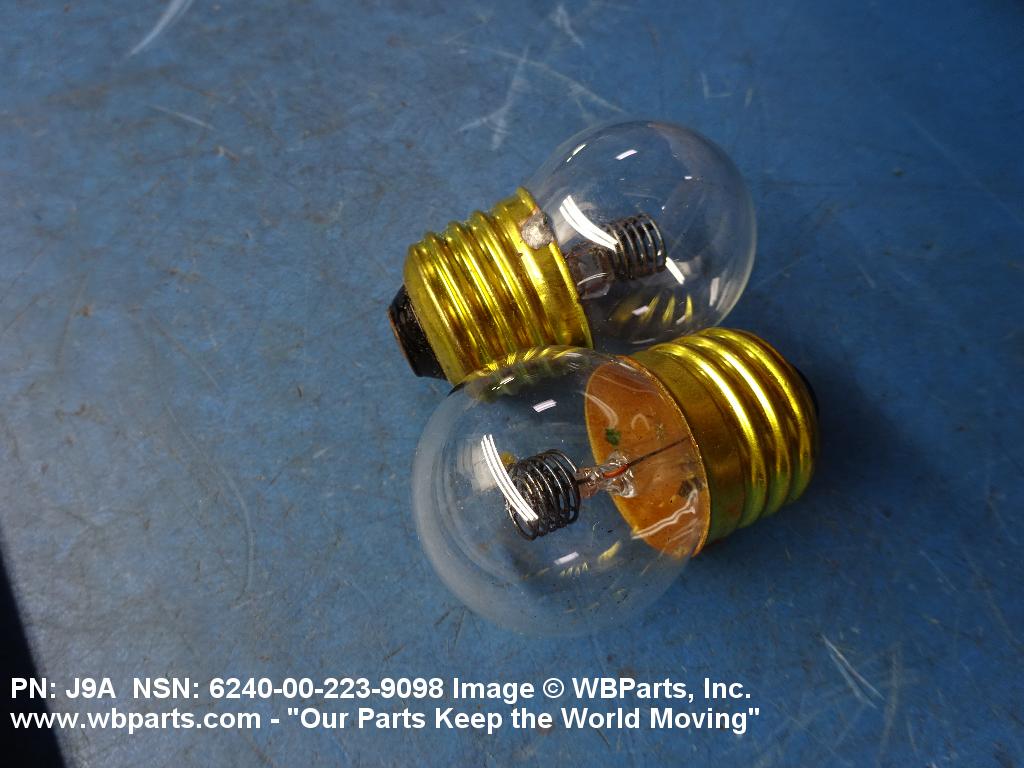

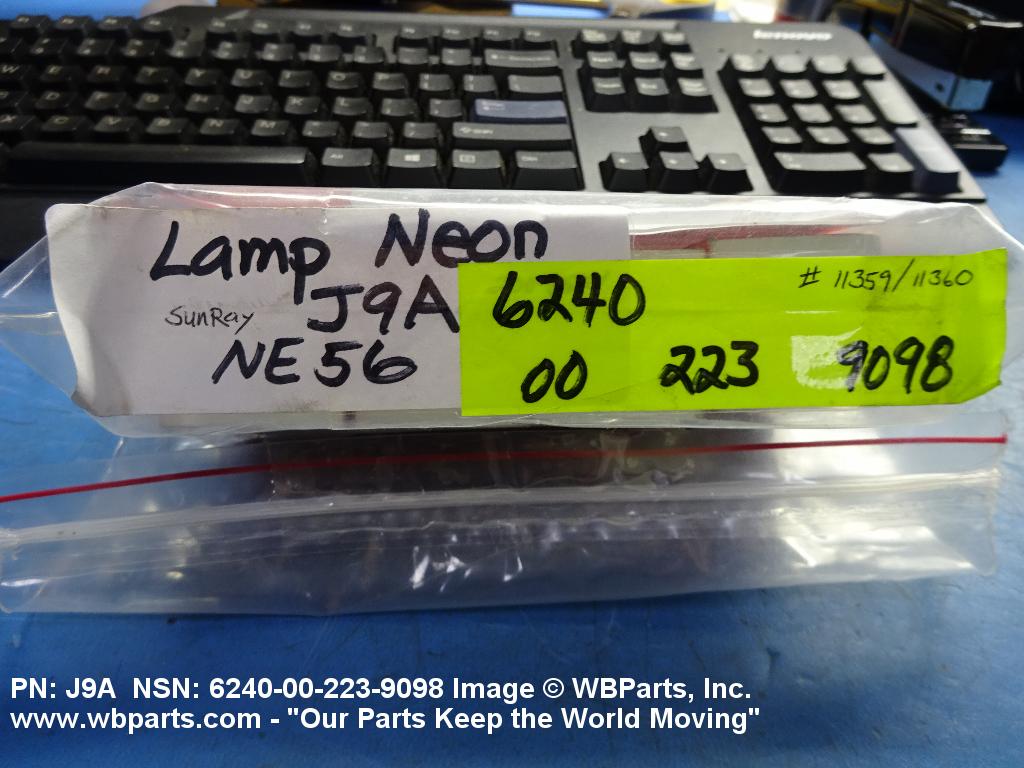

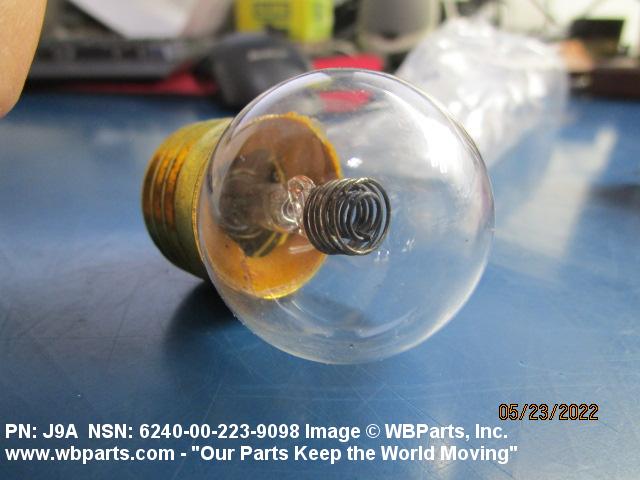

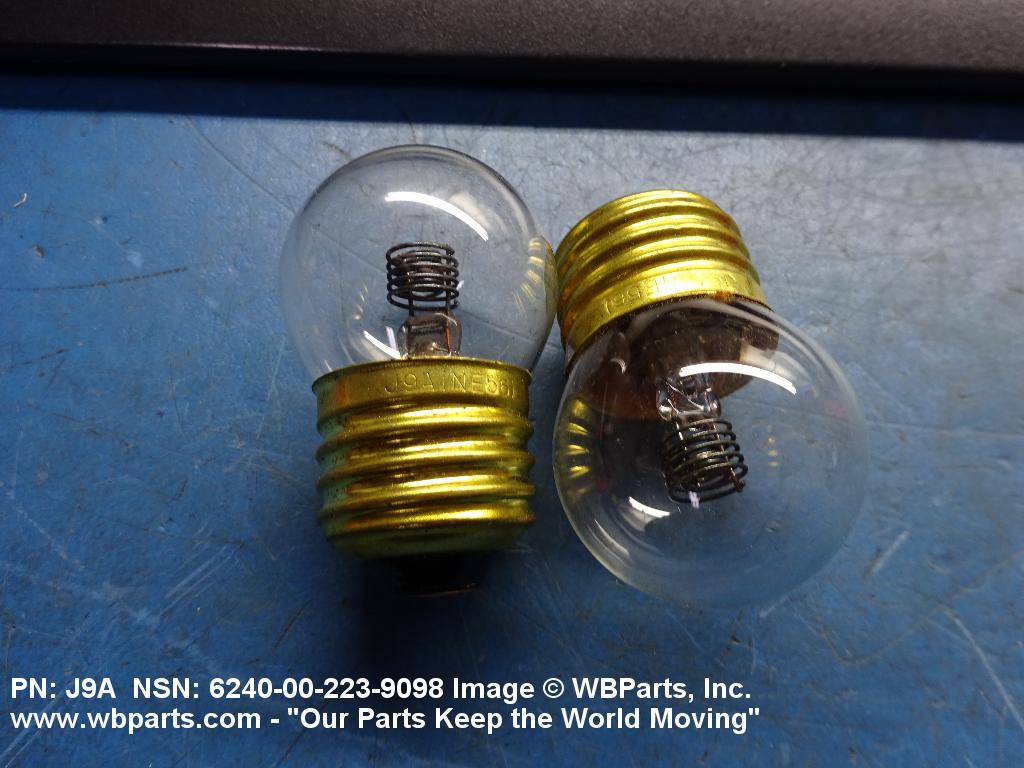

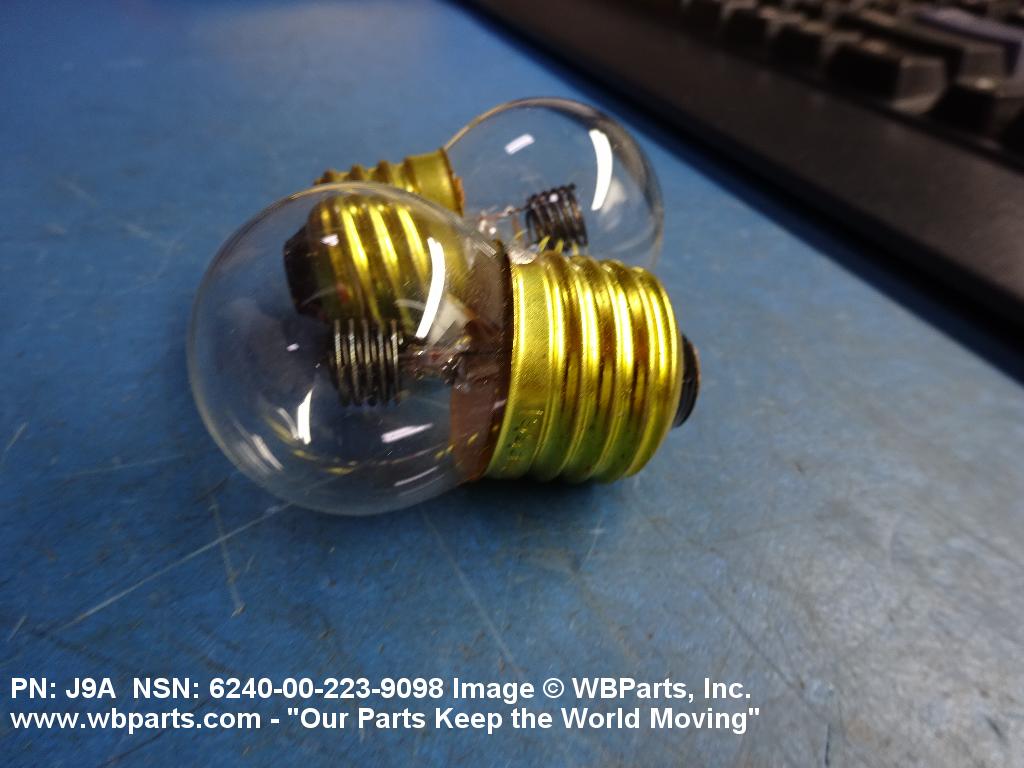

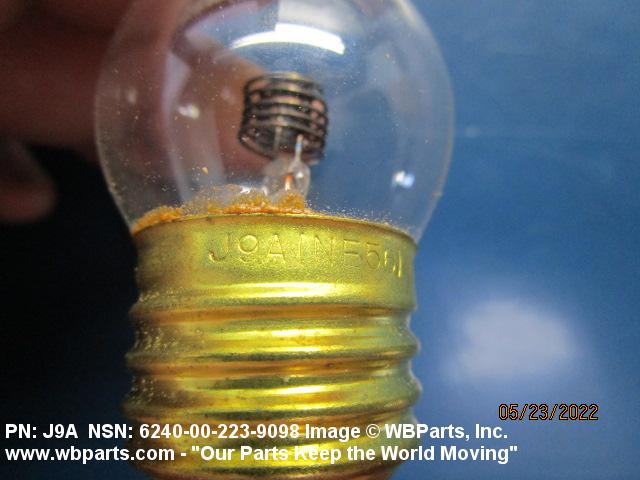

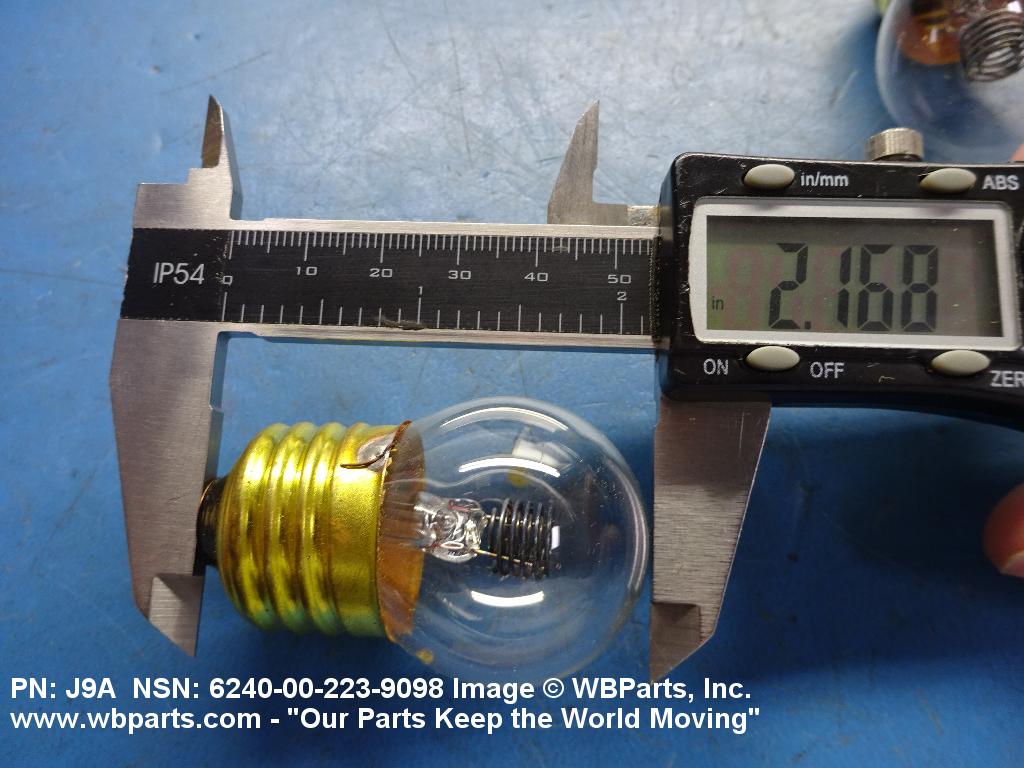

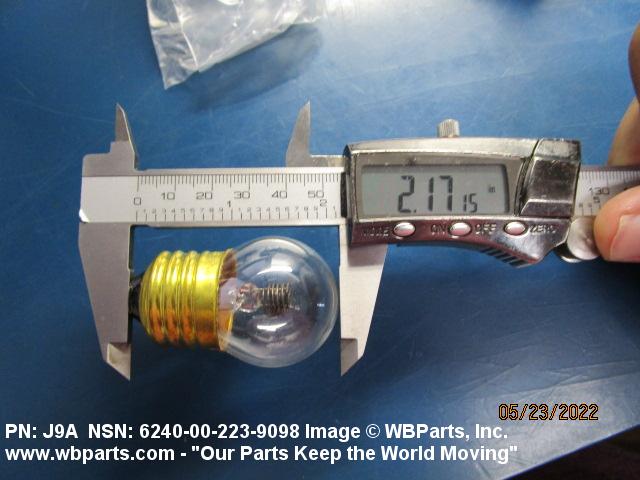

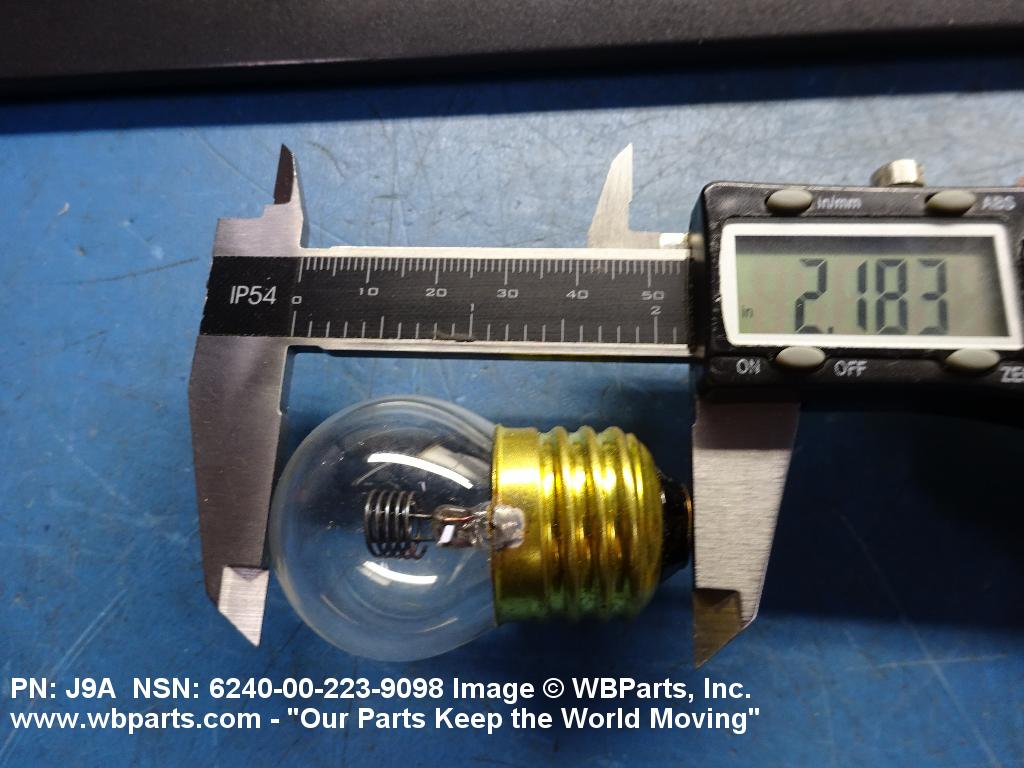

Drawings & Photos | NSN 6240-00-223-9098
Demand History | NSN 6240-00-223-9098
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-00-223-9098 | 2024-12-341 | 6 | United States |
| 6240-00-223-9098 | 2024-10-275 | 3 | United States |
| 6240-00-223-9098 | 2022-09-270 | 12 | United States |
| 6240-00-223-9098 | 2022-03-86 | 6 | United States |
| 6240-00-223-9098 | 2014-07-190 | 6 | DIBBS |
| 6240-00-223-9098 | 2013-10-304 | 3 | DIBBS |
| 6240-00-223-9098 | 2011-11-328 | 1 | DIBBS |
| 6240-00-223-9098 | 2011-04-93 | 1 | DIBBS |
Cross Reference | NSN 6240-00-223-9098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J9A | 71744 | CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON |
| J9A | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| J9A | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NE56 | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| NE56 | 71744 | CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-223-9098
Related Products | NSN 6240-00-223-9098
Technical Data | NSN 6240-00-223-9098
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A2E MEDIUM SCREW |
| BULB STYLE | B9 G |
| BULB DESIGNATOR | G-10 |
| OVERALL LENGTH | 2.250 INCHES MAXIMUM |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILLING GAS TYPE | NEON |
| LIGHT INTENSITY LEVEL | NOT RATED |
| CIRCUIT VOLTAGE RATING IN VOLTS | 210.000 MINIMUM AND 250.000 MAXIMUM |
| GAS STRIKING VOLTAGE RATING IN VOLTS AND CURRENT TYPE | 60.0 AC NOMINAL 1ST VOLTAGE 85.0 DC NOMINAL 2ND VOLTAGE |
| WATTAGE RATING | 1.000 WATTS |
| RESISTOR RATING AND LOCATION | NOT RATED |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 5000.0 |
| FEATURES PROVIDED | WATERPROOF TERMINALS |
Restrictions/Controls & Freight Information | NSN 6240-00-223-9098
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-223-9098
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
