NSN 6240-00-299-5546 MS155883, MS15588-3, AA1842

Product Details | FLUORESCENT LAMP

6240-00-299-5546 An item which produces light due to an ionized gas activating a fluorescent coating.

Part Alternates: MS155883, MS15588-3, AA1842, A-A-1842, ANSI C78.2-1978, ANSIC7821978, BI107, SAC548, TJ3206, VARPRICE, W-L-00116/3, WL001163, F8T5/CW, F8T5CW, FX3509, F8T5, 00606296004366, 1135890, 135301, 1353-01, 232136, 30357485002, 30357485-002, 367-045-004, 44A417006002, 44A417006-002, 60941, 800030, 876LA0043, 6240-00-299-5546, 00-299-5546, 6240002995546, 002995546, 367045004

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1963	00-299-5546	03891 ( LAMP, FLUORESCENT )

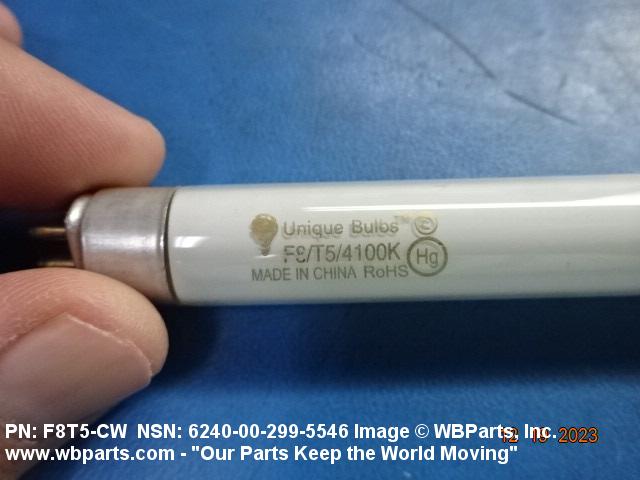

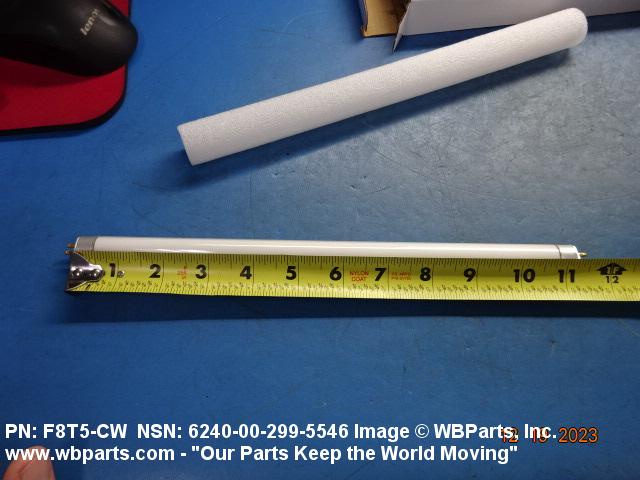

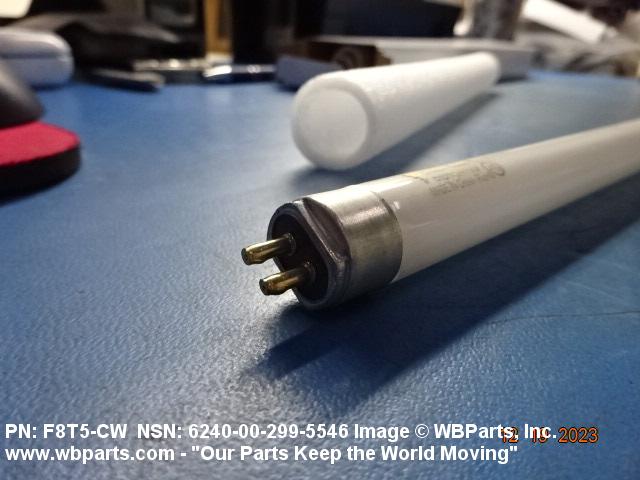

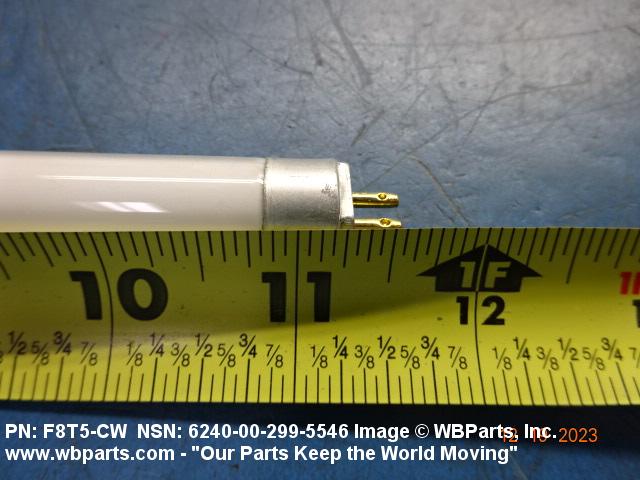

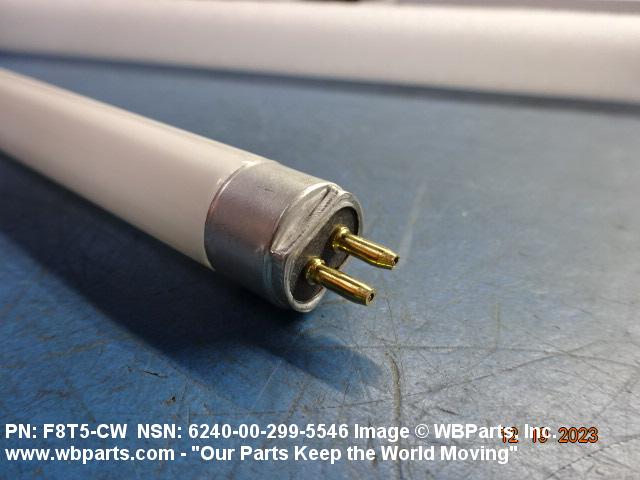

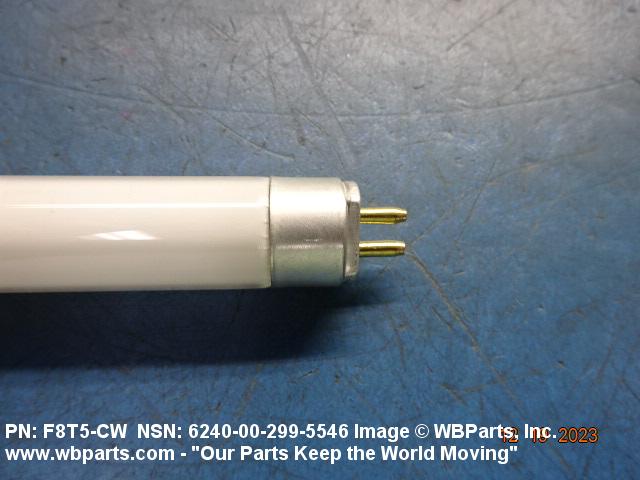

Drawings & Photos | NSN 6240-00-299-5546

Part Number	Request Date	QTY	Origin
6240-00-299-5546	2023-12-340	2	United States
6240-00-299-5546	2021-02-40	84	NL
6240-00-299-5546	2021-02-37	1008	SA
1135890	2019-09-268	1510	DIBBS
30357485-002	2019-09-268	1510	DIBBS
367-045-004	2019-09-268	1510	DIBBS
F8T5	2019-09-268	1510	DIBBS
F8T5/CW	2019-09-268	1510	DIBBS
FX3509	2019-09-268	1510	DIBBS
6240-00-299-5546	2019-06-158	1	DIBBS-RFPs
6240-00-299-5546	2019-04-116	1	DIBBS-RFPs
1135890	2019-03-84	8167	DIBBS
30357485-002	2019-03-84	8167	DIBBS
367-045-004	2019-03-84	8167	DIBBS
F8T5	2019-03-84	8167	DIBBS
F8T5/CW	2019-03-84	8167	DIBBS
FX3509	2019-03-84	8167	DIBBS
1135890	2019-03-73	8167	DIBBS
30357485-002	2019-03-73	8167	DIBBS
367-045-004	2019-03-73	8167	DIBBS
F8T5	2019-03-73	8167	DIBBS
F8T5/CW	2019-03-73	8167	DIBBS
FX3509	2019-03-73	8167	DIBBS
1135890	2019-01-28	8000	DIBBS
30357485-002	2019-01-28	8000	DIBBS
367-045-004	2019-01-28	8000	DIBBS
F8T5	2019-01-28	8000	DIBBS
F8T5/CW	2019-01-28	8000	DIBBS
FX3509	2019-01-28	8000	DIBBS
1135890	2019-01-17	8000	DIBBS
30357485-002	2019-01-17	8000	DIBBS
367-045-004	2019-01-17	8000	DIBBS
F8T5	2019-01-17	8000	DIBBS
F8T5/CW	2019-01-17	8000	DIBBS
FX3509	2019-01-17	8000	DIBBS
6240-00-299-5546	2018-11-333	4500	DIBBS
6240-00-299-5546	2018-10-298	250	DIBBS
6240-00-299-5546	2018-08-232	1875	DIBBS
FX3509	2018-08-221	1875	US
6240-00-299-5546	2018-08-220	1875	DIBBS
876LA0043	2017-05-121	1	Oman
6240-00-299-5546	2017-02-51	1	SA
60941	2017-02-40	1	United States
6240-00-299-5546	2016-12-347	6	SA
6240-00-299-5546	2016-07-193	4	US
6240-00-299-5546	2015-06-177	6032	DIBBS
6240-00-299-5546	2014-10-281	3404	DIBBS
6240-00-299-5546	2014-03-64	3800	DIBBS
6240-00-299-5546	2014-02-55	1403	DIBBS
6240-00-299-5546	2014-01-13	3425	US
6240-00-299-5546	2014-01-06	3425	DIBBS
6240-00-299-5546	2013-12-343	1119	DIBBS
6240-00-299-5546	2013-11-321	549	DIBBS
6240-00-299-5546	2013-10-303	722	DIBBS
6240-00-299-5546	2013-10-281	1486	DIBBS
6240-00-299-5546	2013-03-84	1729	DIBBS
6240-00-299-5546	2013-02-58	1929	DIBBS
6240-00-299-5546	2012-11-334	686	DIBBS
6240-00-299-5546	2012-08-222	1348	DIBBS
60941	2012-01-10	2	AE
6240-00-299-5546	2011-06-166	1649	DIBBS
6240-00-299-5546	2011-05-139	1649	DIBBS
6240-00-299-5546	2010-09-250	2520	DIBBS
876LA0043	2010-04-103	50	Singapore
F8T5CW	2010-04-103	50	Singapore
6240-00-299-5546	2009-11-310	3000	DIBBS
6240-00-299-5546	2009-10-293	1298	DIBBS
6240-00-299-5546	2009-04-105	682	DIBBS
6240-00-299-5546	2008-12-353	4668	DIBBS

Cross Reference | NSN 6240-00-299-5546

Part Number	Cage Code	Manufacturer
00606296004366	82679	THE TECHNICAL MATERIAL CORPORATION DBA T M C
1135890	0B6S1	INTERNATIONAL BUSINESS MACHINES CORP PARTS ORDER CENTER DEPT E - 54
1135890	30874	INTERNATIONAL BUSINESS MACHINES CORP
1353-01	28003	WINCHESTER INDUSTRIES INC
232136	3SLK7	LDS TEST AND MEASUREMENT LLC
232136	96795	GOULD INSTRUMENT SYSTEMS INC
30357485-002	08987	HONEYWELL INC PROCESS CONTROL DIV
367-045-004	07421	INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS
44A417006-002	01526	GENICOM CORP
60941	F2693	LEGRAND FRANCE
800030	33642	SYQWEST, INC.
876LA0043	A0199	OTO MELARA SPA
A-A-1842	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
ANSI C78.2-1978	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
BI107	82679	THE TECHNICAL MATERIAL CORPORATION DBA T M C
F8T5	95405	PAULUHN ELECTRIC MANUFACTURING LLP DBA PAULUHN ELECTRIC
F8T5/CW	06172	MARVEL LAMP CO INC
F8T5/CW	08108	LAMP INDUSTRY FOR USE WITH INDUSTRY
F8T5/CW	08805	GENERAL ELECTRIC COMPANY DBA GE
F8T5/CW	58325	U S LIGHTING CORP
F8T5/CW	62607	PHILIPS ELECTRONICS NORTH AMERICA CORPORATION
F8T5/CW	88204	GTE PRODUCTS CORP SYLVANIA MINIATURE LIGHTING DIV
F8T5CW	24455	GENERAL ELECTRIC CO LAMP DIVISION OF CONSUMER
F8T5CW	F0327	MAZDA ECLAIRAGE SNC
F8T5CW	F0862	PHILIPS FRANCE
F8T5CW	Z4309	CROMPTON LIGHTING PTY LIMITED
FX3509	95405	PAULUHN ELECTRIC MANUFACTURING LLP DBA PAULUHN ELECTRIC
MS15588-3	61554	ULLMAN CO THE INC P O BOX 5375 HAUPPAUGE NY 11788
MS15588-3	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS15588-3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SAC548	05477	NEW SD INC SEATON-WILSON DIV
TJ3206	15498	JET SPRAY CORP JET SPRAY CUSTOMER SERVICES DIV
VARPRICE	13873	DLA AVIATION
W-L-00116/3	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-299-5546

Compare

Related Products | NSN 6240-00-299-5546

6240-00-299-5547, 6240-00-299-5548, 6240-00-299-5768, 6240-00-299-5874, 6240-00-299-5875

Technical Data | NSN 6240-00-299-5546

Characteristic	Specifications
BASE STYLE	A84B MINIATURE BIPIN
BULB STYLE	B27 T
BULB DESIGNATOR	T-5
OVERALL LENGTH	12.000 INCHES MAXIMUM
EMITTED LIGHT CHARACTERISTIC	WHITE, COOL
WATTAGE RATING	8.000 WATTS
VOLTAGE RATING	NOT RATED
LIGHT OUTPUT RATING	280.000 LUMENS NOMINAL SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	7500.0
STARTING CHARACTERISTIC	PREHEAT
SPECIFICATION/STANDARD DATA	08108-F8T5/CW MANUFACTURERS STANDARD
III END ITEM IDENTIFICATION	ENGINE, AIRCRAFT, J85-GE-5/13 (F-5A/B, T-38A); GUIDED MISSILE LAUNCHING SYSTEM, MK 26 (GMLS); GUN MOUNT,MK 75 (GM);FIRE PUMPS; 115 TON, BARGE CRANE DERRICK, NSN 1935-01-434-6826; CONVEYERS, FLEET VERTICAL PACKAGE; FLEET SATELLITE COMM TERMINAL, AN/TSC-96A; LANDING CRAFT, UTILITY, 115 FT; AN/SRN-25(V) NAVIGATION RADIO SET; TACTICAL AIR OPNS MODULE (AN/TYQ-(23); FMS- ASROC LAUNCHER; SSN23 MMP SYSTEMS
MANUFACTURERS CODE	58536
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	A-A-1842
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	W-L-00116/3

Restrictions/Controls & Freight Information | NSN 6240-00-299-5546

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	Y	Information is in the Hazardous Materials Information System (HMIS)
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Hazardous Control Code:	Z2	Article Containing Mercury ARTICLE, MERCURY
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109600	LAMPS(BULBS) ELEC FLUORESCENT
Less than car load rating
Less than truck load rating	J	100.2
Water commodity Code	761	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-00-299-5546

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 BX : Box

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 BX : Box

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	K	Reserved
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 BX : Box

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	U	Mercury (authorized for general use)
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 BX : Box
