NSN 6240-00-538-8888 MS156001, MS15600-1, WL101
Product Details | INCANDESCENT LAMP
6240-00-538-8888 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: MS156001, MS15600-1, WL101, 100A21/SP, 100A21/SP/33, 100A21SP, 100A21SP115V, 100A21SP120V, 100A21SP33, 100ASP120V, 100A-SP-120V, 6240-00-538-8888, 00-538-8888, 6240005388888, 005388888
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-538-8888 | 00727 ( LAMP, INCANDESCENT ) |

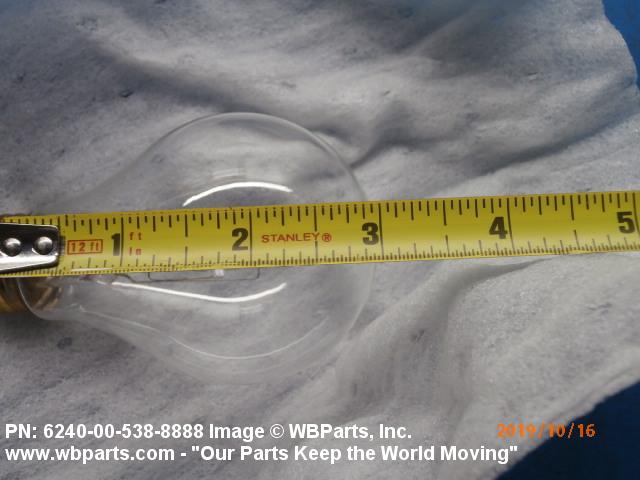

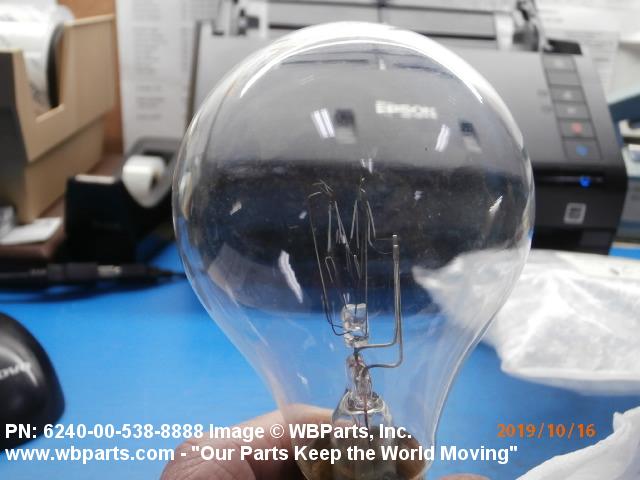

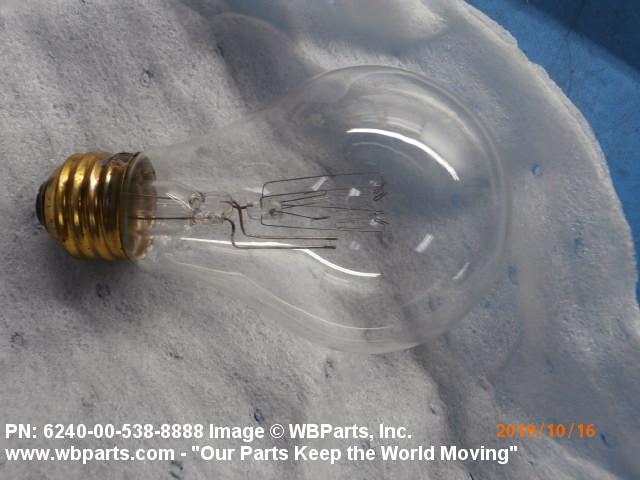

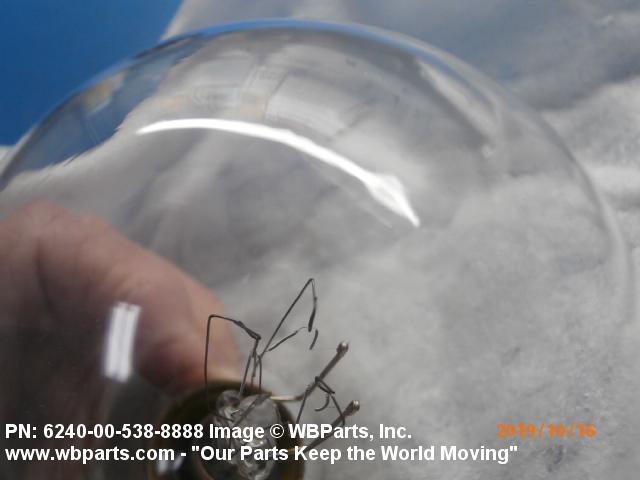

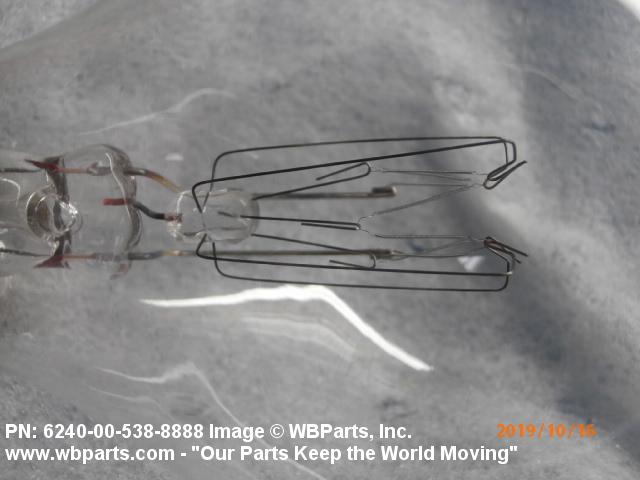

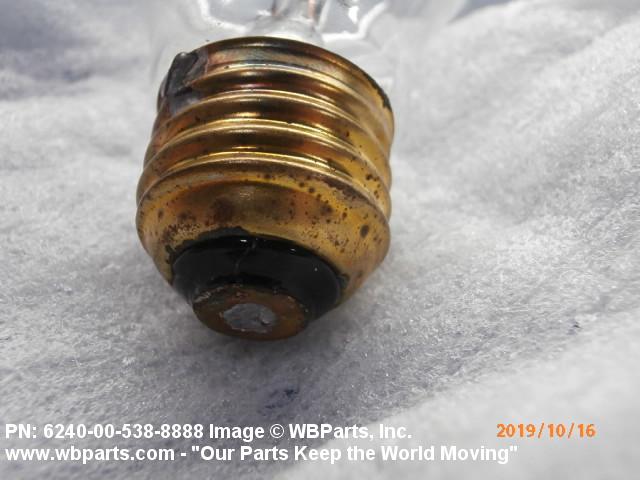

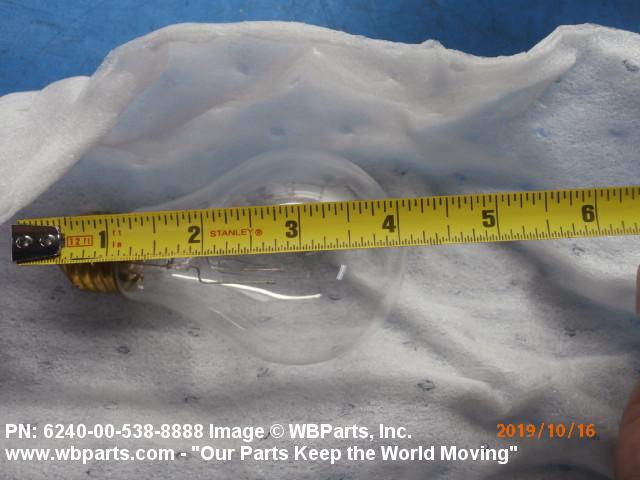

Drawings & Photos | NSN 6240-00-538-8888
Demand History | NSN 6240-00-538-8888
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-00-538-8888 | 2019-09-273 | 1 | United States |
| 6240-00-538-8888 | 2019-08-234 | 1 | United States |
| 6240-00-538-8888 | 2018-09-269 | 378 | US |
| 6240-00-538-8888 | 2018-08-233 | 378 | DIBBS |
| 6240-00-538-8888 | 2018-04-101 | 190 | US |
| 6240-00-538-8888 | 2017-06-159 | 190 | DIBBS |
Cross Reference | NSN 6240-00-538-8888
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100A-SP-120V | 20772 | SPECTRONICS CORPORATION DIV TRACER PRODUCTS |
| 100A21/SP | 08805 | GENERAL ELECTRIC COMPANY DBA GE |
| 100A21/SP | 88204 | GTE PRODUCTS CORP SYLVANIA MINIATURE LIGHTING DIV |
| 100A21/SP/33 | 62607 | PHILIPS ELECTRONICS NORTH AMERICA CORPORATION |
| 100A21SP115V | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 100A21SP115V | 88204 | GTE PRODUCTS CORP SYLVANIA MINIATURE LIGHTING DIV |
| 100A21SP120V | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| MS15600-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| WL101 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-00-538-8888
Related Products | NSN 6240-00-538-8888
Technical Data | NSN 6240-00-538-8888
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A2E MEDIUM SCREW |
| BULB STYLE | B1 A |
| BULB DESIGNATOR | A-21 |
| OVERALL LENGTH | 4.375 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-5 |
| WATTAGE RATING | 100.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.833 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | 1350.000 LUMENS NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 200.0 |
| BURNING POSITION | BASE UP |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT BEAM TYPE | SPOT |
| LIGHT CENTER LENGTH | 3.000 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 08108-100A21/SP-120V MANUFACTURERS STANDARD |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WL101 |
Restrictions/Controls & Freight Information | NSN 6240-00-538-8888
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-00-538-8888
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | 3 | Engineer Materiel19; 20; 22; 24; 30; 32; 34 except 3470; 36; 37; 38; 41; 42 except 4210; 43; 45; 46; 47; 48; 4930; 54 except 5445; 56; 62; 66 except 6625, 6650, 6660, 6665; 67; 68 |
| Echelon Management Code | 4 | ICP/DSSCs Marine Corps/Defense/Integrated Materiel Manager (IMM) items which have been decontrolled by the inventory managers for local procurement. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
