NSN 6240-00-752-2581 MS24515685, MS24515-685, M2046314

Product Details | INCANDESCENT LAMP

6240-00-752-2581 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: MS24515685, MS24515-685, M2046314, M204-6314, CM685, S1313, S-1313, S2046314, S204-6314, S2101104, S21011-04, SR0669/3, SR06693, T1685, T1-685, W-L-00111/27, WL0011127, PKS2694, PKS-269-4, PL685, ESK7361188, ESK7361-188, G 2314, G2314, GIL685, I0079, L1123, LTX685, FB12, FB9, 555566-002, 321027-002, 334310, 33431-0, 3907000303, 3907-0003-03, 4062105997, 40-621-059-97, 4062106977, 40-621-069-77, 43B1153412, 43B115341-2, 451631, 517998053001, 517-9-98053-001, 6240-99-9951198, 680704E792, 680704-E79-2, 685, 685 AS25, 685AS25, 841304000685, 841304-000-685, 870396, 87-0396, 02010012, 0201001-2, 0243563C00, 03700900, 037-009-00, 043513, 04-3513, 0L685, 0L-685, 100618P1, 100618-P1, 100685, 100-685, 101130, 1030312, 103031-2, 150-0045-00, 150004500AG, 150-0045-00-AG, 158016, 15801-6, 17011743, 1701-1743, 2, 21400005, 2140-0005, 21400092, 2140-0092, 22424381, 2242438-1, 224751000001, 224751-000-001, 25, 2620934000, 262-0934-000, 6240-00-752-2581, 00-752-2581, 6240007522581, 6240999951198, 007522581, 555566002, 302120001, 321027002, 150004500

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	01 JAN 1963	00-752-2581	00727 ( LAMP, INCANDESCENT )

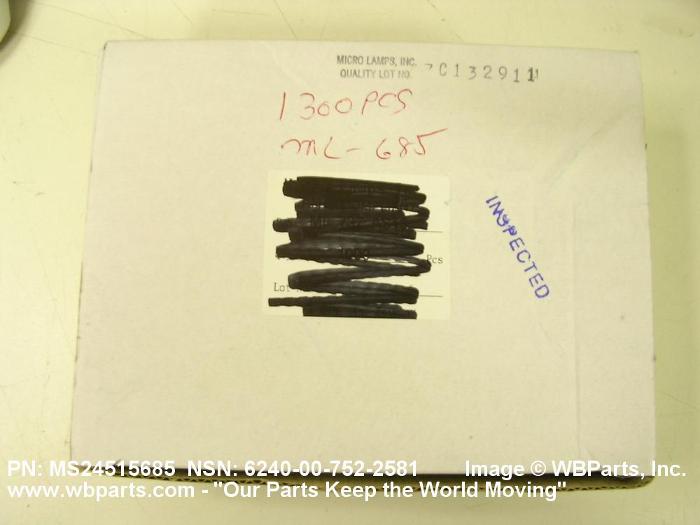

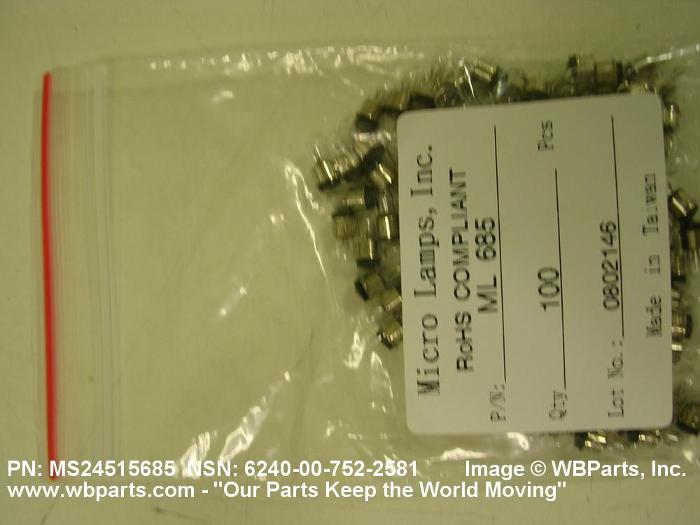

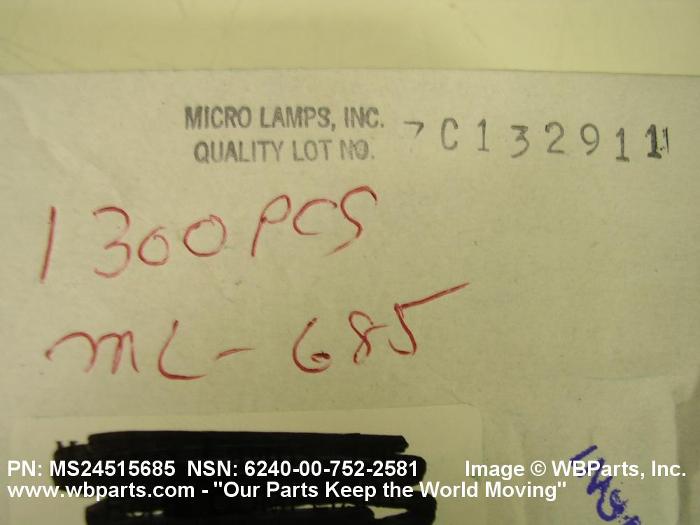

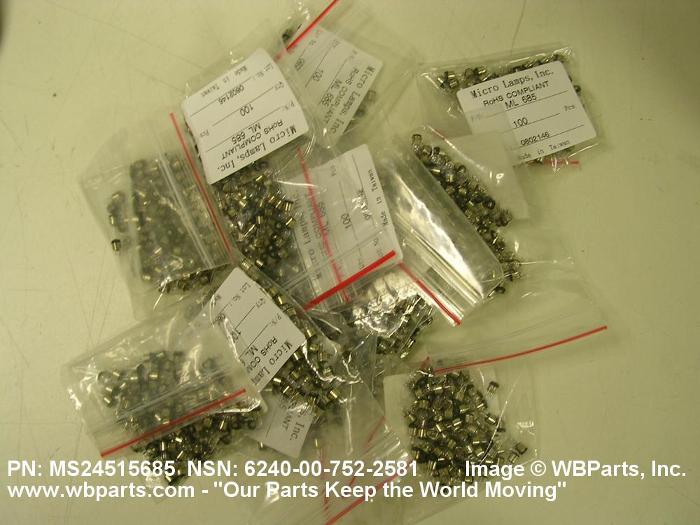

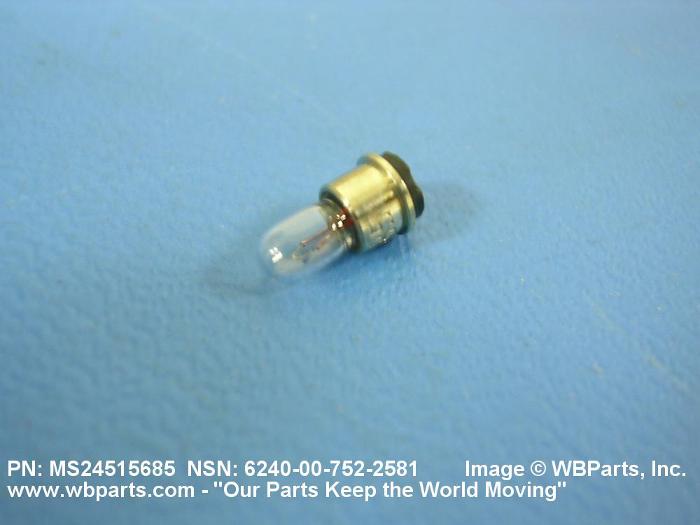

Drawings & Photos | NSN 6240-00-752-2581

Part Number	Request Date	QTY	Origin
6240-00-752-2581	2025-11-322	1316	DIBBS
MS24515685	2020-05-122	20	Korea
6240-00-752-2581	2018-09-268	20	United States
6240-00-752-2581	2016-05-143	2291	DIBBS
PL685	2013-10-295	1	SG
MS24515685	2011-12-335	10	United States
6240-00-752-2581	2011-05-130	2719	DIBBS
6240-00-752-2581	2010-12-348	1147	DIBBS
6240-00-752-2581	2010-04-110	385	DIBBS
685	2010-03-85	1	us
6240-00-752-2581	2008-05-147	1255	France

Cross Reference | NSN 6240-00-752-2581

Part Number	Cage Code	Manufacturer
0201001-2	09959	AIRCRAFT INSTRUMENTS COMPANY
0243563C00	F0555	MBDA FRANCE
037-009-00	22373	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
04-3513	05083	BACHARACH, INC.
04-3513	1QTP5	WESCO DISTRIBUTION INC 5105
0L-685	S3774	OSHINO ELECTRIC LAMP WORKS LTD
100-685	34165	INTER-MARKET INC
100618-P1	79300	WALTHAM CLOCK CO INC
101130	52542	SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV
103031-2	08717	SLOAN COMPANY THE DBA SLOAN LED
150-0045-00	80009	TEKTRONIX, INC. DBA TEKTRONIX
150-0045-00-AG	80009	TEKTRONIX, INC. DBA TEKTRONIX
15801-6	52247	EXTEL CORP
1701-1743	92379	UNISYS CORP
2	56665	CARLEY INC.
2140-0005	33783	BR COMMUNICATIONS INC
2140-0092	1LQK8	KEYSIGHT TECHNOLOGIES, INC.
2140-0092	28480	HEWLETT-PACKARD COMPANY DBA HEWLETT-PACKARD CO. OR HP
2242438-1	79500	WESTINGHOUSE ELECTRIC CORP
224751-000-001	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
25	76854	ELECTRO SWITCH CORP. DBA OAK GRISGSBY
262-0934-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
302120001	34631	MOMENTUM TECHNOLOGIES INC
321027-002	71482	CP CLARE CORP NORTH AMERICAN SALES OPERATIONS
321027-002	97564	POLLAK CORP TRANSPORTATION ELECTRONICS DIV
33431-0	88204	GTE PRODUCTS CORP SYLVANIA MINIATURE LIGHTING DIV
3907-0003-03	19565	SYMBOLIC DISPLAYS, INC.
40-621-059-97	56249	HYPERTRONICS CORP SI-TAC CONNECTORS
40-621-059-97	K0801	KELVIN HUGHES LIMITED
40-621-069-77	K0481	SMITHS INDUSTRIES LTD
40-621-069-77	K0802	MEGGITT (UK) LTD DBA MEGGITT SENSING SYSTEMS
40-621-069-77	K5294	GE AVIATION SYSTEMS LTD
43B115341-2	28009	SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC -
451631	1PQF4	L-3 COMMUNICATIONS CORPORATION DBA LINK SIMULATION & TRAINING
451631	36378	RAYTHEON TECHNICAL SERVICES COMPANY
517-9-98053-001	05457	BRITISH AEROSPACE NORTH AMERICA INC
555566-002	23383	DYNAMICS RESEARCH CORPORATION
555566-002	95402	ELECTRIC BOAT CORP DBA ELECTRO DYNAMIC
555566-002	96169	ELECTRIC BOAT CORPORATION
680704-E79-2	71482	CP CLARE CORP NORTH AMERICAN SALES OPERATIONS
680704-E79-2	97564	POLLAK CORP TRANSPORTATION ELECTRONICS DIV
685	00779	TYCO ELECTRONICS CORPORATION
685	05464	INDUSTRIAL ELECTRONIC ENGINEERS, INC.
685	08108	LAMP INDUSTRY FOR USE WITH INDUSTRY
685	08806	GENERAL ELECTRIC CO MINIATURE LAMP PRODUCTS DEPT
685	55335	JKL COMPONENTS CORPORATION
685	62607	PHILIPS ELECTRONICS NORTH AMERICA CORPORATION
685	65083	WESTINGHOUSE ELECTRIC CORP LAMP DIV
685	76854	ELECTRO SWITCH CORP. DBA OAK GRISGSBY
685	88204	GTE PRODUCTS CORP SYLVANIA MINIATURE LIGHTING DIV
685	92966	GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP HILLSBORO
685	95146	ALCO ELECTRONIC PRODUCTS INC
685	F0022	MINILAMPE
685	R1120	SATAIR A/S
685 AS25	05464	INDUSTRIAL ELECTRONIC ENGINEERS, INC.
841304-000-685	55588	EATON ELECTRICAL INC. DBA CUTTLER HMMER CMRCL CNTRLS DIV
87-0396	19397	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC.
CM685	71744	CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON
CM685	R1120	SATAIR A/S
ESK7361-188	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
FB12	08717	SLOAN COMPANY THE DBA SLOAN LED
FB9	08717	SLOAN COMPANY THE DBA SLOAN LED
G 2314	55292	WILBRECHT ELECTRONICS INC.
GIL685	71744	CHICAGO MINIATURE LIGHTING LLC DBA CHICAGO MINIATURE OPTOELECTRON
I0079	52542	SYSTRON-DONNER CORP MICROWAVE/INSTRUMENT DIV
L1123	K1604	THORN E M I SIMTEC LTD
L1123	K2509	ULTRA ELECTRONICS LTD PMES
L1123	K5688	GE LIGHTING OPERATIONS LTD
LTX685	61342	LAMPTRONIX CO LTD
M204-6314	54418	MILTOPE CORPORATION
MS24515-685	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PKS-269-4	03034	PENN KEYSTONE CORPORATION
PKS-269-4	09959	AIRCRAFT INSTRUMENTS COMPANY
PL685	58451	PRECISION LAMP INC
S-1313	58815	SHOKAI FAR EAST LTD.
S204-6314	54418	MILTOPE CORPORATION
S21011-04	50012	MOTOROLA COMMUNICATIONS GROUP PARTS DEPT
SR0669/3	K5070	DEVONPORT ROYAL DOCKYARD LIMITED,DEVONPORT ROYAL DOCKYARD
T1-685	07294	GENISCO FILTER CORP.
W-L-00111/27	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-00-752-2581

Compare

Related Products | NSN 6240-00-752-2581

6240-01-570-2009, 6240-01-570-8068, 6240-01-571-5181, 6240-01-572-4221, 6240-01-573-9819

Technical Data | NSN 6240-00-752-2581

Characteristic	Specifications
BASE STYLE	A12D SUB-MIDGET FLANGED
BULB STYLE	B25 T
BULB DESIGNATOR	T-1
OVERALL LENGTH	0.380 INCHES MAXIMUM
BULB LIGHT TRANSMISSION CHARACTERISTIC	TRANSPARENT
EMITTED LIGHT CHARACTERISTIC	COLORLESS
FILAMENT DESIGNATION	C-2R
WATTAGE RATING	0.300 WATTS
VOLTAGE RATING	5.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED	0.060 AMPERES NOMINAL
LIGHT OUTPUT RATING	0.050 SPHERICAL CANDLEPOWER NOMINAL SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	100000.0
BURNING POSITION	ANY ACCEPTABLE
FILAMENT HEAVY DUTY SERVICE RATING	NOT RATED
LIGHT CENTER LENGTH	0.190 INCHES NOMINAL
SPECIFICATION/STANDARD DATA	08108-685 MANUFACTURERS STANDARD

Restrictions/Controls & Freight Information | NSN 6240-00-752-2581

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	109550	LAMPS(BULBS) ELEC INCANDESCENT NOI
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	761	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-00-752-2581

Category	Code	Description
Materiel Category and Inventory Manager	J	Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Y	TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code	1	Bin
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	H EA : Each
