NSN 6240-01-054-6679 MS250691495X, MS25069-1495X, Z00.N7445110657
Product Details | INCANDESCENT LAMP
6240-01-054-6679 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: MS250691495X, MS25069-1495X, Z00.N7445110657, Z00N7445110657, LP1495X, 1495X, 6240-01-054-6679, 01-054-6679, 6240010546679, 010546679
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 24 JAN 1978 | 01-054-6679 | 00727 ( LAMP, INCANDESCENT ) |

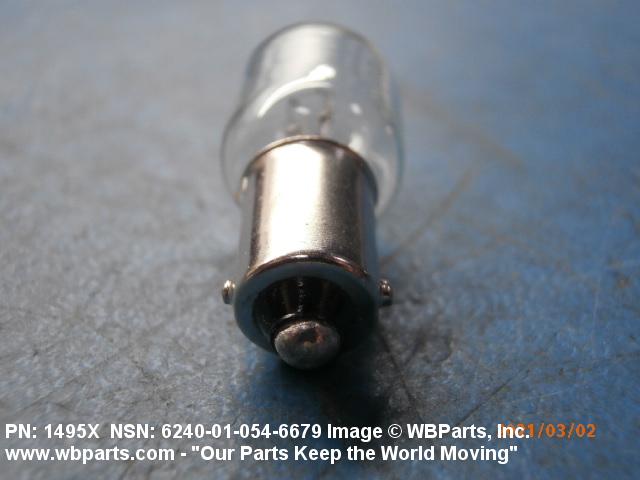

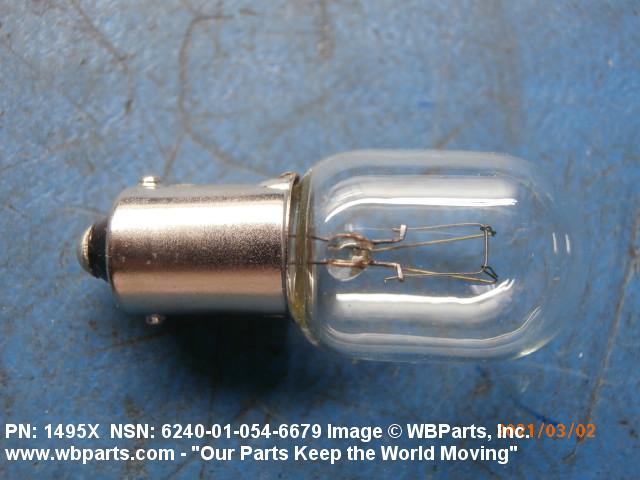

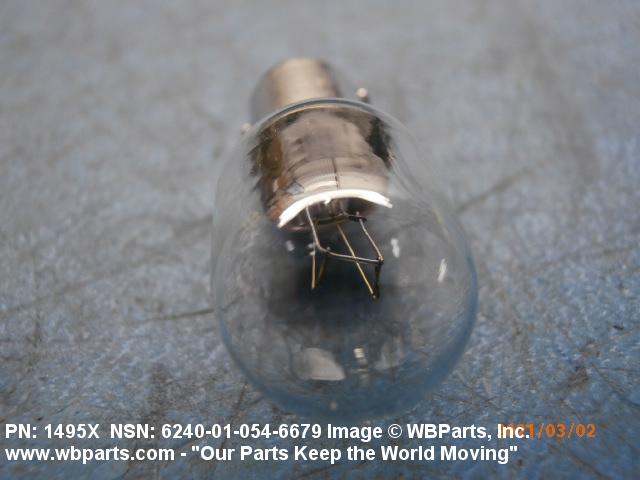

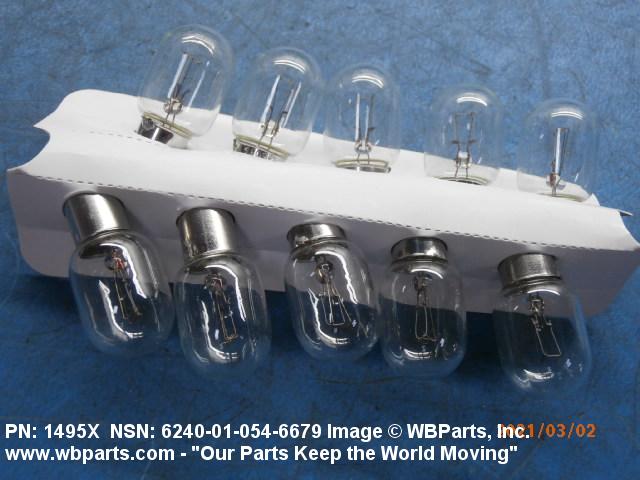

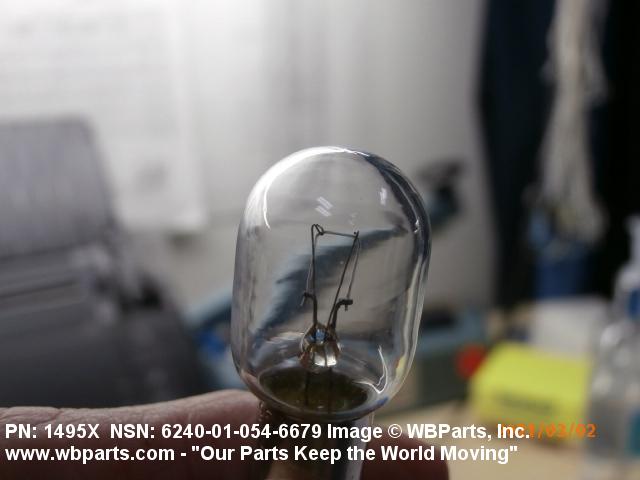

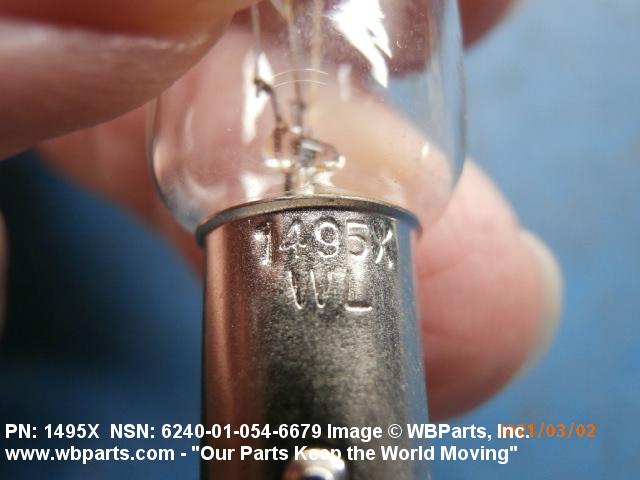

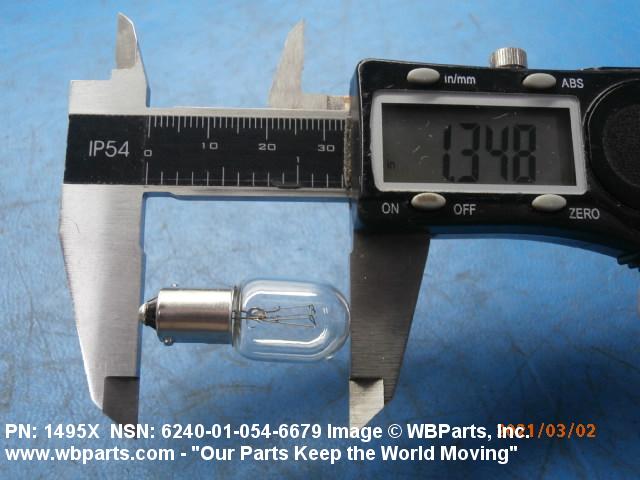

Drawings & Photos | NSN 6240-01-054-6679
Demand History | NSN 6240-01-054-6679
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-01-054-6679 | 2021-02-40 | 71 | United States |
| 6240-01-054-6679 | 2019-09-268 | 1 | United States |
| 1495X | 2012-08-237 | 1 | US |
| 6240-01-054-6679 | 2009-11-316 | 20 | Hong Kong |
Cross Reference | NSN 6240-01-054-6679
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1495X | 08108 | LAMP INDUSTRY FOR USE WITH INDUSTRY |
| 1495X | 92966 | GTE PRODUCTS CORP LIGHTING PRODUCTS GROUP HILLSBORO |
| LP1495X | 72914 | GRIMES AEROSPACE COMPANY DBA HONEYWELL |
| MS25069-1495X | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| Z00.N7445110657 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-054-6679
Related Products | NSN 6240-01-054-6679
Technical Data | NSN 6240-01-054-6679
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A18A MINIATURE BAYONET |
| BULB STYLE | B25 T |
| BULB DESIGNATOR | T-4 1/2 |
| OVERALL LENGTH | 1.380 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-2F |
| WATTAGE RATING | 8.400 WATTS |
| VOLTAGE RATING | 28.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 0.300 AMPERES NOMINAL |
| LIGHT OUTPUT RATING | 6.000 SPHERICAL CANDLEPOWER NOMINAL SINGLE RATING |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 500.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |

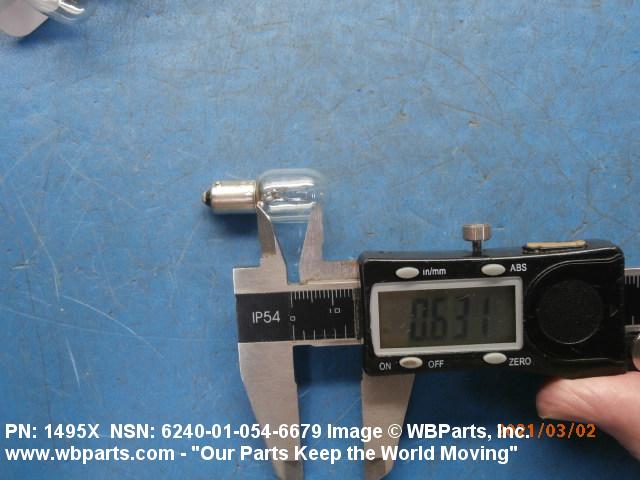

| LIGHT CENTER LENGTH | 0.630 INCHES NOMINAL |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS25069-1495X |
Restrictions/Controls & Freight Information | NSN 6240-01-054-6679
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-01-054-6679
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
