NSN 6240-01-058-5061 CL568, S1650-1508-1.5-12 , S165015081512

Product Details | INCANDESCENT LAMP

6240-01-058-5061 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.

Part Alternates: CL568, S1650-1508-1.5-12 , S165015081512, DS0298, G4992-1610-1.5M , G4992161015M, 1296, 5508873, 55-0887-3, 568, 582R288H11, 5M1698001, 5M1698-001, 6240-01-058-5061, 01-058-5061, 6240010585061, 010585061

Lighting Fixtures and Lamps | Electric Lamps

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
62	28 MAR 1978	01-058-5061	00727 ( LAMP, INCANDESCENT )

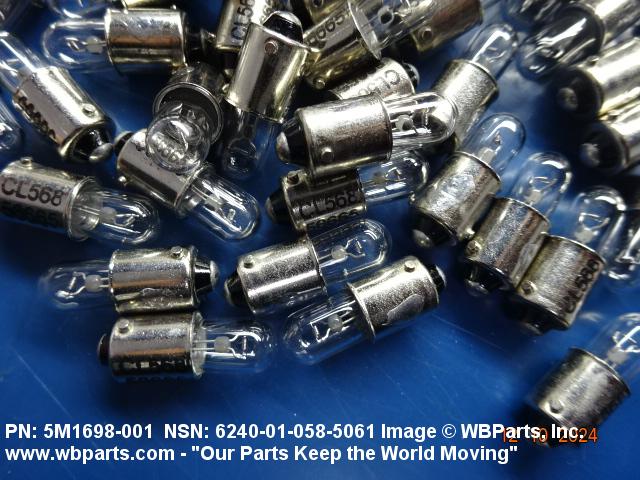

Drawings & Photos | NSN 6240-01-058-5061

Part Number	Request Date	QTY	Origin
6240-01-058-5061	2025-09-252	50	Ukraine
6240-01-058-5061	2025-07-203	100	CZ
6240-01-058-5061	2025-06-176	100	CZ
6240-01-058-5061	2024-12-337	30	United States
6240-01-058-5061	2024-11-333	30	United States
DS0298	2024-11-323	80	Australia
5M1698001	2024-10-303	11	us
5M1698001	2024-10-295	11	us
6240-01-058-5061	2024-10-294	10	MY
55-0887-3	2023-09-268	313	DIBBS
568	2023-09-268	313	DIBBS
55-0887-3	2023-09-260	313	DIBBS
568	2023-09-260	313	DIBBS
55-0887-3	2023-06-170	446	DIBBS
568	2023-06-170	446	DIBBS
CL568	2021-03-62	100	TW
6240-01-058-5061	2017-02-53	65	MANUAL
6240-01-058-5061	2016-04-112	1	DIBBS-RFPs
6240-01-058-5061	2016-03-81	136	DIBBS
6240-01-058-5061	2013-08-217	136	DIBBS
6240-01-058-5061	2013-08-213	3	DIBBS
6240-01-058-5061	2012-06-153	50	Israel
6240-01-058-5061	2012-05-145	50	United Kingdom
6240-01-058-5061	2012-04-116	270	DIBBS
6240-01-058-5061	2012-04-99	262	DIBBS
1296	2012-02-51	20
6240-01-058-5061	2011-10-294	100	TR
6240-01-058-5061	2011-08-242	1149	DIBBS
6240-01-058-5061	2011-08-240	1	DIBBS
5M1698001	2011-08-237	10	US
5M1698001	2011-08-237	10	US
6240-01-058-5061	2011-08-237	10	US
6240-01-058-5061	2011-08-234	1	DIBBS
6240-01-058-5061	2011-08-234	10	DIBBS
6240-01-058-5061	2011-08-215	1500	Israel
6240-01-058-5061	2011-07-208	1460	DIBBS
6240-01-058-5061	2011-07-184	10	DIBBS
6240-01-058-5061	2011-07-184	5	DIBBS
6240-01-058-5061	2011-07-184	10	DIBBS
6240-01-058-5061	2011-06-164	1576	JP
5508873	2011-06-164	5	US
5508873	2011-05-149	500	US
6240-01-058-5061	2011-04-117	500	South Korea
6240-01-058-5061	2010-07-211	2101	DIBBS
6240-01-058-5061	2010-05-124	164	DIBBS
6240-01-058-5061	2010-03-83	152	DIBBS
6240-01-058-5061	2010-03-67	316	DIBBS
6240-01-058-5061	2010-02-53	1076	DIBBS
6240-01-058-5061	2010-02-53	24	DIBBS
6240-01-058-5061	2010-01-14	39	DIBBS
6240-01-058-5061	2009-11-322	18	DIBBS
6240-01-058-5061	2008-03-79	1	Taiwan

Cross Reference | NSN 6240-01-058-5061

Part Number	Cage Code	Manufacturer
1296	53494	SPECIALTY LIGHTING INC DIV SPECIALTY LIGHTING
55-0887-3	72914	GRIMES AEROSPACE COMPANY DBA HONEYWELL
568	56665	CARLEY INC.
5M1698-001	76301	BOEING COMPANY, THE DBA BOEING
CL568	56665	CARLEY INC.
DS0298	78366	SODERBERG MFG.CO.INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6240-01-058-5061

Compare

Related Products | NSN 6240-01-058-5061

6240-01-058-7207, 6240-01-058-8521, 6240-01-058-8867, 6240-01-058-8868, 6240-01-059-0403

Technical Data | NSN 6240-01-058-5061

Characteristic	Specifications
BASE STYLE	A18A MINIATURE BAYONET
BULB STYLE	B25 T
BULB DESIGNATOR	T-2 1/4
OVERALL LENGTH	1.165 INCHES NOMINAL
BULB LIGHT TRANSMISSION CHARACTERISTIC	TRANSPARENT
EMITTED LIGHT CHARACTERISTIC	NATURAL
WATTAGE RATING	12.000 WATTS
VOLTAGE RATING	6.000 VOLTS NOMINAL
CURRENT RATING FOR WHICH DESIGNED	2.000 AMPERES NOMINAL
LIGHT OUTPUT RATING	0.188 LUMENS MINIMUM SINGLE RATING
RATED AVERAGE LIFE	HOURS
AVERAGE LIFE RATING IN HOURS	200.0
BURNING POSITION	BASE DOWN TO HORIZONTAL
FILAMENT HEAVY DUTY SERVICE RATING	NOT RATED

Restrictions/Controls & Freight Information | NSN 6240-01-058-5061

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	658	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 6240-01-058-5061

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
