NSN 6240-01-102-1555 A469AD, 01077004401, 01-0770044-01
Product Details | FLASHTUBE LAMP
6240-01-102-1555 A lamp that produces repeated light flashes of exceedingly high intensity for short durations. May include incandescent lamp within itself.20258600066Stimulated Coherent Radiation Devices, Components, and Accessories62400014Electric Lamps
Part Alternates: A469AD, 01077004401, 01-0770044-01, 6240-01-102-1555, 01-102-1555, 6240011021555, 011021555
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 12 OCT 1980 | 01-102-1555 | 03314 ( LAMP, FLASHTUBE ) |
Drawings & Photos | NSN 6240-01-102-1555
Demand History | NSN 6240-01-102-1555
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-01-102-1555 | 2021-11-329 | 4 | FR |
| 01077004401 | 2021-11-326 | 4 | Germany |
| 6240-01-102-1555 | 2009-09-254 | 1 | US |
| 6240-01-102-1555 | 2009-09-254 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-01-102-1555
Technical Data | NSN 6240-01-102-1555
| Characteristic | Specifications |
|---|---|

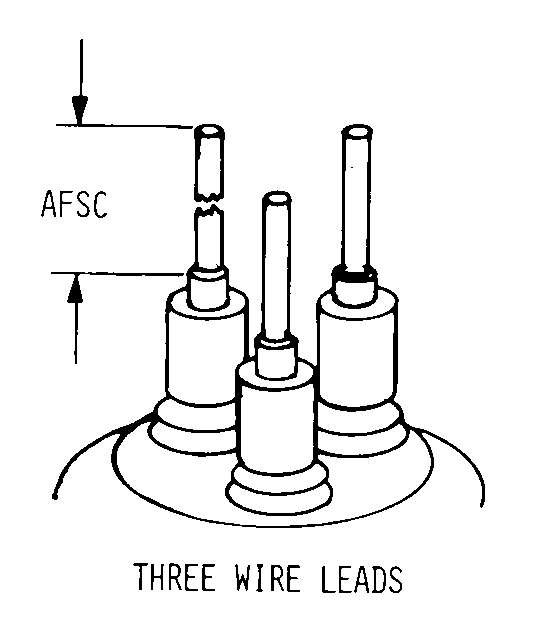

| BASE STYLE | A45 THREE WIRE LEADS |
| WIRE LEAD LENGTH | 24.000 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| FLASHTUBE STYLE | D5 HORIZONTAL HELIX WITH OUTER BULB |
| FLASHTUBE OVERALL LENGTH | 3.000 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILLING GAS TYPE | XENON |
| VOLTAGE RATING | 500.000 VOLTS NOMINAL |
| INPUT RATING IN WATT-SECONDS | 33.0 |
| MAXIMUM FLASHING RATE PER SECOND | 1 |
| SPECIFICATION/STANDARD DATA | 10402-A470 MANUFACTURERS SPECIFICATION CONTROL |
| MANUFACTURERS CODE | 10402 |
| DESIGN CONTROL REFERENCE | A469AD |
Restrictions/Controls & Freight Information | NSN 6240-01-102-1555
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6240-01-102-1555
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
