NSN 6240-01-129-1688 1146885, 01-129-1688, 011291688
Product Details | XENON LAMP
6240-01-129-1688 An item which produces light by an electric arc between two electrodes in an ionized xenon gas atmosphere. See also LAMP, GLOW. Excludes LAMP, FLASHTUBE.
Part Alternates: 1146885, 6240-01-129-1688, 01-129-1688, 6240011291688, 011291688
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 APR 1982 | 01-129-1688 | 33519 ( LAMP, XENON ) |
Drawings & Photos | NSN 6240-01-129-1688
Cross Reference | NSN 6240-01-129-1688
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1146885 | 33030 | OPTICAL RADIATION CORPORATION DBA ORC LIGHTING PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-01-129-1688
Technical Data | NSN 6240-01-129-1688
| Characteristic | Specifications |
|---|---|

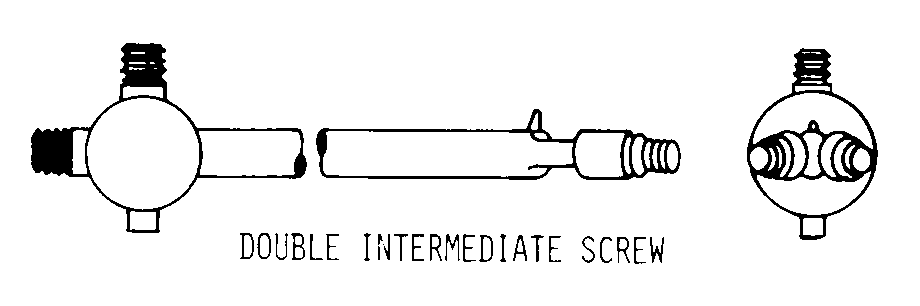

| BASE STYLE | A95 DOUBLE INTERMEDIATE SCREW |
| BULB STYLE | B4 BT |
| OVERALL LENGTH | 5.250 INCHES NOMINAL |
| OVERALL DIAMETER | 6.500 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| WATTAGE RATING | 1000.000 WATTS |
| BURNING POSITION | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 33030 |
| DESIGN CONTROL REFERENCE | 1146885 |
Restrictions/Controls & Freight Information | NSN 6240-01-129-1688
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051400 | PIPE FITTINGS ALUMINUM |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
