NSN 6240-01-359-9142 01-359-9142, 013599142
Product Details | INCANDESCENT LAMP
6240-01-359-9142 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: 6240-01-359-9142, 01-359-9142, 6240013599142, 013599142
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01-359-9142 | 00727 ( LAMP, INCANDESCENT ) |

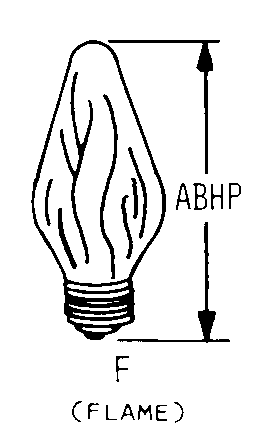

Drawings & Photos | NSN 6240-01-359-9142
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6240-01-359-9142
Technical Data | NSN 6240-01-359-9142
| Characteristic | Specifications |
|---|---|
| BASE STYLE | A2E MEDIUM SCREW |
| BULB STYLE | B7 F |
| BULB DESIGNATOR | G-25 |
| OVERALL LENGTH | 4.500 INCHES MAXIMUM |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT |
| EMITTED LIGHT CHARACTERISTIC | COLORLESS |
| FILAMENT DESIGNATION | C-9 |
| WATTAGE RATING | 40.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS MINIMUM AND 125.000 VOLTS MAXIMUM |
| CURRENT RATING FOR WHICH DESIGNED | NOT RATED |
| LIGHT OUTPUT RATING | NOT RATED |
| RATED AVERAGE LIFE | HOURS |
| AVERAGE LIFE RATING IN HOURS | 8500.0 AND 9500.0 |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | EXTENDED SERVICE |
Restrictions/Controls & Freight Information | NSN 6240-01-359-9142
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
