NSN 6240-01-563-7689 4207300, 01-563-7689, 015637689
Product Details | INCANDESCENT LAMP
6240-01-563-7689 An item whose principal purpose is to produce light from a glowing filament(s). It includes metal backed and reflecting types, seal beam and flood types. It may include an integral filament shield to control and/or modify its illumination pattern.
Part Alternates: 4207300, 6240-01-563-7689, 01-563-7689, 6240015637689, 015637689
Lighting Fixtures and Lamps | Electric Lamps
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 21 MAY 2008 | 01-563-7689 | 00727 ( LAMP, INCANDESCENT ) |
Drawings & Photos | NSN 6240-01-563-7689
Demand History | NSN 6240-01-563-7689
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6240-01-563-7689 | 2018-09-268 | 42 | DIBBS |
| 6240-01-563-7689 | 2016-04-118 | 44 | DIBBS |
| 6240-01-563-7689 | 2011-07-188 | 15 | DIBBS |
| 6240-01-563-7689 | 2011-06-165 | 9 | DIBBS |
| 6240-01-563-7689 | 2010-11-322 | 5 | DIBBS |
| 6240-01-563-7689 | 2010-09-270 | 1 | DIBBS |
| 6240-01-563-7689 | 2010-09-256 | 1 | DIBBS |
| 6240-01-563-7689 | 2010-04-99 | 1 | DIBBS |
| 6240-01-563-7689 | 2010-04-95 | 1 | DIBBS |
| 6240-01-563-7689 | 2010-04-95 | 1 | DIBBS |
| 6240-01-563-7689 | 2010-04-95 | 2 | DIBBS |
| 6240-01-563-7689 | 2010-03-90 | 1 | DIBBS |
| 6240-01-563-7689 | 2009-10-292 | 2 | DIBBS |
Cross Reference | NSN 6240-01-563-7689
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4207300 | 81493 | PHOENIX PRODUCTS COMPANY, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6240-01-563-7689
Related Products | NSN 6240-01-563-7689
Technical Data | NSN 6240-01-563-7689
| Characteristic | Specifications |
|---|---|

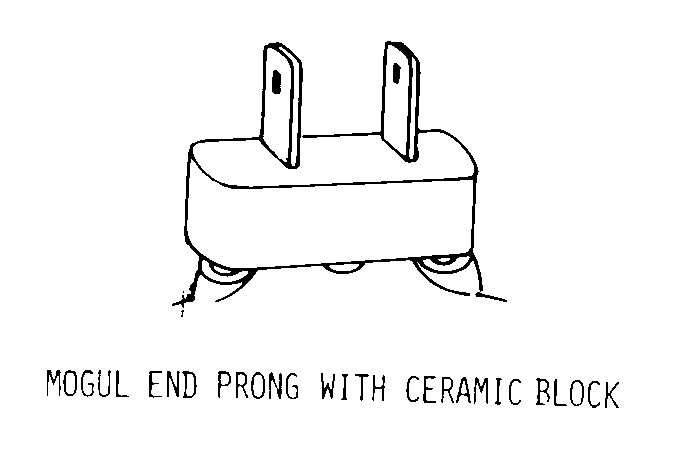

| BASE STYLE | A35 MOGUL END PRONG WITH CERAMIC BLOCK |
| TERMINAL TYPE AND QUANTITY | 2 CONNECTOR, PLUG |
| BULB STYLE | B17 PAR |
| BULB DESIGNATOR | 1000PAR64Q |
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| BULB DIAMETER | 8.333 INCHES NOMINAL |
| BULB LIGHT TRANSMISSION CHARACTERISTIC | TRANSLUCENT |
| LIGHT INTENSITY DISTRIBUTION FEATURE | PRISMATIC LENS AND REFLECTIVE BACK |
| EMITTED LIGHT CHARACTERISTIC | WHITE |
| FILLING GAS TYPE | HALOGEN |
| WATTAGE RATING | 1000.000 WATTS |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| CURRENT RATING FOR WHICH DESIGNED | 8.333 AMPERES NOMINAL |
| RATED AVERAGE LIFE | NOT RATED |
| BURNING POSITION | ANY ACCEPTABLE |
| FILAMENT HEAVY DUTY SERVICE RATING | NOT RATED |
| LIGHT BEAM TYPE | MEDIUM FLOOD |
| III END ITEM IDENTIFICATION | MISC PARTS POWER DIST SYSTEMS LPD 0021 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY) HALOGEN LAMP 1000W M-F |
Restrictions/Controls & Freight Information | NSN 6240-01-563-7689
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109550 | LAMPS(BULBS) ELEC INCANDESCENT NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6240-01-563-7689
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
