NSN 6250-00-283-9383 HL8751, S53, 1626
Product Details | LAMPHOLDER
6250-00-283-9383 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: HL8751, S53, 1626, 211, 212, 3465, 4077, 8765, 6250-00-283-9383, 00-283-9383, 6250002839383, 002839383
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-283-9383 | 16208 ( LAMPHOLDER ) |

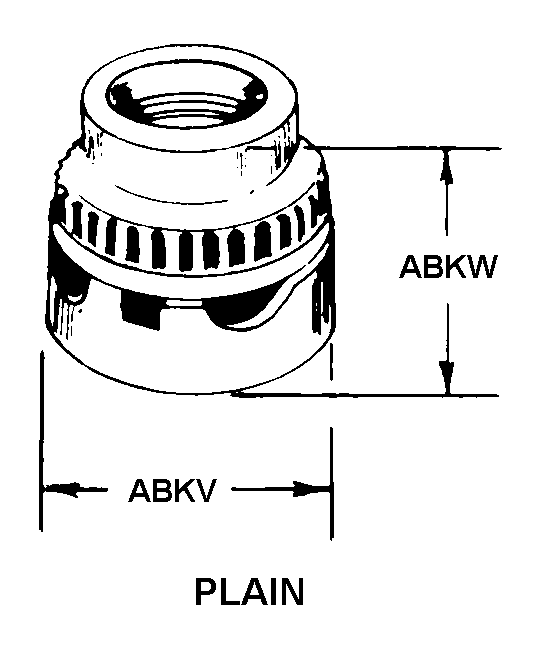

Drawings & Photos | NSN 6250-00-283-9383
Demand History | NSN 6250-00-283-9383
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4077 | 2024-05-133 | 68 | DIBBS |
| 4077 | 2019-11-312 | 1 | CO |
| 3465 | 2018-01-18 | 1 | US |
| 212 | 2016-03-90 | 26 | KR |
| 4077 | 2015-08-216 | 1 | US |
| S53 | 2014-06-162 | 1 | US |
| 6250-00-283-9383 | 2013-02-52 | 134 | DIBBS |
| 4077 | 2012-11-324 | 1 | UA |
| 4077 | 2012-07-209 | 1 | United States |
| 6250-00-283-9383 | 2010-08-223 | 14 | DIBBS |
Cross Reference | NSN 6250-00-283-9383
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1626 | 24446 | GENERAL ELECTRIC CO |
| 211 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 212 | 04009 | COOPER INDUSTRIES INC COOPER DISTRIBUTION EQUIPMENT DIV |
| 3465 | 83315 | HUBBELL CORP |
| 4077 | 71183 | BRYANT ELECTRIC |
| 4077 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 8765 | 75582 | LEVITON MANUFACTURING CO., INC. DBA LEVITON |
| HL8751 | 15235 | CROUSE-HINDS CO |
| S53 | 81091 | PASS & SEYMOUR INC DIV PASS & SEYMOUR |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6250-00-283-9383
Related Products | NSN 6250-00-283-9383
Technical Data | NSN 6250-00-283-9383
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A26 PLAIN |
| OUTSIDE DIAMETER | 2.281 INCHES MINIMUM AND 2.343 INCHES MAXIMUM |
| OVERALL HEIGHT | 3.000 INCHES MINIMUM AND 3.094 INCHES MAXIMUM |
| BODY MATERIAL | PORCELAIN |
| SHELL MATERIAL | BRASS |
| SHELL SURFACE TREATMENT | NICKEL PLATED |
| LAMP BASE TYPE ACCOMMODATED | MOGUL SCREW |
| VOLTAGE IN VOLTS | 600.0 |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | 1500.0 |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 2 |
| MOUNTING FEATURE TYPE | SURFACE |
| MOUNTING METHOD | HOLES FOR SCREWS |
| MOUNTING DEVICE QUANTITY | 2 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
Restrictions/Controls & Freight Information | NSN 6250-00-283-9383
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109700 | LAMP OR LIGHTING FIXTURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-00-283-9383
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
