NSN 6250-00-569-9501 MS17176514, MS17176-514, M16377/46-514
Product Details | LAMP BALLAST
6250-00-569-9501 An item specifically designed for use with fluorescent or mercury vapor lamps and starters to provide a high starting voltage for striking the arc and to stabilize the operating impedance of the circuit in order to maintain the operating current at a steady value.
Part Alternates: MS17176514, MS17176-514, M16377/46-514, M1637746514, M16377-46-514, MIL-F-16377/46, MILF1637746, 9000S620274489TYPEC75A, 9000S6202-74489TYPEC75A, 6250-00-569-9501, 00-569-9501, 6250005699501, 005699501
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1963 | 00-569-9501 | 05123 ( BALLAST, LAMP ) |

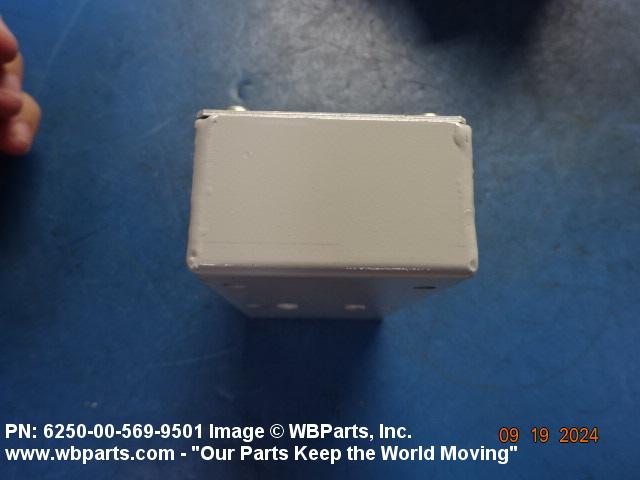

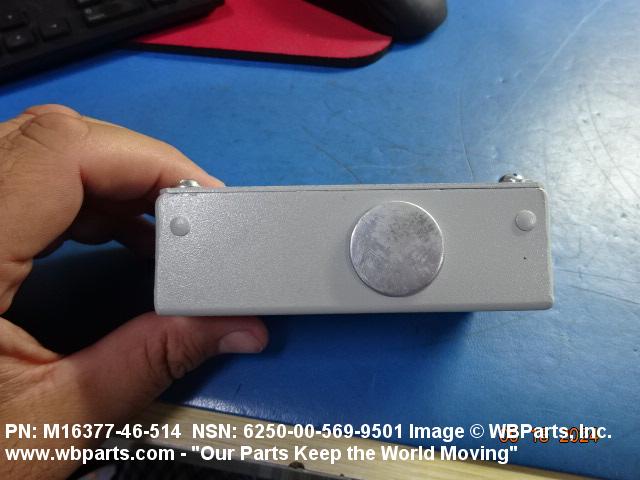

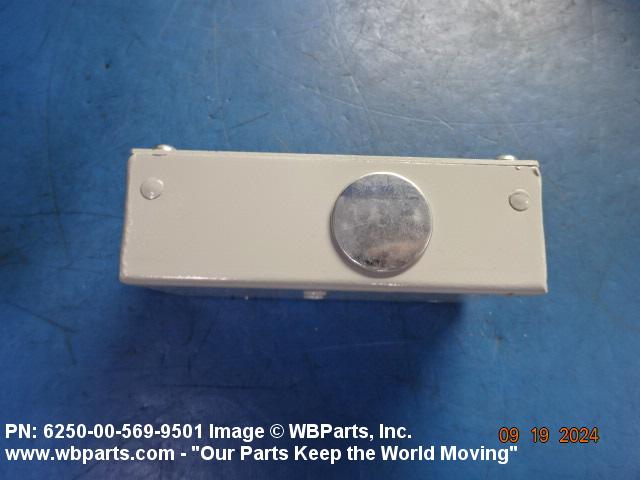

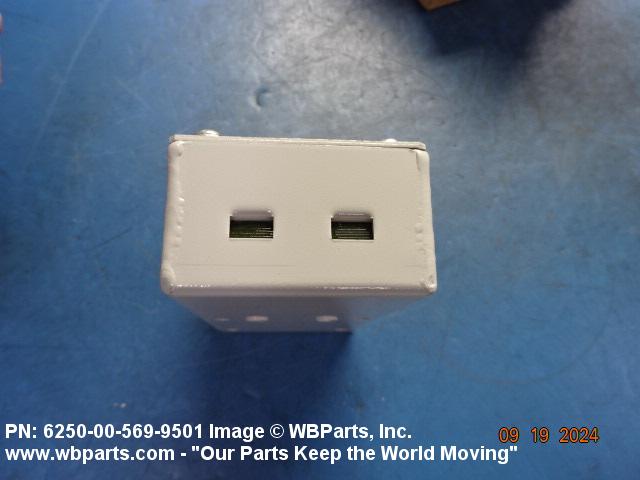

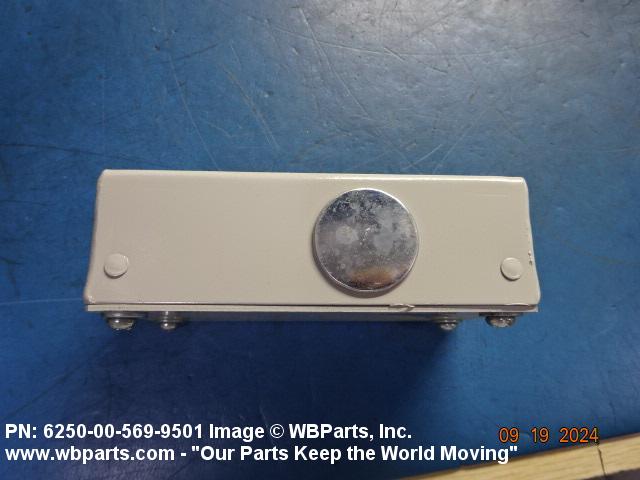

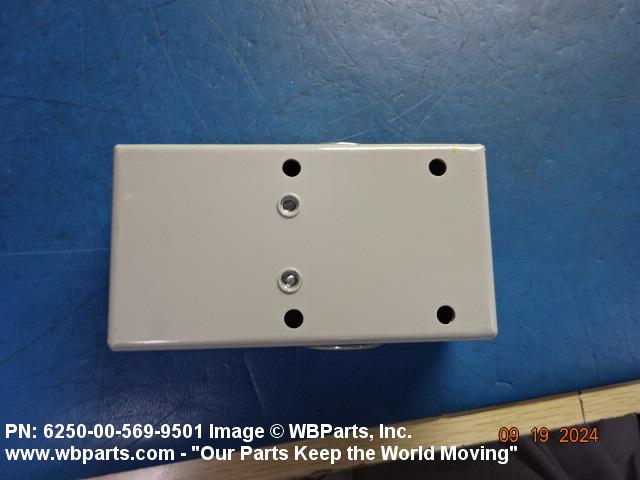

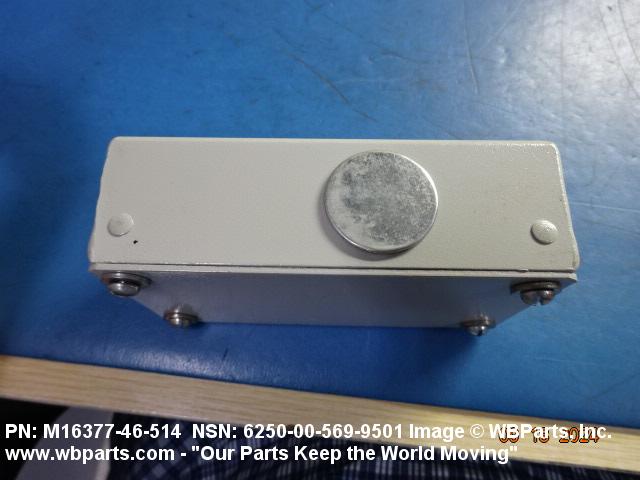

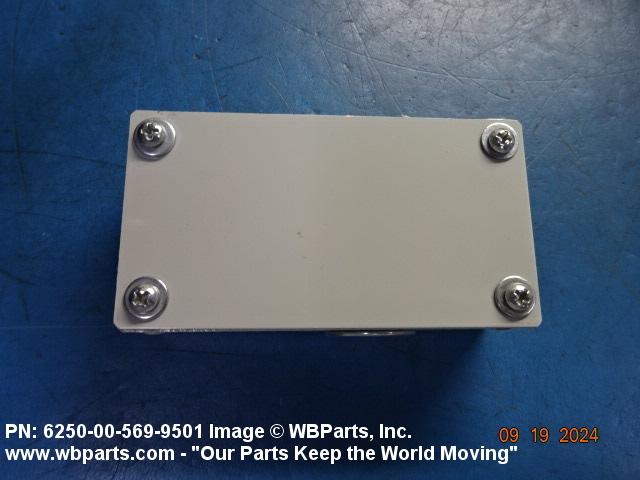

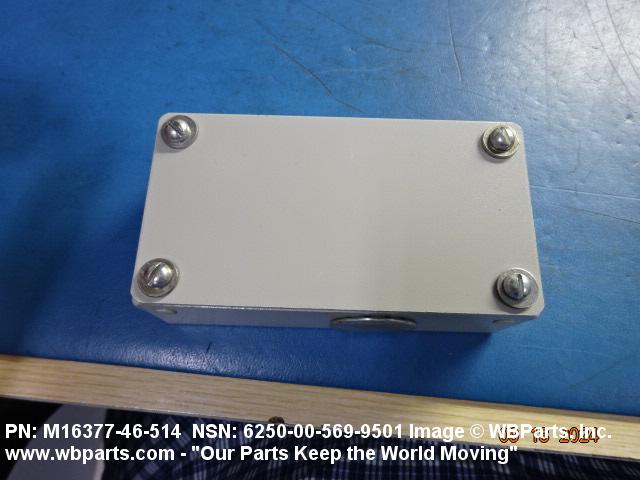

Drawings & Photos | NSN 6250-00-569-9501
Demand History | NSN 6250-00-569-9501
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6250-00-569-9501 | 2025-03-70 | 2 | United States |
| 6250-00-569-9501 | 2024-08-236 | 1 | us |
| 6250-00-569-9501 | 2023-06-176 | 72 | DIBBS |
| 6250-00-569-9501 | 2021-02-54 | 117 | DIBBS |
| 6250-00-569-9501 | 2019-01-22 | 120 | DIBBS |
| 6250-00-569-9501 | 2015-09-267 | 86 | DIBBS |
| 6250-00-569-9501 | 2012-08-244 | 61 | DIBBS |
| 6250-00-569-9501 | 2012-08-244 | 69 | DIBBS |
| 6250-00-569-9501 | 2009-12-362 | 108 | DIBBS |
Cross Reference | NSN 6250-00-569-9501
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9000S6202-74489TYPEC75A | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| M16377-46-514 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M16377/46-514 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MIL-F-16377/46 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17176-514 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6250-00-569-9501
Related Products | NSN 6250-00-569-9501
Technical Data | NSN 6250-00-569-9501
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| TERMINAL LOCATION AND QUANTITY | 2 ONE END |
| LAMP WATTAGE RATING IN WATTS | 8.0 |
| LAMP ACCOMMODATION QUANTITY | 1 |
| OVERALL LENGTH | 4.438 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 1.438 INCHES NOMINAL |
| CURRENT TYPE | AC |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| CURRENT RATING IN AMPS | 0.160 |
| STARTING CHARACTERISTIC | PREHEAT |
| STARTER | REQUIRED |
| POWER FACTOR CHARACTERISTIC | LOW |
| MOUNTING METHOD | HOLES |
| MOUNTING HOLE QUANTITY | 4 |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.750 INCHES |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.750 INCHES |
| III UNPACKAGED UNIT WEIGHT | 13.000 OUNCES |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-16377/46 |
Restrictions/Controls & Freight Information | NSN 6250-00-569-9501
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060630 | BALLASTS LAMP |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6250-00-569-9501
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
