NSN 6250-00-866-7472 WL142, 1905, 4006
Product Details | LAMPHOLDER ASSEMBLY
6250-00-866-7472 Two or more lampholders having a common mounting or mounted on each other. It may include switches or dropping resistors, provided these items control the lamps only. Excludes FIXTURE, LIGHTING.
Part Alternates: WL142, 1905, 4006, 5703672, 76751, IX7, 6250-00-866-7472, 00-866-7472, 6250008667472, 008667472
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1960 | 00-866-7472 | 04585 ( LAMPHOLDER ASSEMBLY ) |
Drawings & Photos | NSN 6250-00-866-7472
Demand History | NSN 6250-00-866-7472
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4006 | 2023-08-223 | 20 | United States |
| 4006 | 2022-04-97 | 90 | United States |
| 4006 | 2020-12-352 | 20 | United States |
| 4006 | 2018-03-78 | 1 | NL |
| 4006 | 2017-06-164 | 2 | United States |
| 4006 | 2011-12-348 | 173 | UM |
Cross Reference | NSN 6250-00-866-7472
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1905 | 74545 | HUBBELL INC WIRING DEVICE DIV |
| 1905 | 81091 | PASS & SEYMOUR INC DIV PASS & SEYMOUR |
| 4006 | 75582 | LEVITON MANUFACTURING CO., INC. DBA LEVITON |
| 5703672 | 088A2 | C SYSTEMS LLC DBA CRAIG SYSTEMS |
| 76751 | 71183 | BRYANT ELECTRIC |
| IX7 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| WL142 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-00-866-7472
Technical Data | NSN 6250-00-866-7472
| Characteristic | Specifications |
|---|---|

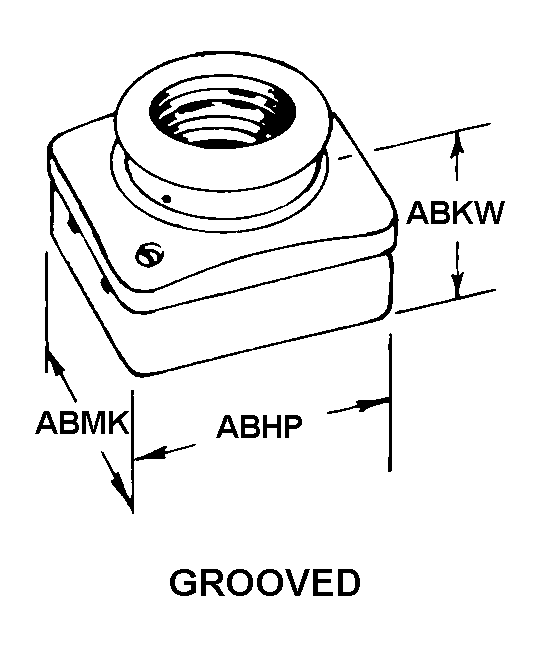

| STYLE DESIGNATOR | A24 GROOVED |
| OVERALL LENGTH | 3.000 INCHES NOMINAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| OVERALL WIDTH | ANY ACCEPTABLE |
| BODY MATERIAL | PORCELAIN |
| SHELL MATERIAL | BRASS |
| SHELL SURFACE TREATMENT | ANY ACCEPTABLE |
| LAMP ACCOMMODATION QUANTITY | 2 |
| LAMP BASE TYPE ACCOMMODATED | MEDIUM SCREW |
| LAMPHOLDER QUANTITY | 2 |
| VOLTAGE IN VOLTS | 250.0 |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | 660.0 |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 1 |
| MOUNTING FEATURE TYPE | SURFACE |
| MOUNTING METHOD | INTERNAL THREADED |
| MOUNTING MATERIAL | METAL |
| MOUNTING DEVICE QUANTITY | 1 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
| MOUNTING STRIP | NOT INCLUDED |
| MANUFACTURERS CODE | 81348 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | IX7 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WL142 |
Restrictions/Controls & Freight Information | NSN 6250-00-866-7472
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 109005 | ADAPTERS FLUORESCENT W/BALLAST |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 761 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
