NSN 6250-00-914-8223 10016, 00-914-8223, 009148223
Product Details | LAMPHOLDER
6250-00-914-8223 An electric fitting primarily designed to electrically and mechanically accommodate a lamp. It may include an integral switch, transformer, or dropping resistor, provided these items control the lamp only. It does not include a shade, lens, reflector, or other item for modifying illumination. For items designed to mount on a CONDUIT OUTLET, or JUNCTION BOX; see FIXTURE, LIGHTING.
Part Alternates: 10016, 6250-00-914-8223, 00-914-8223, 6250009148223, 009148223
Lighting Fixtures and Lamps | Ballasts, Lampholders, and Starters
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 62 | 01 JAN 1960 | 00-914-8223 | 16208 ( LAMPHOLDER ) |

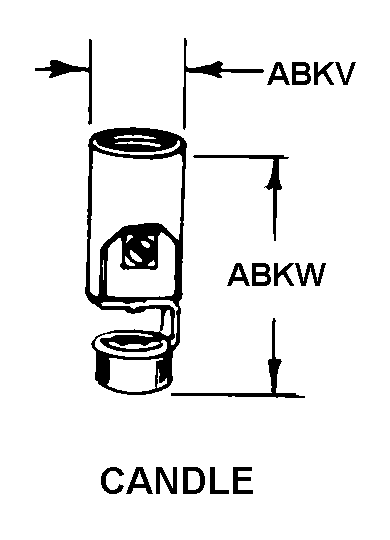

Drawings & Photos | NSN 6250-00-914-8223
Cross Reference | NSN 6250-00-914-8223
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10016 | 75582 | LEVITON MANUFACTURING CO., INC. DBA LEVITON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6250-00-914-8223
Technical Data | NSN 6250-00-914-8223
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A46 CANDLE |
| OUTSIDE DIAMETER | 0.938 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| BODY MATERIAL | PLASTIC |
| SHELL MATERIAL | PLASTIC |
| SHELL SURFACE TREATMENT | ANY ACCEPTABLE |
| LAMP BASE TYPE ACCOMMODATED | INTERMEDIATE SCREW |
| VOLTAGE IN VOLTS | 250.0 |
| CURRENT RATING IN AMPS | NOT RATED |
| WATTAGE RATING IN WATTS | 75.0 |
| TERMINAL TYPE | WIRE LEAD |
| TERMINAL QUANTITY | 2 |
| WIRING PROVISION LENGTH | 4.500 INCHES NOMINAL |
| MOUNTING FEATURE TYPE | FLUSH |
| MOUNTING METHOD | CONDUIT |
| MOUNTING MATERIAL | METAL |
| MOUNTING DEVICE QUANTITY | 1 |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | NOT RATED |
Restrictions/Controls & Freight Information | NSN 6250-00-914-8223
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
