NSN 6350-01-108-4129 156G3G1, 156G4G1, 156G-4G1
Product Details | ELECTRICAL BELL
6350-01-108-4129 An item having one or more electrically actuated clappers or plungers and one or more metallic objects which are capable of producing a ringing sound when struck. Resonating chambers may be included. Excludes RINGER, TELEPHONE.
Part Alternates: 156G3G1, 156G4G1, 156G-4G1, 221001-001, 7770585, 6350-01-108-4129, 01-108-4129, 6350011084129, 011084129, 221001001
Alarm, Signal and Security Detection Systems | Miscellaneous Alarm, Signal, and Security Detection Systems
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 63 | 26 FEB 1981 | 01-108-4129 | 00191 ( BELL, ELECTRICAL ) |

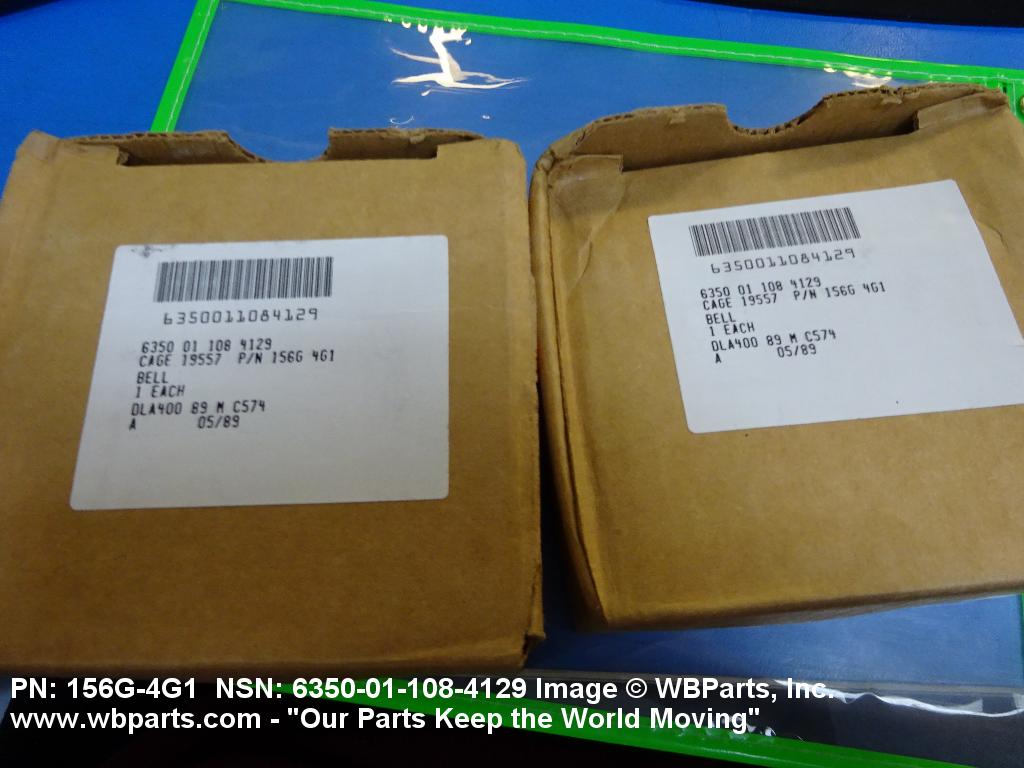

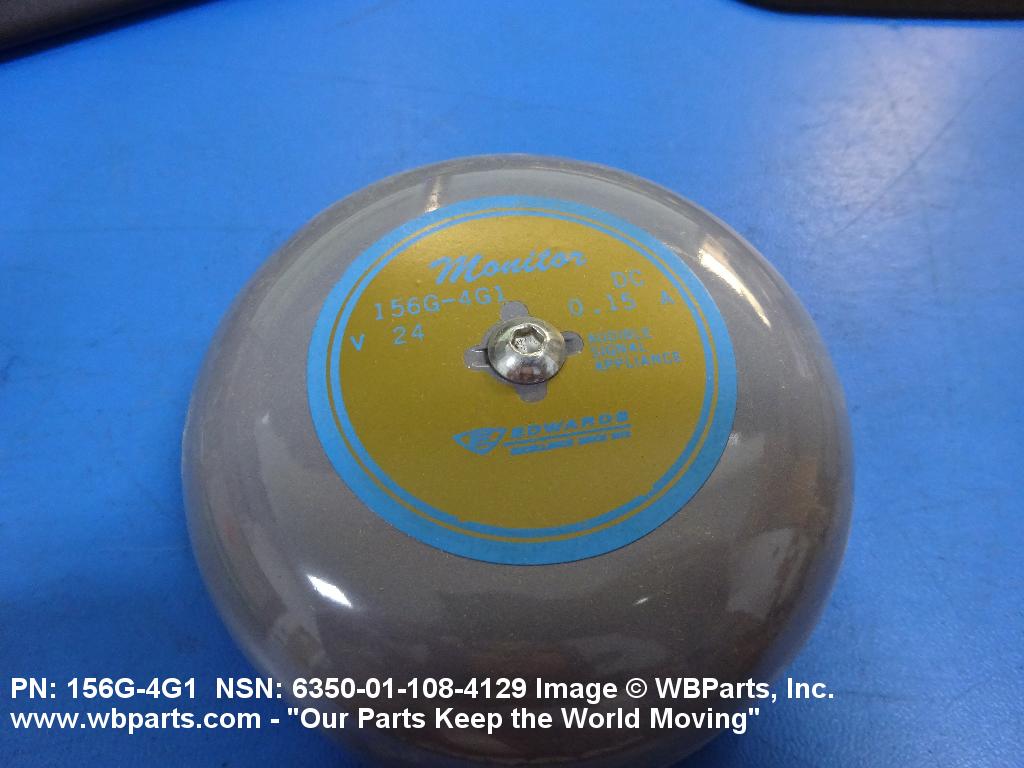

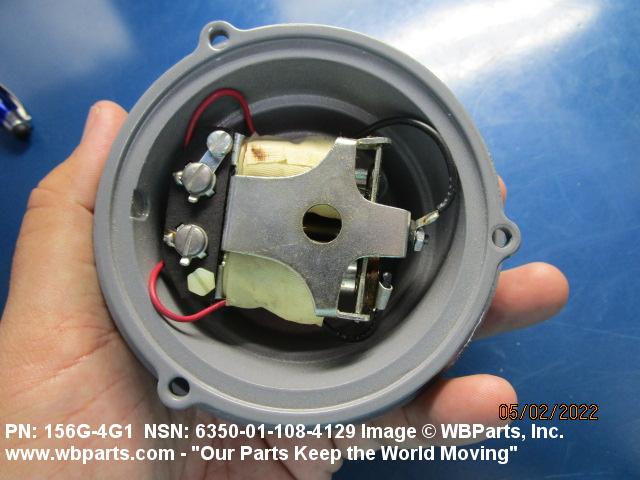

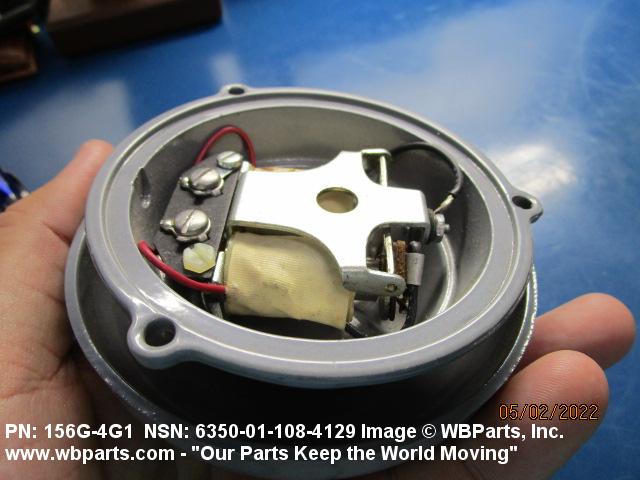

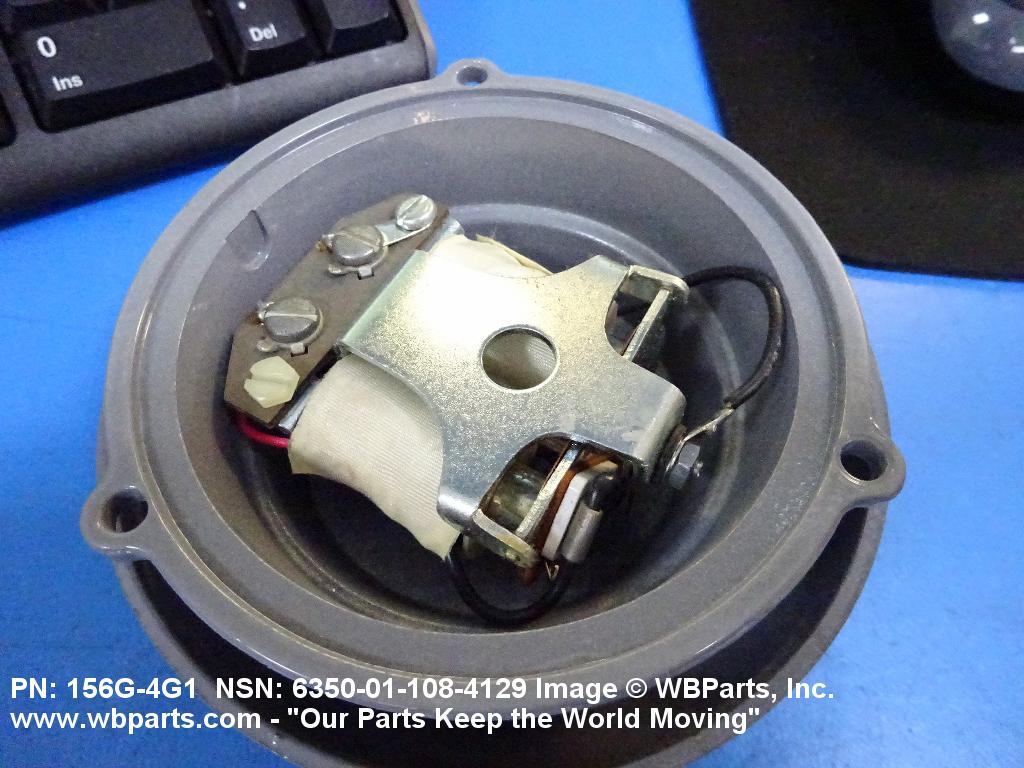

Drawings & Photos | NSN 6350-01-108-4129
Demand History | NSN 6350-01-108-4129
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6350-01-108-4129 | 2022-04-91 | 10 | United States |
| 6350-01-108-4129 | 2022-03-77 | 10 | ES |
| 6350-01-108-4129 | 2019-09-261 | 2 | United States |
Cross Reference | NSN 6350-01-108-4129
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 156G-4G1 | 19557 | EDWARDS SIGNALING AND SECURITY SYSTEMS A PART OF GE SECURITY |
| 156G3G1 | 19557 | EDWARDS SIGNALING AND SECURITY SYSTEMS A PART OF GE SECURITY |
| 221001-001 | 92755 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA LAND & SELF PROTECTION SYSTEM |
| 221001-001 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 7770585 | 98747 | OGDEN AIR LOGISTICS CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6350-01-108-4129
Related Products | NSN 6350-01-108-4129
Technical Data | NSN 6350-01-108-4129
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE IN VOLTS | 24.0 |
| ACTION TYPE | PLUNGER |
| SOUND CHAMBER TYPE | GONG |
| QUANTITY | 1 |
| DESIGN TYPE | ROUND GONG |
| SOUND CHAMBER OVERALL DIAMETER | 4.250 INCHES NOMINAL |
| SOUND CHAMBER OVERALL HEIGHT | ANY ACCEPTABLE |
| TONE ADJUSTABILITY | NONADJUSTABLE |
| INCLOSURE | INCLUDED |
| MATERIAL | STEEL AND ZINC, DIE CAST |
| SURFACE TREATMENT | ANY ACCEPTABLE |
| OVERALL HEIGHT | 1.938 INCHES NOMINAL |
| OVERALL DIAMETER | 4.250 INCHES NOMINAL |
| MOUNTING METHOD | BULKHEAD |
| MOUNTING HOLE QUANTITY | 3 |

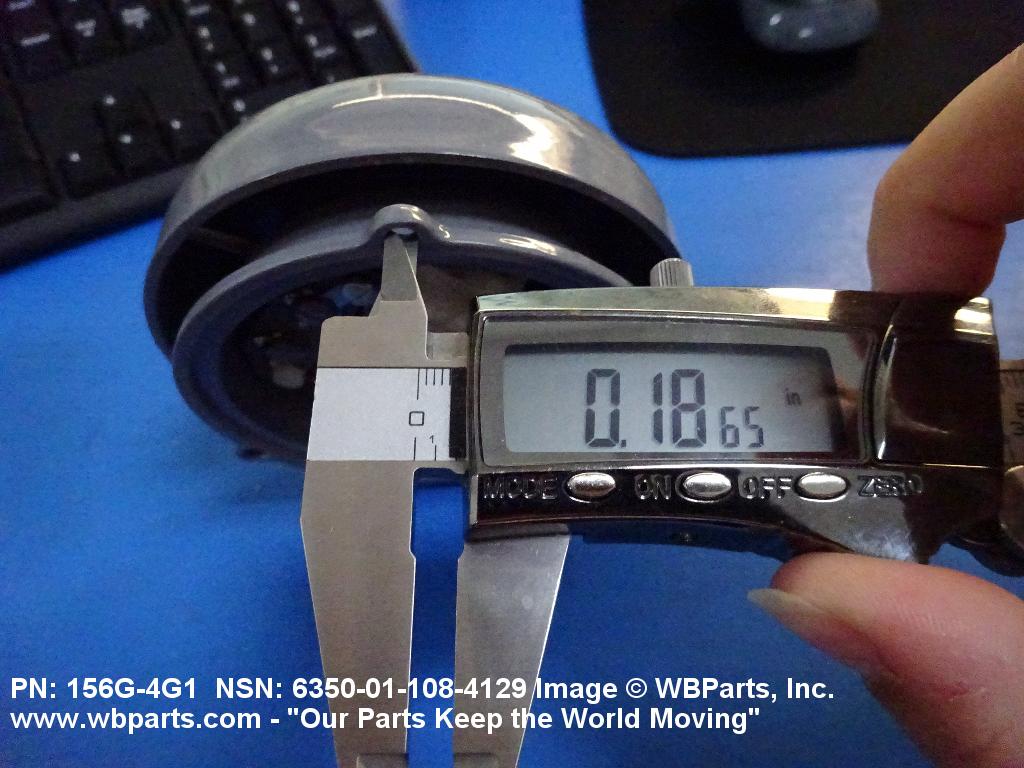

| MOUNTING HOLE DIAMETER | 0.187 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | ANY ACCEPTABLE |
| SPECIAL FEATURES | MTG HOLES EQUALLY SPACED ON 3.750 IN. DIA BOLT CIRCLE |
| III END ITEM IDENTIFICATION | 6930-01-102-2345 |
| MANUFACTURERS CODE | 19557 |
| DESIGN CONTROL REFERENCE | 156G-4G1 |
Restrictions/Controls & Freight Information | NSN 6350-01-108-4129
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061000 | BELLS/GONGS IN BARRELS/BOXES |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6350-01-108-4129
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
