NSN 6515-00-104-8390 00-104-8390, 001048390
Product Details | BIOPSY NEEDLE
6515-00-104-8390 An item used on the living body to remove tissue, cells, or fluids for diagnosis.
Part Alternates: 6515-00-104-8390, 00-104-8390, 6515001048390, 001048390
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 00-104-8390 | 22456 ( NEEDLE, BIOPSY ) |

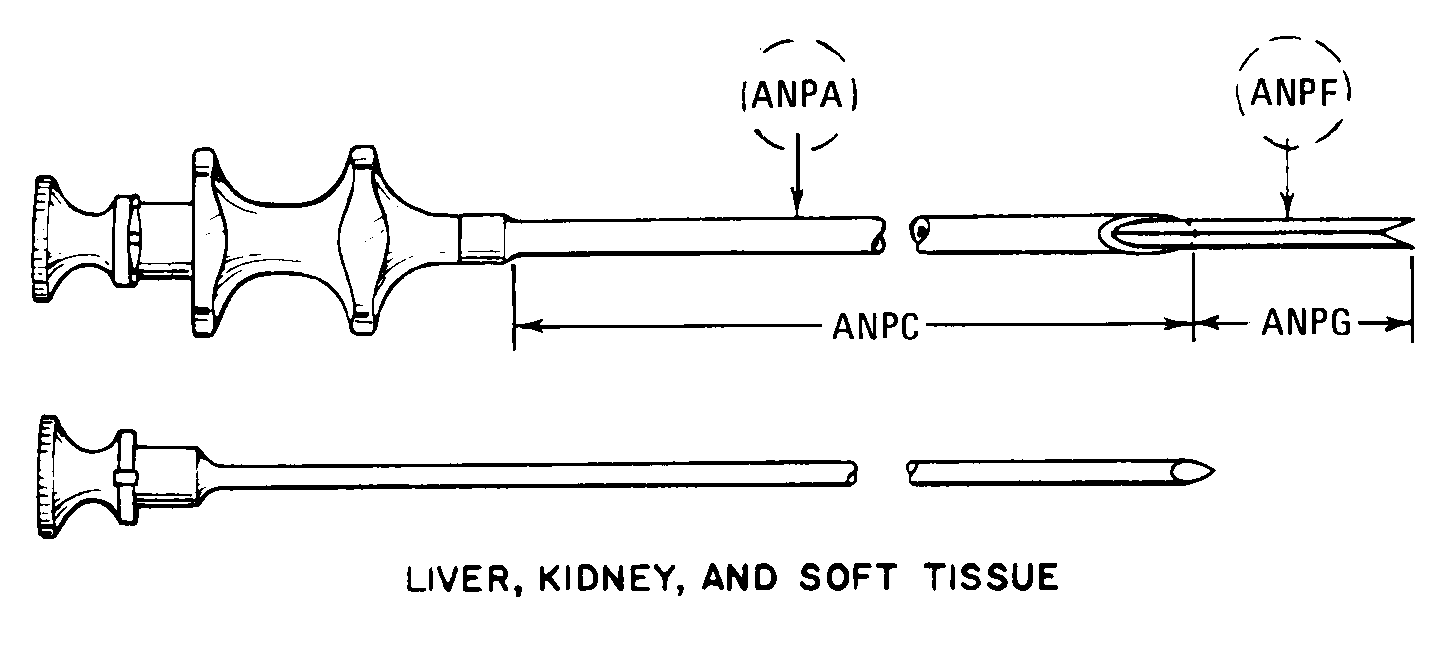

Drawings & Photos | NSN 6515-00-104-8390
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-00-104-8390
Technical Data | NSN 6515-00-104-8390
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B5 LIVER, KIDNEY, AND SOFT TISSUE |
| CANNULA OUTSIDE DIAMETER | 0.083 INCHES NOMINAL |
| CANNULA LENGTH | 6.000 INCHES NOMINAL |
| INNER CANNULA OUTSIDE DIAMETER | ANY ACCEPTABLE |
| INNER CANNULA PROTRUSION LENGTH BEYOND OUTER CANNULA END | 0.469 INCHES NOMINAL |
| MATERIAL AND LOCATION | PLASTIC HUB PLASTIC OBTURATOR KNOB PLASTIC SHEATH STEEL, FED STD 66, AISI 304/SAE 30304 CANNULA STEEL, FED STD 66, AISI 304/SAE 30304 OBTURATOR ROD |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 14 GAGE CANNULA |
| CANNULA WALL THICKNESS DESIGNATION | THIN |
| SPECIAL FEATURES | 20MM SPECIMEN; NOTCH; D-DAY ITEM FOR DOD |
| NONDEFINITIVE SPEC/STD DATA | 2 SIZE |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 72 |
| III UNIT OF ISSUE WEIGHT | 0.03 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 3.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.028 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 2.001 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NEEDLE BIOPSY 14GAX6" CANNULA 20MM SPECIMEN NOTCH NONADJ STERILE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILN36930 |
Restrictions/Controls & Freight Information | NSN 6515-00-104-8390
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
