NSN 6515-00-318-5900 MILC2592, 00-318-5900, 003185900
Product Details | CAUTERY HANDLE
6515-00-318-5900 00001016515000000
Part Alternates: MILC2592, 6515-00-318-5900, 00-318-5900, 6515003185900, 003185900
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1963 | 00-318-5900 | 13348 ( HANDLE, CAUTERY0 ) |
Drawings & Photos | NSN 6515-00-318-5900
Cross Reference | NSN 6515-00-318-5900
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC2592 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6515-00-318-5900
Related Products | NSN 6515-00-318-5900
Technical Data | NSN 6515-00-318-5900
| Characteristic | Specifications |
|---|---|

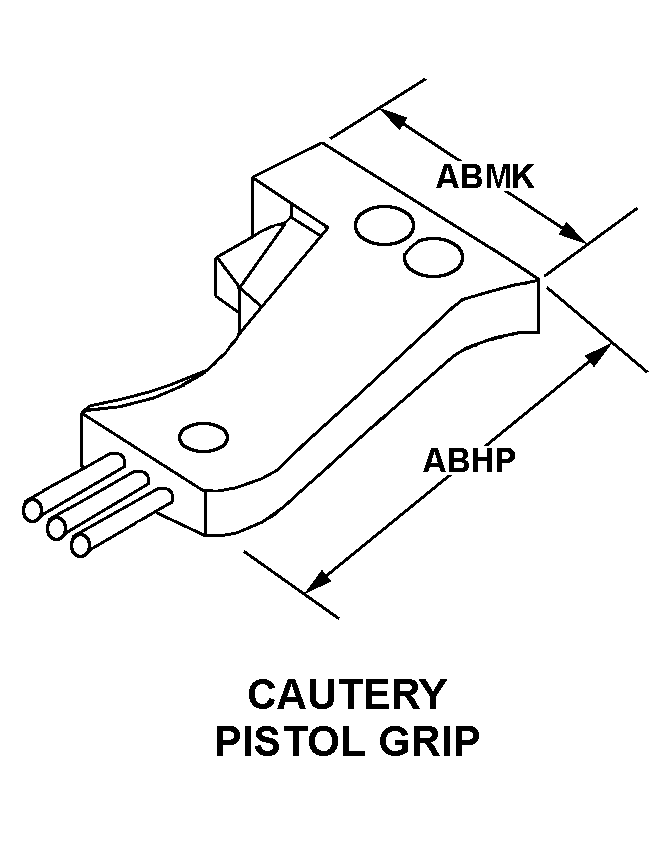

| STYLE DESIGNATOR | H3 CAUTERY, PISTOL GRIP |
| OVERALL LENGTH | 4.000 INCHES NOMINAL |
| ELECTRODE SHANK LENGTH ACCOMMODATED | 1.438 INCHES MINIMUM AND 1.500 INCHES MAXIMUM |
| ELECTRODE SHANK DIAMETER ACCOMMODATED | 0.091 INCHES MINIMUM AND 0.105 INCHES MAXIMUM |
| ELECTRODE SHANK CENTER TO CENTER DISTANCE ACCOMMODATED | 0.300 INCHES MINIMUM AND 0.347 INCHES MAXIMUM |
| SPECIAL FEATURES | W/5 FT LONG CABLE ASSEMBLY W/MALE ATTACHMENT FOR USE W/CAUTERY APPARATUS POWER SUPPLY,NSN'S 6515-00-318-6800 LARGE AND 6515-00-318-6840 MEDIUM; FOR USE W/CAUTERY ELECTRODE NSN'S 6515-00-318-4300,CERVIX,LARGE; 6515-00-318-4855 NASAL,NEEDLE POINT; 6515-00-318-4640,6515-00-318-4800 ,6515-00-318-5120 |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE |
| III UNIT OF ISSUE CUBE | 0.038 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 3.10 CUBIC FEET |
| III INTERMEDIATE PACKAGE QUANTITY | 1 |
| III EXTERIOR CONTAINER QUANTITY | 48 |
| III EXTERIOR CONTAINER WEIGHT | 50.00 POUNDS |
| III UNIT OF ISSUE WEIGHT | 0.73 POUNDS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HANDLE CAUTERY H3 PISTOL GRIP 4" LG W/5' CABLE ASSY W/MALE ATCH |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC2592 |
Restrictions/Controls & Freight Information | NSN 6515-00-318-5900
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-00-318-5900
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
