NSN 6515-00-342-7600 MILI36147, 00-342-7600, 003427600
Product Details | NEEDLE INTRODUCER
6515-00-342-7600 A sharp-pointed, cannulated instrument, with a head or knob, used for initial puncture of the skin for the introduction of a finer, less rigid needle.
Part Alternates: MILI36147, 6515-00-342-7600, 00-342-7600, 6515003427600, 003427600
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1963 | 00-342-7600 | 08440 ( INTRODUCER, NEEDLE ) |

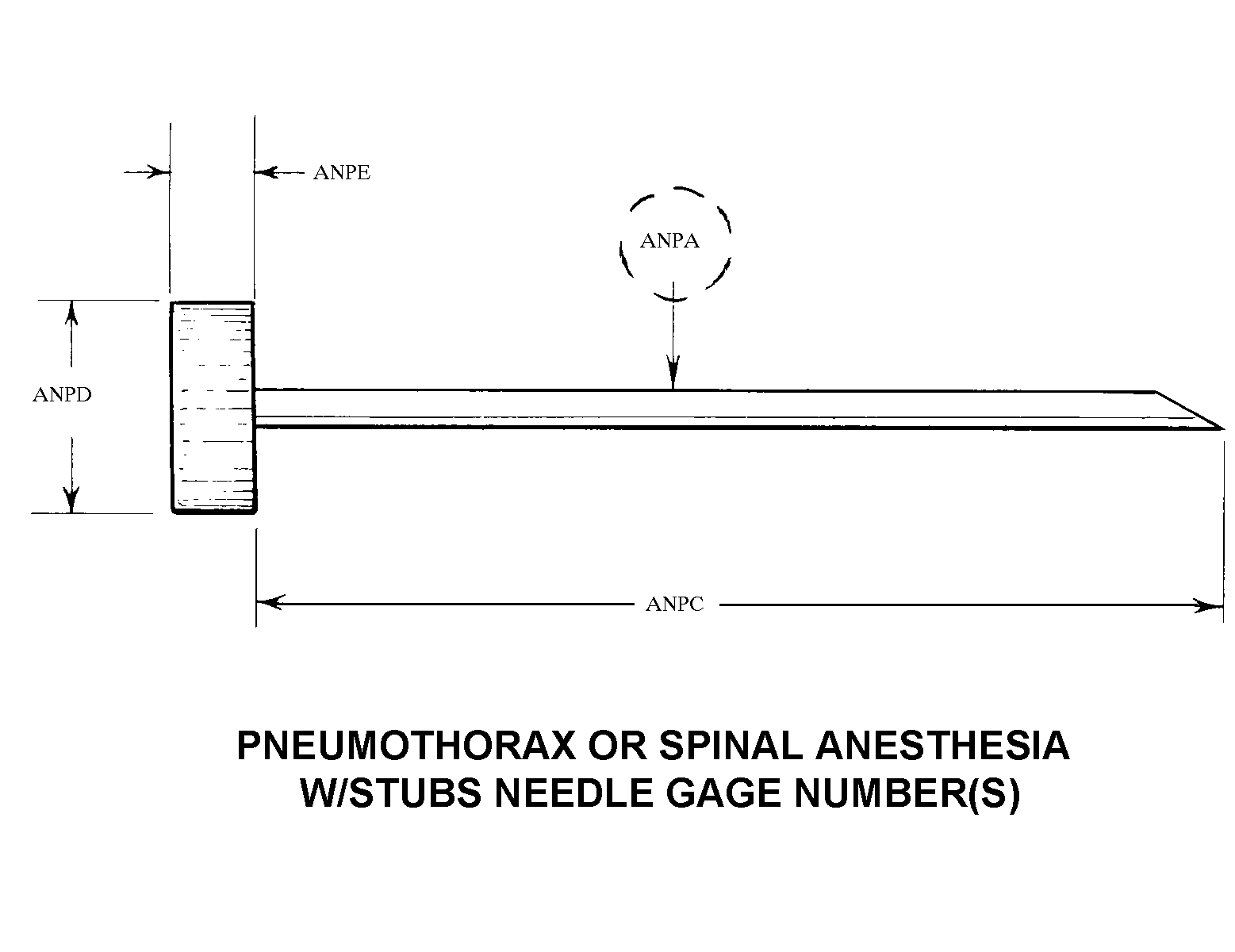

Drawings & Photos | NSN 6515-00-342-7600
Cross Reference | NSN 6515-00-342-7600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILI36147 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-00-342-7600
Technical Data | NSN 6515-00-342-7600
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1A PNEUMOTHORAX OR SPINAL ANESTHESIA |
| CANNULA LENGTH | 1.688 INCHES MINIMUM AND 1.812 INCHES MAXIMUM |
| KNOB DIAMETER | 0.359 INCHES MINIMUM AND 0.391 INCHES MAXIMUM |
| KNOB THICKNESS | 0.125 INCHES MINIMUM AND 0.157 INCHES MAXIMUM |
| MATERIAL AND LOCATION | BRASS, GG-I-526, CLASS 8, ALLOY 260 INTRODUCER KNOB BRASS, GG-I-526, CLASS 8, ALLOY 270 INTRODUCER KNOB STEEL, GG-I-526, CLASS 3, TYPE 304 CANNULA |
| SURFACE TREATMENT AND LOCATION | CHROMIUM-NICKEL PLATED, GG-I-526, CLASS 8 INTRODUCER KNOB |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 15 GAGE CANNULA |
| CANNULA WALL THICKNESS DESIGNATION | REGULAR |
| CANNULA BEVEL DESIGNATION | REGULAR |
| SPECIAL FEATURES | W/O FITTED STYLET |
| DEPARTURE FROM CITED DOCUMENT | AS MODIFIED BYSPECIAL FEATURES |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILI36147 |
Restrictions/Controls & Freight Information | NSN 6515-00-342-7600
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 056680 | DENTAL/MEDICAL/SURG INST R MACHINE |
| Less than car load rating | F | 150 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 651 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
