NSN 6515-00-348-6100 00-348-6100, 003486100
Product Details | LIGATURE NEEDLE
6515-00-348-6100 A slender, curved needle with a handle, having an eye in its distal end, used for passing a ligature underneath a pedicle or artery.
Part Alternates: 6515-00-348-6100, 00-348-6100, 6515003486100, 003486100
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 01 JAN 1963 | 00-348-6100 | 07254 ( NEEDLE, LIGATURE ) |

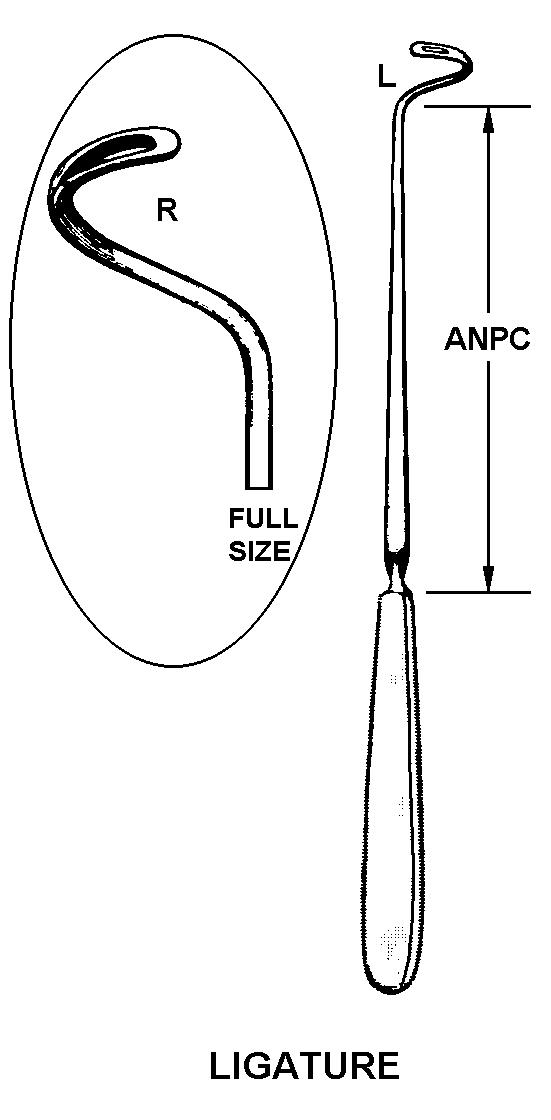

Drawings & Photos | NSN 6515-00-348-6100
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-00-348-6100
Technical Data | NSN 6515-00-348-6100
| Characteristic | Specifications |
|---|---|
| OVERALL LENGTH | 8.000 INCHES NOMINAL |
| STYLE DESIGNATOR | F13 LIGATURE |
| CANNULA LENGTH | 0.875 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, CORROSION RESISTING OVERALL |
| SPECIAL FEATURES | HANDLE TYPE: SOLID; DESIGN DESIGNATION: COOPER; TIPE TYPE: BLUNT; GRIP TYPE: SERRATED AND FINGER GROOVE; NEEDLE SECTION DESIGN FORM: CURVED; NEEDLE SECTION CURVATURE RADIUS: 0.438 IN. NOMINAL |
| III INTERMEDIATE PACKAGE QUANTITY | 6 |
| III EXTERIOR CONTAINER QUANTITY | 288 |
| III UNIT OF ISSUE WEIGHT | 0.01 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 51.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.001 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 2.30 CUBIC FEET |
Restrictions/Controls & Freight Information | NSN 6515-00-348-6100
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 139640 | NEEDLES NOI IN BBLS/BXS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | S | Office, School, and Household Supplies/Equipment including Office Machines, Furniture/Stationary, Films, Synthetic/Special Training Films, Non-Hazardous Household Cleaning Products, Non-Hazardous Personal Hygiene Products, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6515-00-348-6100
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
