NSN 6515-01-130-3798 01-130-3798, 011303798

Product Details | UTERINE MANIPULATOR-INJECTOR

6515-01-130-3798 A disposable, sterile item for introducing dye, contrast media, or gas into the uterine cavity, and other gynecological procedures.

Part Alternates: 6515-01-130-3798, 01-130-3798, 6515011303798, 011303798

Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies

Supply Group (FSG) NSN Assign. NIIN
65 01-130-3798

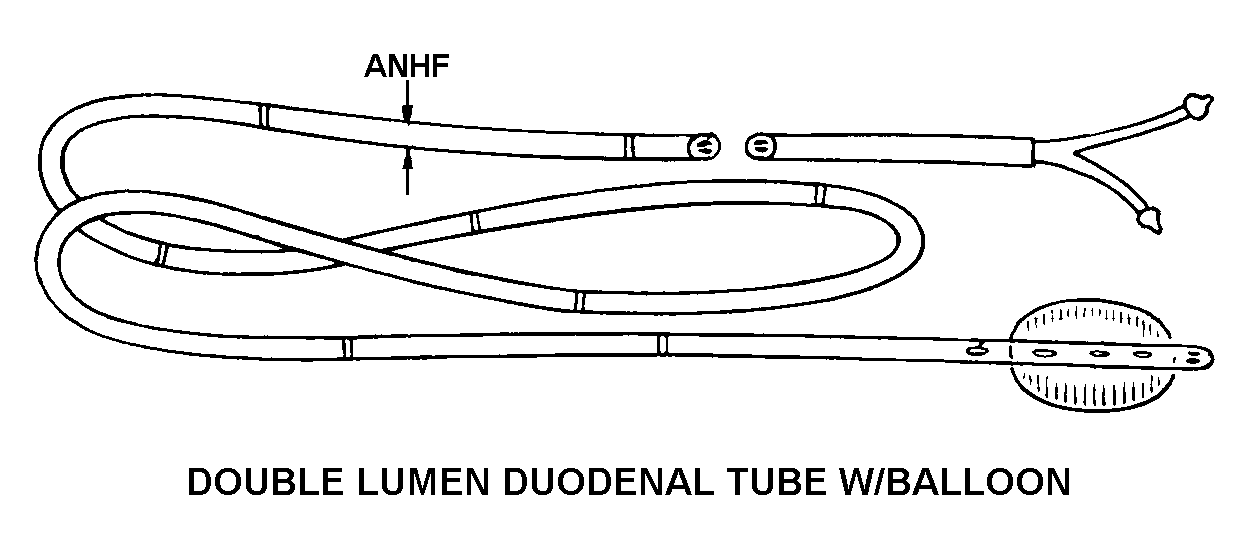

Drawings & Photos | NSN 6515-01-130-3798


Request a Quote

What Our Customers Say

Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6515-01-130-3798
Compare

Related Products | NSN 6515-01-130-3798

6515-01-130-3799, 6515-01-130-3800, 6515-01-130-3801, 6515-01-130-4030, 6515-01-130-4454

Technical Data | NSN 6515-01-130-3798

Characteristic Specifications
DESIGN DESIGNATION HARRIS
STYLE DESIGNATOR E4 DOUBLE LUMEN DUODENAL TUBE WITH BALLOON
NOMINAL DIAMETER 5.0 MILLIMETERS
OVERALL LENGTH 13.000 INCHES NOMINAL
INSIDE DIAMETER 6.0 MILLIMETERS NOMINAL
MATERIAL AND LOCATION PLASTIC OVERALL
TIP TYPE CURVED
CONNECTOR TYPE LUER LOCK HUB
CORE FABRICATION METHOD ANY ACCEPTABLE
UNIT PACKAGE QUANTITY 12
UNIT PACKAGE TYPE PACKAGE
SPECIAL FEATURES INFLATABLE CUFF; CERVICAL SAFETY DISC; COMPRESSION SPRING; ADJ STOP F/DEPTH SETTING ON DISTAL END; PRESSURE SENSITIVE PILOT BALLOON ASSY ON PROXIMAL END; F/USE IN INTRODUCING DYE,CONTRAST MEDIA,GAS INTO UTERINE CAVITY AND OTHER GYNECOLOGICAL PROCEDURES; INDIVIDUALLY SEALED
III EXTERIOR CONTAINER QUANTITY 10
III UNIT OF ISSUE WEIGHT 2.10 POUNDS
III EXTERIOR CONTAINER WEIGHT 18.00 POUNDS
III UNIT OF ISSUE CUBE 0.060 CUBIC FEET
III EXTERIOR CONTAINER CUBIC MEASURE 0.240 CUBIC FEET
III PART NAME ASSIGNED BY CONTROLLING AGENCY MANIPULATOR INJECTOR UTERINE HARRIS 13" LG 6MM ID CRVD TIP DISP 12S

Restrictions/Controls & Freight Information | NSN 6515-01-130-3798

Category Code Description
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Category Code Description
No Freight Information
