NSN 6515-01-243-0510 502502, 502-502, 01-243-0510
Product Details | PERCUTANEOUS ENTRY NEEDLE
6515-01-243-0510 A sterile, disposable item designed to be used for arterial and venous puncture procedures.
Part Alternates: 502502, 502-502, 6515-01-243-0510, 01-243-0510, 6515012430510, 012430510
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 21 OCT 1986 | 01-243-0510 | 46154 ( NEEDLE, PERCUTANEOUS ENTRY ) |

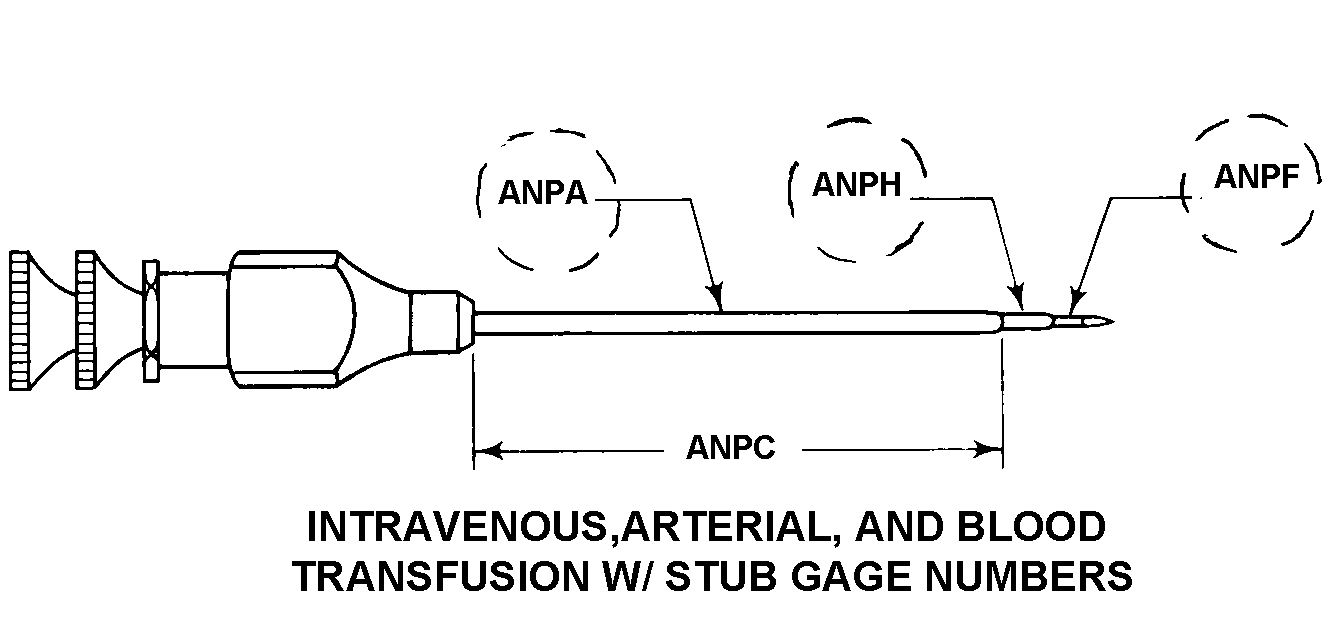

Drawings & Photos | NSN 6515-01-243-0510
Cross Reference | NSN 6515-01-243-0510
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 502-502 | 21791 | CORDIS CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-01-243-0510
Technical Data | NSN 6515-01-243-0510
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C18A INTRAVENOUS, ARTERIAL, AND BLOOD TRANSFUSION |
| CANNULA LENGTH | 2.750 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, STAINLESS OVERALL |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 18 GAGE CANNULA |
| CANNULA WALL THICKNESS DESIGNATION | THIN |
| UNIT PACKAGE QUANTITY | 10 |
| SPECIAL FEATURES | ONE PIECE, MAXIMUM GUIDEWIRE DIAMETER - .038 INCHES |
Restrictions/Controls & Freight Information | NSN 6515-01-243-0510
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | X | more than 60 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
