NSN 6515-01-344-1122 F91F348, 91-7-10-22 FS , 9171022FS
Product Details | HYPODERMIC NEEDLE
6515-01-344-1122 A cannulated item used for aspirating or injecting fluids into body tissue.
Part Alternates: F91F348, 91-7-10-22 FS , 9171022FS, 405012, 6515-01-344-1122, 01-344-1122, 6515013441122, 013441122
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 23 AUG 1991 | 01-344-1122 | 07252 ( NEEDLE, HYPODERMIC ) |

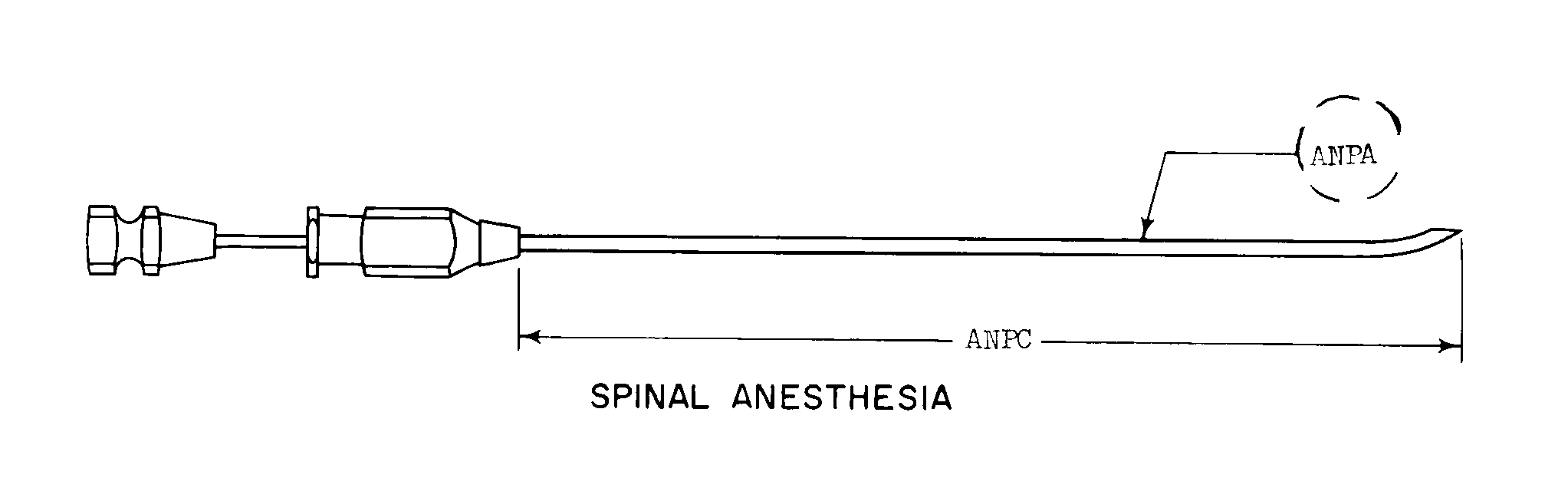

Drawings & Photos | NSN 6515-01-344-1122
Cross Reference | NSN 6515-01-344-1122
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 405012 | 67826 | BECTON-DICKINSON DIV BECTON DICKINSON AND CO |
| 405012 | K6401 | BECTON DICKENSON UK LTD MEDICAL PRODUCTS DIVISION |
| 91-7-10-22 FS | 66732 | DEPARTMENT OF THE ARMY U S ARMY MEDICAL MATERIAL AGENCY |
| F91F348 | 66732 | DEPARTMENT OF THE ARMY U S ARMY MEDICAL MATERIAL AGENCY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6515-01-344-1122
Related Products | NSN 6515-01-344-1122
Technical Data | NSN 6515-01-344-1122
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | ANESTHESIA AND SPINAL |
| STYLE DESIGNATOR | C22 SPINAL ANESTHESIA |
| CANNULA OUTSIDE DIAMETER | 0.020 INCHES NOMINAL |
| CANNULA LENGTH | 3.500 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, STAINLESS OVERALL |
| NEEDLE CANNULA GAGE DESIGNATION AND LOCATION | 25 GAGE OVERALL |
| HUB TYPE | LUER LOCK |
| CANNULA WALL THICKNESS DESIGNATION | REGULAR |
| UNIT PACKAGE QUANTITY | 50 |
| UNIT PACKAGE TYPE | PACKAGE |
| SPECIAL FEATURES | WHITACRE PENCIL POINT DESIGN; REDUCES POSTSPINAL HEADACHES; SEPARATES DURAL FIBERS RATHER THEN CUTTING; MINIMIZES CEREBROSPINAL FLUID LEAKAGE; FACILITATES RAPID CLOSURE OF THE DURAL PUNCTURE SITE; 25 GAGE |
Restrictions/Controls & Freight Information | NSN 6515-01-344-1122
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6515-01-344-1122
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | JDC | |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
