NSN 6515-01-416-6680 497520, 01-416-6680, 014166680
Product Details | CARDIOVASCULAR CATHETER
6515-01-416-6680 A disposable item designed to be used either intra-arterially and/or intravenously for delivering radiopaque media to selected sites in the vascular system as in angiography.
Part Alternates: 497520, 6515-01-416-6680, 01-416-6680, 6515014166680, 014166680
Medical, Dental, and Veterinary Equipment and Supplies | Medical and Surgical Instruments, Equipment, and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 65 | 24 JUL 1995 | 01-416-6680 | 33294 ( CATHETER, CARDIOVASCULAR ) |

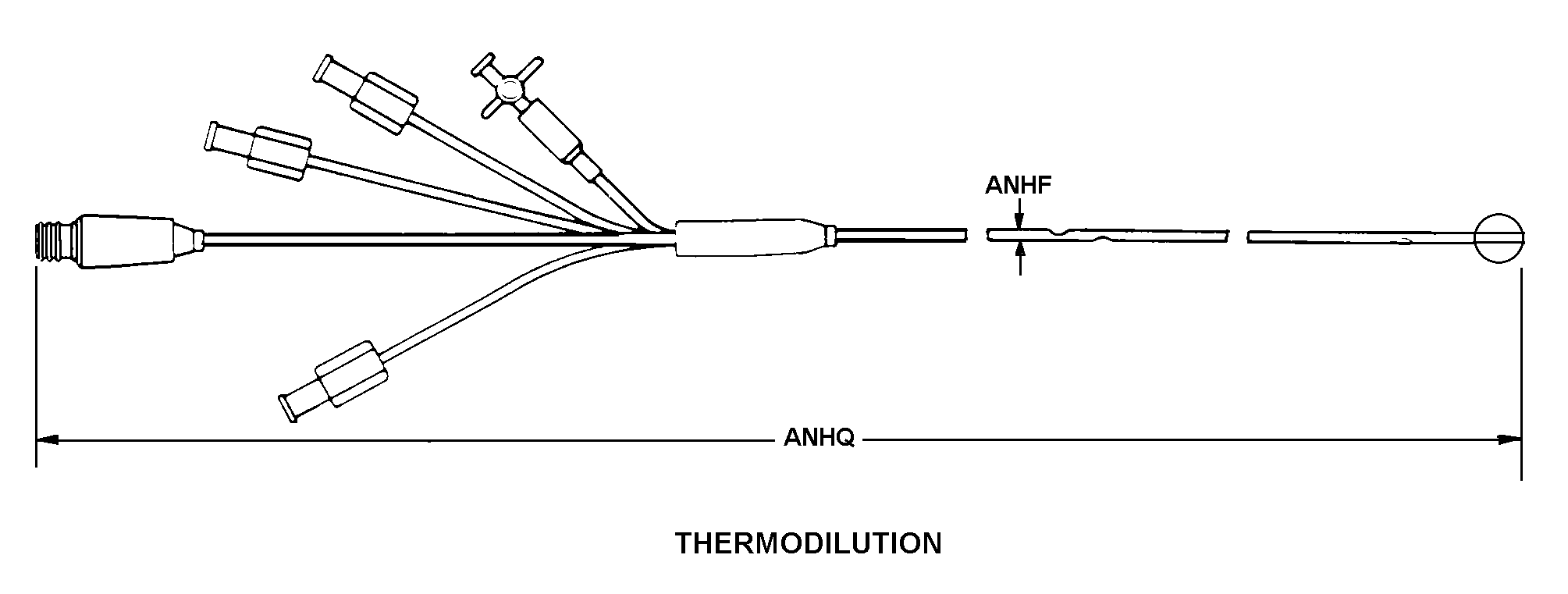

Drawings & Photos | NSN 6515-01-416-6680
Cross Reference | NSN 6515-01-416-6680
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 497520 | 4W446 | MAXXIM MEDICAL INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6515-01-416-6680
Technical Data | NSN 6515-01-416-6680
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | THERMODILUTION |
| STYLE DESIGNATOR | D25 THERMODILUTION |
| NOMINAL DIAMETER | 7.500 GAGE |
| CATHETER NOMINAL LENGTH | 110.000 CENTIMETERS |
| INSIDE DIAMETER | 7.500 MILLIMETERS NOMINAL |
| MATERIAL AND LOCATION | PLASTIC, POLYVINYL CHLORIDE OVERALL |
| LUMEN PASSAGE QUANTITY | 5 |
| TIP TYPE | ROUND |
| CORE FABRICATION METHOD | ANY ACCEPTABLE |
| UNIT PACKAGE QUANTITY | 5 |
| UNIT PACKAGE TYPE | PACKAGE |
| FEATURES PROVIDED | DISPOSABLE AND STERILE AND X-RAY OPACITY |
| SPECIAL FEATURES | 1.5 CC BALLOON INFLATION CAPACITY; 12 MM INFLATED BALLOON SIZE; 29 CM DISTANCE FROM INJECTATE PORT TO DISTAL TIP; 3.5 CM DISTANCE FROM THERMISTOR TO DISTAL TIP; 31 CM DISTANCE FROM MEDICATION/PACING PORT TO DISTAL TIP; 14 K THERMISTOR RESISTANCE; 32 HZ NATURAL FREQUENCY |
Restrictions/Controls & Freight Information | NSN 6515-01-416-6680
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
